Water Heating Zigbee Thermostat

Zigbee Room Control for Water Underfloor Heating

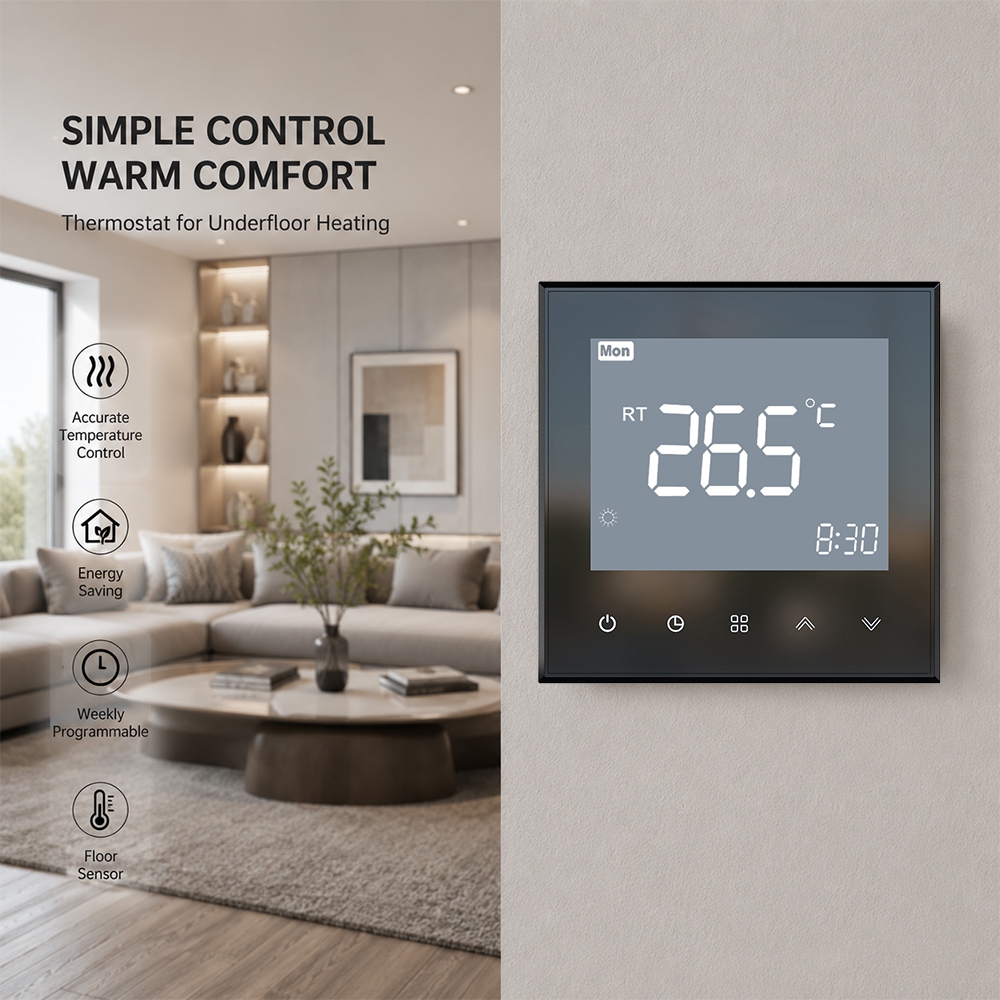

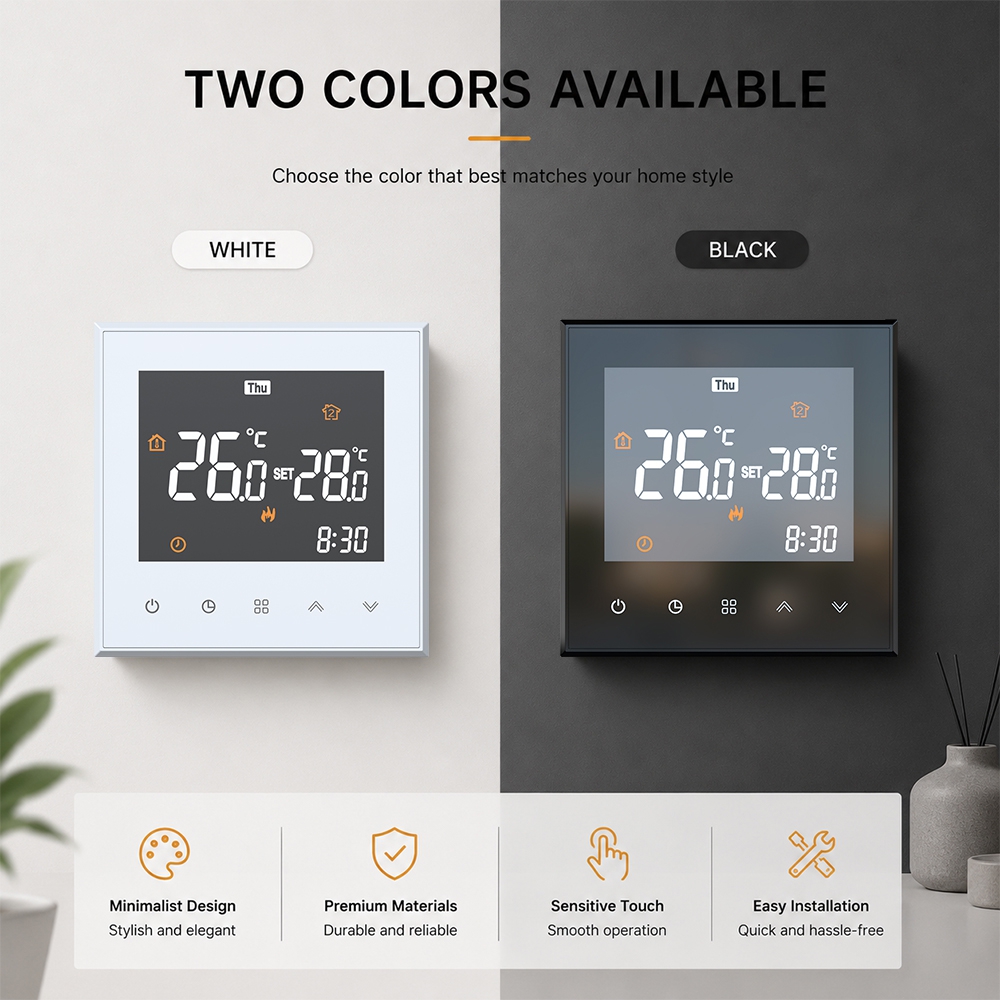

Toupwell water heating Zigbee thermostats combine local temperature control with connected heating management for homes, apartments, villas and hotel projects. Choose from the TP501, TP505, TP528, TP538 and TP909 series to match your installation and product range.

As part of our Water Underfloor Heating Thermostat range, these models offer programmable heating schedules, touch controls and Tuya ecosystem connectivity, with OEM and ODM options for heating brands and distributors.

Key Features

Connected Heating Management

Use a compatible Zigbee gateway and the supported Tuya or Smart Life setup to access connected functions. Confirm the gateway model, app features and firmware compatibility before specifying a system.

Weekly Programming

Set heating times and temperatures around occupancy. The range includes 5+1+1 weekly programming, allowing separate schedules for weekdays, Saturday and Sunday.

Everyday Operating Functions

● Touch controls and LCD displays for local operation.

● Child lock to restrict accidental setting changes.

● Antifreeze settings for low-temperature heating operation.

● Power-off memory to retain configured settings.

● Manual and programmable operating options.

Water Heating Zigbee Thermostat Specifications

Item	Available Specification
Application	Hydronic underfloor heating room control
Power supply	95–240VAC, 50/60Hz; separate 24V versions available
Listed controlled load	5A; confirm load type and output configuration for the selected model
Temperature setting range	5–60°C; operating settings must suit the heating installation
Programming	5+1+1 weekly schedule
Sensor	NTC 10k, B3977; external sensor availability depends on configuration
Installation	Options for 86-type boxes and European 60mm mounting arrangements; verify dimensions
Communication	Zigbee; compatible gateway required for connected app functions

Confirm the final datasheet, wiring diagram and sensor configuration for the exact model ordered.

Match the Thermostat to Your Heating System

Check the Actuator and Wiring Center

Match the thermostat output to the actuator voltage, control method and total connected load. For multi-zone installations, compatible wiring centers can organize thermostat and manifold actuator connections.

Confirm the Gateway

Zigbee communication does not guarantee compatibility with every hub. Provide your proposed gateway and platform so the thermostat combination can be checked before a bulk order.

Select the Sensor Configuration

Confirm whether the project needs room sensing only or an external floor sensor. Where floor-temperature limitation is required, specify a configuration that supports it and follow the flooring manufacturer’s temperature limits.

OEM & ODM Support from Toupwell

Toupwell brings over 17 years of HVAC temperature control experience to thermostat supply and development. Our OEM and ODM services include logo printing, housing colors, packaging, manuals and agreed firmware, interface or hardware changes.

Our production process includes SMT, AOI inspection, assembly and product-dependent aging tests. Applicable CE, RoHS and other documentation should be confirmed for the selected model and destination market.

Frequently Asked Questions

Does Zigbee mean the thermostat needs no wiring?

Zigbee provides the communication link. The thermostat still requires the specified power supply and the appropriate electrical connections to the heating controls.

Can one thermostat control several rooms independently?

Independent zones require suitable room sensing and zone controls. A gateway can provide access to multiple compatible thermostats, while each zone’s wiring and actuator arrangement must be specified separately.

Is a floor sensor included?

Sensor availability and package contents depend on the model. Confirm the external sensor option and supported control modes when requesting a quotation.
