OEM ODM Zigbee Hydronic Heating Thermostat for Water Underfloor Heating

This model is reliable Zigbee thermostat specially developed for hydronic underfloor heating systems. It is featuring Tuya App integration, a round

VA LCD display, programmable heating schedules, child lock, energy-saving modes, and stable Zigbee communication for seamless smart home automation.

 Technical Data

  Features

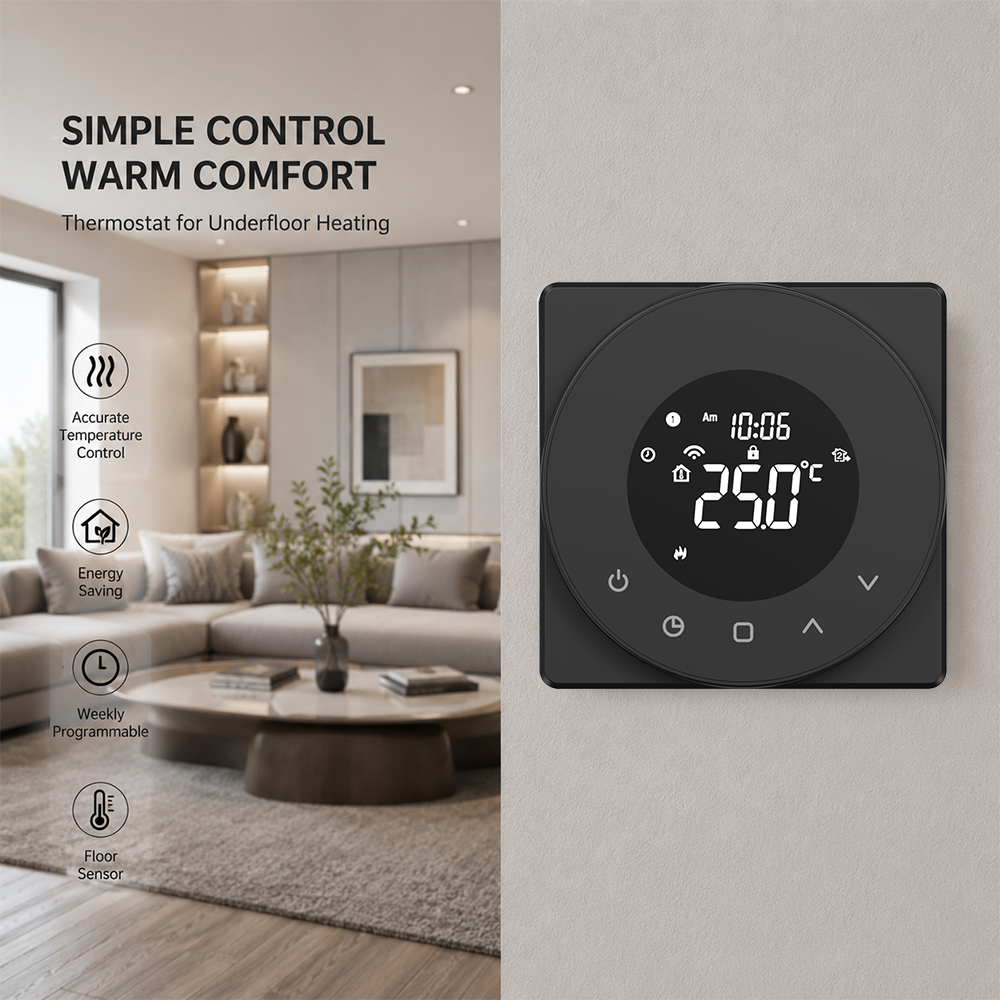

◆Round Type Display More modern

It is a design similar like nest thermostat display.Round display LCD looks more modern

◆Child lock

This thermostat provide child lock press up and down button to select.

◆Weekly Programmable Function

This thermostat provide 7days programmable funciton,You can set your target temperature and time as you need.

◆Ultra-Slim Design — 86×86×13.3mm

At just 13.3mm thick, this thermostat sits nearly flush against the wall surface. The compact 86×86mm footprint fits standard pattress

boxes in most countries without wall modifications.

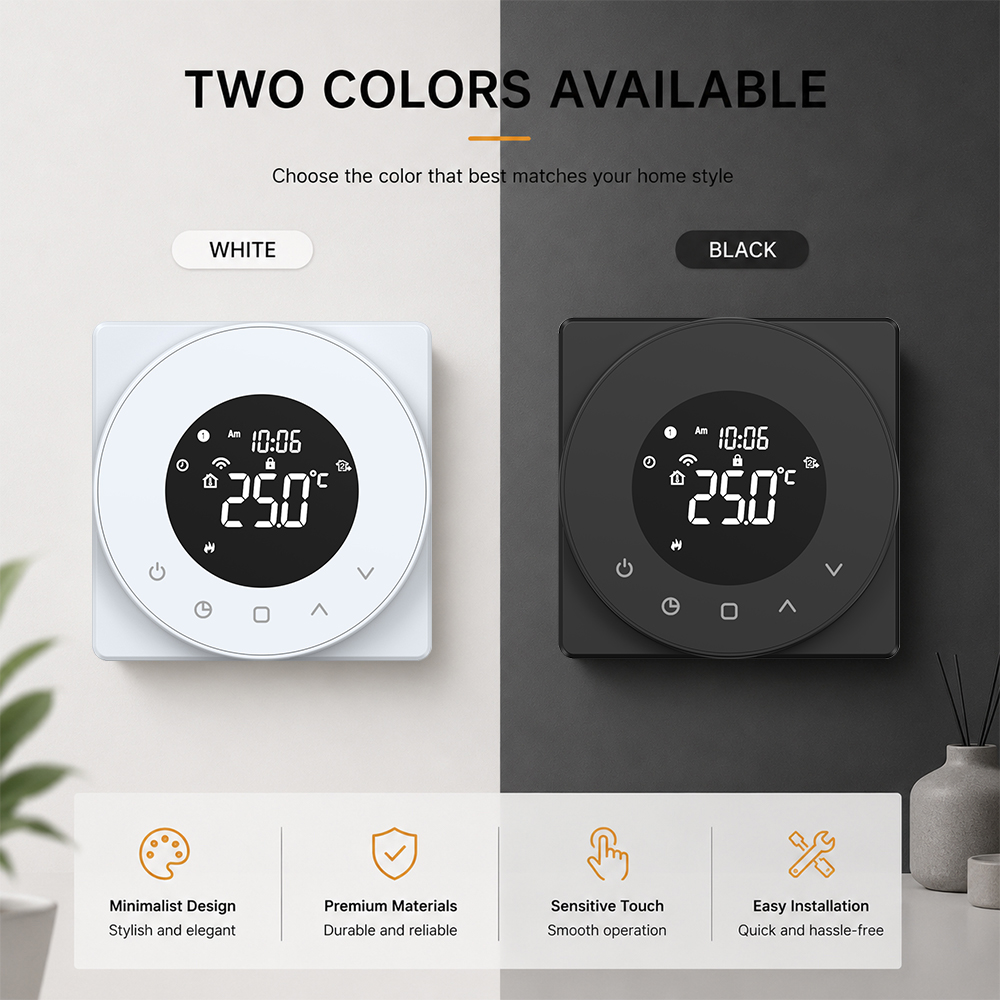

◆Premium Acrylic Face Plate with Chrome Frame

The scratch-resistant acrylic front panel resists yellowing over time, while the polished chrome border adds a modern, elegant finish that

elevates any room's interior design.

◆Large Backlit LCD Display with Adjustable Brightness

The high-contrast LCD screen features configurable backlight brightness (1–100 levels), ensuring clear visibility in full darkness or direct

sunlight. All key information — room temperature, floor temperature, set temperature, time, mode, WiFi status, and lock indicator — is visible at a glance.

◆Feather Touch Capacitive Control Panel

Smooth glass-like capacitive touch buttons with no mechanical moving parts — silent operation, no dust-trapping button gaps, no click

wear over years of daily use.

  Application

◆Hotel underfloor heating system  ◆Villa hydronic heating control  ◆Building heating control system  ◆Apartment heating control system  ◆Smart home heating control

 FAQ

1. How do I calibrate my thermostat if the displayed temperature is wrong?

Enter the configuration menu (usually by long-pressing a button for 7 seconds while powered off), locate the calibration setting (Function No. 1), and adjust from -9°C to +9°C. For example, if the thermostat displays 22°C but the actual room is 21°C, set calibration to -1°C.

2. What is "dead zone" or "switching differential"?

The dead zone (also called hysteresis or differential) is the temperature gap between when the heating turns off and when it turns back on. For example, with a set point of 22°C and a dead zone of 1°C: heating stops at 22°C and restarts at 21°C. A smaller dead zone gives tighter comfort but more frequent cycling; a larger value reduces cycling at the cost of slight temperature variation.

3. Can the thermostat work on both 110V and 220V power supplies?

Yes, thermostats with a 95–240 VAC, 50/60 Hz power specification work on any mains voltage worldwide — covering 100V (Japan), 110–120V (North America), and 220–240V (Europe, Asia, Africa). No transformer or voltage converter is needed.

TEMPERATURE CONTROL & SENSORS

4. What is anti-freeze protection and why is it important?

Anti-freeze protection automatically turns on the heating if the room temperature drops to a dangerously low threshold (configurable 2–10°C). This prevents water pipes from freezing and bursting during winter when the property is unoccupied. It is critical for holiday homes, rental properties, and buildings in cold climates.

5. What is child lock and how does it work?

Child lock disables all touch buttons on the thermostat to prevent children or guests from accidentally changing settings. Activate by pressing and holding the designated button for 7 seconds. Some models offer a configurable lock mode where the power button remains functional while all other buttons are locked.
