Application System:2pipe/4pipe Fan Coil Unit System

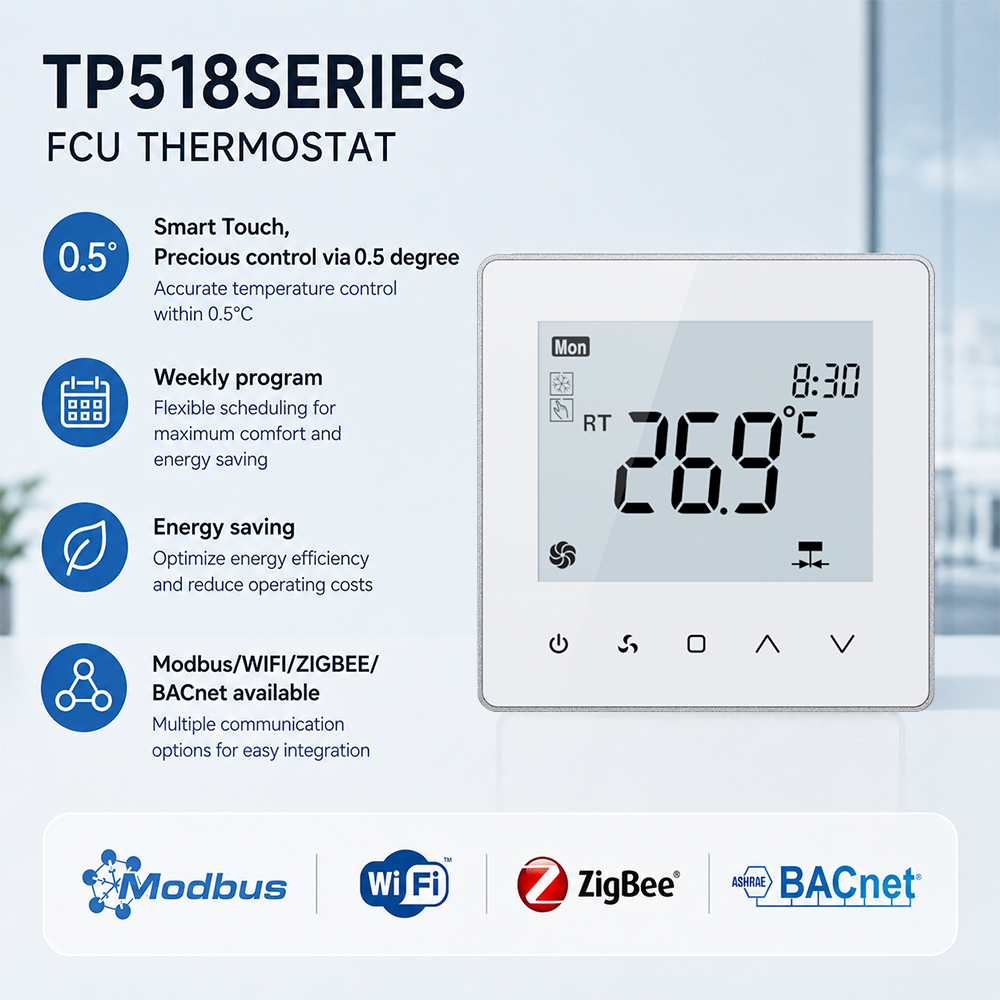

Model:TP518
●Valve control via 2-point(on/off output) or 0…10 V output
●Supports with EC motor
●Non-Volatile memory to keep program settings and setpoints during a power outage
●7 days 4 perioods programmable (Optional)
●Child Lock
●Modbu RS485
●External Sensor (Optional)
●Keycard (Optional)
●WIFI Remote Control (Optional)
●BACnet Communication (Optional)
●Zigbee (Optional)
This Zigbee smart fan coil thermostat is designed for modern HVAC applications, providing wireless control of fan coil units through Zigbee communication.
Combined with a Zigbee gateway, users can remotely manage room temperature, fan speed and HVAC modes through a mobile APP.
Such touch modbus FCU thermostat detects the room temperature with its integrated temperature sensor and compares it with the setpoint temperature.
In the event of a deviation, the heating valve is opened in heating mode, and the cooling valve is opened for cooling mode. At the same time, the connected
fan is activated depending on the control deviation and the set configuration. A connectable remote sensor can be used either for detecting the room
temperature or as a changeover sensor in 2-pipe system or 4 -pipe system.
To better intergrate with smart home system, this smart fcu thermostat also workable with tuya wifi. By connecting tUYA Zigbee 3.0 router
this intelligent fcu thermostat will be controlled from anytime anywhere.
Technical Data
| Features | Parameters |
| Application | 2pipe/4Pipe Fan Coil Unit System |
| Power | AC95- 240V/24V option, 50/ 60Hz |
| Valve Control Signal | On/Off or 0-10V |
| Mode | Programmable/Manaul Mode optional |
| Temperature Accuracy | +/-0.5℃ |
| Control Temperature Range | 5~35℃ |
| Timmer function | 2perids available |
| Fan | 3speed fan/EC motor 0-10V Fan |
| Current Load | Induction for fan: 3A, Resistive for fan: 5A |
| Memory Function | YES |
| Housing | PC anti fire |
| IP Class | IP20 |
| Sensor | NTC 10k 3977 |
| Installation Hole distance | 86box/60mmEurope standard round box |
| Dimension | 86x86x14mm |
Features
◆Zigbee wireless communication
◆Tuya /Smart life APP remote control
◆Compatible with Zigbee gateway
◆Fan coil unit control
◆Heating, cooling and ventilation modes
◆Fan speed adjustment (Auto/High/Medium/Low)
◆Energy-saving temperature management
Application
◆Hotel HVAC System ◆Apartments HVAC System ◆Hospital BMS System
◆School HVAC System ◆Shopping Mall HVAC System ◆Villa HVAC System
FAQ
1.Can this thermostat work with Modbus?
Yes.We provide Modbus option.
2.Can your thermostat control 3-speed fan motors?
Yes.
3.Can your FCU thermostat control motorized valves?
Yes.No matter 2wires or 3wires motorized valve.Our FCU thermostat could handle it.
4.Can you print my brand on thermostat?
Yes.MOQ500PCS free to print
5.Can you develop based my requirements?
Yes.ODM services MOQ1000PCS
6.What’s the delivery for bulk order?
Normally 10-30days.Depends on our production reply.
