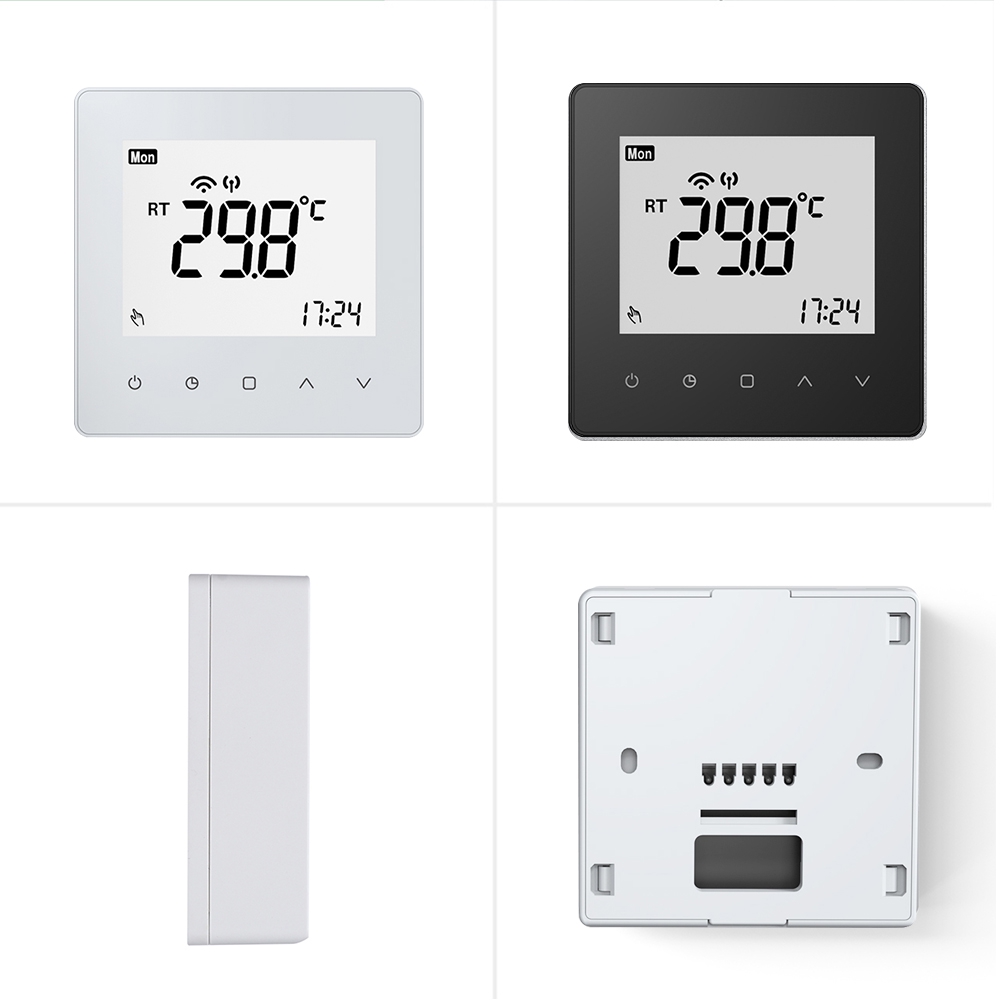

Wireless Thermostat for Underfloor Heating and Radiator Contro

The TOUPWELL TP608RF-TR is a wireless thermostat It can replace most common residential thermostat and is designed to be used with radiator and water radiant heating control system. Unlike ordinary single unit design thermostat, this unit is 868Mhz radio frequency to communicate with wireless wiring center TPX08RF.and single Receiver .The distance over 150M in the open air.It can be used to control boilers,thermal actuators,motorized valves etc.Users can adjust temperatures, select operating modes, configure weekly schedules

  Features

◆868MHz RF communication with the TPX08-RF wiring centre

◆Suitable for radiator and hydronic underfloor heating systems

◆Selectable radiator or UFH operating mode

◆Battery-powered design using 2 × AA batteries

◆Large LCD with backlight

◆Acrylic front panel

◆Elegant chrome-effect frame

◆Feather-touch control buttons

◆Four programmable periods per day

◆5+1+1 weekly programming schedule

◆Manual, Program and ECO operating modes

◆Temporary temperature override

◆Holiday mode with adjustable days and temperature

◆Child-lock function

◆Anti-freeze protection

◆Low-battery warning

 Applications

◆Hydronic underfloor heating systems

◆Radiator heating systems

◆Multi-zone water heating installations

◆Wireless heating systems using TPX08-RF

◆Apartments and condominiums

◆Villas and family houses

◆Small hotels and guesthouses

◆Residential renovation projects

◆Smart-home heating control

◆Room-by-room temperature management

FAQ

Q1. What heating systems can the TP608RF-TR-ZB control?

It can be configured for either radiator heating or hydronic underfloor heating. When UFH mode is selected, the compatible wiring centre can also activate its pump output with a three-minute delay.

Q2. Which wiring centre is compatible with this thermostat?

The thermostat is designed for use with the TPX08-RF wireless wiring centre.

Q3. How does the thermostat communicate with the wiring centre?

It uses 868MHz RF communication to send heating commands to the TPX08-RF wiring centre.

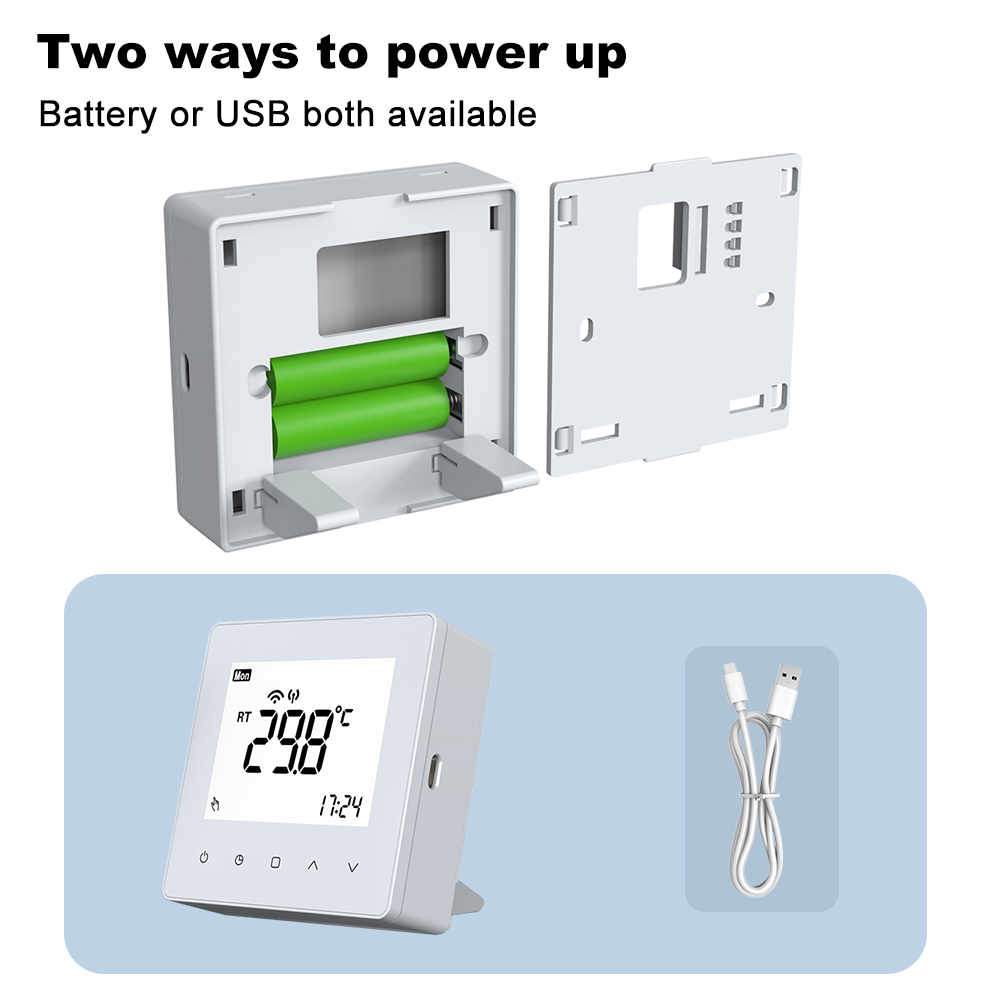

Q4. How is the thermostat powered?

It is powered by two AA batteries, making it suitable for wireless installations without a mains power cable at the thermostat location.

Q5. Can users temporarily change the temperature during a schedule?

Yes. A temporary temperature override can be made during Program mode. The thermostat returns to the preset schedule at the beginning of the next programmed period.

Q6. Does it have a child lock?

Yes. The thermostat includes a button-lock function. Depending on the configuration, all buttons can be locked or the power button can remain available.

Q7. What happens when the batteries are low?

A low-battery symbol appears when battery power drops to approximately 10%. When the batteries are nearly exhausted, the symbol flashes and RF communication may stop, indicating that the batteries should be replaced immediately.

Q8. Does it provide anti-freeze protection?

Yes. When anti-freeze protection is enabled, heating switches on when the detected room temperature falls to approximately 5°C and switches off when it reaches approximately 8°C.
