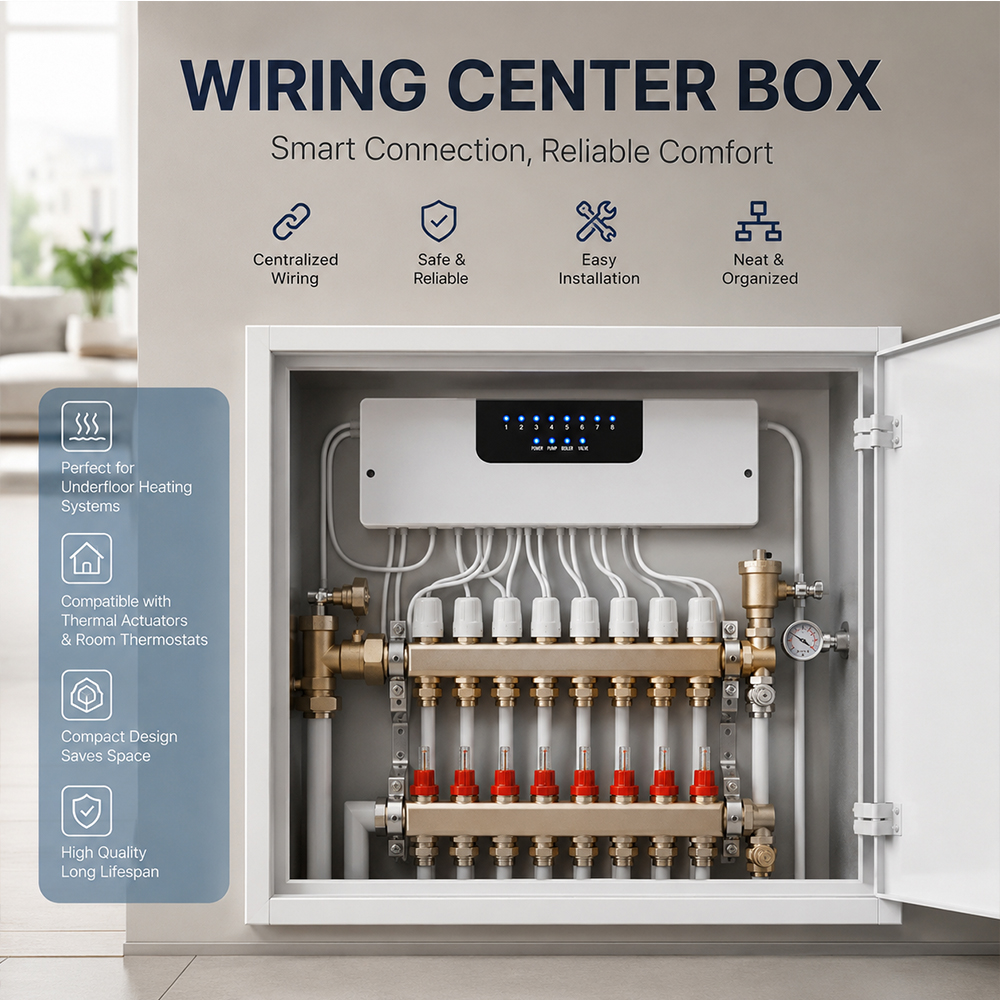

8 Zone Underfloor Heating Wiring Centre
Model：TPX08
· Controls up to 8 independent heating zones
· Designed for 230V hydronic underfloor heating systems
· Compact wiring solution for residential heating projects
· Built-in LED indicators for real-time zone status
· Independent boiler relay output (Volt Free)
· Dedicated pump control with adjustable delay
· Selectable 3–5 minute pump overrun or instant operation
· Supports room thermostats and thermal actuators
· Compatible with external timer control
· Wide input voltage: 95–240VAC 50/60Hz
· Maximum relay output: 3A
· 10A replaceable fuse protection
· Wall mounting or DIN rail installation
· Ideal for new heating installations and retrofit projects
Our Wired underfloor heating wiring centres have been designed to simplify the wiring process. Using our wiring centres in your application means that the actuator,
boiler and pump connections are wired from a single point. TPX08 is used in conjunction with our cable thermostat TP501/TP528/TP538/TP908/TP818
8 zones can be controlled as well as providing an output for circulation pump and boiler. Up to 5 thermal actuators can be connected to each zone.
Technical Data
| Features | Parameters |
| Power Supply | 8 Zones Wired Wiring Centre Control box for Underfloor Heating System |
| Power Supply | 230Vac |
| Boiler Output | Voltage-free |
| Pump Output | 3A |
| Max. Current | 5(2) A for each |
| Frequency | N/A |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Protection Class | IP20 |
| Thermostat Dimension | 285mm x 110mm x 43.5mm |
| Materils | PC Anti fire |
| Certificate | CE(RED/EMC/LVD), Rohs |
Features
◆Supports 8 independent heating zones
◆Designed for 230V hydronic underfloor heating systems
◆Centralized wiring for thermostats and actuators
◆Independent boiler interlock control
◆Independent pump interlock control
◆Built-in zone LED indicators for quick status monitoring
◆Adjustable pump delay (3–5 minutes) or no delay selectable
◆Volt-free boiler relay output
◆Compatible with programmable room thermostats
◆Supports external timer connection
◆DIN rail or wall mounting installation
◆Easy cable entry with knock-out design
◆95–240VAC wide voltage input
◆Maximum relay output: 3A
◆Built-in 10A fuse protection
Application
◆The TPX08 is suitable for a wide range of heating installations, including:
◆Residential underfloor heating systems
◆Villas
◆Apartments
◆Hotels
◆Offices
◆Commercial buildings
◆Multi-zone radiant floor heating
◆Water-based (hydronic) heating systems
◆Heating manifolds with thermal actuators
◆Boiler and circulation pump control systems
FAQ
Q1. How many heating zones can the TPX08 control?
It supports up to 8 independent heating zones, allowing each zone to operate separately.
Q2. What heating system is it designed for?
The TPX08 is designed for 230V hydronic underfloor heating systems with thermal actuators, thermostats, boilers and circulation pumps.
Q3. Does it support boiler control?
Yes. The wiring centre includes a volt-free boiler relay output (COM/NO) for boiler interlock control.
Q4. Can it control the circulation pump?
Yes. It provides dedicated pump control with an adjustable 3–5 minute delay or no delay option.
Q5. What power supply does it require?
The TPX08 operates with AC24V or 95–240VAC, 50/60Hz
