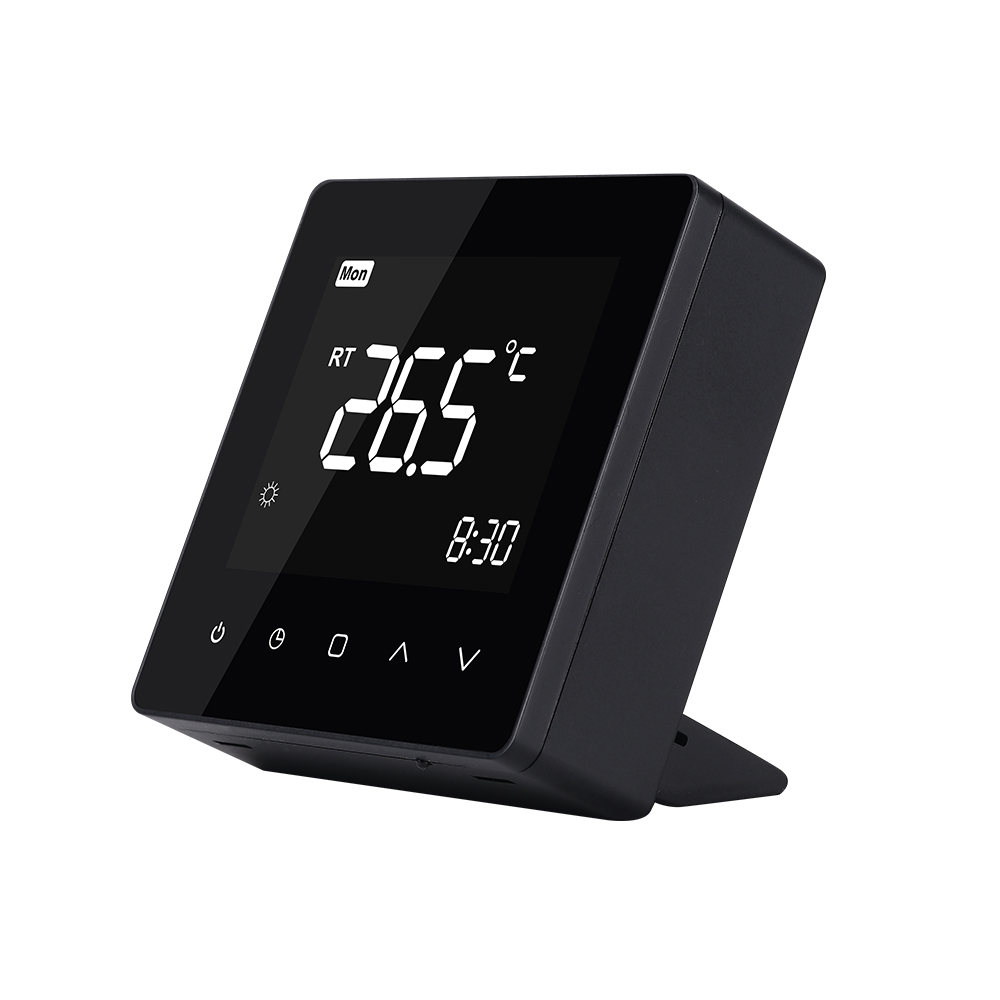

OEM Battery Powered Room Thermostat for Gas Boiler Heating

Systems

An ideal OEM/ODM Thermostat for European heating brands, this wired room thermostat offers high-precision control, easy touch-button

operation, low battery reminder, configurable temperature limits, and dependable battery-powered performance. Suitable for gas and

hydronic heating systems requiring stable, energy-efficient temperature management.

 Technical Data

  Features

◆Large Backlit LCD Display

Easy-to-read large LCD screen with backlight ensures clear visibility both day and night.

◆Sensitive Touch Button Control

Modern touch-sensitive buttons provide smooth, intuitive, and user-friendly operation.

◆5+1+1 Weekly Programming

Thermostat provides 5+1+1 weekly scheduling with six programmable periods per day for maximum energy savings and comfort.

◆Battery Powered Design

Powered by two AA batteries for flexible installation without requiring a mains power supply.

◆Child Lock Protection

Built-in child lock prevents accidental operation and protects thermostat settings

◆Low Battery Reminder

LCD displays a low battery warning, reminding users to replace batteries in time for reliable operation.

 FAQ

1.What is a room thermostat and how does it work?

A room thermostat is a temperature-sensing device that controls your heating system by comparing the actual room

 temperature against your desired set temperature. When the room temperature drops below the set point, the

thermostat sends a signal to turn the heating on; when the target is reached, it switches the heating off. This cycle

maintains a consistent, comfortable indoor climate.

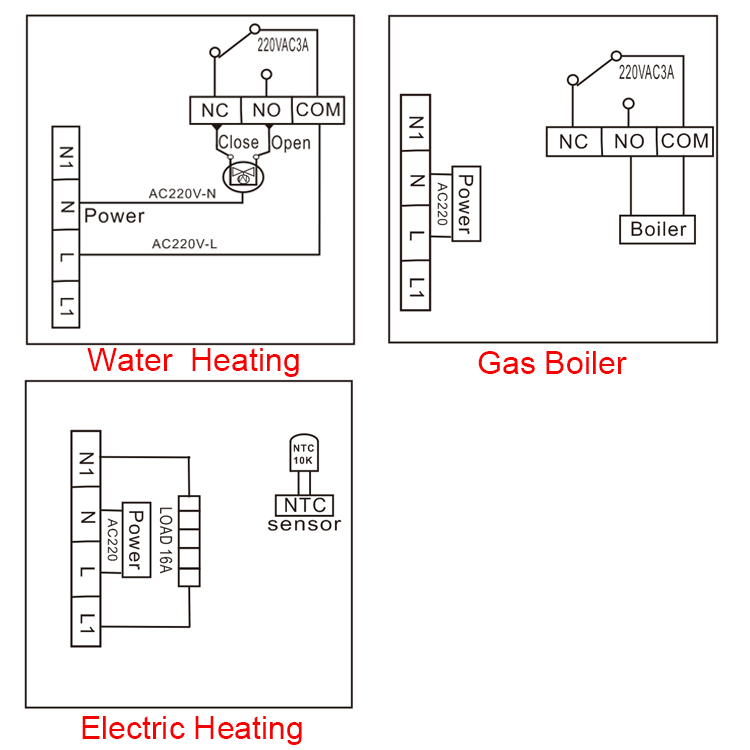

2.What types of heating systems can a room thermostat control?

Modern room thermostats can control electric underfloor heating, water-based (hydronic) underfloor heating,

water radiator systems, and gas boilers. Some models support all three types from a single unit, selected via wiring configuration.

3.What type of battery can this thermostat use?

It need use 2AA battery to power up or type-C USB to power up

4.Where to locate the thermostat?

Normally it is locate on the wall use wires connect with gas boiler.

5.Can you print my logo/brand on thermostat?

Yes.We can print your logo free when qty meet MOQ500PCS

6.Can you ODM the LCD for us?

Yes.MOQ1000PCS
