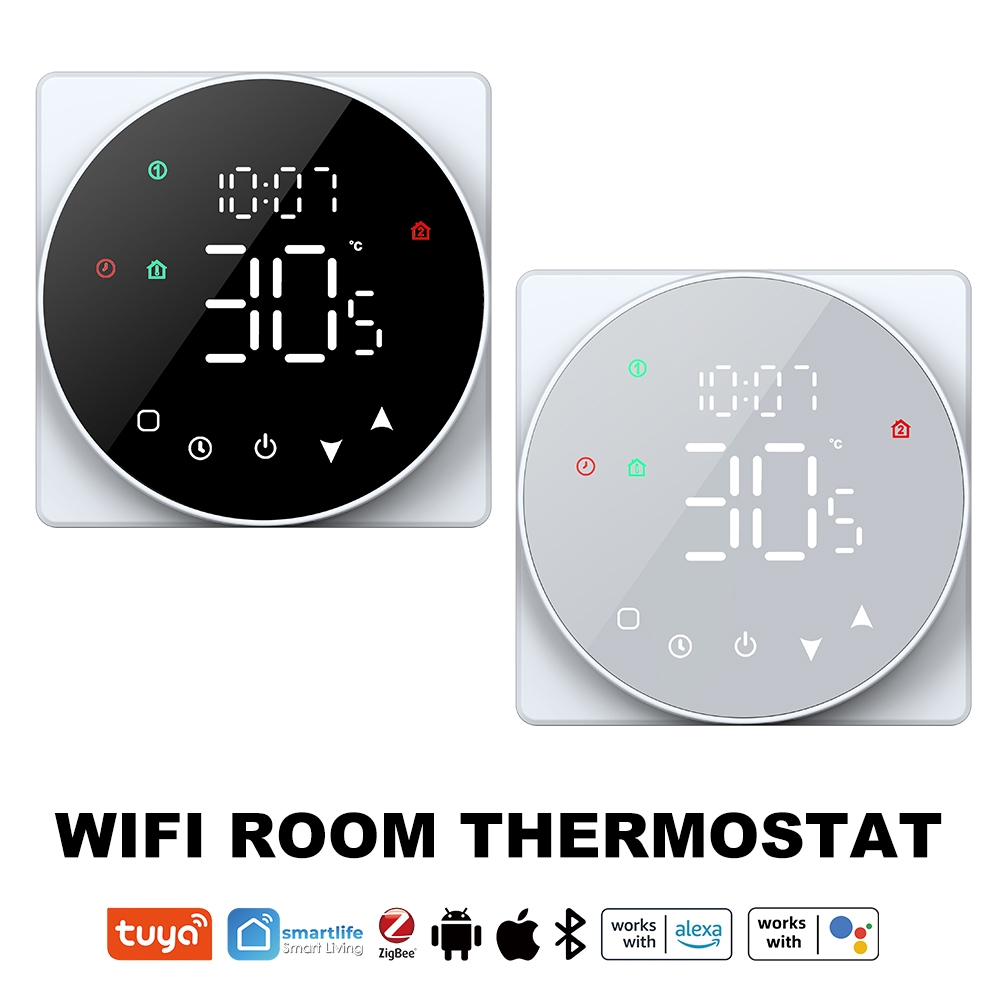

TP908WHPW Smart LED display Hydronic Heating Thermostat
TP908WHPW Smart LED display Hydronic Heating Thermostat
TP908WHPW Smart LED display Hydronic Heating Thermostat
TP908WHPW Smart LED display Hydronic Heating Thermostat
TP908WHPW Smart LED display Hydronic Heating Thermostat
TP908WHPW Smart LED display Hydronic Heating Thermostat
TP908WHPW Smart LED display Hydronic Heating Thermostat
TP908WHPW Smart LED display Hydronic Heating Thermostat
TP908WHPW Smart LED display Hydronic Heating Thermostat
TP908WHPW Smart LED display Hydronic Heating Thermostat

TP908WHPW Smart LED display Hydronic Heating Thermostat

Application: Water Underfloor Heating System/Hydronic Underfloor Heating System

Model:  WIFI version model

            TP908WHPW-B(Black) / TP908WHPW-W(White)

            TP908WHPW-B-24V(Black)/ TP908WHPW-W-24V(White)

*UL 94V0 PC anti fire housing to make sure saftely

*LED colorful Display

*Weekly program each day 6periods energy saving for you

*China TOP1 relay to make sure thermostat 100,000 lifetime

*Data memory even power off

*Control accurancy 0.5°C,Measure Temperature accurancy:0.1°C

*WIFI/ZIGBEE/MODBUS flexiable communication way for you select

*Tuya/Smart life app to control your thermostat anywhere

*White/Black/ODM color

*CE/ROHS/UKCA approved

  • Description

    Smart LED display Hydronic Heating Thermostat with WiFi APP & Weekly Schedule

    TP908 is a smart heating thermostat.It is design with LED colorful display with accurate temperature control.It also has programmable timer function 6perios set temp and time each time, and voice assistant compatibility. It is suitable for homes, offices ,light commercial and smart home projects.


     Technical Data

    FeaturesParameters
    ApplicationWater Heating System
    PowerAC95- 240V/24V option, 50/ 60Hz
    Controlled Load5A
    ModeProgrammable/Manaul Mode optional
    Temperature Accuracy+/-0.5℃
    Temperature Range5~60℃
    Programmable function5+1+1 Weekly Program
    Button Lock FunctionYES
    Antifreeze FunctionYES
    Memory FunctionYES
    Temperature SensorTwo Sensors(UHP model)/One senor(WHP model,GCmodel)
    External Floor Sensor Length2.5meters
    SensorNTC 10k 3977
    Installation Hole distance86box/60mmEurope standard round box
    Dimension86x86x40mm

      Features

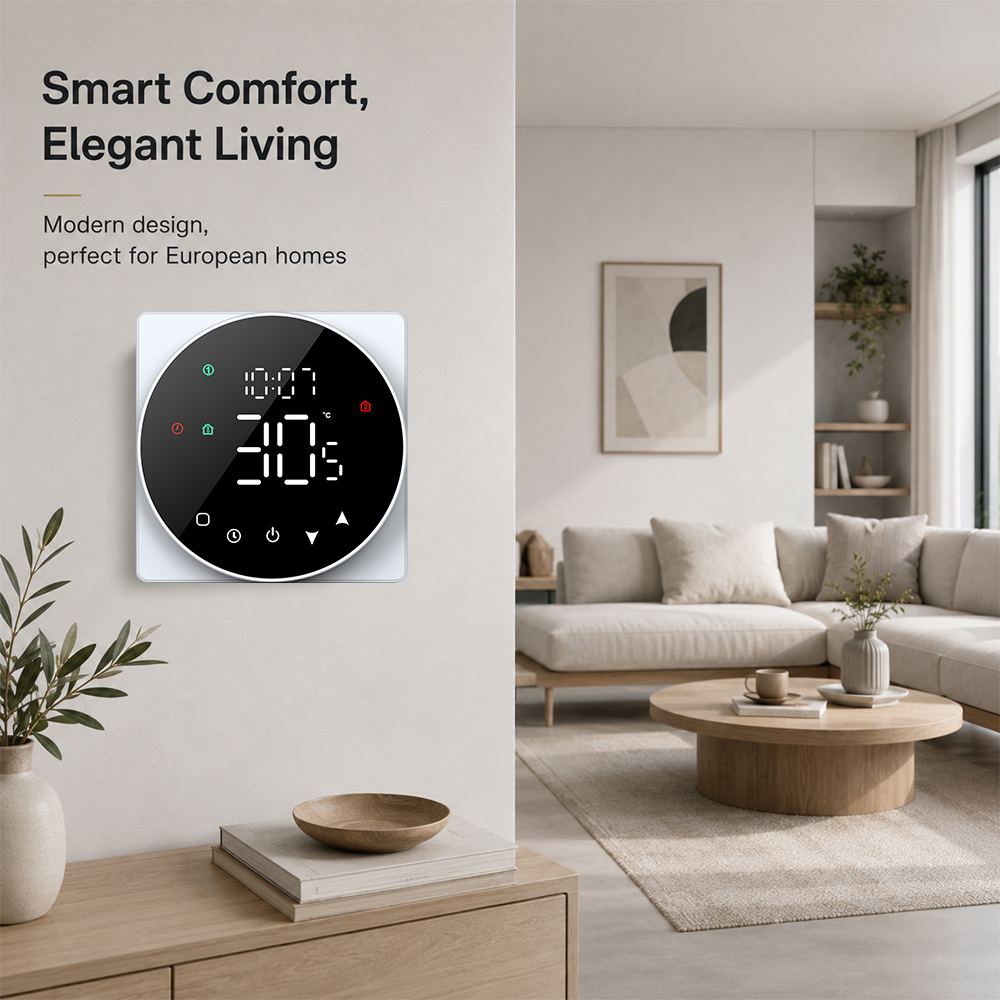

    LED Colorful Display

    It design with LED colorful light to display.It is very popular nowdays

    Display drarkness Change as you wish

    As this thermostat is LED light display.You can change the display and standby light range 0-100%

    Data Memory

    This thermostat provide data memory when power off.All of the parameters still remain the same before power off

    WIFI app control with Voice Control

    You can use Tuya app control this thermostat and It is also could connect with google assistant and Amazon Alexa

    Weekly Programmable Function

    This thermostat provide 7days programmable funciton,You can set your target temperature and time as you need.





      Application

    Hotel underfloor heating system  Villa hydronic heating control  Building heating control system  Apartment heating control system

    Smart home heating control


     FAQ

    1. What types of heating systems can a room thermostat control?

    Modern room thermostats can control electric underfloor heating, water-based (hydronic) underfloor heating, water radiator systems, and gas boilers. Some models support all three types from a single unit, selected via wiring configuration.

    2. What is the difference between a mechanical and a digital thermostat?

    Mechanical thermostats use a bimetallic strip that physically bends with temperature change and typically have a temperature swing of 2–5°C. Digital thermostats use electronic sensors (NTC thermistors) with ±1°C accuracy, offer programmable schedules, backlit displays, and smart connectivity — providing far more precise and energy-efficient control.

    3. Do I need a professional electrician to install a thermostat?

    Yes, it is strongly recommended. Thermostats connect directly to mains voltage (95–240V AC) and heating loads. Incorrect wiring can cause electrical shock, fire, or equipment damage. Always disconnect/isolate the power supply before installation and have a qualified electrician perform the work.

    4. Which app do I use to control my smart thermostat?

    The thermostat is compatible with the "Smart Life" and "Tuya Smart" apps, both available free on the Apple App Store (iOS) and Google Play Store (Android). Both apps share the same backend and offer identical functionality — choose either one.

    5. Can I control the thermostat when I am away from home?

    Yes. Once the thermostat is connected to WiFi and registered in the app, you can control it from anywhere with an internet connection: switch heating on/off, change temperature, switch modes, and adjust schedules — all remotely from your phone.

    6. Does the thermostat work with Alexa and Google Home?

    Yes, thermostats using the Tuya/Smart Life platform integrate with Amazon Alexa, Google Assistant, and Samsung SmartThings. Once linked, you can use voice commands such as "Alexa, set the living room temperature to 22 degrees" or "Hey Google, turn off the bathroom heating."
