Application: Water Underfloor Heating System/Hydronic
Underfloor Heating System
Model: TP818WHPN /TP909WHPN-24V
*UL 94V0 PC anti fire housing to make sure saftely
*Large VA ink LCD is comfort to see even during dark night
*Weekly program each day 6periods energy saving for you
*China TOP1 relay to make sure thermostat 100,000 lifetime
*Data memory even power off
*Control accurancy 0.5°C,Measure Temperature accurancy:0.1°C
*WIFI/ZIGBEE/MODBUS flexiable communication way for you select
*Tuya/Smart life app to control your thermostat anywhere
*White/Black/ODM color
*CE/ROHS/UKCA/FCC/REACH approved
TP818WHPN Touch Type Heating Room Thermostat
This touch Type Room Thermostat is an intelligent controller designed for underfloor heating systems. Featuring a
stylish capacitive touch display, accurate temperature control and 7-day programmable scheduling, it delivers maximum
comfort while helping reduce heating costs. Compatible with hydronic heating, electric floor heating and boiler systems.
Technical Data
| Features | Parameters |

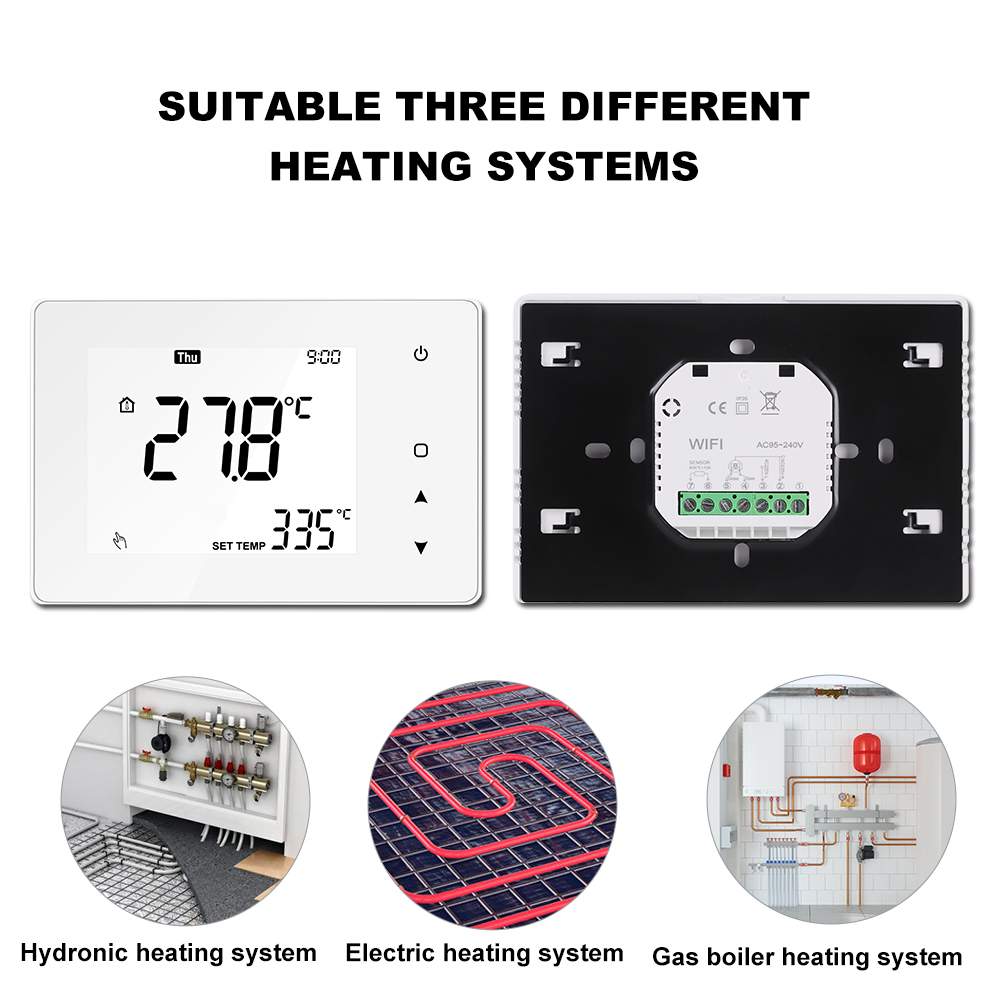

| Application | Underfloor Heating System/Water Heating System/Gas Boiler Heating System |
| Power | AC95- 240V/24V option, 50/ 60Hz |
| Controlled Load | water heater 5A/electric heater 16A |
| Mode | Programmable/Manaul Mode optional |
| Temperature Accuracy | +/-0.5℃ |
| Temperature Range | 5~60℃ |
| Programmable function | 5+1+1 Weekly Program |
| Button Lock Function | YES |
| Antifreeze Function | YES |
| Memory Function | YES |
| Temperature Sensor | Two Sensors(UHP model)/One senor(WHP model,GCmodel) |
| External Floor Sensor Length | 2.5meters |
| Sensor | NTC 10k 3977 |
| Installation Hole distance | 86box/60mmEurope standard round box |
| Dimension | 86x86x40mm |
