TP201WHP Screen Water Floor Heating Thermostat with Intelligent Weekly Timer
TP201WHP Screen Water Floor Heating Thermostat with Intelligent Weekly Timer
TP201WHP Screen Water Floor Heating Thermostat with Intelligent Weekly Timer
TP201WHP Screen Water Floor Heating Thermostat with Intelligent Weekly Timer
TP201WHP Screen Water Floor Heating Thermostat with Intelligent Weekly Timer
TP201WHP Screen Water Floor Heating Thermostat with Intelligent Weekly Timer
TP201WHP Screen Water Floor Heating Thermostat with Intelligent Weekly Timer
TP201WHP Screen Water Floor Heating Thermostat with Intelligent Weekly Timer
TP201WHP Screen Water Floor Heating Thermostat with Intelligent Weekly Timer
TP201WHP Screen Water Floor Heating Thermostat with Intelligent Weekly Timer

TP201WHP Screen Water Floor Heating Thermostat with Intelligent Weekly Timer

Application: Water Underfloor Heating System/Hydronic Underfloor Heating System
Model: TP201WHP/TP201WHP-24V

*UL 94V0 PC anti fire housing to make sure saftely

*Large TN LCD is comfort to see even during dark night

*Weekly program each day 6periods energy saving for you

*China TOP1 relay to make sure thermostat 100,000 lifetime

*Data memory even power off

*Control accurancy 0.5°C,Measure Temperature accurancy:0.1°C

*White/Black/ODM color

*CE/ROHS/UKCA approved


  • Description

    Large Screen Water Floor Heating Thermostat with Intelligent Weekly Timer

    TP201WHP it is a premium thermostat offering effortless touch navigation, easy-to-read LCD display and energy-efficient weekly scheduling for hydronic heating installations.

    Child clock to protect thermostat not change by your child easily .24V/220V option.White/Black color option


     Technical Data

    FeaturesParameters
    ApplicationWater Heating System
    PowerAC95- 240V/24V option, 50/ 60Hz
    Controlled Load5A
    ModeProgrammable/Manaul Mode optional
    Temperature Accuracy+/-0.5℃
    Temperature Range5~60℃
    Programmable function5+1+1 Weekly Program
    Button Lock FunctionYES
    Antifreeze FunctionYES
    Memory FunctionYES
    Temperature SensorTwo Sensors(UHP model)/One senor(WHP model,GCmodel)
    External Floor Sensor Length2.5meters
    SensorNTC 10k 3977
    Installation Hole distance86box/60mmEurope standard round box

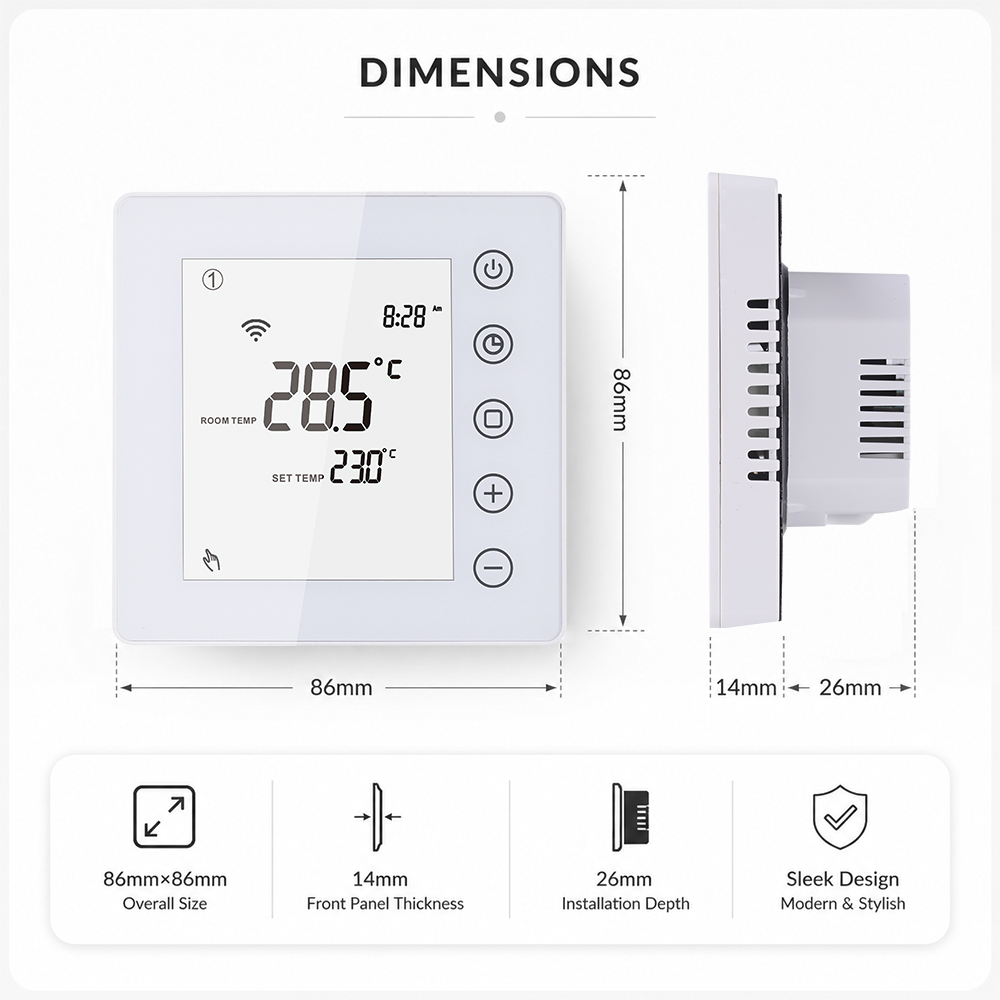

    Dimension86x86x40mm

      Features

    Elegant Touch button

    White Backlight with large LCD display

    Weekly Schedule Programming

    Manual Mode /Programmable Mode

    Memory Function

    CE & RoHS Certified




      Application

    Hotel underfloor heating system  Villa hydronic heating control  Building heating control system  Apartment heating control system  Smart home heating control


     FAQ

    1.Is this thermostat just like Nest thermostat?

    No.It is not.It is our own design.Functions not same like Nest version

    2.Can you print my brand on your thermostat?

    Yes.MOQ500PCS we could print your logo free on thermostat

    3.Can you customize our language manual?

    Yes.MOQ1000PCS

    4.Can you ODM UI for us?

    Yes.We can customize.Our R&D team work in this line 20years

    5.How long you can send out goods?

    Samples normally within 3working days.Bulk order 15-35days
