Application: Water Underfloor Heating System/Hydronic
Underfloor Heating System
Model: TP01WHPN /TP909WHPN-24V
*UL 94V0 PC anti fire housing to make sure saftely
*Large VA ink LCD is comfort to see even during dark night
*Weekly program each day 6periods energy saving for you
*China TOP1 relay to make sure thermostat 100,000 lifetime
*Data memory even power off
*Control accurancy 0.5°C,Measure Temperature accurancy:0.1°C
*WIFI/ZIGBEE/MODBUS flexiable communication way for you select
*Tuya/Smart life app to control your thermostat anywhere

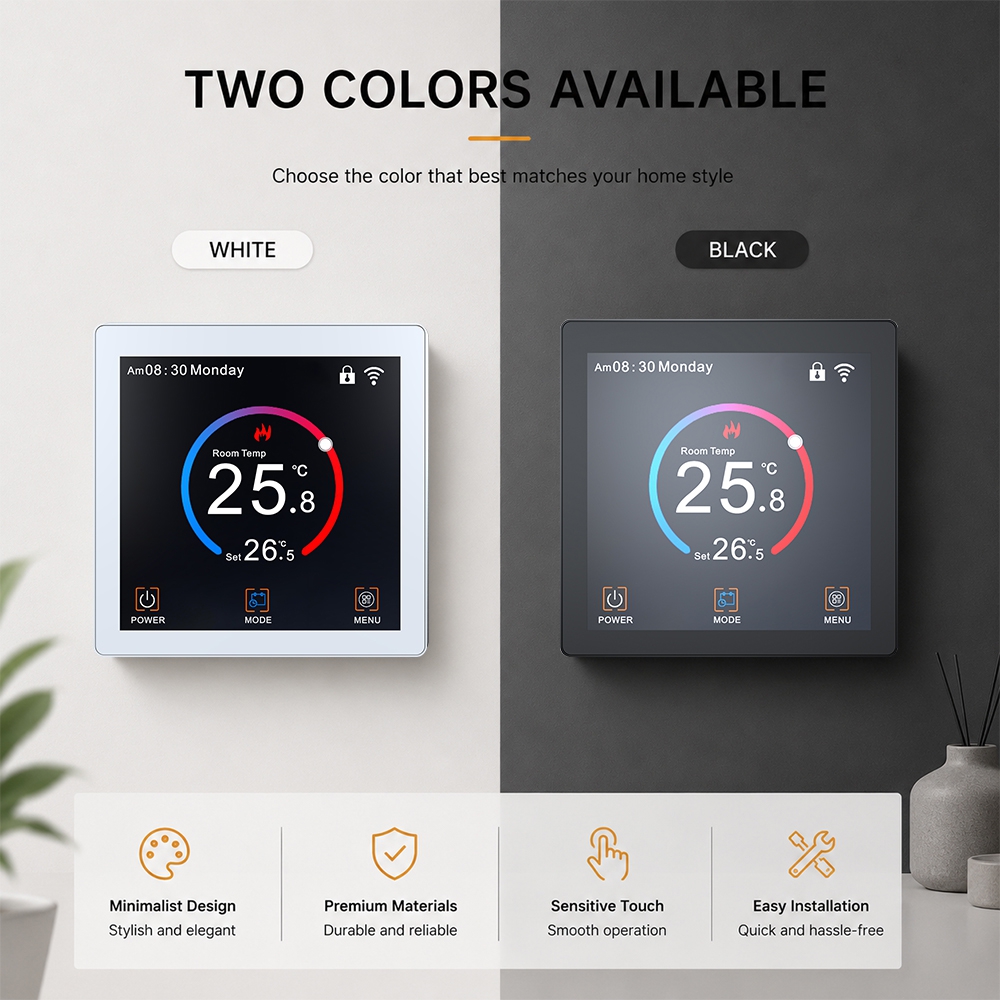

*White/Black/ODM color
*CE/ROHS/UKCA/FCC/REACH approved
TP01WHPN Modbus RS485 Heating Thermostat
Modbus RS485 Heating Thermostat combines modern design with reliable temperature control technology. It supports
hydronic heating systems, gas boilers and electric heating applications. Equipped with a high-resolution touch screen,
energy-saving programming and Modbus communication, it is an excellent solution for residential and commercial HVAC control.
Technical Data
| Features | Parameters |

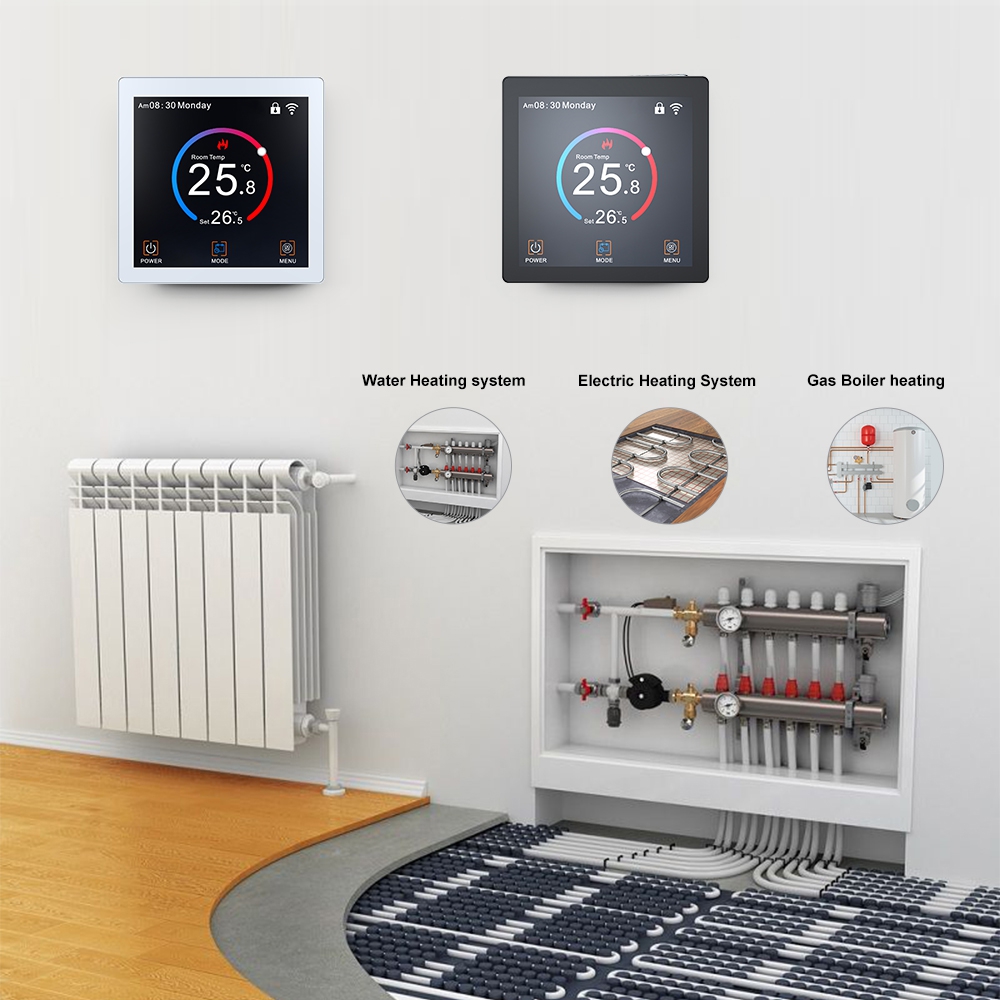

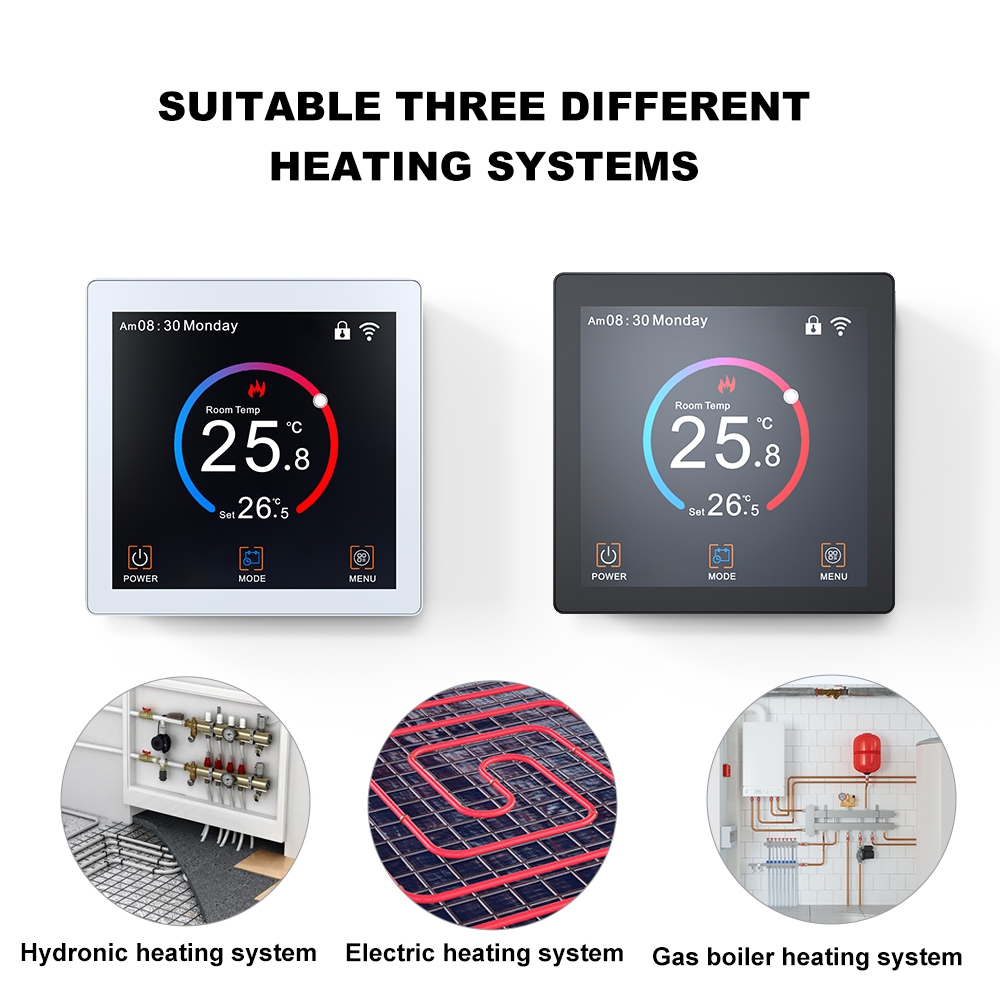

| Application | Underfloor Heating System/Water Heating System/Gas Boiler Heating System |
| Power | AC95- 240V/24V option, 50/ 60Hz |
| Controlled Load | water heater 5A/electric heater 16A |
| Mode | Programmable/Manaul Mode optional |
| Temperature Accuracy | +/-0.5℃ |
| Temperature Range | 5~60℃ |
| Programmable function | 5+1+1 Weekly Program |
| Button Lock Function | YES |
| Antifreeze Function | YES |
| Memory Function | YES |
| Temperature Sensor | Two Sensors(UHP model)/One senor(WHP model,GCmodel) |
| External Floor Sensor Length | 2.5meters |
| Sensor | NTC 10k 3977 |
| Installation Hole distance | 86box/60mmEurope standard round box |
| Dimension | 86x86x40mm |
