Application: Water Underfloor Heating System/Hydronic Underfloor Heating System
Model: TP505WHPN /TP505WHPN-24V
*UL 94V0 PC anti fire housing to make sure saftely
*Large VA ink LCD is comfort to see even during dark night
*Weekly program each day 6periods energy saving for you
*China TOP1 relay to make sure thermostat 100,000 lifetime
*Data memory even power off
*Control accurancy 0.5°C,Measure Temperature accurancy:0.1°C

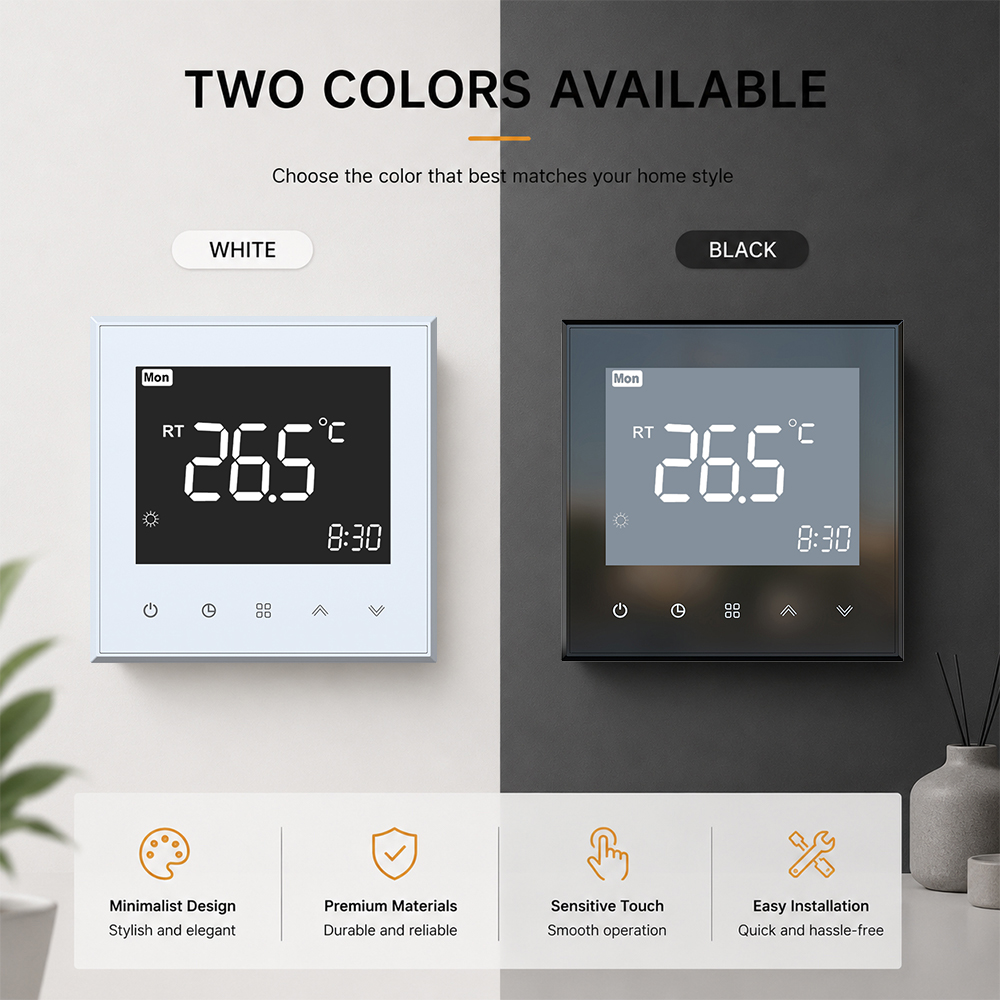

*White/Black/ODM color
*CE/ROHS/UKCA/FCC/REACH approved
This room thermostat used for integration into building automation systems. Through RS485 Modbus communication, you can remotely read temperature data, adjust setpoints and manage operating modes. It is ideal for office buildings, hotels, schools and other centralized heating projects.
Technical Data
| Features | Parameters |
| Application | Water Heating System |
| Power | AC95- 240V/24V option, 50/ 60Hz |
| Controlled Load | water heater 5A |
| Mode | Programmable/Manaul Mode optional |
| Temperature Accuracy | +/-0.5℃ |
| Temperature Range | 5~60℃ |
| Programmable function | 5+1+1 Weekly Program |
| Button Lock Function | YES |
| Antifreeze Function | YES |
| Memory Function | YES |
| Temperature Sensor | Two Sensors(UHP model)/One senor(WHP model,GCmodel) |
| External Floor Sensor Length | 2.5meters |
| Sensor | NTC 10k 3977 |
| Installation Hole distance | 86box/60mmEurope standard round box |
| Dimension | 86x86x40mm |
Features
◆Large LCD Display
With large LCD with black backlight.Easy to ready even during night
◆Data Memory
This thermostat provide data memory when power off.All of the parameters still remain the same before power off
◆Modbus RS485 communication
It is suitable BMS system.Stable RS485 widely use in the application
◆Weekly Programmable Function
This thermostat provide 7days programmable funciton,You can set your target temperature and time as you need.
Application
◆Home water heating system ◆Villa hydronic heating control ◆School heating control system ◆Apartment heating control system
◆Smart home heating control ◆Office Heating system ◆BMS System
FAQ
1.Can we customize software of thermostat?
Yes.We have our own R&D team can do this for you
2.Can I print my logo on thermostat?
Yes.MOQ500PCS
3.Can you design our local language display of your thermostat?
Yes.MOQ1000PCS
4.What’s the Warranty of your product?
2years after goods send out
5.Can I order white and black color mix in the order?
Yes.Of course
6.Can you arrange shipment for us?
Yes.We can find the most suitable shipping way for you
