Application: Water Underfloor Heating System/Hydronic Underfloor Heating System

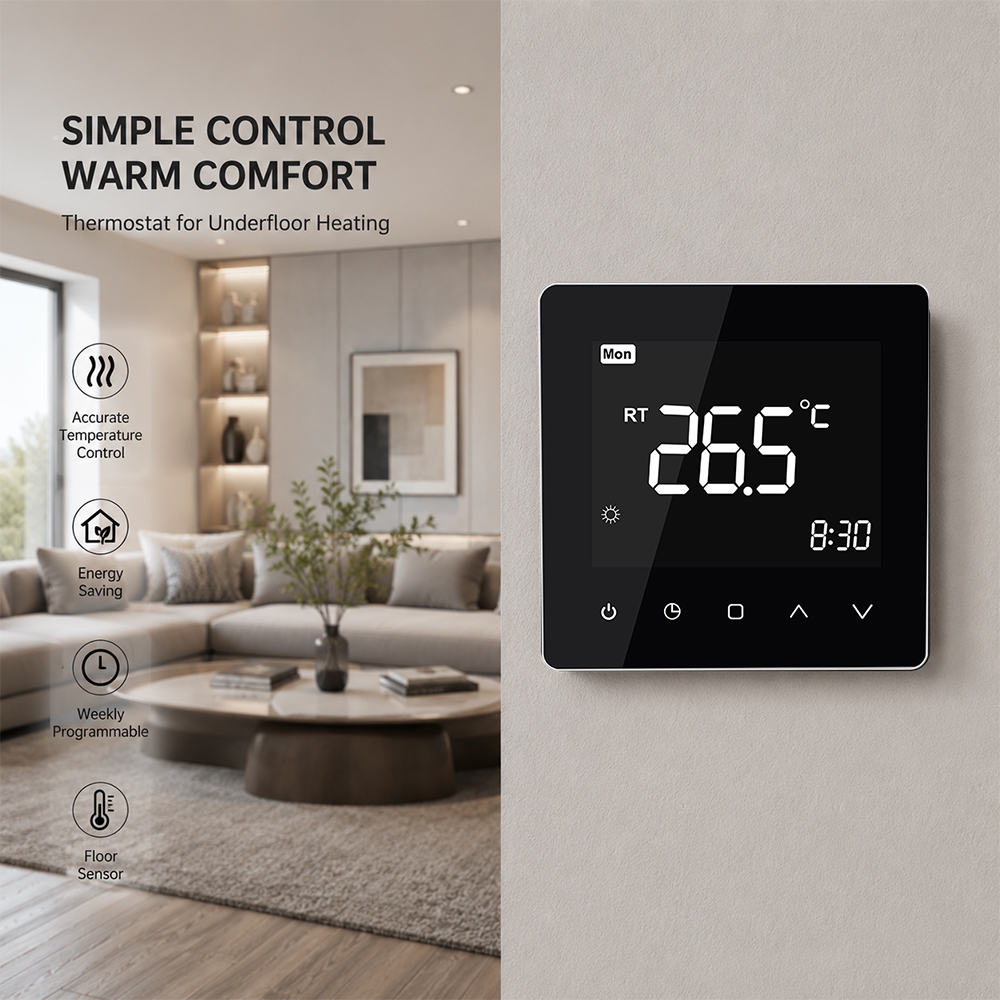

Model: TP528WHPN /TP528WHPN-24V
*UL 94V0 PC anti fire housing to make sure saftely
*Large VA ink LCD is comfort to see even during dark night
*Weekly program each day 6periods energy saving for you
*China TOP1 relay to make sure thermostat 100,000 lifetime
*Data memory even power off
*Control accurancy 0.5°C,Measure Temperature accurancy:0.1°C

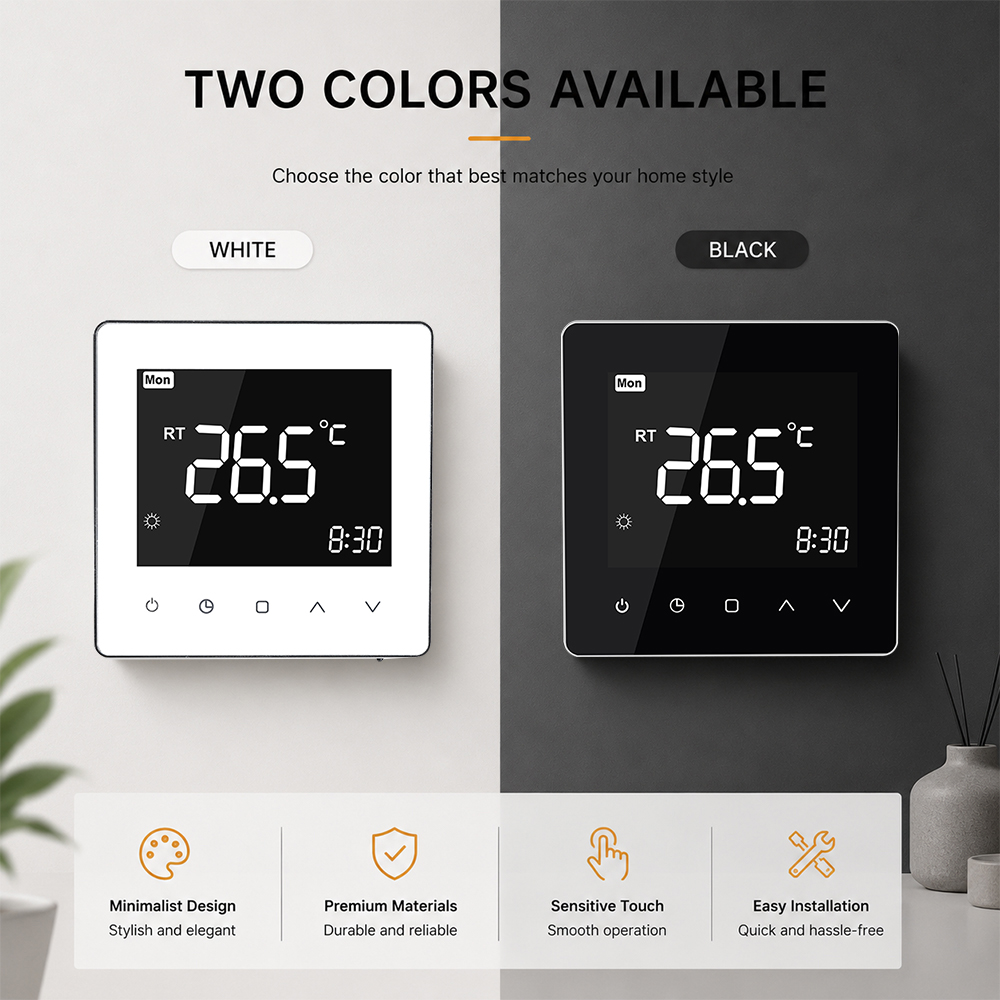

*White/Black/ODM color
*CE/ROHS/UKCA approved
TP528WHPN is a smart modbus thermostat design for water heating system.It supports RS485 communicaiton, weekly programmable and precise room or floor temperature
Touch type makes simple to use.Modbus function allows centralized monitoring through a building management system.
This underfloor Heating thermostat inner sensor to detect room temperature.Compare with setting temperature to control equipment on off.Weekly programmble energy saving.
each day 6periods to setting your desire room temp.Child clock to protect thermostat do not change easily.
Technical Data
| Features | Parameters |
| Application | Water Heating System |
| Power | AC95- 240V/24V option, 50/ 60Hz |
| Controlled Load | 5A |
| Mode | Programmable/Manaul Mode optional |
| Temperature Accuracy | +/-0.5℃ |
| Temperature Range | 5~60℃ |
| Programmable function | 5+1+1 Weekly Program |
| Button Lock Function | YES |
| Antifreeze Function | YES |
| Memory Function | YES |
| Temperature Sensor | Two Sensors(UHP model)/One senor(WHP model,GCmodel) |
| External Floor Sensor Length | 2.5meters |
| Sensor | NTC 10k 3977 |
| Installation Hole distance | 86box/60mmEurope standard round box |
| Dimension | 86x86x40mm |
Features
◆Modbus RS485 communication
This thermostat allow you to connect RS485 to network control the whole building.It is easy to control all thermostats just in one platform and very stable to use.
◆Large LCD display
It choose VA ink LCD display.With large white words.It is easy for customers to see the settings
◆Touch Button
It is easy to use touch button to choose your target parameters
◆Weekly Programmable Function
This thermostat provide 7days programmable funciton,6perios yeach day you can setting the target time and temperature.Help you enjoy comfort and energy saving.
◆Child Lock Function
You can press up and down button to lock/unock your thermostat
Application
◆Hotel underfloor heating system ◆Villa hydronic heating control ◆Building heating control system ◆Apartment heating control system ◆Smart home heating control
FAQ
1.Does this thermostat work for home heating?
Yes.It does
2.Does this thermostat has weekly programmable function?
Yes.It does
3.Can I order this thermostat directly from you?
Yes.You can contact sales for details
4.How should I know weather this thermostat suitable my system?

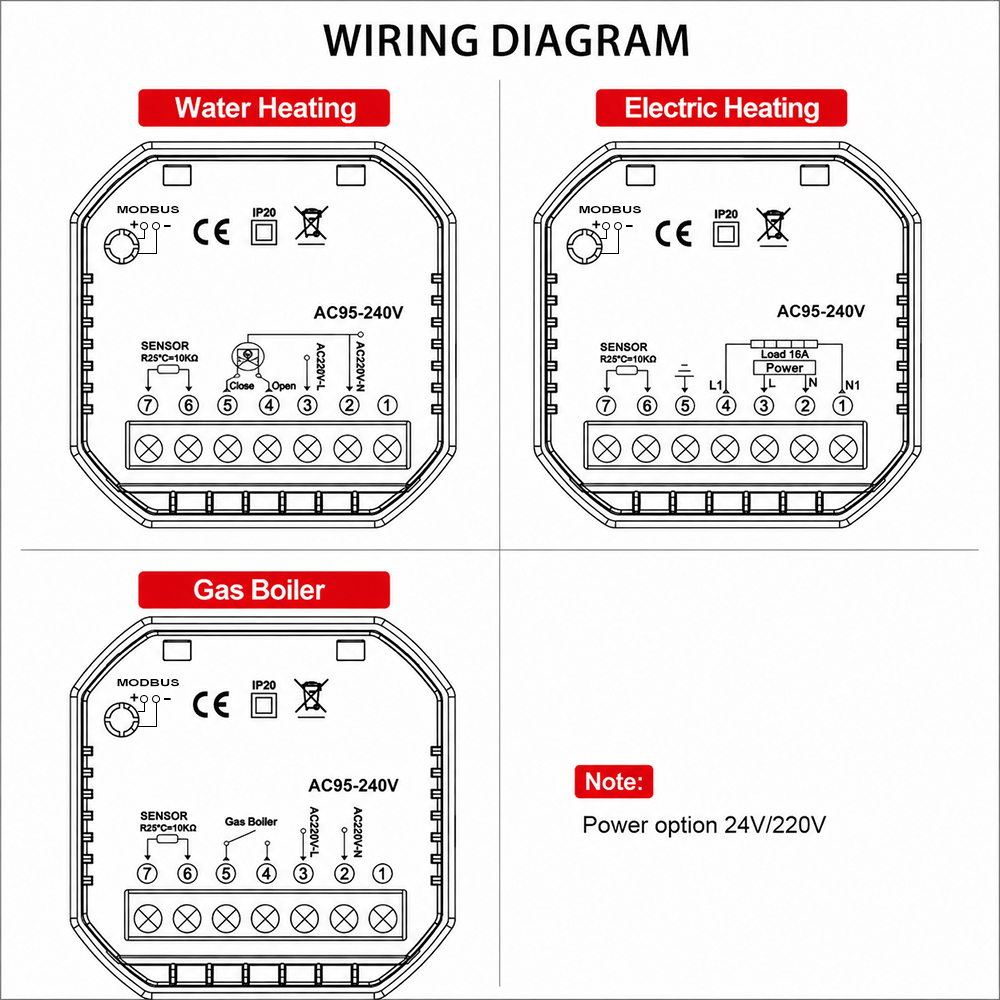

You can check the wiring diagram with your old thermostat
or you can check with installation engineer about it.
5.Can you provide 24VAC of the power?
Yes.We can
6.Where should I know it is modbus or not?
You can check the weather there are A&B port for Modbus connection
