VAV THERMOSTAT
Model:TP501
◆VAV Damper Actutor ON OFF/Modulating Option
◆Modbus Rs485 communication .
◆Touch Button makes simple operation .
◆Weekly program function
◆Acrylic lenses to avoid the finger scrath .
◆Large LCD screen display with backlight

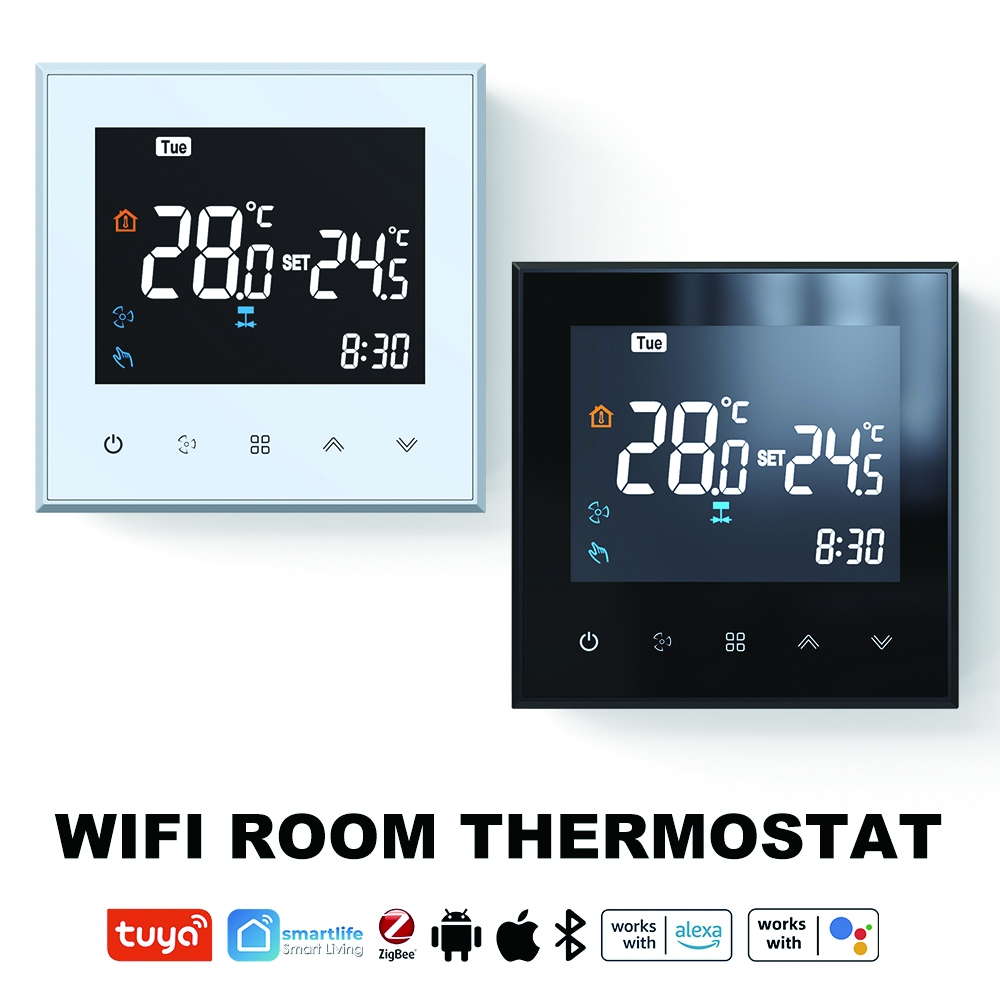

◆White/Black color option
◆Precise comfort control keeps temperature within 0.5 °C of the level you set
◆Data memory when power is off.
◆86mm hidden box and european 60mm round box is available

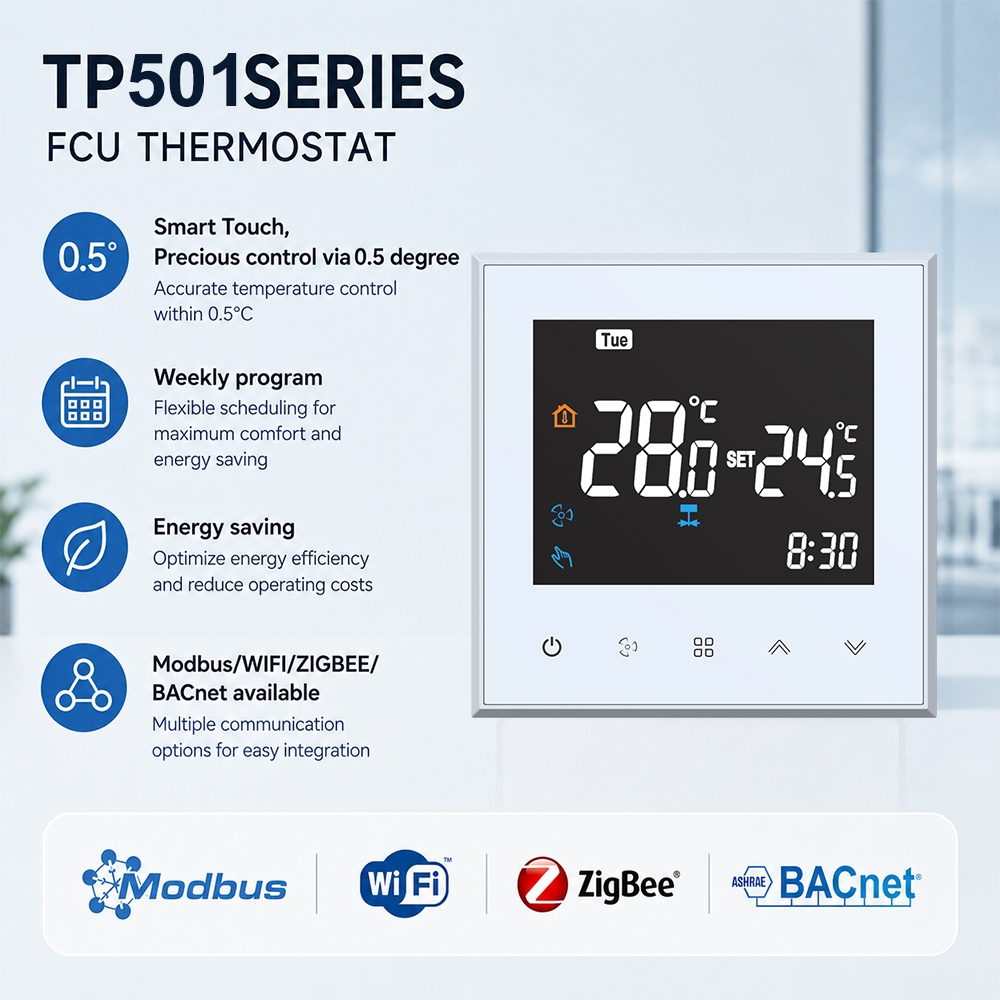

VAV box Commnication Room Thermostat TP501series
TP501series DX unit thermostat is developed for smart buildings and commercial HVAC projects requiring centralized control. Through WIFI wireless communication, it can be widely used in smart home ,apartment and villas
Technical Data
| Features | Parameters |
| Application | VAV BOX System |
| Power | AC 220V/AC24V Option 50/ 60Hz |
| Damper Actuator | On off/Modulating Option |
| Communication | Modbus RS485 |
| Temperature Accuracy | +/-0.5℃ |
| Control Temperature Range | 5~35℃ |
| Program function | 4perids available |
| Button Lock | Yes |
| Current Load | 3A |
| Memory Function | YES |
| Housing | PC anti fire |
| IP Class | IP20 |
| Sensor | NTC 10k 3977 |
| Installation Hole distance | 86 Box or EU round Box |
| Dimension | 86x86x13mm |
Features
◆Designed for VAV air conditioning systems
◆ON/OFF damper actuator control
◆0-10V proportional damper actuator control
◆Precise airflow regulation
◆Heating and cooling control
◆Suitable for commercial buildings and smart HVAC projects
Application
◆Hotel HVAC System ◆Apartments HVAC System ◆Hospital BMS System
◆School HVAC System ◆Shopping Mall HVAC System ◆Villa HVAC System
FAQ
1.Can you provide OEM/ODM service?
Yes.OEM/ODM is our core business
2.Can you print my brand on thermostat?
Yes.MOQ500PCS free to print
3.Can you develop based my requirements?
Yes.ODM services MOQ1000PCS
4.What’s the delivery for bulk order?
Normally 10-30days.Depends on our production reply.
5.What’s the warranty of your thermostat?
2year after goods ship out
