Toupwell provides smart radiator temperature control solutions for room-by-room heating management in homes, apartments, offices, hotels, schools and commercial buildings.
Our smart thermostatic radiator valves, also known as smart TRVs or radiator thermostats, replace compatible mechanical radiator valve heads and automatically regulate the flow of hot water through each radiator. Users can set individual room temperatures, create heating schedules and manage compatible devices through the Tuya or Smart Life app.
The Toupwell TRV-01 uses Zigbee 3.0 wireless communication and is designed for compatible M30×1.5 radiator valve bodies. Multiple adapters are available to support other commonly used thermostatic radiator valve connections.
Smart radiator temperature control is suitable for retrofit projects because the radiator thermostat is battery-powered and does not require new control wiring to each radiator.
Toupwell supports OEM and ODM smart radiator thermostat projects for HVAC distributors, smart-home brands, heating-system suppliers, importers and system integrators.
Main features include:
Zigbee 3.0 wireless communication
Tuya and Smart Life app control
Room-by-room radiator temperature control
Programmable heating schedules
5–35°C temperature setting range
LED temperature display
M30×1.5 valve connection
Radiator valve adapters
Open-window detection
Child-lock function
Frost-protection mode
Low-battery warning
Automatic valve exercise to reduce sticking
Battery-powered installation
OEM logo, packaging and function customization
Radiator temperature control regulates how much hot water flows through each radiator according to the temperature required in that room.
A traditional radiator system may use one central thermostat to control the boiler. When the central thermostat requests heat, all open radiators can receive hot water, even when some rooms are already warm or are not being used.
A thermostatic radiator valve provides local control by adjusting the water flow into an individual radiator.
A smart thermostatic radiator valve adds electronic temperature sensing, motorized valve control, scheduling and wireless communication. This enables each radiator or room to use a different temperature setting.
For example:
The living room can be kept comfortable during the evening.
Bedrooms can use a lower nighttime temperature.
A guest room can remain at a reduced temperature when unoccupied.
An office can follow working-hour schedules.
A bathroom can be warmed before normal use.
All radiators can be reduced when the property is empty.
This room-by-room approach gives users more control than relying only on one central room thermostat.
A smart radiator thermostat is installed on a compatible thermostatic radiator valve body.
The operating process is generally:
The built-in sensor measures the temperature near the radiator.
The thermostat compares the measured temperature with the selected setpoint.
An internal motor moves the actuator mechanism.
The mechanism pushes or releases the radiator valve pin.
The valve changes the flow of hot water through the radiator.
The radiator output increases or decreases.
The thermostat continues adjusting the valve to maintain the selected room temperature.
The smart TRV does not normally pump water or produce heat itself. It controls only the valve fitted to the individual radiator.
The heating system must still have an operating boiler, circulation pump or central heat source.
Scheduling allows the radiator to use different temperatures according to the time and day.
Typical schedule periods include:
Morning warm-up
Daytime setback
Evening comfort
Nighttime reduction
Weekend operation
Holiday operation
The available number of time periods should be confirmed for the selected firmware.
Open-window detection responds to a rapid temperature drop that may occur when a nearby window is opened.
The thermostat can temporarily reduce or close the radiator valve to limit unnecessary heating during ventilation.
Detection performance can vary according to:
Distance from the window
Outdoor temperature
Room layout
Radiator position
Air movement
Detection settings
Open-window detection should not be treated as a replacement for a physical window sensor when exact window status is required.
Child lock helps prevent accidental changes to the radiator temperature and settings.
This is useful in:
Family homes
Schools
Hotels
Rental apartments
Shared offices
Public buildings
Frost protection maintains a low minimum setting to reduce the risk of excessively cold rooms and frozen heating pipes.
It does not replace suitable building insulation, pipe protection or the boiler’s own frost-protection function.
The thermostat provides a low-battery indication when the battery level falls below the configured threshold.
Battery life can be affected by:
Valve movement frequency
Wireless communication
Display use
Battery quality
Ambient temperature
Valve resistance
Network signal quality
Use the recommended alkaline batteries and replace both batteries together.
A radiator valve can become stiff when it remains in one position for a long period.
An automatic valve-exercise or anti-seizing function periodically moves the actuator to help reduce valve sticking.
This function cannot repair a damaged, corroded or mechanically seized valve body.
The temperature can be adjusted directly on the radiator thermostat without opening the app.
This is useful for guests, children, elderly users and properties where local control must remain available.
The LED display shows temperature and device information while maintaining a compact radiator-mounted design.
Display behavior and brightness depend on the selected firmware.
With Tuya Zigbee smart control, app operation, LED display, and M30×1.5mm radiator valve compatibility, the TRV-01 Smart Thermostatic Radiator Valve Thermostat provides a practical solution for room-by-room heating control and energy-saving radiator management.
Application: Radiator Heating system
Feature: Tuya Zigbee 3.0 Wireless Communication Protocol
Supporting Tuya app/Smart Life app
Model: TRV-01
Toupwell TRV-01 radiator valve supports Zigbee hubs Tuya smart control function for room heating so that can realize remote controlled, by phone anywhere and anytime.
It has LED large screen display. Our TRV-01 suitable for almost all M30*1.5mm radiator valves
It has 3 adaptors that can compitable for many heating systems.
The Smart Thermostatic Radiator Valve Thermostat is designed for intelligent radiator heating control in homes, apartments, offices, hotels, schools, and commercial buildings. By replacing traditional manual radiator valves, this smart TRV thermostat allows users to control room temperature more accurately, reduce unnecessary heating, and improve indoor comfort.
The Smart Thermostatic Radiator Valve Thermostat is a battery-powered radiator heating controller used to automatically adjust hot water flow through the radiator valve. It helps maintain the desired room temperature by opening or closing the valve according to the temperature setting.
Compared with traditional radiator valves, this smart radiator thermostat supports remote control, intelligent scheduling, and smart home integration. Users can adjust the heating temperature through the Tuya App or Smart Life App, making radiator heating more convenient, flexible, and energy efficient.
It is suitable for radiator heating systems in residential and commercial buildings, especially where independent room temperature control is required.
| Application | Radiator Heating System |
| Power Supply | 2pcs 1.5V Alcaline AA Batteries ( Not Include ) |
| Current Consumption | 100mA Max |
| Protect Degree | IP20 |
| Ambient Temperature | 0~50℃ |
| Surface Temperature | 90℃ Max ( At the Radiator ) |
| Connection | M30 x 1.5mm |
| Linear Travel | 4.5mm |
| Size | 53mm x 53mm x95 mm |
This smart thermostatic radiator valve thermostat helps control radiator heating more precisely. Users can set the desired room temperature, and the valve automatically adjusts heating output to maintain stable comfort.
It is ideal for bedrooms, living rooms, offices, hotel rooms, classrooms, apartments, and other spaces where separate heating control is needed.
The thermostat supports Tuya Zigbee 3.0 wireless communication protocol. When connected with a compatible Zigbee gateway, users can control the radiator thermostat remotely through the Tuya App or Smart Life App.
This makes it suitable for smart home heating systems, apartment heating control, and intelligent building temperature management.
Users can adjust temperature settings, create heating schedules, and manage radiator heating through a smartphone. Remote control allows users to turn heating on before arriving home or reduce heating when rooms are not in use.
This helps improve comfort while reducing unnecessary energy consumption.

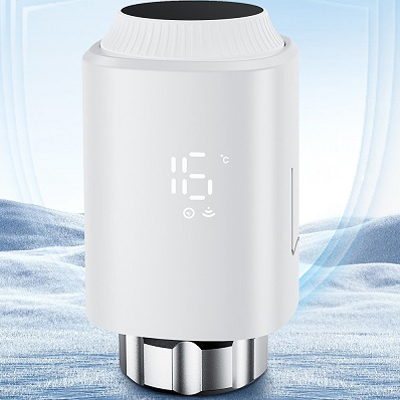

The built-in LED display shows working status and temperature information clearly. Users can check and adjust settings directly on the device, making daily operation simple and convenient.
Different rooms often have different heating requirements. With smart thermostatic radiator valves, users can control each radiator separately instead of heating the whole building at the same temperature.
Room-by-room heating control is useful for improving comfort, reducing heating waste, and creating a more efficient heating system.
The TRV-01 is suitable for most M30×1.5mm radiator valves. It also comes with multiple adapters to improve compatibility with different radiator heating systems.
This makes installation easier for homeowners, installers, wholesalers, and HVAC project suppliers.
The thermostat uses 2 pieces of 1.5V AA alkaline batteries. The battery-powered design makes installation simple because no additional wiring is required.
This is especially convenient for retrofit radiator heating projects and smart home upgrades.
By using schedule control, temperature setting, and independent room control, the smart radiator thermostat helps reduce unnecessary heating. Rooms that are not frequently used can be set to a lower temperature, while occupied rooms can remain comfortable.
This makes it a practical choice for energy-saving radiator heating control.
 |  |  |
Child Lock Choose Child lock to protect your radiator from being changed | Voice Control Alexa. Set the temperature to 22° OK. the temperature has been anjusted to 22°C | Antifouling This will protect your VALVE from getting stuck |
 |  |  |

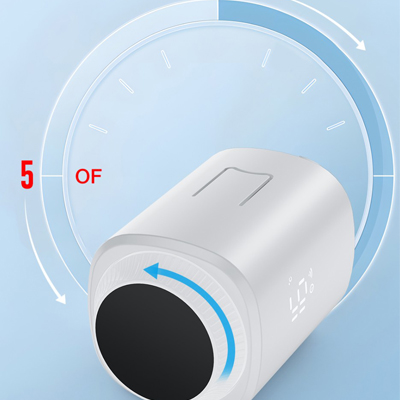

Rotate To Change Temperature Easily You can change setting temp range 5°C to 35°C. | Open Window Function More Energy Saving A practical choice for energy-saving radiator heating control. | Low Battery Alarm No matter the app or thermostat, it will show a low battery alarm to require new batteries. Battery power less than 10% will start the alarm. |
The Smart Thermostatic Radiator Valve Thermostat is suitable for:
● Home radiator heating systems
● Apartment heating control
● Office room heating
● Hotel room radiator control
● School and classroom heating
● Commercial building heating systems
● Smart home heating upgrades
● Energy-saving heating renovation projects
● Room-by-room radiator temperature control
● HVAC heating control projects
A smart TRV thermostat gives users better control over radiator heating. Instead of adjusting radiator valves manually, users can set temperatures, manage schedules, and control heating remotely.
For homeowners, it improves comfort and convenience. For property managers and HVAC installers, it provides a practical way to upgrade traditional radiator heating systems. For wholesalers and distributors, smart radiator thermostats are suitable for the growing smart home and energy-saving heating market.
One wireless TUYA ZIGBEE 3.0g gateway could control multi rooms TRV controllers. You could control multiple Zigbee TRVs or other Zigbee products with one gateway. But pay attention to the gateway with products' distance.
Toupwell can provide OEM and ODM support for smart thermostatic radiator valve thermostats according to customer requirements. Customization can include appearance design, logo, packaging, user interface, function configuration, wireless communication, and smart home platform requirements.
Whether you are a thermostat distributor, smart home brand, HVAC supplier, or heating system integrator, we can support your smart radiator heating control product needs.
Does this radiator thermostat support Tuya App?
Yes. The thermostat supports Tuya App and Smart Life App control when connected with a compatible Zigbee gateway.
Is this thermostat suitable for radiator heating systems?
Yes. It is designed for radiator heating systems and can be used for homes, apartments, offices, hotels, schools, and commercial buildings.
What valve connection does it support?
The thermostat is suitable for M30×1.5mm radiator valves and includes adapters for compatibility with different heating systems.
Does it need wiring?
No. The thermostat is powered by 2 pieces of 1.5V AA alkaline batteries, making installation simple and suitable for retrofit projects.
Can it control each room separately?
Yes. Each radiator can be equipped with a smart TRV thermostat, allowing room-by-room temperature control.
Can this product help save energy?
Yes. By using temperature control, schedules, and independent room management, the thermostat helps reduce unnecessary heating and improve energy efficiency.
