Single Stage programmable Thermostat
Model：TP815-P
The display range of temperature 32 ˚F to 99 ˚F (0 ˚C to 50 ˚C)
The control range of temperature.....41 ˚F to 95 ˚F (5 ˚C to 35 ˚C)
Swing (cycle rate or differential) Heating is adjustable from 0.4 ˚F-5 ˚F (0 .2 ˚C-3 ˚C)
Cooling is adjustable from 0.4 ˚F-5 ˚F (0 .2 ˚C-3 ˚C)
Power source.................................18 to 30 VAC , NEC Class II , 50/60 Hz
for hardwire
Battery power from 2 AAAlkaline batteries
Operating ambient..........................32 ˚F to +105 ˚F (0 ˚C to +41 ˚C)
Operating humidity 90% non-condensing maximum
Dimensions of thermostat 4 .7”W x 3.9”H x 0.9”D

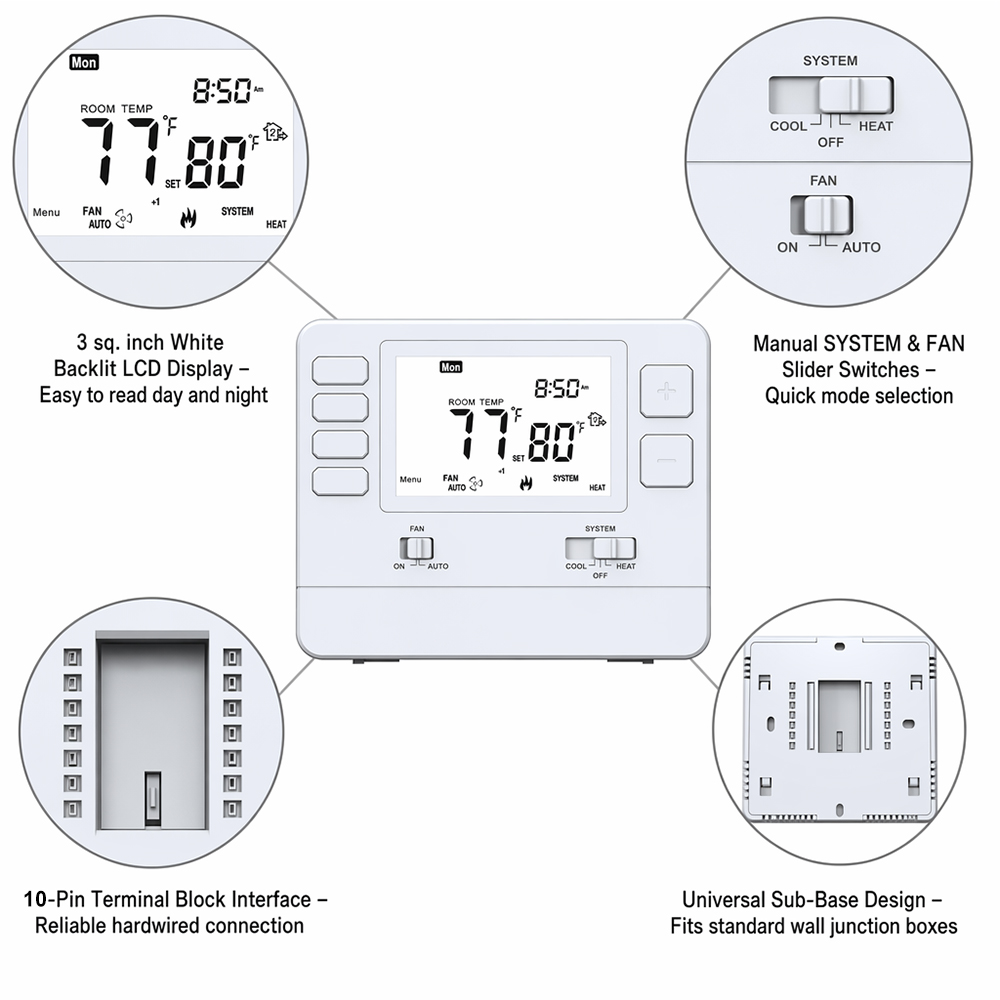

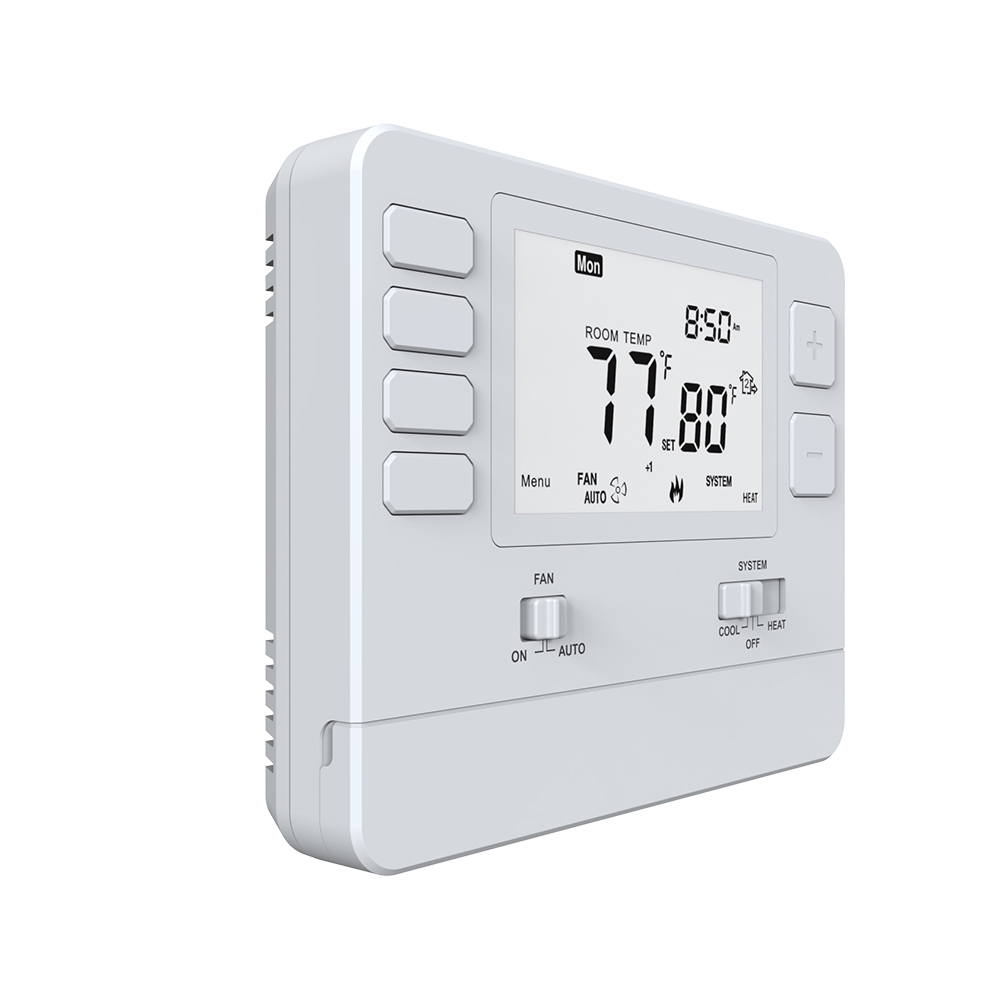

TP815-P Programmable Digital Single Stage HVAC Thermostat for Residential Heating and Cooling System
The digital Single stage thermostat provides accurate temperature management for basic HVAC applications. It is an ideal solution for homes requiring reliable heating and cooling control.
Key Features
◆O/B reversing valve selection
◆Compressor delay setting
◆Weekly programmable schedule
◆Fahrenheit/Celsius selectable
◆24VAC HVAC compatibility
Application
◆Residential Homes ◆Central Air Conditioning System ◆Multi Stage HVAC System ◆Hotel
◆Apartment ◆Light Commercial Buildings ◆HVAC Replacement Market
FAQ
1.Does it support auxiliary heat?
No.TP825 support it.
2.Can it control electric auxiliary heating?
Yes.It can control auxiliary electric heating depending on HVAC wiring configuration.
3.What is the voltage requirement?
18-24VAC or 2AA battery power up
4.Does it support O/B reversing valve?
Yes.The thermostat supports O/B reversing valve configuration for heat pump systems.
5.What is the difference between O and B?
O: Energized in cooling mode B: Energized in heating mode
6.Does it support dual fuel heat pump systems?
It depends on the HVAC configuration.

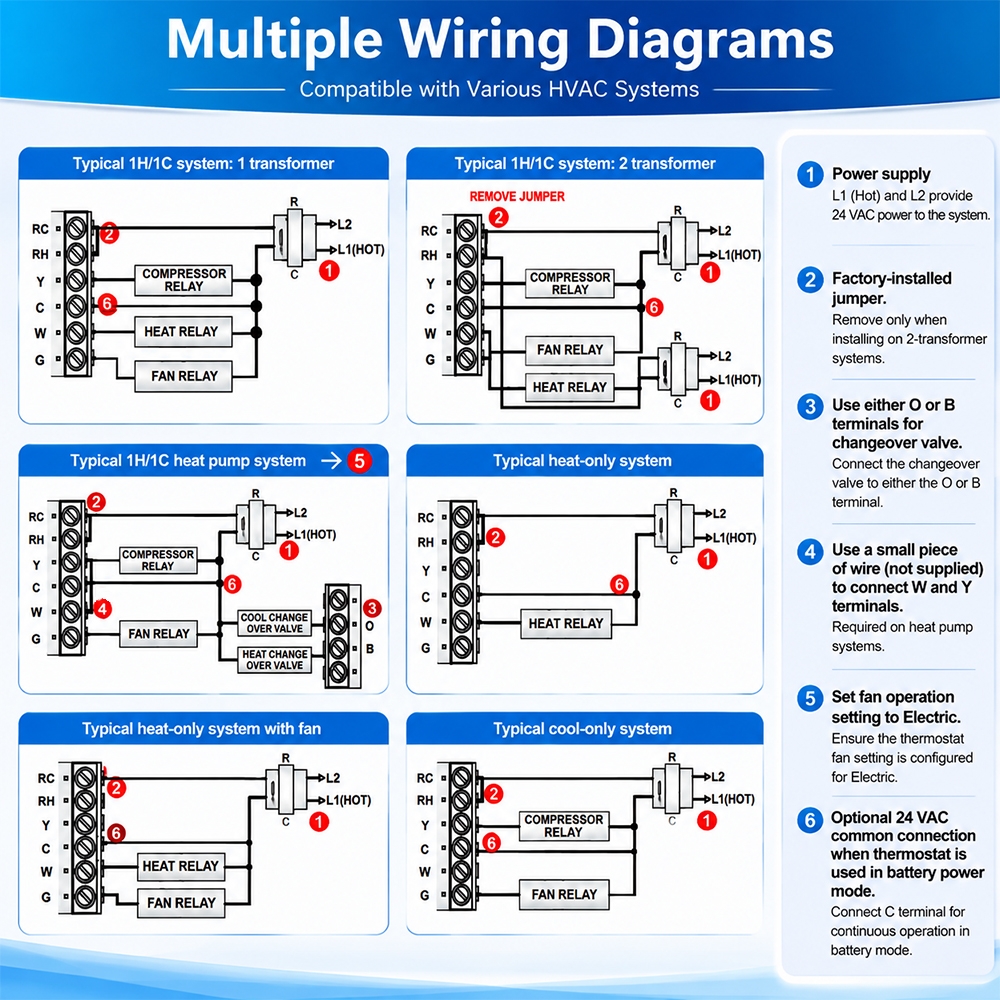

7.Can you provide wiring diagram?
Yes.In the box we privide wiring labels
8.Can HVAC installers install this thermostat?
Yes.The thermostat is designed for professional HVAC installation.
