Modulating Ball Valve 0-10V Control for HVAC Water Flow Regulation

TPBA06 Series Ball Valve Actuator is a high-torque electric actuator designed for large-size HVAC water control applications. It is matched with TPBV series flanged ball valves and is mainly used in central air-conditioning systems, heating systems, water treatment systems, and industrial applications to control chilled and hot water flow.

Featuring a bi-directional AC motor, high-strength aluminum alloy chassis, built-in limiter, and optional position feedback function, TPBA06 provides stable and precise valve control for large HVAC systems.

The actuator supports 0(2)-10V DC or 0(4)-20mA DC proportional control input signals, with optional 0-10V feedback output, making it suitable for building automation and energy management systems.

 Main Features

◆High torque output ≥65Nm

◆Suitable for DN125-DN150 flanged ball valves

◆Proportional control with 0(2)-10V DC / 0(4)-20mA DC signal

◆Optional 0-10V feedback signal

◆Built-in limiter for energy saving and longer motor life

◆High-strength die-casting aluminum alloy chassis

◆Fireproof ABS engineering plastic housing

◆Available in 24VAC / 220VAC / 230VAC versions

◆IP54 protection rating

◆Reliable operation for HVAC automation projects

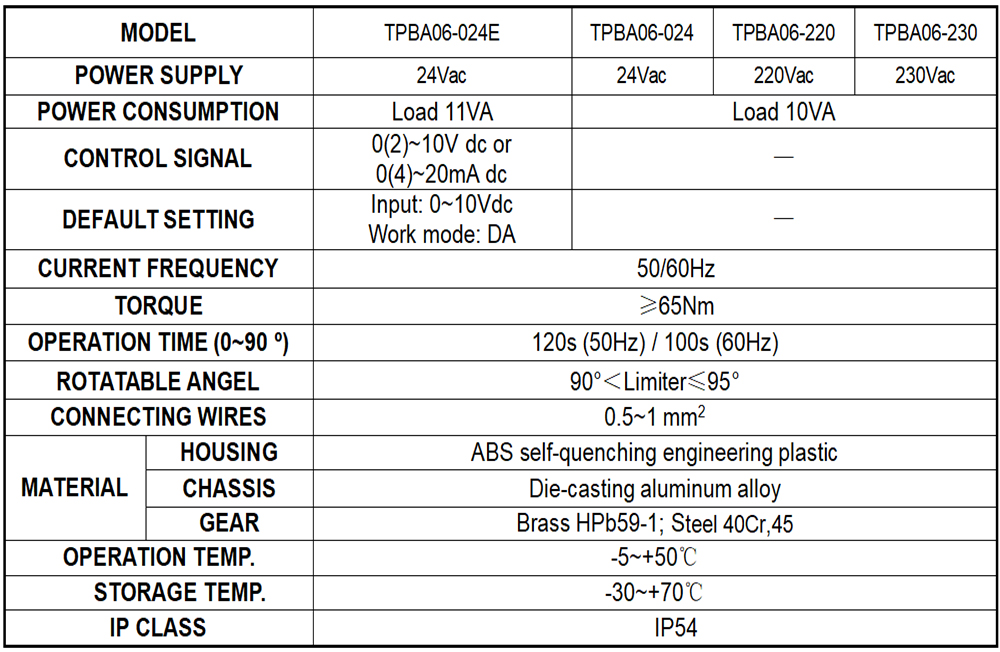

 SPECIFICATIONS AND DATA

FAQ

1.What is TPBA06 electric ball valve actuator used for?

TPBA06 actuator is designed for controlling chilled and hot water flow in HVAC systems, including central air-conditioning,

heating systems, water treatment equipment, and industrial applications.

2. Which ball valves are compatible with TPBA06 actuator?

TPBA06 is designed to match TPBV series flanged ball valves and is suitable for DN125-DN150 flanged ball valves.

3.What control signal does TPBA06 support?

The proportional control version supports:0(2)-10V DC ，0(4)-20mA DC

input signals, with optional 0-10V feedback signal for valve position monitoring.

4.What is the maximum torque of TPBA06 actuator?

TPBA06 provides a torque output of ≥65Nm, making it suitable for larger HVAC valves requiring higher driving force.

5. What power supply options are available?

TPBA06 supports:24VAC 220VAC .power supply options for different HVAC project requirements.

6.How long does TPBA06 take to open or close the valve?

The operation time from 0° to 90° is：120 seconds at 50Hz 100 seconds at 60Hz

7. What materials and protection level does TPBA06 use?

TPBA06 uses:ABS self-quenching engineering plastic housing ，Die-casting aluminum alloy chassis ，Brass and steel gear structure

The actuator has an IP54 protection rating and operates in temperatures from -5℃ to +50℃.
