Electric Ball Valve for HVAC Flanged Ball Valve Control System

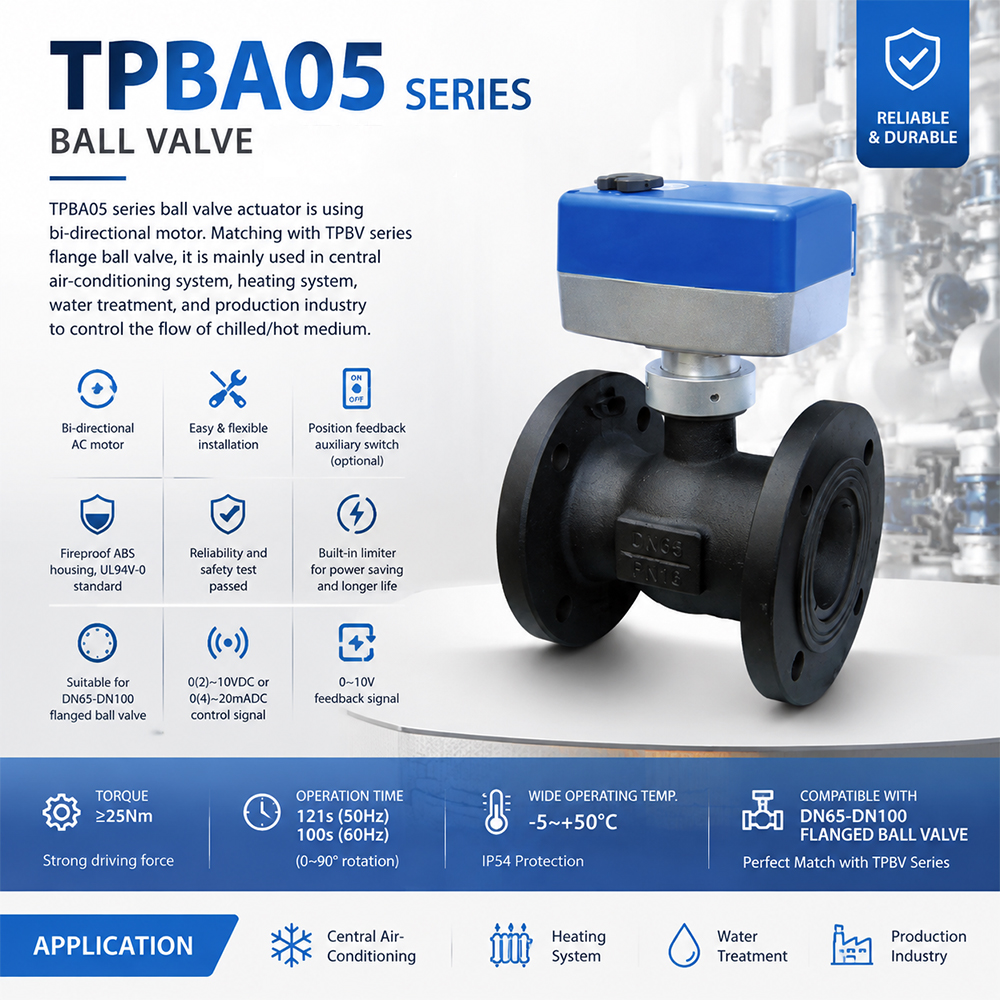

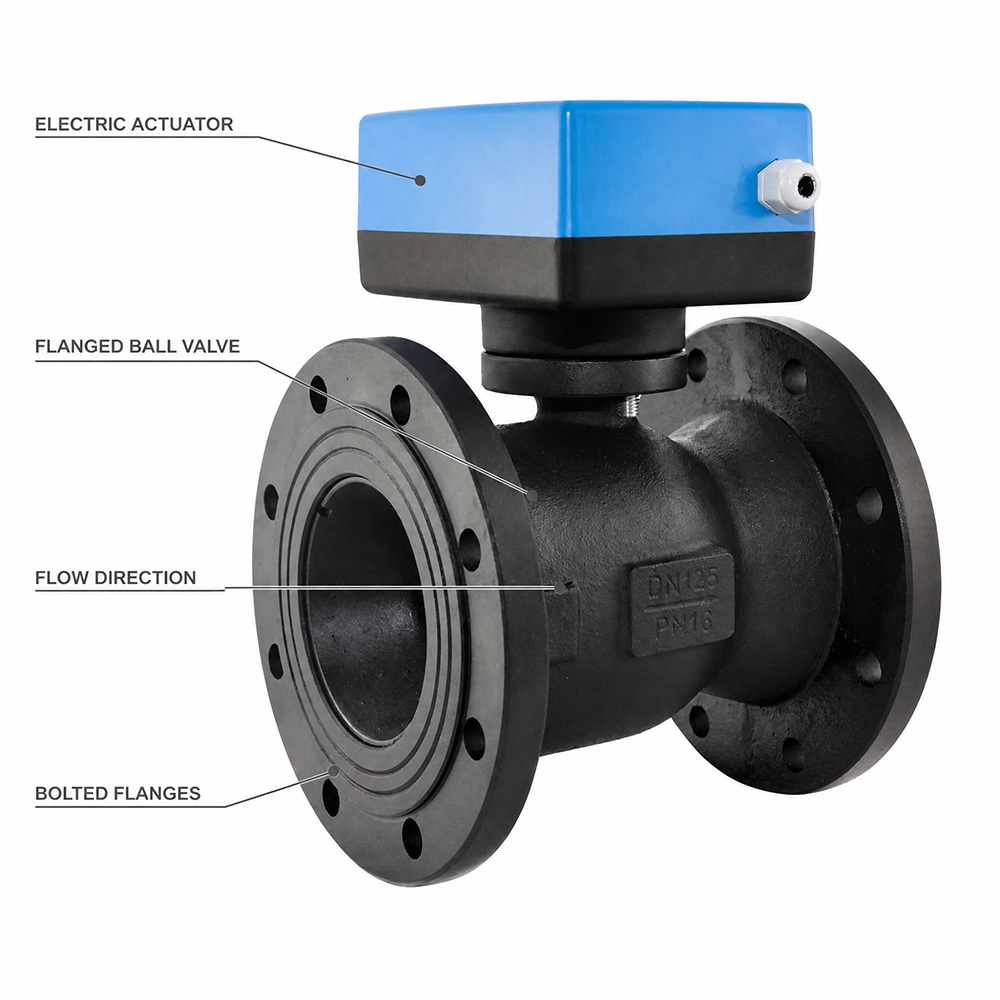

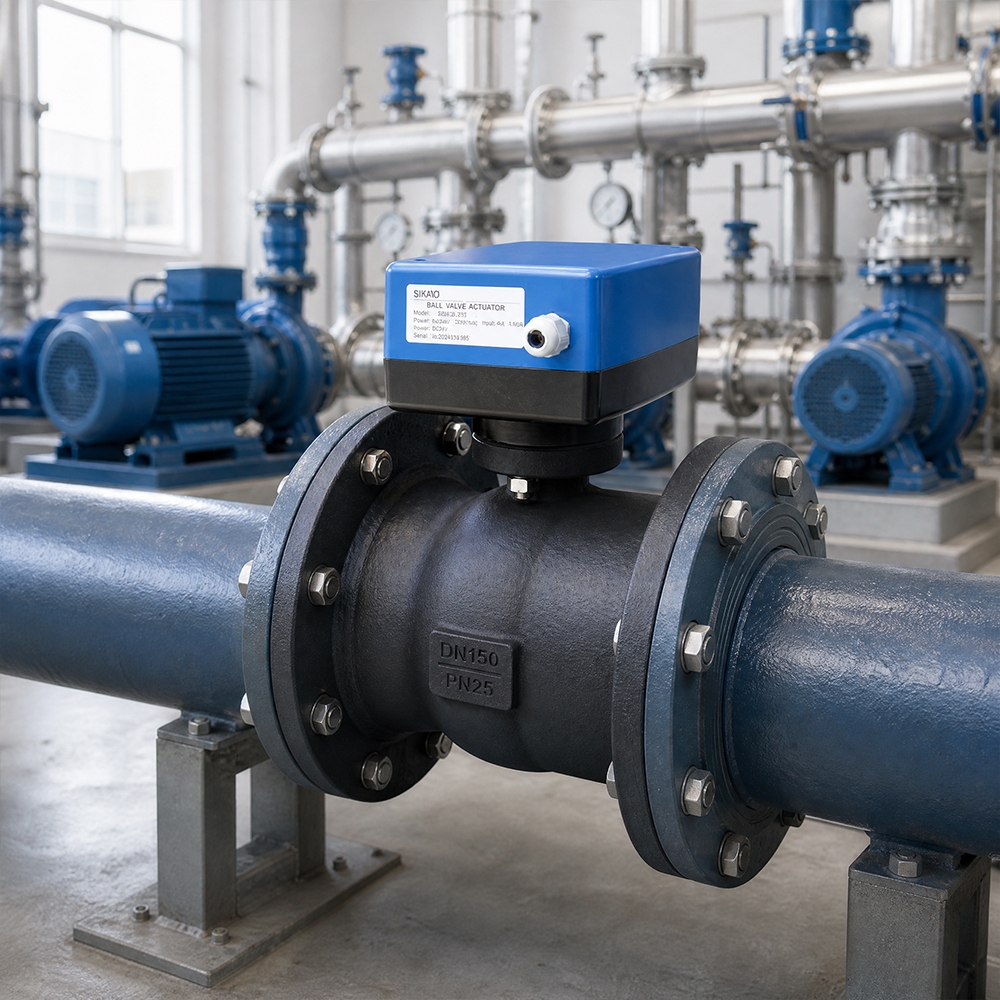

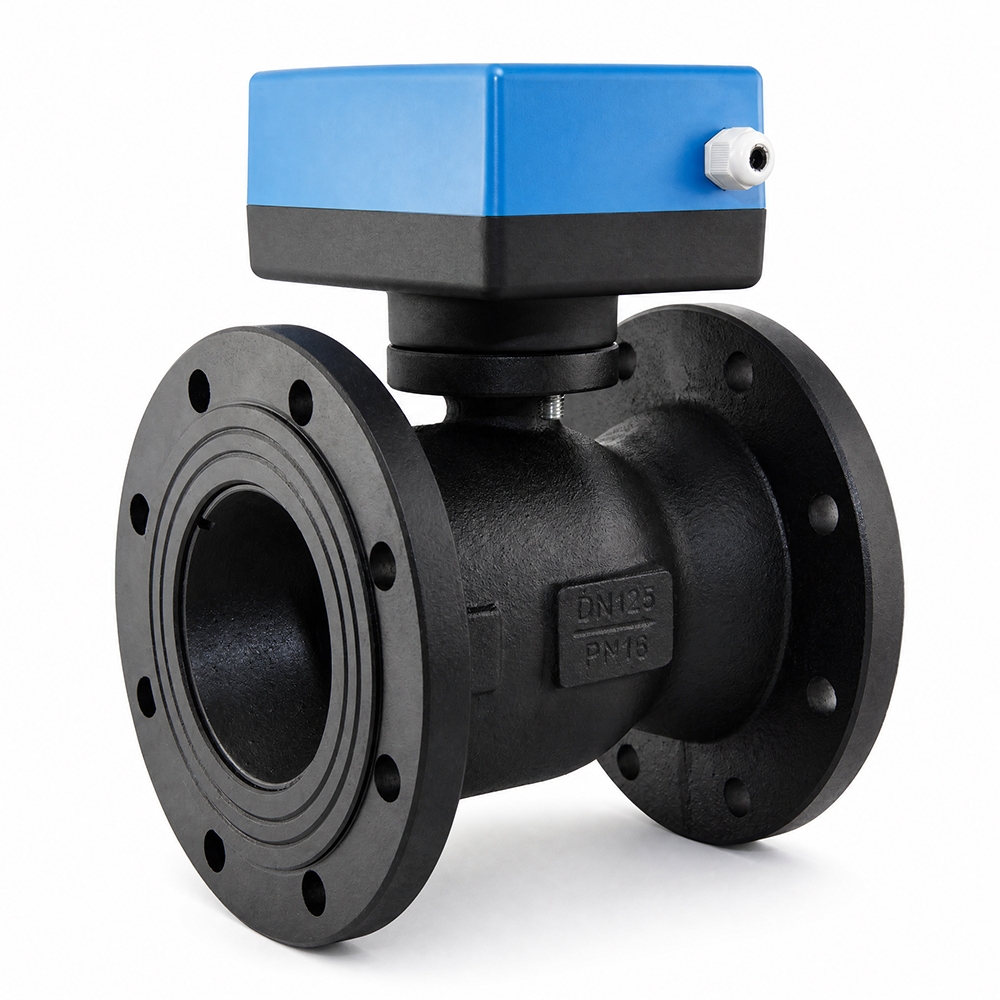

TPBA05 Series Ball Valve Actuator is a high-performance electric actuator designed for HVAC water control applications. It is matched with TPBV series flanged ball valves and is widely used in central air-conditioning systems, heating systems, water treatment systems, and industrial applications for controlling chilled and hot water flow.

Featuring a bi-directional AC motor, easy installation design, built-in limiter, and optional position feedback function, TPBA05 provides reliable and precise valve control for modern HVAC systems.

The actuator supports 0(2)-10V DC or 0(4)-20mA DC proportional control signals with optional 0-10V feedback output, making it suitable for building automation systems and energy-efficient flow regulation applications

 Main Features

◆Bi-directional AC motor design

◆Compatible with DN65-DN100 flanged ball valves

◆Proportional control with 0(2)-10V DC / 0(4)-20mA DC input

◆Optional 0-10V feedback signal

◆Built-in limiter for power saving and extended motor lifetime

◆Fireproof ABS housing with aluminum alloy chassis

◆Torque ≥25Nm

◆Operation angle up to 90°

◆IP54 protection rating

◆Multiple voltage options: 24VAC / 110VAC / 120VAC / 220VAC / 230VAC / 240VAC

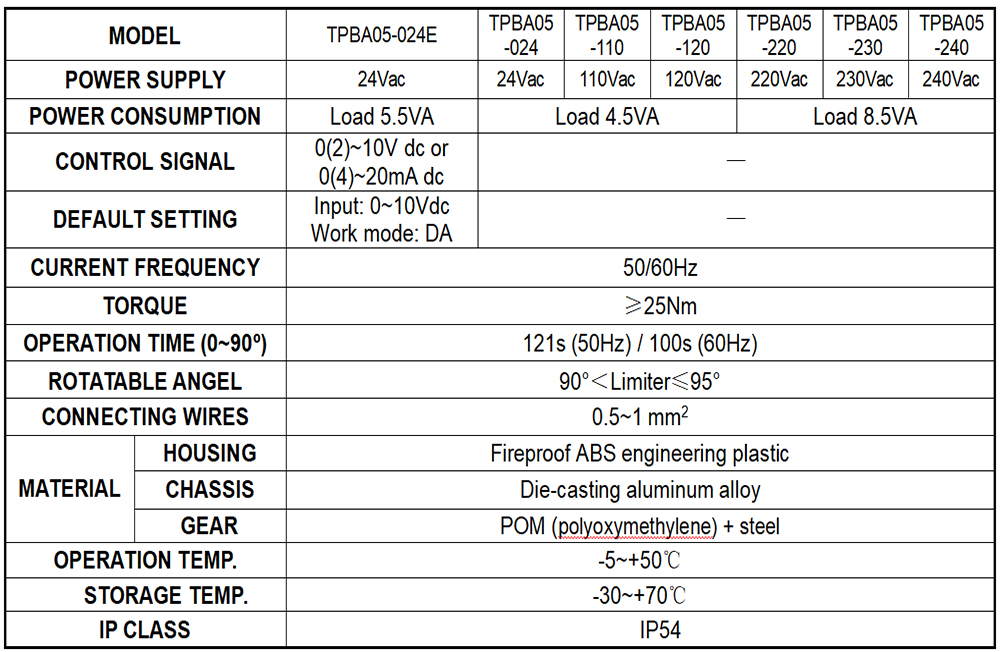

 SPECIFICATIONS AND DATA

FAQ

1. What is TPBA05 ball valve actuator used for?

TPBA05 electric actuator is mainly used for controlling chilled and hot water flow in HVAC systems, heating systems,

water treatment equipment, and industrial production applications.

2.Which valves can TPBA05 actuator be installed with?

TPBA05 actuator is designed to work with TPBV series flanged ball valves and is suitable for DN65-DN100 flanged ball valves

3. What control signals does TPBA05 support?

The 24VAC model supports proportional control signals:

 0(2)-10V DC

 0(4)-20mA DC

and optional 0-10V feedback output for system monitoring.

4.What is the torque output of the actuator?

The actuator provides a torque of ≥25Nm, suitable for controlling medium and large-size flanged ball valves.
