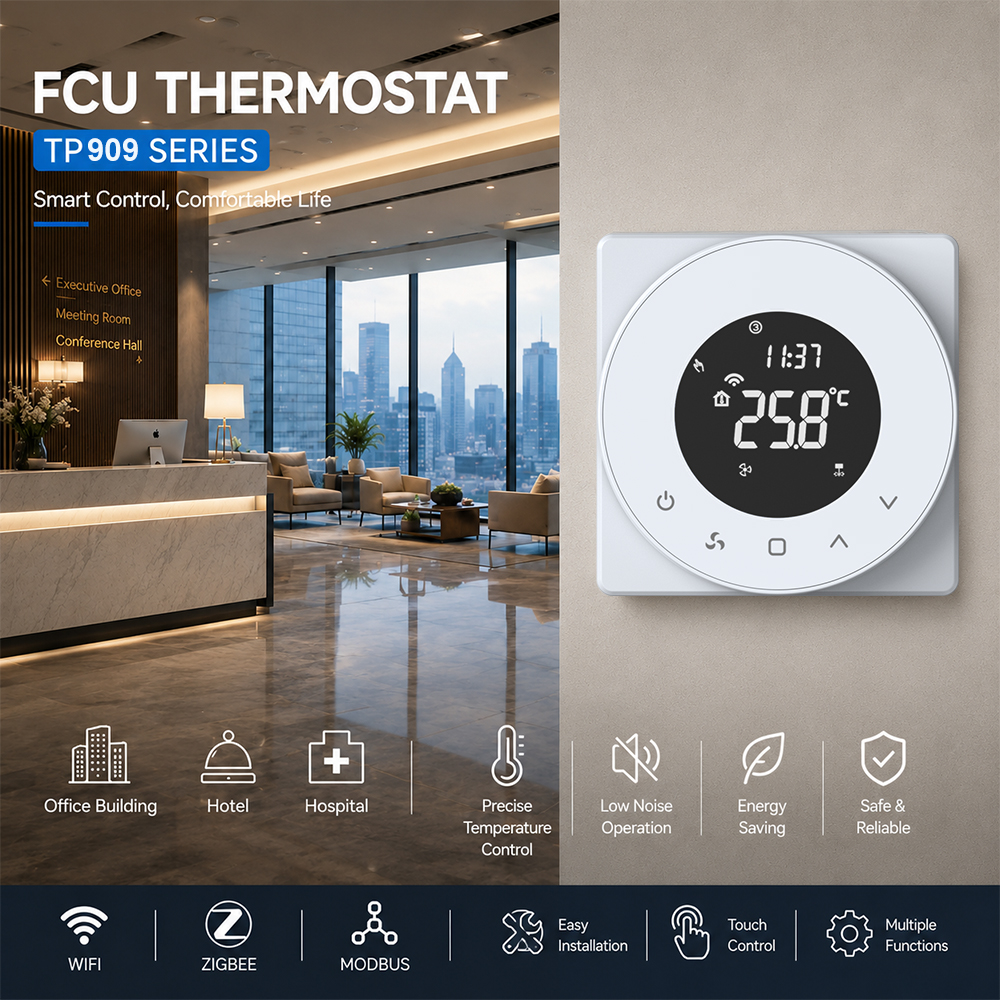

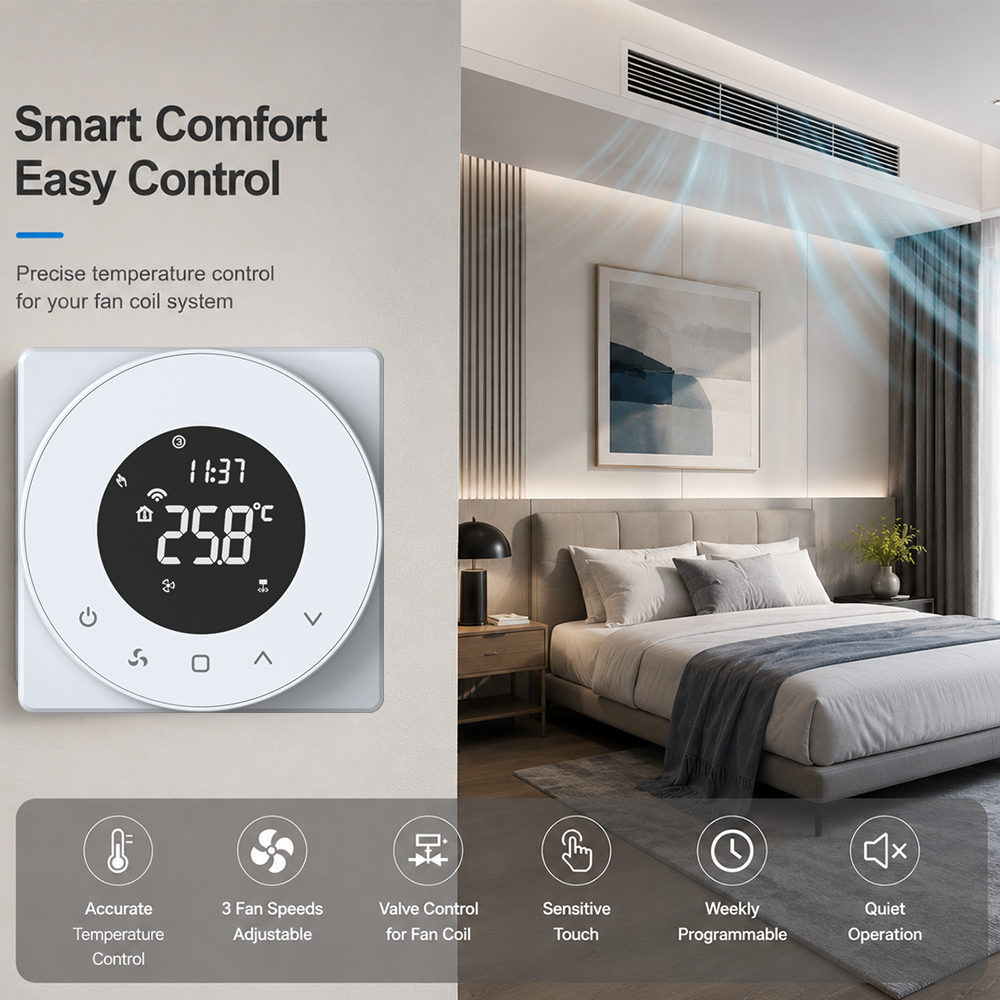

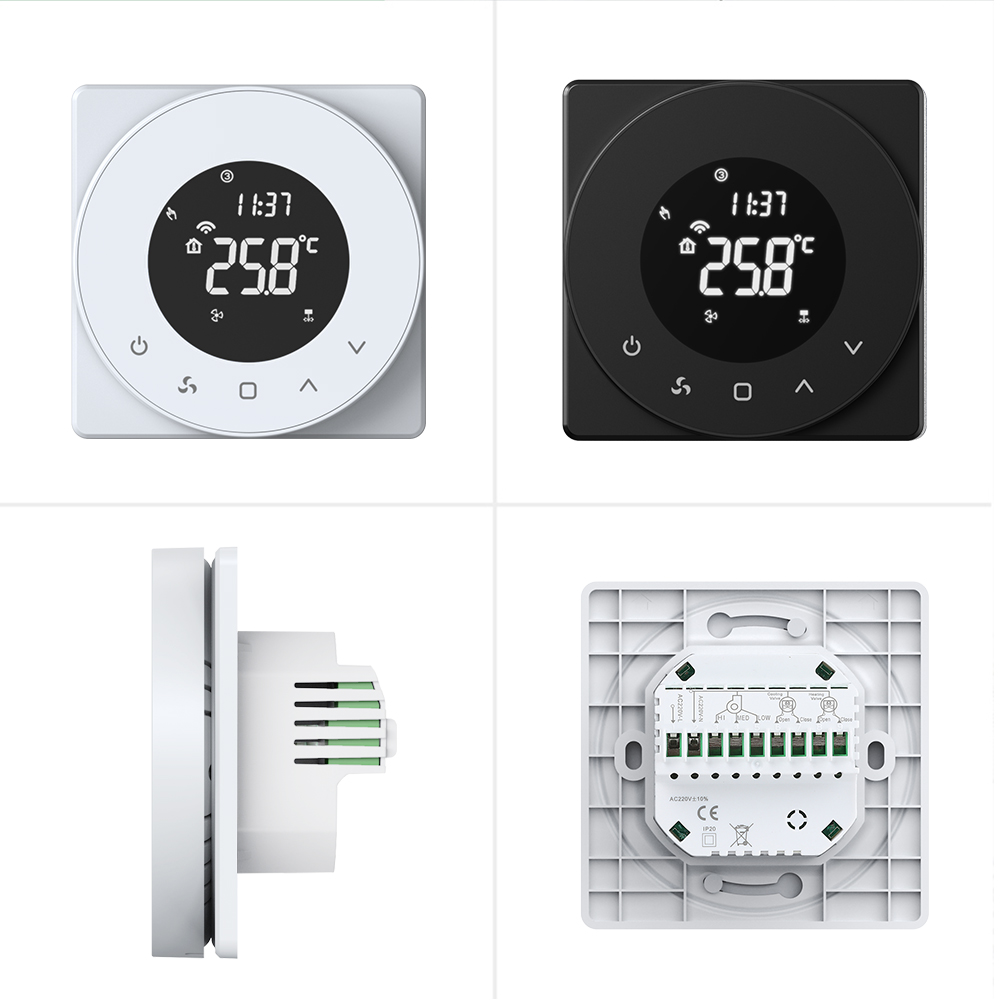

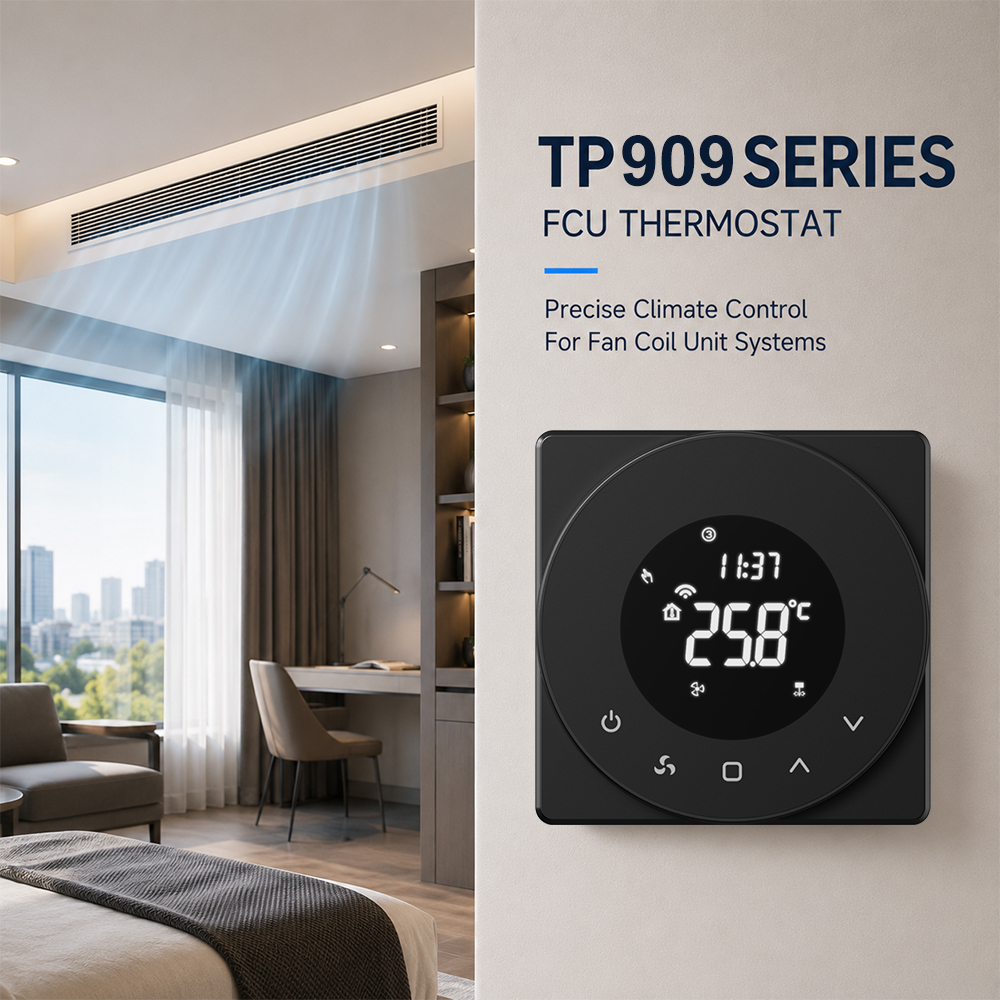

TP909 Round VA LCD Touch Screen Smart WiFi FCU Thermostat

TP909 series round VA LCD display Touch type Room Thermostats are designed to on/off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature as reaching the aim of comfort and saving

 Technical Data

  Features

◆Suitable 2 pipe and 4pipe FCU system control

◆Modern round VA LCD display.

◆3-speed fan control (Auto/High/Medium/Low)

◆Heating, Cooling and Ventilation modes

◆Motorized valve ON/OFF control

◆Weekly programmable schedule

◆Data memory when power is off

◆Suitable86mm hidden box and european 60mm round

◆Internal and external sensor selectable

  Application

◆Hotel HVAC System                      ◆Apartments HVAC System                   ◆Hospital BMS System

◆School HVAC System                   ◆Shopping Mall HVAC System              ◆Villa HVAC System

 FAQ

1.What is the difference between 2-pipe and 4-pipe FCU systems?

2pipe FCU normally only need one valve.

4Pipe need 2 motorized valves to control the Heat and Cool water from different pipes

2.Can your thermostat control 3-speed fan motors?

Yes.We can

3.Can your FCU thermostat control motorized valves?

Yes.No matter 2wires or 3wires motorized valve.Our FCU thermostat could handle it.

4.Do your FCU thermostats support Modbus?

Yes.We have Modbus thermostat.Please check with sales for more info.
