Application System:2pipe/4pipe Fan Coil Unit System
Model:TP518FC2/TP518FC4
●Valve control via 2-point(on/off output) or 0…10 V output
●Supports with EC motor
●Non-Volatile memory to keep program settings and setpoints during a power outage
●7 days 4 perioods programmable (Optional)
●Child Lock
●External Sensor (Optional)
●Keycard (Optional)
●Modbu RS485 (Optional)
●WIFI mobile app control (Optional)
●Zigbee mobile app control (Optional)
●BACnet Communication(Optional)
TP518 is a touch type thermostsat design for 2pipe and 4pipe FCU system.This thermostat is specially designed for hotel rooms and commercial applications. The keycard function helps manage room energy consumption efficiently.
Technical Data
| Features | Parameters |
| Application | 2pipe/4Pipe Fan Coil Unit System |
| Power | AC95- 240V/24V option, 50/ 60Hz |
| Controlled Load | 5A |
| Mode | Programmable/Manaul Mode optional |
| Temperature Accuracy | +/-0.5℃ |
| Control Temperature Range | 5~35℃ |
| Timmer function | 2perids available |
| Button Lock Function | YES |
| Current Load | Induction for fan: 3A, Resistive for fan: 5A |
| Memory Function | YES |
| Housing | PC+ABS anti fire |
| IP Class | IP20 |
| Sensor | NTC 10k 3977 |
| Installation Hole distance | 86box/60mmEurope standard round box |
| Dimension | 86x86x14mm |
Features
◆Keycard energy-saving option
◆Touch screen operation
◆Fan coil ON/OFF control
◆Valve control
◆Heating and cooling mode
◆Large LCD display
◆Modern design suitable for hotels
Application
◆Hotel HVAC System ◆Apartments HVAC System ◆Commercial Buildings ◆Smart Home HVAC System
FAQ

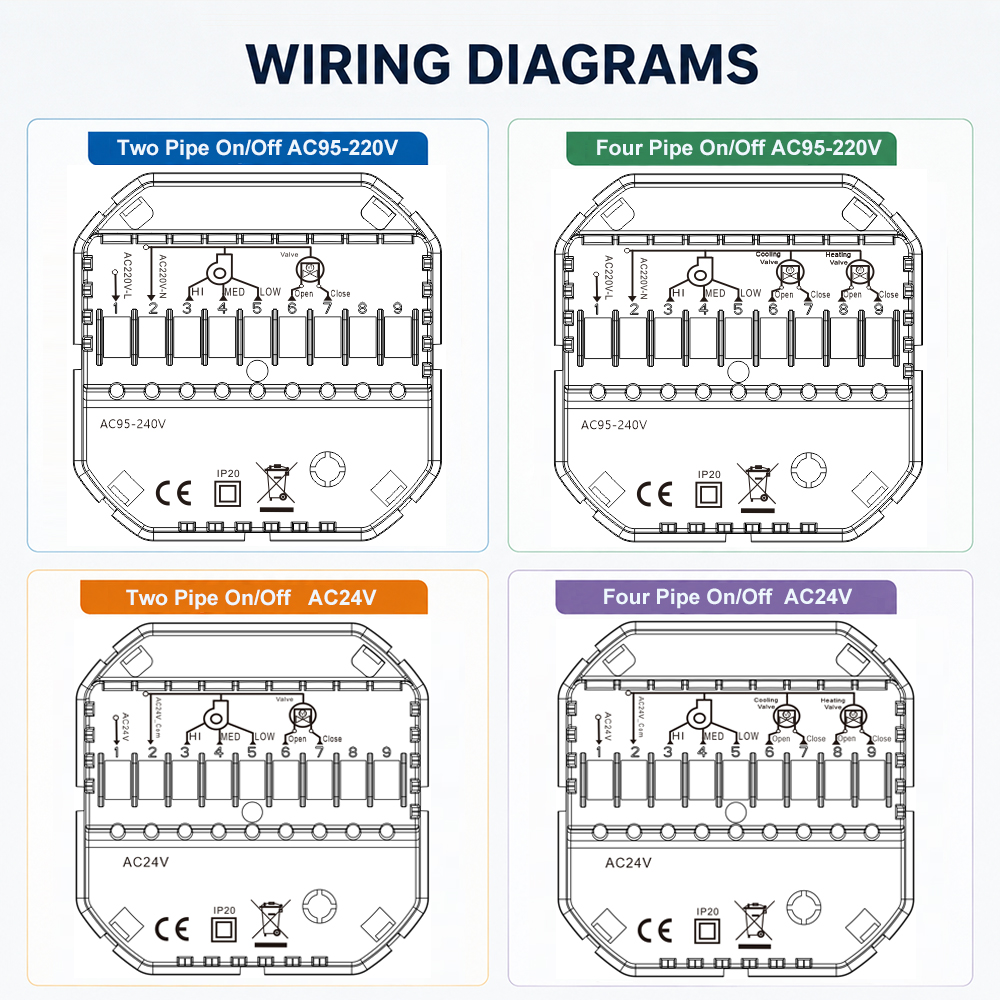

1.What is the difference between 2-pipe and 4-pipe FCU systems?
2pipe FCU normally only need one valve.
4Pipe need 2 motorized valves to control the Heat and Cool water from different pipes
2.Can your thermostat control 3-speed fan motors?
Yes.We can
3.Can your FCU thermostat control motorized valves?
Yes.No matter 2wires or 3wires motorized valve.Our FCU thermostat could handle it.
4.Does your thermostat support proportional valve control?
Yes.We have modualting thermostat.
5.Do your FCU thermostats support Modbus?
Yes.We have Modbus thermostat.Please check with sales for more info.
