3 Way Motorized Ball Valve for HVAC Bypass and Hydronic Water Flow Switching Control

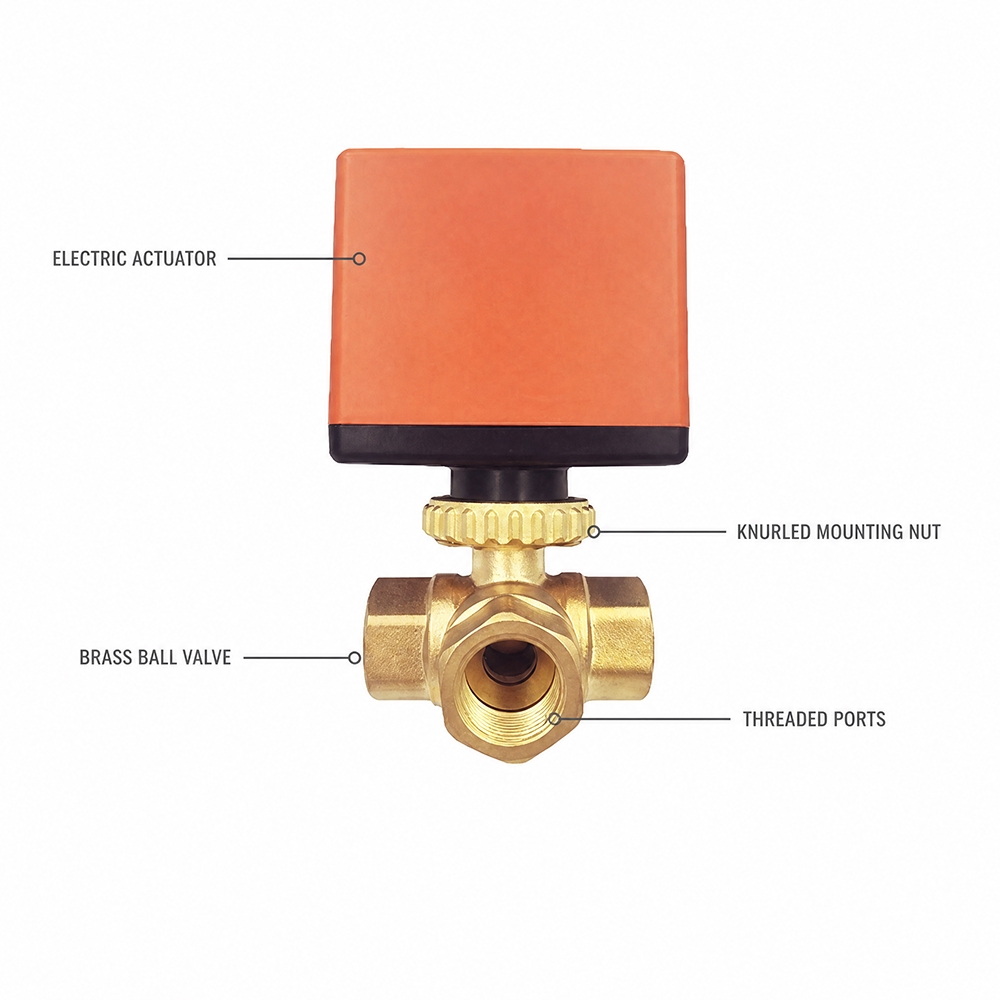

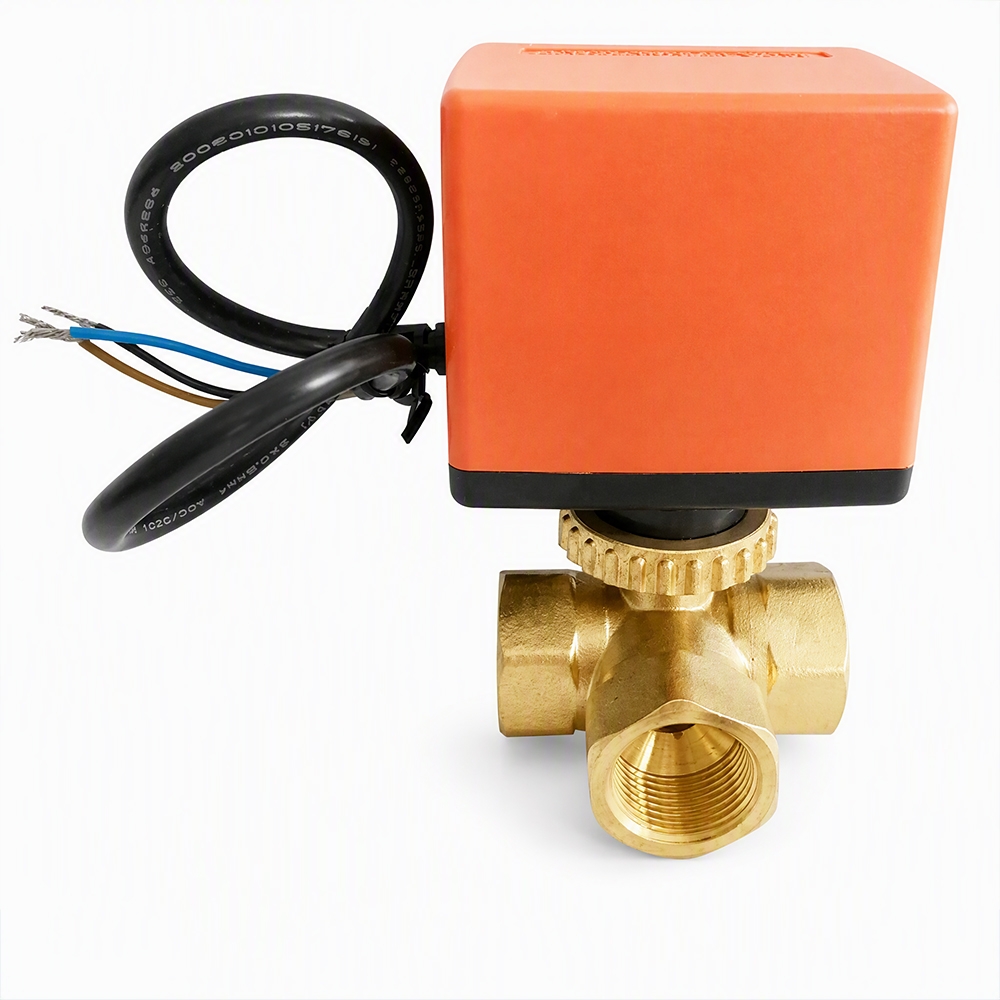

TP60 electric actuated ball valve combines a durable brass valve body with a high-performance motor actuator to achieve precise water flow control in modern HVAC systems.

It is widely used for fan coil units (FCU), underfloor heating systems, heat pumps, boilers, and building automation projects. The direct flow passage design reduces sediment accumulation, while the soft opening and closing function helps reduce water hammer problems.

The actuator can be installed after plumbing work is completed, improving installation efficiency and reducing maintenance costs.

 Key Features

◆3-way motorized ball valve design

◆Suitable for hot water, chilled water, and glycol systems

◆IP65 waterproof and dustproof actuator

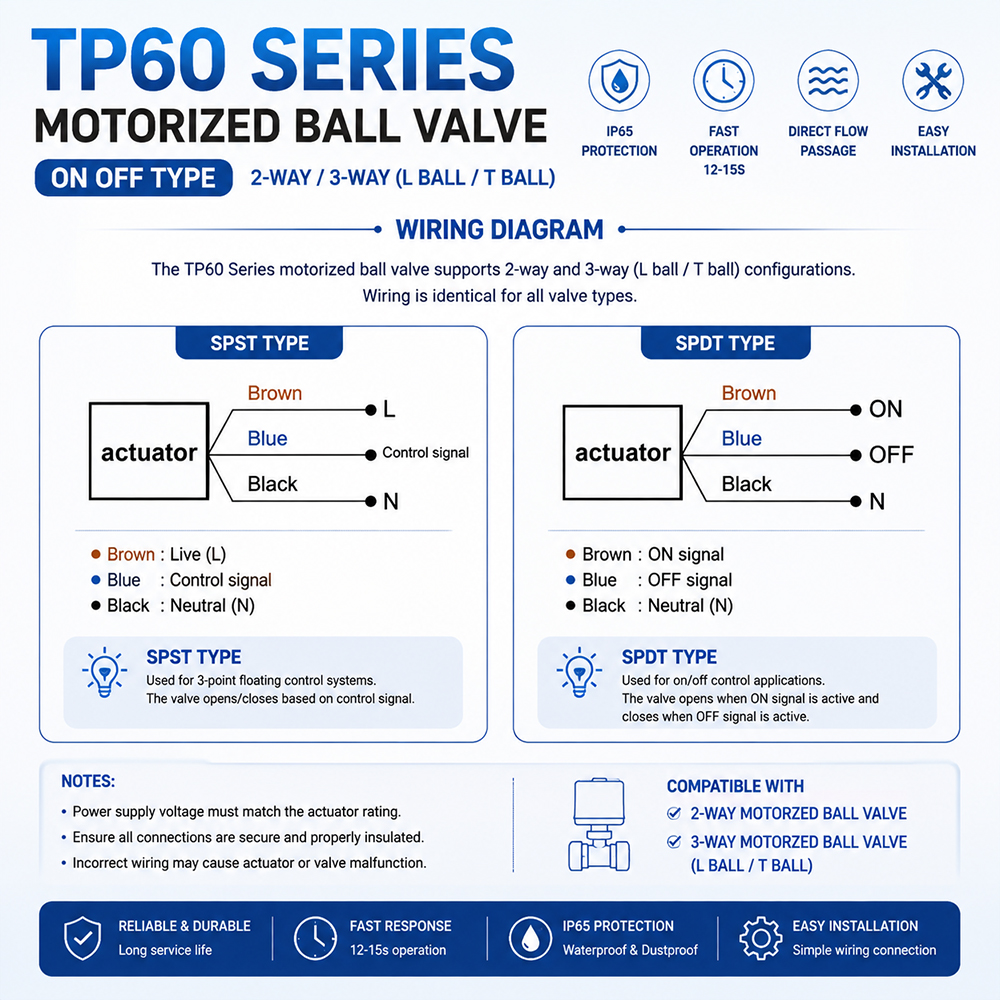

◆ON/OFF or 3-point control available

◆AC24V / AC230V power options

◆Fast running time: 12-15 seconds

◆Maximum pressure rating up to 300psi (2MPa)

◆Differential pressure up to 150psi (1MPa)

◆Easy actuator replacement after installation

◆Maintenance-free operation

 Application

◆School HVAC system         ◆Commercial building HVAC system             ◆Chiller Control System          ◆AHU control System

FAQ

1.How long does the valve take to open or close?

The running time is approximately:15 seconds at 50Hz  12 seconds at 60Hz

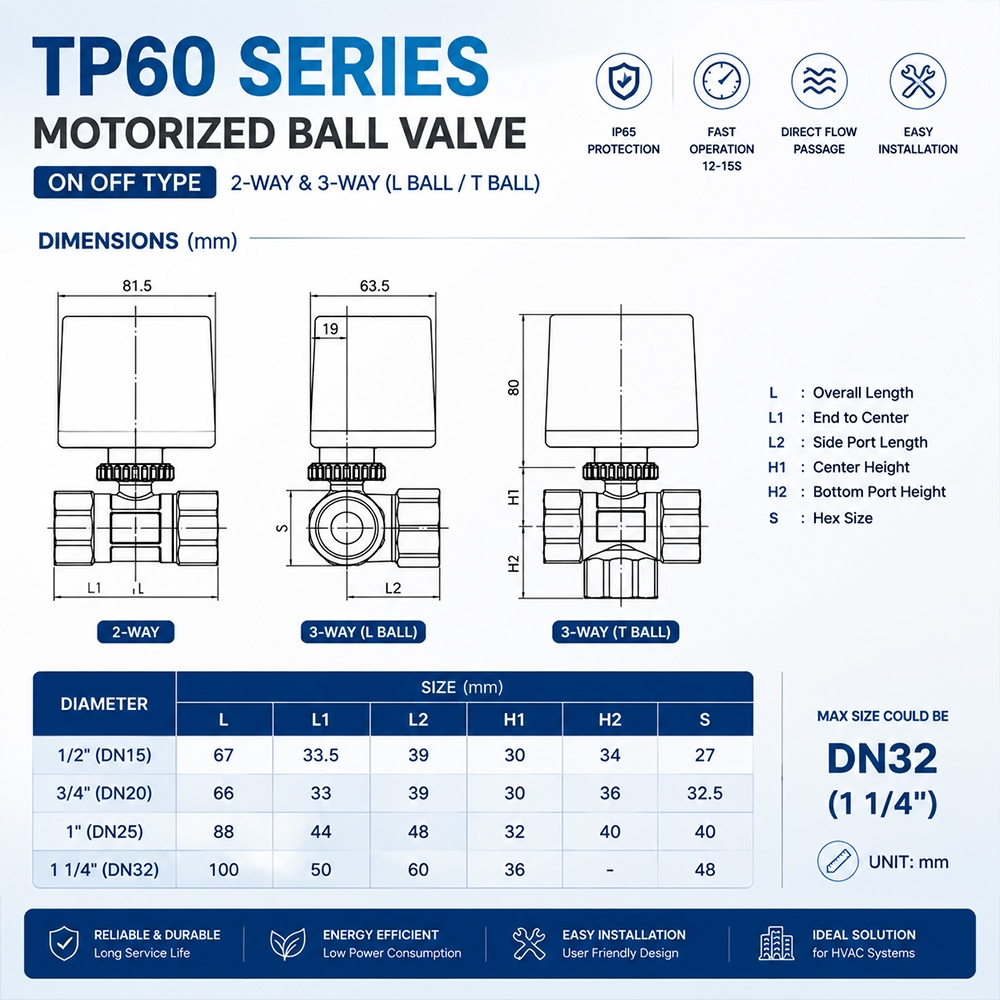

2.What pipe sizes are available?

TP60 series is available in:1/2",3/4", 1",1-1/4" sizes

3.What type of water media can be used?

The valve is designed for:Hot water ,Chilled water ,Water mixed with up to 60% glycol systems.

4.What is the maximum working pressure?

The pressure rating is up to:300psi (2MPa)with maximum differential pressure up to:150psi (1MPa).

5.Does the actuator need to be installed before plumbing?

No. One advantage of TP60 is that the actuator can be installed after plumbing work is completed, making installation easier and faster.

6.Is the actuator replaceable?

Yes. The actuator is designed for quick and easy replacement without replacing the complete valve body.

7.Does the valve help reduce water hammer?

Yes. The soft opening and closing function helps minimize water hammer during operation.

8.What materials are used for the valve body?

The standard valve body uses forged brass with nickel plating. Other materials such as stainless steel and bronze are available as options.

9.Can you provide OEM/ODM customization for motorized ball valves?

Yes. We support OEM/ODM
