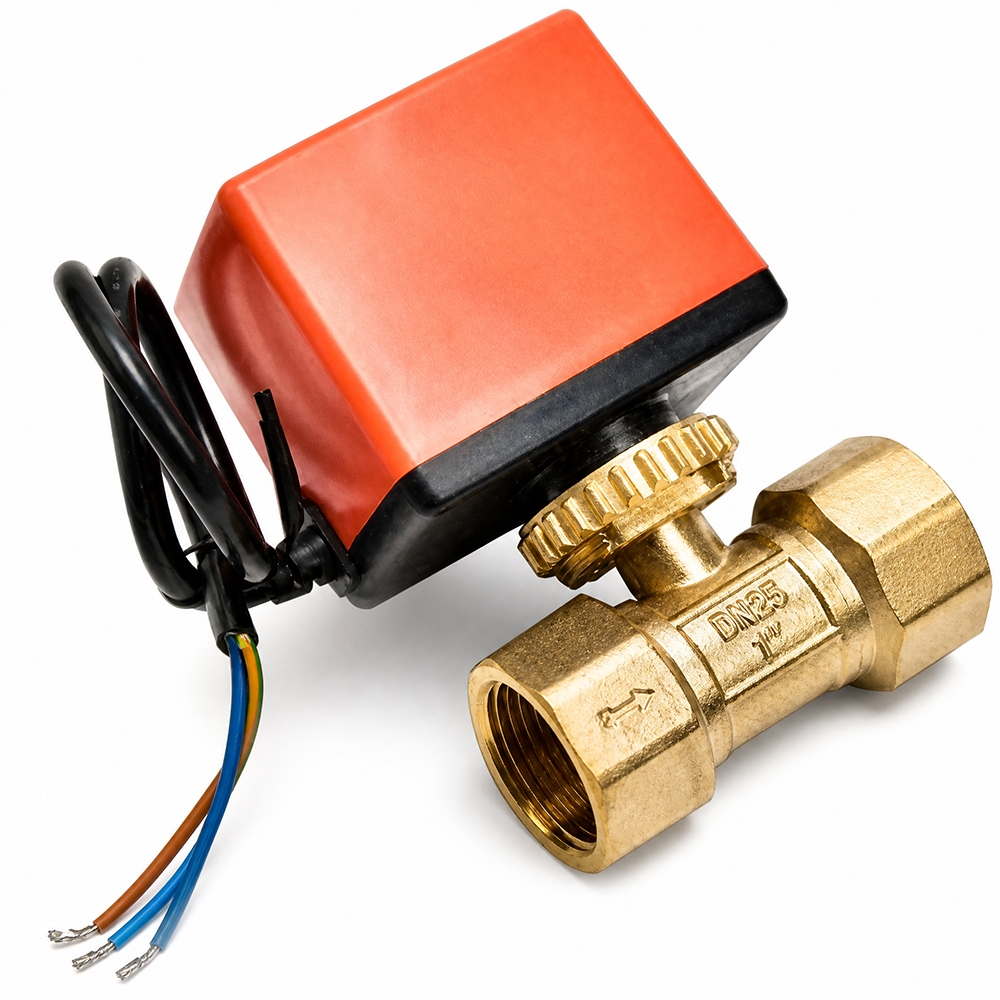

2 Way Motorized Ball Valve for HVAC Hydronic Heating and Cooling Water Control

TP60 Series motorized ball valve is designed for HVAC heating and cooling applications, including fan coil units, hydronic heating systems, air conditioning systems, and water control applications.

Available in 2-way and 3-way configurations, this electric ball valve provides reliable ON/OFF or 3-point control operation with fast actuator response and long service life. The IP65 waterproof actuator design ensures stable operation in various installation environments.

With forged brass valve body, soft shut-off function, low power consumption, and easy actuator replacement design, TP60 motorized ball valve offers an efficient solution for OEM HVAC projects, commercial buildings, hotels, and residential applications.

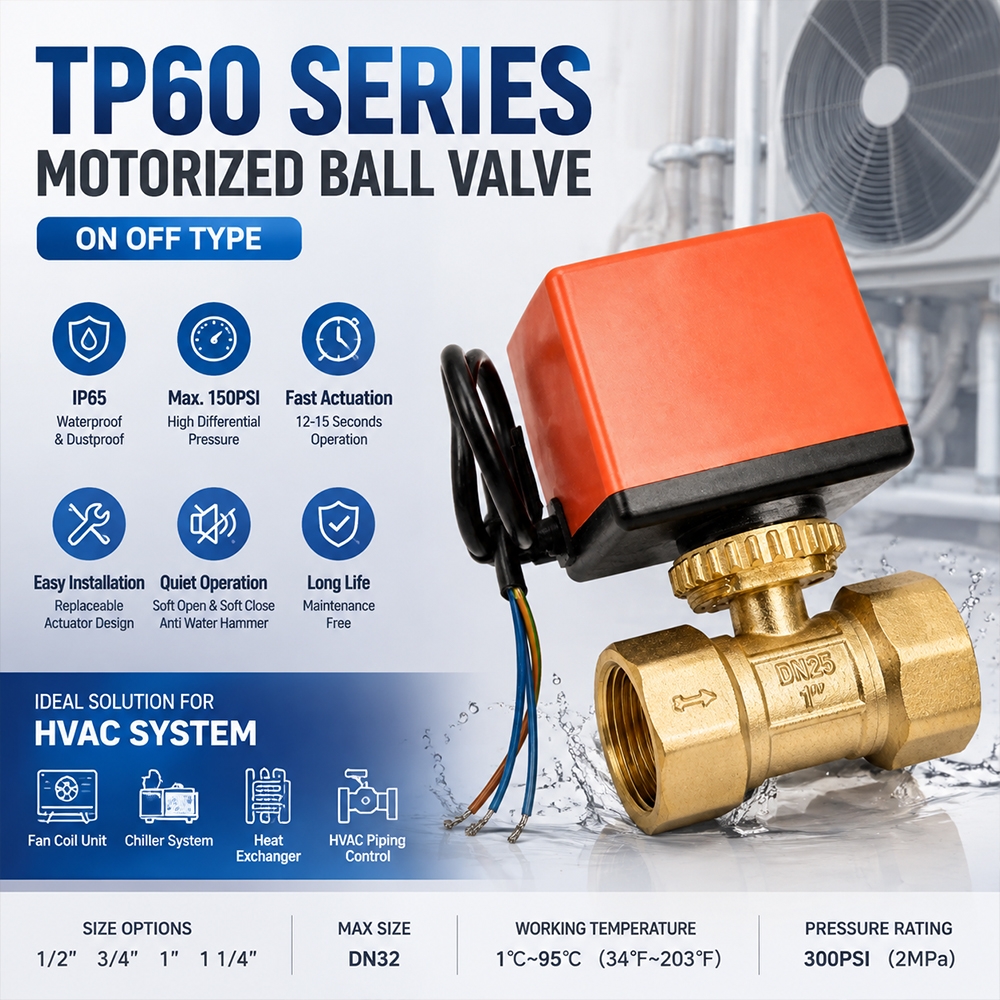

 Key Features

◆2-way motorized ball valve design

◆Suitable for hot water, chilled water, and glycol systems

◆IP65 waterproof and dustproof actuator

◆ON/OFF or 3-point control available

◆AC24V / AC230V power options

◆Fast running time: 12-15 seconds

◆Maximum pressure rating up to 300psi (2MPa)

◆Differential pressure up to 150psi (1MPa)

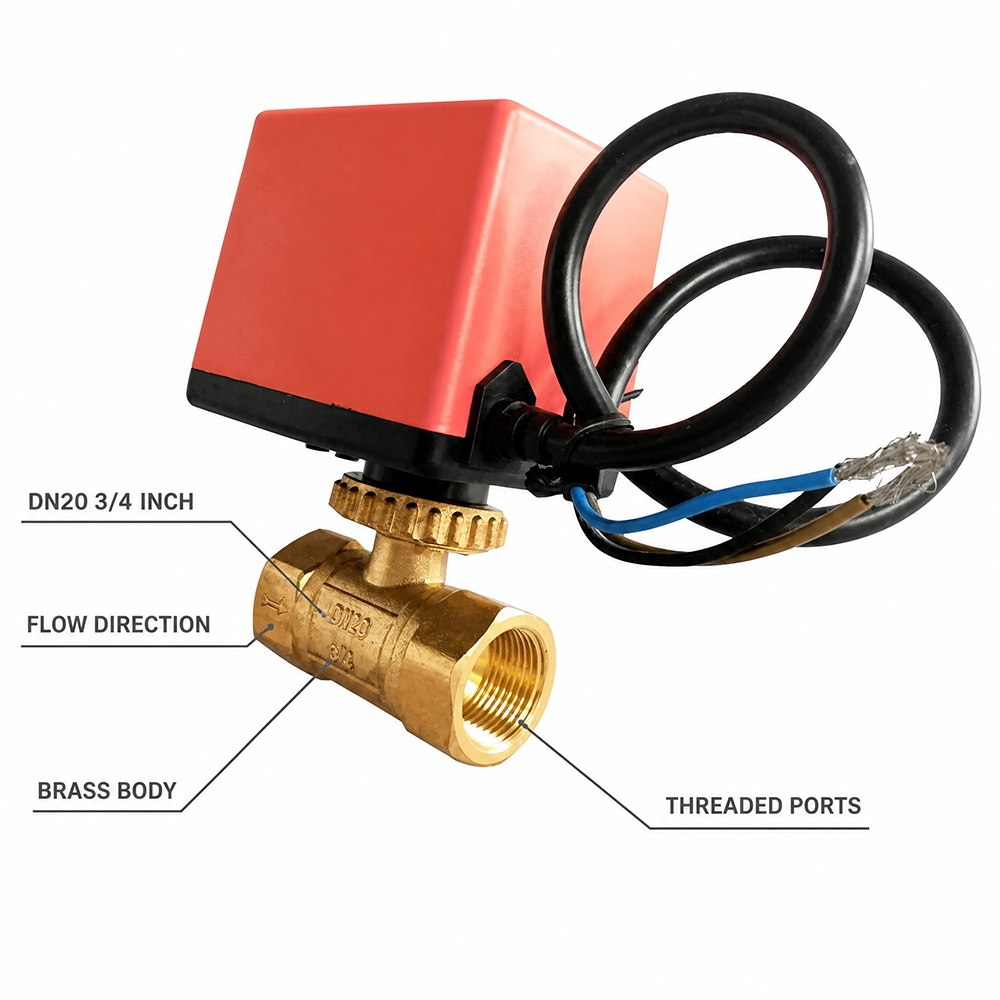

◆Forged brass nickel-plated valve body

◆Easy actuator replacement after installation

◆Maintenance-free operation

 Application

◆School HVAC system         ◆Commercial building HVAC system             ◆Chiller Control System          ◆AHU control System

FAQ

1.What is a motorized ball valve?

A motorized ball valve is an electrically controlled valve that uses an actuator to open, close, or regulate water flow automatically.

It is commonly used in HVAC heating and cooling systems.

2.What applications can TP60 motorized ball valves be used for?

TP60 series valves are suitable for HVAC systems, fan coil units, hydronic heating, cooling systems, heat pumps, boilers, and water circulation control applications.

3.Is TP60 available as a 2-way and 3-way valve?

Yes. TP60 series supports both 2-way and 3-way ball valve structures according to different HVAC system requirements.

4.What power supply options are available?

The motorized ball valve supports multiple voltage options including:AC24V /AC230V

according to project requirements.

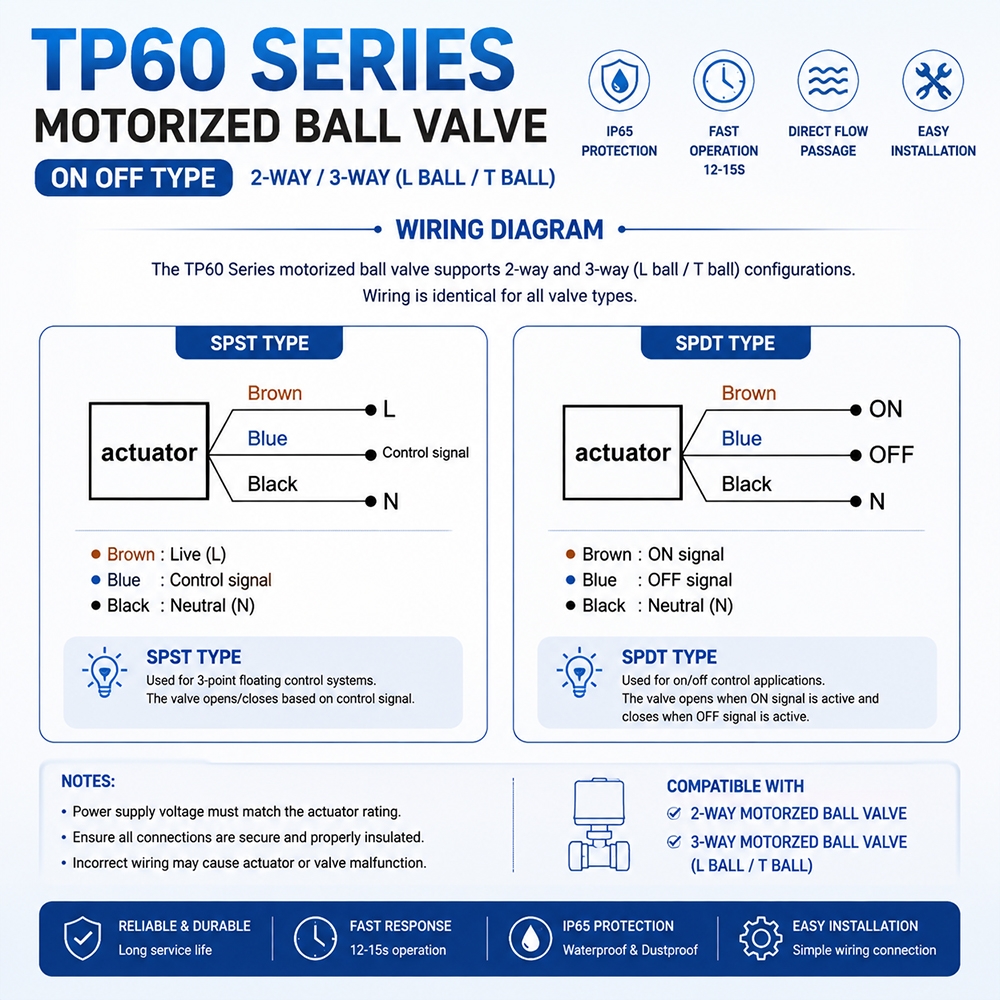

5. What control modes does this electric ball valve support?

TP60 supports:ON/OFF control which can work with HVAC controllers, thermostats, and building automation systems.

6.What is the protection level of the actuator?

The actuator has an IP65 waterproof and dustproof design, making it suitable for different installation environments.
