2 Way On Off Valve for HVAC Fan Coil and High Efficiency HVAC System

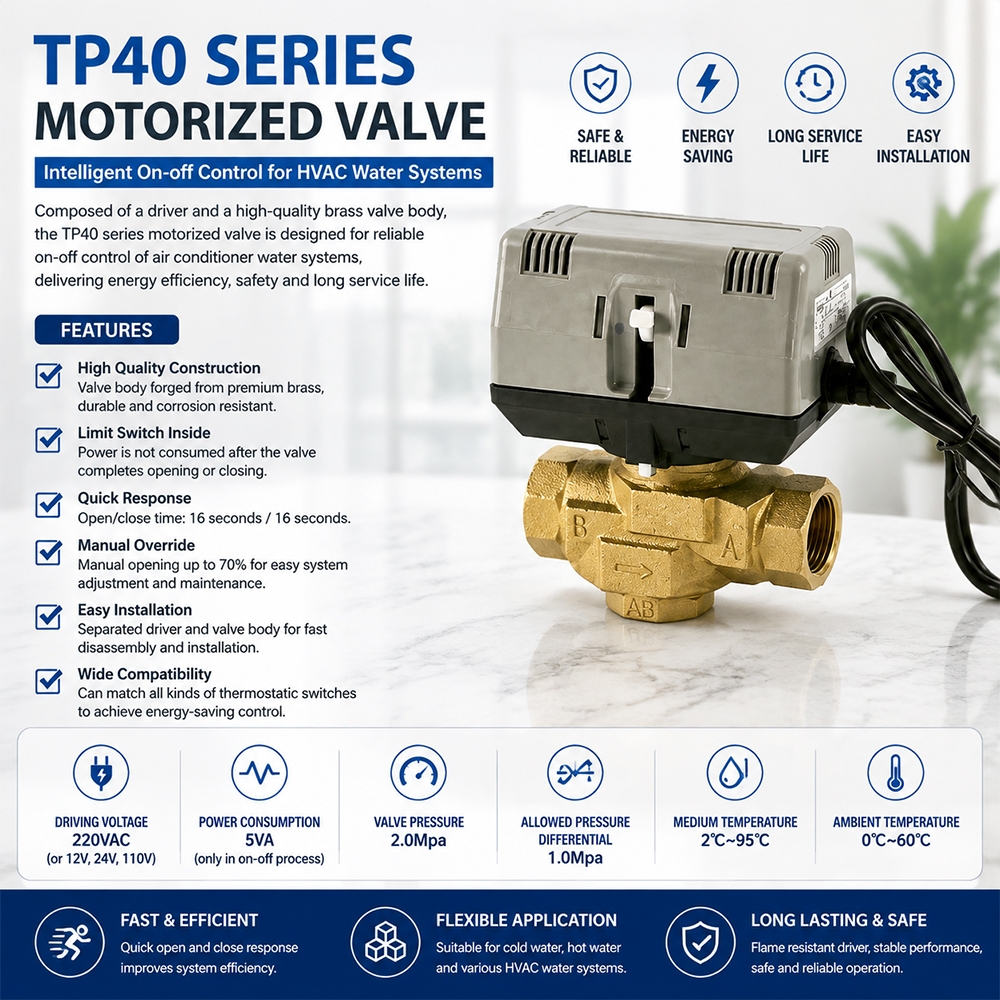

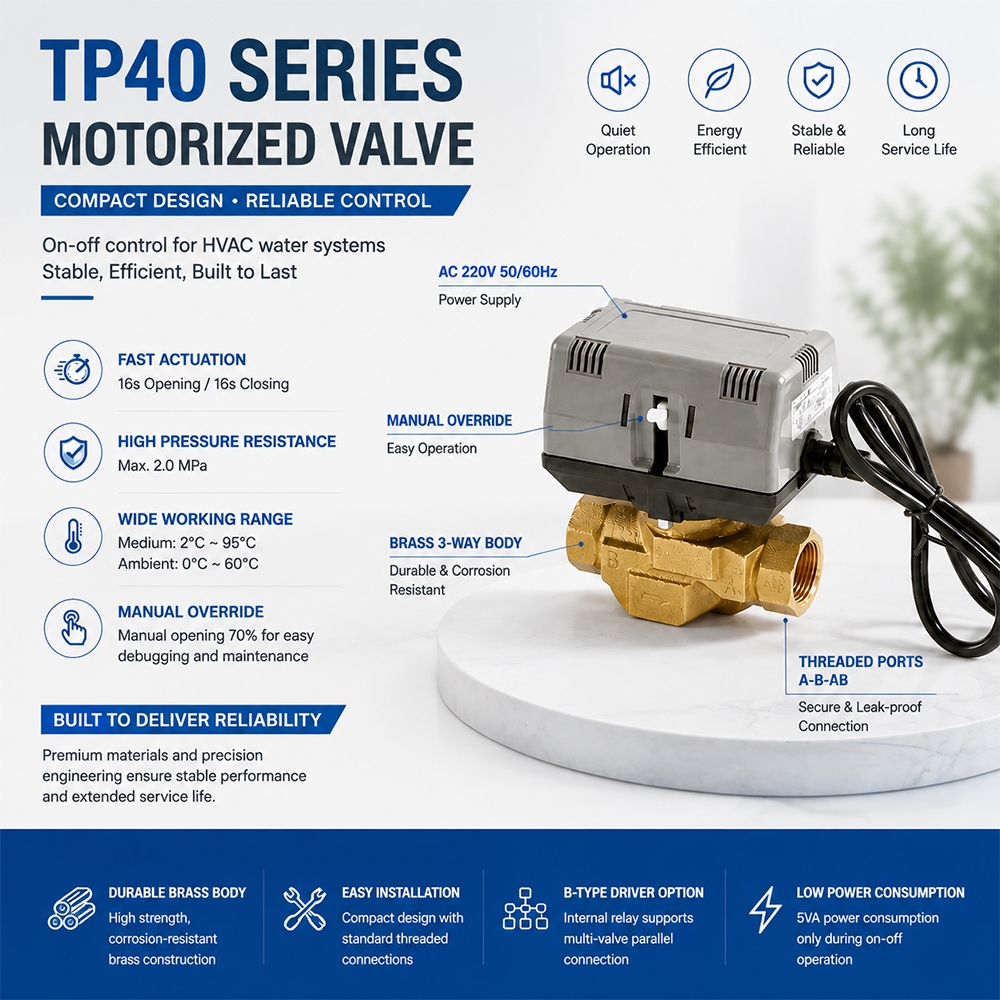

TP40 series motorized valve is designed for automatic ON/OFF control of air conditioning water systems, especially for fan coil unit (FCU) applications. It consists of a high-quality brass valve body and a durable actuator with built-in limit switch, providing reliable flow control, energy saving operation, and easy maintenance.

Available in 2-way and 3-way configurations, the valve can work together with room thermostats to control chilled water and hot water systems. With multiple voltage options, fast opening/closing speed, manual override function, and separated actuator design, TP40 provides a flexible solution for HVAC manufacturers, contractors, and system integrators.

 Key Features

◆For FCU air conditioning water system control

◆2-way  motorized valve options

◆High-quality forged brass valve body

◆ON/OFF control with thermostat

◆220VAC / 24VAC available

◆Opening and closing time: 16 seconds

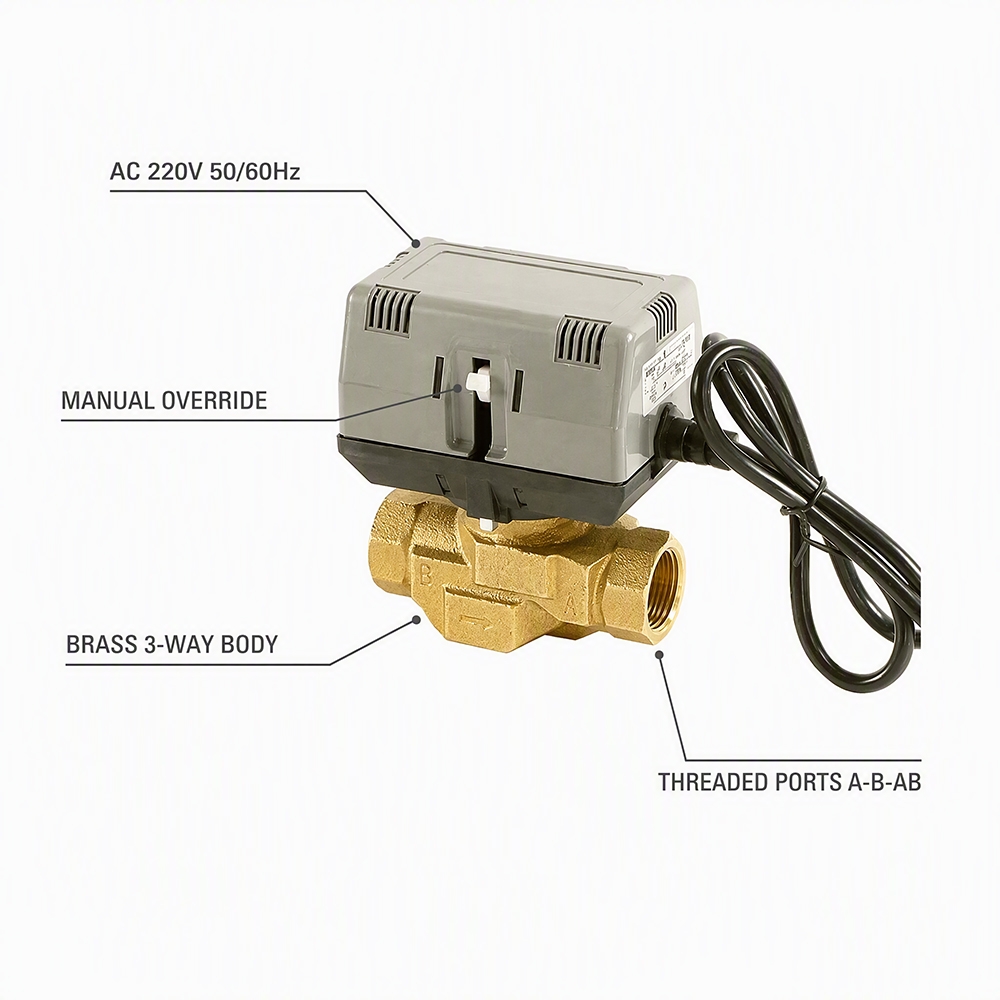

◆Manual valve opening function for commissioning

◆Built-in limit switch for energy saving operation

◆Suitable for hot water and chilled water systems

 Application

◆Fan Coil Unit (FCU)                           ◆Chilled water system                       ◆Hot water heating system

◆HVAC automation system             ◆Commercial buildings                     ◆Hotels and apartments

FAQ

1.Is TP40 a 2-way valve or 3-way valve?

TP40 series supports both 2-way motorized valve and 3-way motorized valve options for different HVAC water control applications.

2.What voltage options are available for TP40 valve actuator?

The standard driving voltage is 220VAC. Other options include 12V, 24V, and 110V according to customer requirements

3.What medium can TP40 motorized valve control?

TP40 valve is suitable for both cold water and hot water applications

4.What is the opening and closing time of TP40 valve?

The opening time and closing time is approximately 16 seconds

5.Can TP40 motorized valve work with a thermostat?

Yes. TP40 can be connected with different thermostat switches to achieve automatic HVAC energy-saving control.
