TP909UHP-ZB Voice Controlled Zigbee Floor Heating Thermostat for European Homes
TP909UHP-ZB Voice Controlled Zigbee Floor Heating Thermostat for European Homes
TP909UHP-ZB Voice Controlled Zigbee Floor Heating Thermostat for European Homes
TP909UHP-ZB Voice Controlled Zigbee Floor Heating Thermostat for European Homes
TP909UHP-ZB Voice Controlled Zigbee Floor Heating Thermostat for European Homes
TP909UHP-ZB Voice Controlled Zigbee Floor Heating Thermostat for European Homes
TP909UHP-ZB Voice Controlled Zigbee Floor Heating Thermostat for European Homes
TP909UHP-ZB Voice Controlled Zigbee Floor Heating Thermostat for European Homes
TP909UHP-ZB Voice Controlled Zigbee Floor Heating Thermostat for European Homes
TP909UHP-ZB Voice Controlled Zigbee Floor Heating Thermostat for European Homes

TP909UHP-ZB Voice Controlled Zigbee Floor Heating Thermostat for European Homes

Application: Electric Underfloor Heating System

Model: TP909UHP-ZB/TP909UHP-ZB-24V

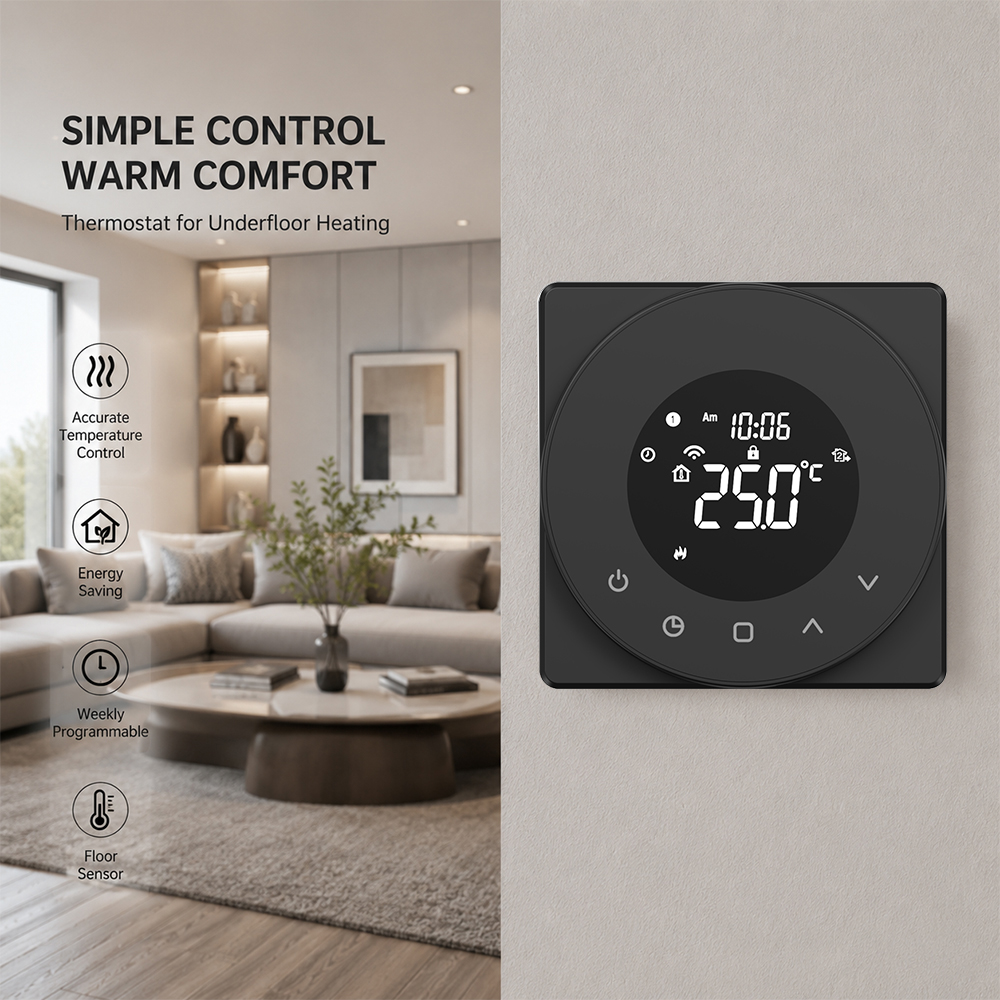

1. Sleek Ultra-Slim Profile for Modern Interiors

2. Flame-Retardant PC+ABS Housing for Maximum Safety

3. Feather Touch Capacitive Control Panel

4. round VA LCD is comfort to see even during dark night

5. Minimalist Design That Fits Any Wall Color

6.White/Black/ODM color

7.WIFI/ZIGBEE/MODBUS flexiable communication way for you select

8.Tuya/Smart life app to control your thermostat anywhere

9.CE/ROHS/UKCA approved


  • Description

    Voice Controlled Zigbee Floor Heating Thermostat for European Homes

     This thermotat is designed for European heating applications, It combines elegant design, smart automation, Zigbee communication and reliable

    temperature management.Ideal for OEM & ODM projects, supporting Tuya Smart ecosystem, voice assistants, programmable heating schedules

    and customized branding


     Technical Data

    FeaturesParameters
    ApplicationElectric Heating System
    PowerAC95- 240V/24V option, 50/ 60Hz
    Controlled Load16A
    ModeProgrammable/Manaul Mode optional
    Temperature Accuracy+/-0.5℃
    Temperature Range5~60℃
    Programmable function5+1+1 Weekly Program
    Button Lock FunctionYES
    Antifreeze FunctionYES
    Memory FunctionYES
    Temperature SensorTwo Sensors(UHP model)/One senor(WHP model,GCmodel)
    External Floor Sensor Length2.5meters
    SensorNTC 10k 3977
    Installation Hole distance86box/60mmEurope standard round box
    Dimension86x86x40mm

      Features

    Round Type Display More modern

    It is a design similar like nest thermostat display.Round display LCD looks more modern

    Display drarkness Change as you wish

    It design easy to change the display and standby light range 0-100%

    Child lock

    This thermostat provide child lock press up and down button to select.

    Weekly Programmable Function

    This thermostat provide 7days programmable funciton,You can set your target temperature and time as you need.

    One-Touch Temporary Override Without Disrupting Your Schedule

    Need a quick temperature boost during a scheduled period? One tap overrides temporarily, and the thermostat automatically returns to your

    preset program at the next period — no need to remember to reset it.Three Operating Modes for Every Lifestyle

    Switch freely between Manual (fixed temperature), Program (automated schedule), and ECO (energy-saving minimum) modes to match your

    daily rhythm — workday, weekend, or extended away periods.solutions.




      Application

    Home Underfloor Heating System    Villa Heating Control        Heating Film Heating Control System    Heating Mat Heating ControlS ystem

    Smart Home Heating control            Office Heating System     Apartment Electric Heating System


     FAQ

    1.Can you custimze UI for us?

    Yes.MOQ1000PCS

    2.Can I print my logo on thermostat?

    Yes.MOQ500PCS

    3.What’s the Warranty of your product?

    2years after goods send out

    4.Can you customize color of thermostat?

    Yes.Of course.MOQ1000PCS

    5.How long can you ship samples to us?

    Normally within 3working days to send out.

    6.Does the thermostat work with Alexa and Google Home?

    Yes, thermostats using the Tuya/Smart Life platform integrate with Amazon Alexa, Google Assistant, and Samsung SmartThings.

    Once linked, you can use voice commands such as "Alexa, set the living room temperature to 22 degrees" or "Hey Google, turn off the bathroom heating."

    7.Can I share thermostat control with family members?

    Yes, the Smart Life/Tuya app supports device sharing. You can invite family members by their account email or phone number,

    granting them full or limited control of specific thermostats. You can also create device groups to control multiple thermostats simultaneously.
