Application: Electric Underfloor Heating System
Model: TP908UHPW/TP908UHPW-24V
1. Sleek Ultra-Slim Profile for Modern Interiors
2. Flame-Retardant PC+ABS Housing for Maximum Safety
3. Feather Touch Capacitive Control Panel
4. Colorful LED is comfort to see even during dark night
5. Minimalist Design That Fits Any Wall Color
6.White/Black/ODM color
7.WIFI/ZIGBEE/MODBUS flexiable communication way for you select
8.Tuya/Smart life app to control your thermostat anywhere
9.CE/ROHS/UKCA approved
TP908 is an elegant heating thermostat.It is design with LED colorful display with accurate temperature control.It also has programmable timer function
6perios set temp and time each time, and voice assistant compatibility. It is suitable for homes, offices ,light commercial and smart home projects.
Technical Data
| Features | Parameters |
| Application | Electric Heating System |
| Power | AC95- 240V/24V option, 50/ 60Hz |
| Controlled Load | 16A |
| Mode | Programmable/Manaul Mode optional |
| Temperature Accuracy | +/-0.5℃ |
| Temperature Range | 5~60℃ |
| Programmable function | 5+1+1 Weekly Program |
| Button Lock Function | YES |
| Antifreeze Function | YES |
| Memory Function | YES |
| Temperature Sensor | Two Sensors(UHP model)/One senor(WHP model,GCmodel) |
| External Floor Sensor Length | 2.5meters |
| Sensor | NTC 10k 3977 |
| Installation Hole distance | 86box/60mmEurope standard round box |
| Dimension | 86x86x40mm |
Features
◆LED Colorful Display
It design with LED colorful light to display.It is very popular nowdays
◆Display drarkness Change as you wish
As this thermostat is LED light display.You can change the display and standby light range 0-100%
◆Data Memory
This thermostat provide data memory when power off.All of the parameters still remain the same before power off
◆WIFI app control with Voice Control
You can use Tuya app control this thermostat and It is also could connect with google assistant and Amazon Alexa
◆Weekly Programmable Function
This thermostat provide 7days programmable funciton,You can set your target temperature and time as you need.

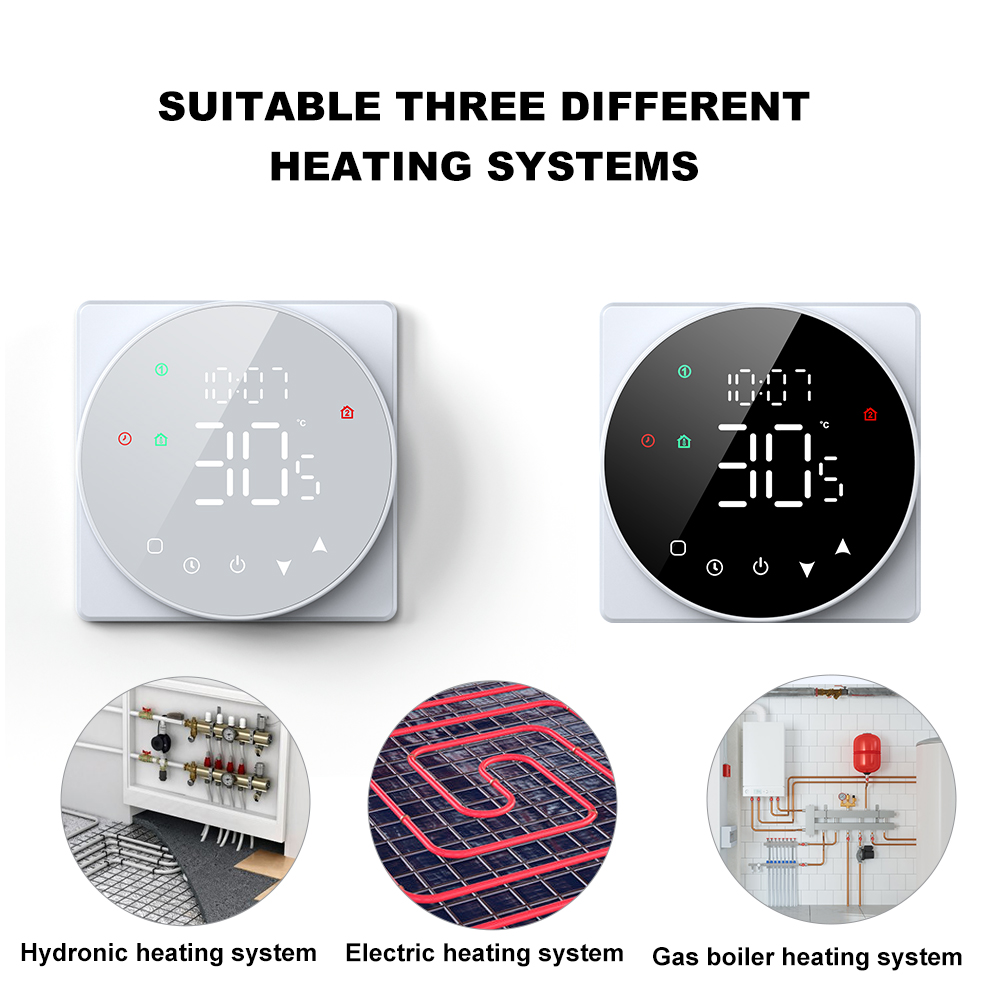

Application
◆Home Underfloor Heating System ◆Villa Heating Control ◆Heating Film Heating Control System ◆Heating Mat Heating ControlS ystem
◆Smart Home Heating control ◆Office Heating System ◆Apartment Electric Heating System
FAQ
1.Can you ODM package for us?
Yes.MOQ1000PCS
2.Can I print my logo on thermostat?
Yes.MOQ500PCS
3.Can you design new thermostat for us?
Yes.You can tell us detail functions first.We will discuss with R&D team
4.What’s the Warranty of your product?
2years after goods send out
5.Can you customize color of thermostat?
Yes.Of course.MOQ1000PCS
6.Can one thermostat control multiple rooms?
No — a standard room thermostat controls the heating in a single zone (one room or open-plan area). For multi-room control, you need one
thermostat per room (zoned heating). However, smart thermostats WiFi can be grouped in the Smart Life/Tuya app, allowing you to control
multiple units from one phone screen.
