Large LCD WiFi Underfloor Heating Thermostat Compatible with Alexa & Google Home

TP501 is a thermostat designed for underfloor heating control, It can easily manage your heating system using voice commands or smartphone.

With weekly programming ensures maximum comfort and energy saving.

 Technical Data

  Features

◆Data Memory

This thermostat provide data memory when power off.All of the parameters still remain the same before power off

◆Voice Control

It combination with Google Assisstant and Amazon Alexa

◆App Control

It could control thermostat by your smartphone.No matter where you are.Just one button to control your thermostat.

◆Open Window Function

This function designed to energy saving.When detect room temperature drop rabidly.This function will active to prevent energy wast.

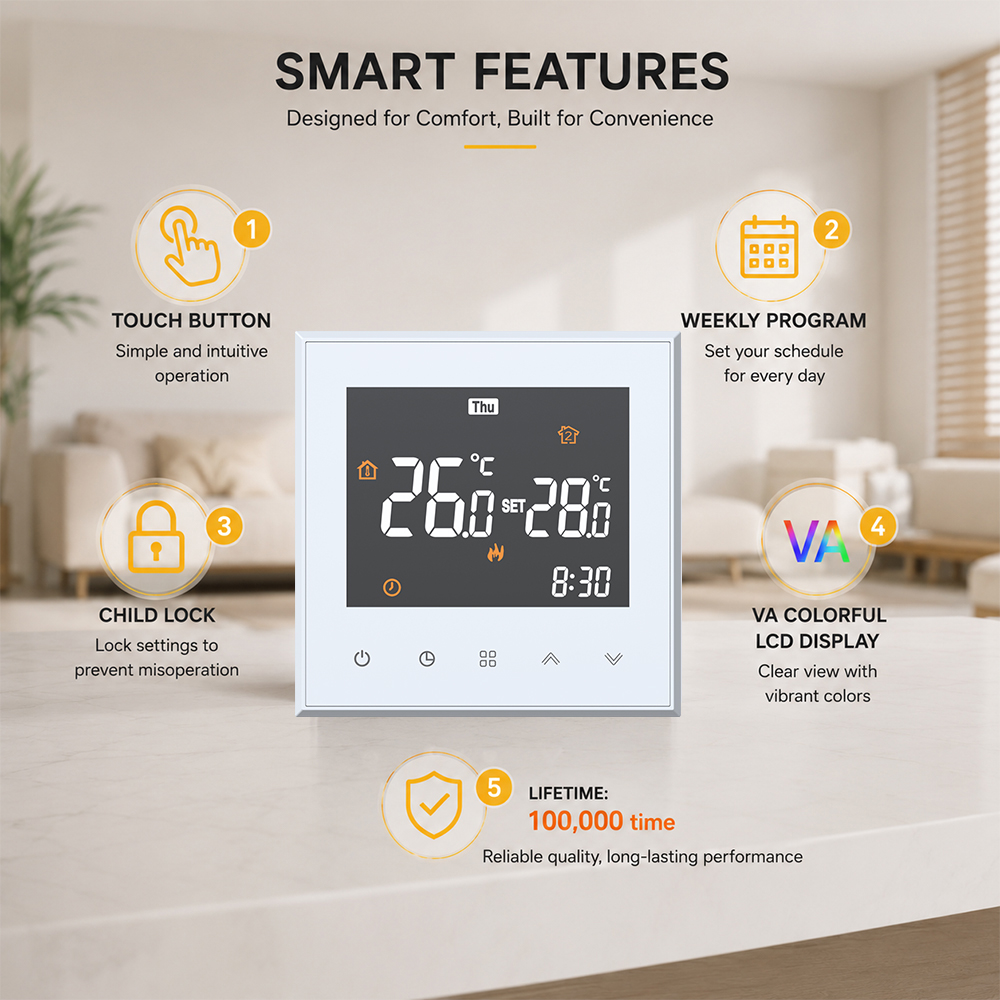

◆Customize Programmable Function

This thermostat provide 7days programmable funciton,You can set your target temperature and time as you need.

◆Temporary Temperature mode

 This mode available when during weekly programmable function.  You can set temp temporary and it will return back program

mode in next period

  Application

◆Home Underfloor Heating System    ◆Villa Heating Control        ◆Heating Film Heating Control System    ◆Heating Mat Heating ControlS ystem

◆Smart Home Heating control            ◆Office Heating System     ◆Apartment Electric Heating System

 FAQ

1.How many time periods can I set per day?

Most programmable thermostats support 6 time periods per day. Common default settings are: Period 1 (wake) at 6:00,

Period 2 (leave) at 8:00, Period 3 (midday) at 12:00, Period 4 (afternoon) at 14:00, Period 5 (evening) at 18:00, and Period 6 (sleep) at 22:00.

2.What is the difference between Manual Mode and Program Mode?

（1）Manual Mode: The thermostat maintains one fixed temperature 24/7 until you manually change it — like a traditional thermostat.

（2）Program Mode: The thermostat automatically follows your pre-set weekly schedule, changing temperatures at

designated times throughout each day.

3.What’s the Warranty of your product?

2years after goods send out

4.How long can you ship the goods If I paid?

Samples within 3working days.Bulk order depends on.Normally 15-35days

5.Do I need a professional electrician to install a thermostat?

Yes, it is strongly recommended. Thermostats connect directly to mains voltage (95–240V AC) and heating loads. Incorrect wiring can cause

electrical shock, fire, or equipment damage. Always disconnect/isolate the power supply before installation and have a qualified electrician

perform the work.
