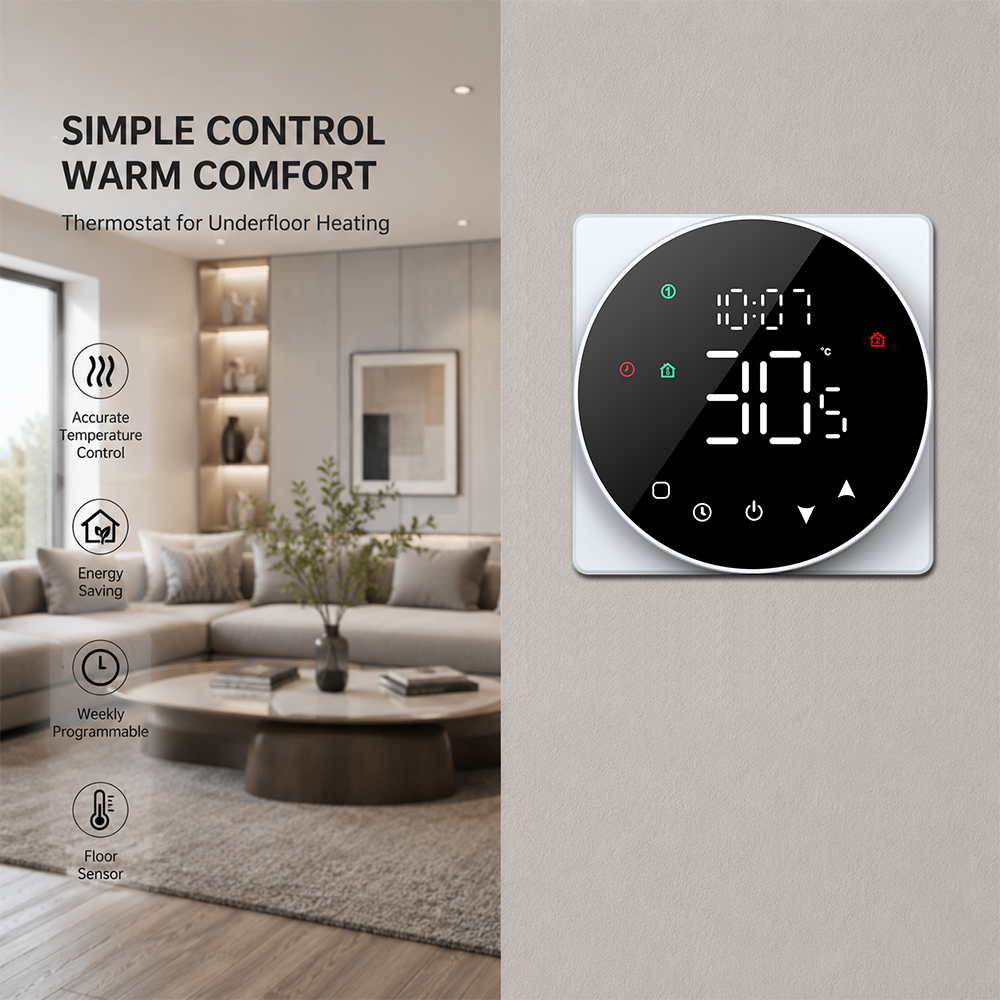

Colorful LED Display Electric Heating Room Thermostat with Touch

Control and Weekly Programming

This thermostat can perfect suit electric heating system.With max 16A load.It also provide dual sensors to detect room tempeature and also detect high floor temperature to protect your floor.It also provide automatic weekly temperature scheduling.Widely use in smart home system,home,school etc.

 Technical Data

  Features

◆Cut Your Heating Bills by Up to 30% with Smart Scheduling

This thermostat provide 5+1+1days programmable funciton,6perios yeach day you can setting the target time and temperature.

Help you enjoy comfort and energy saving.

◆Colorful LED display

This thermostat design with TN LCD display with white backlight.With large white words.It is easy for customers to see the settings

◆Display drarkness Change as you wish

As this thermostat is LED light display.You can change the display and standby light range 0-100%

◆Data Memory

This thermostat provide data memory when power off.All of the parameters still remain the same before power off

◆One-Touch Temporary Override Without Disrupting Your Schedule

Need a quick temperature boost during a scheduled period? One tap overrides temporarily, and the thermostat automatically

returns to your preset program at the next period — no need to remember to reset it.

  Application

◆Hotel underfloor heating system  ◆Villa hydronic heating control  ◆Building heating control system

◆Apartment heating control system  ◆Smart home heating control

 FAQ

1.Can the thermostat work on both 110V and 220V power supplies

Yes, thermostats with a 95–240 VAC, 50/60 Hz power specification work on any mains voltage worldwide — covering 100V (Japan),

110–120V (North America), and 220–240V (Europe, Asia, Africa). No transformer or voltage converter is needed.

2.What is the difference between the built-in sensor and the external floor sensor?

The built-in (internal) sensor measures air temperature inside the room. The external floor sensor is a wired probe embedded in the floor

that measures actual floor surface temperature. Floor sensors are essential for electric underfloor heating to prevent overheating sensitive

flooring materials.

3.When should I use the external floor sensor

You should use the external floor sensor when Installing electric underfloor heating (required to protect flooring)

4.How do I calibrate my thermostat if the displayed temperature is wrong

Enter the configuration menu (usually by long-pressing a button for 7 seconds while powered off), locate the calibration setting (Function No. 1),

and adjust from -9°C to +9°C. For example, if the thermostat displays 22°C but the actual room is 21°C, set calibration to -1°C.

5.How many time periods can I set per day?

Most programmable thermostats support 6 time periods per day. Common default settings are: Period 1 (wake) at 6:00, Period 2 (leave) at 8:00,

Period 3 (midday) at 12:00, Period 4 (afternoon) at 14:00, Period 5 (evening) at 18:00, and Period 6 (sleep) at 22:00.
