Electric Underfloor Heating Thermostat with Weekly Programming

TP538series it is a colorful display room thermostat.With flexible 5+1+1 programmable .Thermostat that helps reduce heating costs while

maintaining maximum indoor comfort throughout the week.Studies show programmable thermostats reduce heating costs by 20–30%.

By automatically lowering the temperature when you sleep or leave, you save money without lifting a finger — the thermostat does it for you.

 Technical Data

  Features

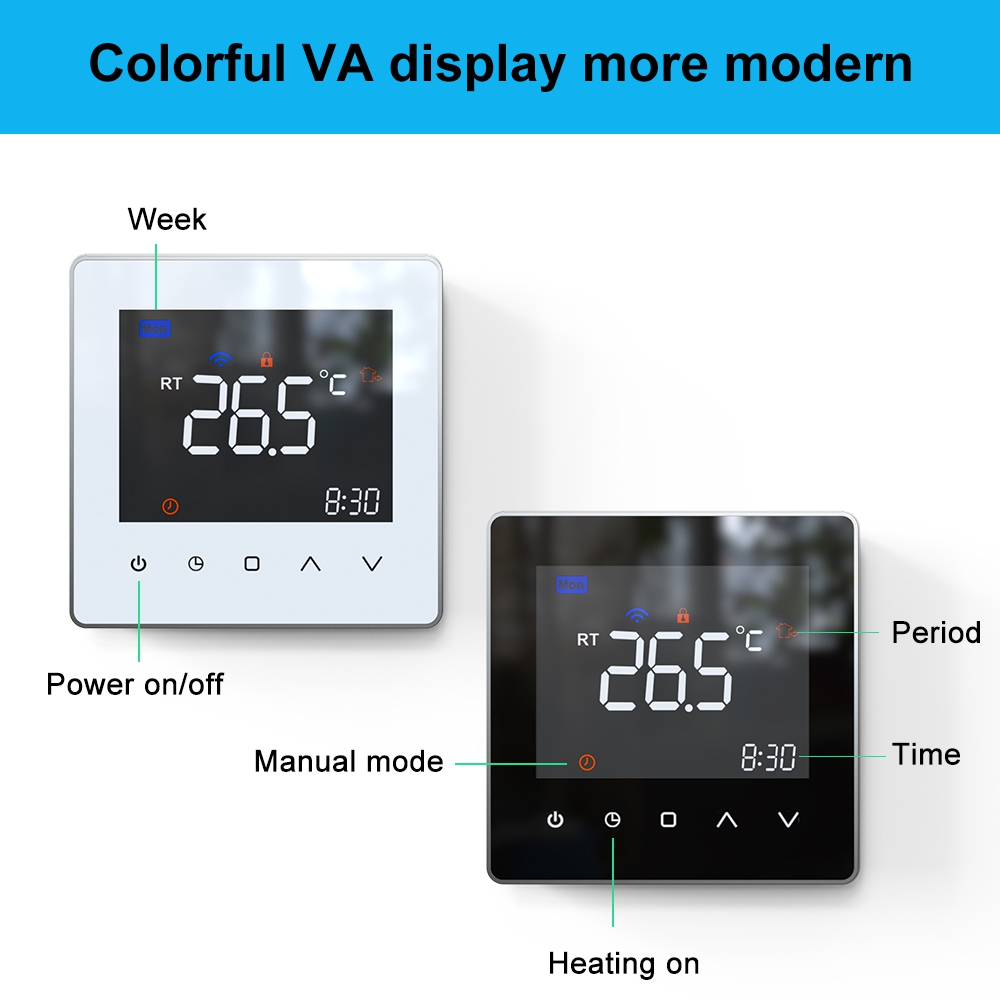

◆Touch Capacitive Control Panel

Responsive capacitive touch buttons with zero mechanical wear — no clicking sounds, no dust-trapping gaps, and a perfectly smooth

glass-like surface that stays clean and modern for years.

◆Weekly Programmable Function

This thermostat provide 7days programmable funciton,6perios yeach day you can setting the target time and temperature.Help you

enjoy comfort and energy saving.

◆Temperature Calibration

 This function allow you to change temp when detect room temperature not meet real temperature.Range from -9°C--+9°C

◆One-Touch Temporary Override Without Disrupting Your Schedule

Need a quick temperature boost during a scheduled period? One tap overrides temporarily, and the thermostat automatically returns

to your preset program at the next period — no need to remember to reset it.

◆Three Operating Modes for Every Lifestyle

Switch freely between Manual (fixed temperature), Program (automated schedule), and ECO (energy-saving minimum) modes to match

your daily rhythm — workday, weekend, or extended away periods.

  Application

◆Hotel underfloor heating system  ◆Villa hydronic heating control  ◆Building heating control system

◆Apartment heating control system  ◆Smart home heating control

 FAQ

1.What is a room thermostat and how does it work?

A room thermostat is a temperature-sensing device that controls your heating system by comparing the actual room temperature

against your desired set temperature. When the room temperature drops below the set point, the thermostat sends a signal to turn the

heating on; when the target is reached, it switches the heating off. This cycle maintains a consistent, comfortable indoor climate.

2.Does this thermostat suit my heating system?

This may need you to check with the wiring.Normally our thermostat has wiring diagram for you to check before order.

3.Can you print my logo on thermostat?

Yes.We can print your logo on thermostat free when qty meet MOQ500PCS

4.Does this thermostat can be WIFI?

Yes.We have wifi version also.

5.What’s the Warranty of this thermostat?

2years after goods send out

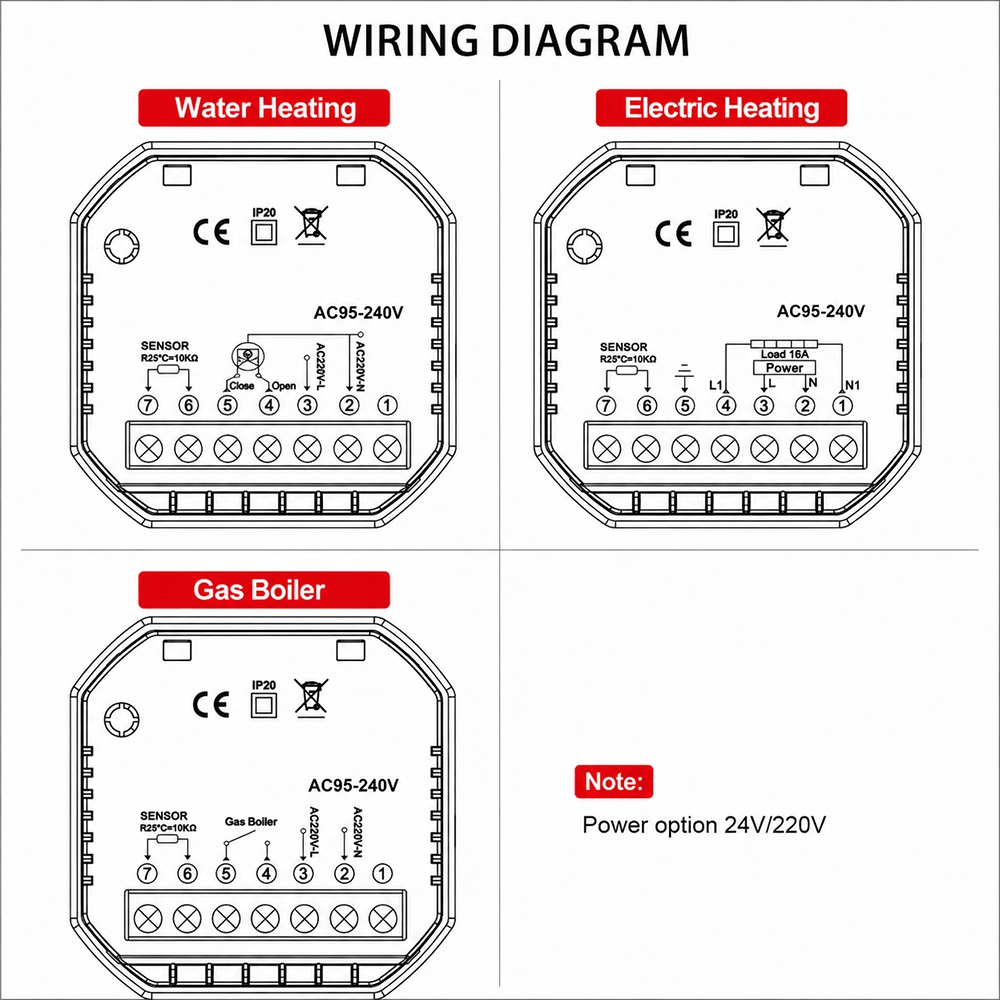

6.What wires are needed for installation?

Depending on the system type: Live (L) and Neutral (N) for power input, plus load wires to the heating element or boiler. If an external

 floor sensor is used, two additional sensor wires (non-polarity) connect to dedicated sensor terminals. The wiring diagram on the

thermostat body or manual provides the exact terminal layout.
