Application: Electric Underfloor Heating System
Model: TP505UHP/TP505UHP-24V
1. Sleek Ultra-Slim Profile for Modern Interiors
2. Flame-Retardant PC+ABS Housing for Maximum Safety
3. Feather Touch Capacitive Control Panel
4. VA ink LCD is comfort to see even during dark night
5. Minimalist Design That Fits Any Wall Color
6.White/Black/ODM color
7.CE/ROHS/UKCA approved
TP505 provides accurate room temperature control with user-friendly touch buttons, crystal-clear LCD display and flexible programming for
enhanced heating comfort.This water heating thermostat normally use inner sensor to detect
Room temperature.With detect accurancy 0.5°C.Widely use in smart home system,home,office,hotel etc.We privde OEM/ODM of this thermostat
Technical Data
| Features | Parameters |
| Application | Electric Heating System |
| Power | AC95- 240V/24V option, 50/ 60Hz |
| Controlled Load | 16A |
| Mode | Programmable/Manaul Mode optional |
| Temperature Accuracy | +/-0.5℃ |
| Temperature Range | 5~60℃ |
| Programmable function | 5+1+1 Weekly Program |
| Button Lock Function | YES |
| Antifreeze Function | YES |
| Memory Function | YES |
| Temperature Sensor | Two Sensors(UHP model)/One senor(WHP model,GCmodel) |
| External Floor Sensor Length | 2.5meters |
| Sensor | NTC 10k 3977 |
| Installation Hole distance | 86box/60mmEurope standard round box |
| Dimension | 86x86x40mm |
Features
◆Programmable Function
This thermostat provide 5+1+1days programmable funciton,6perios yeach day you can setting the target time and temperature.
Help you enjoy comfort and energy saving.
◆Large LCD display with backlight
This thermostat design with TN LCD display with white backlight.With large white words.It is easy for customers to see the settings
◆Anti-Freeze Protection
If the room temperature drops to the configurable freeze threshold (2–10°C), the thermostat automatically activates heating —
preventing burst pipes and catastrophic water damage in unoccupied properties.
◆Child Lock Function
You can press up and down button to lock/unock your thermostat
Application

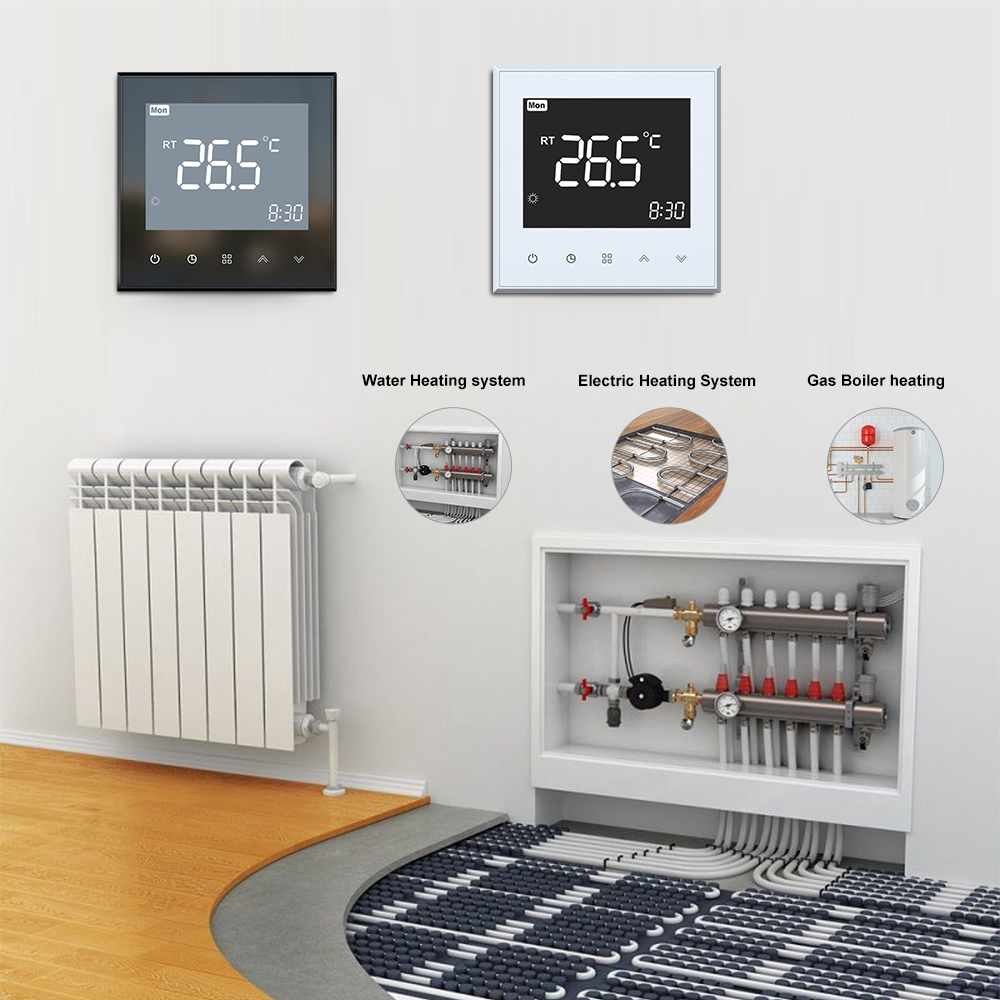

◆Hotel underfloor heating system ◆Villa hydronic heating control ◆Building heating control system
◆Apartment heating control system ◆Smart home heating control
FAQ

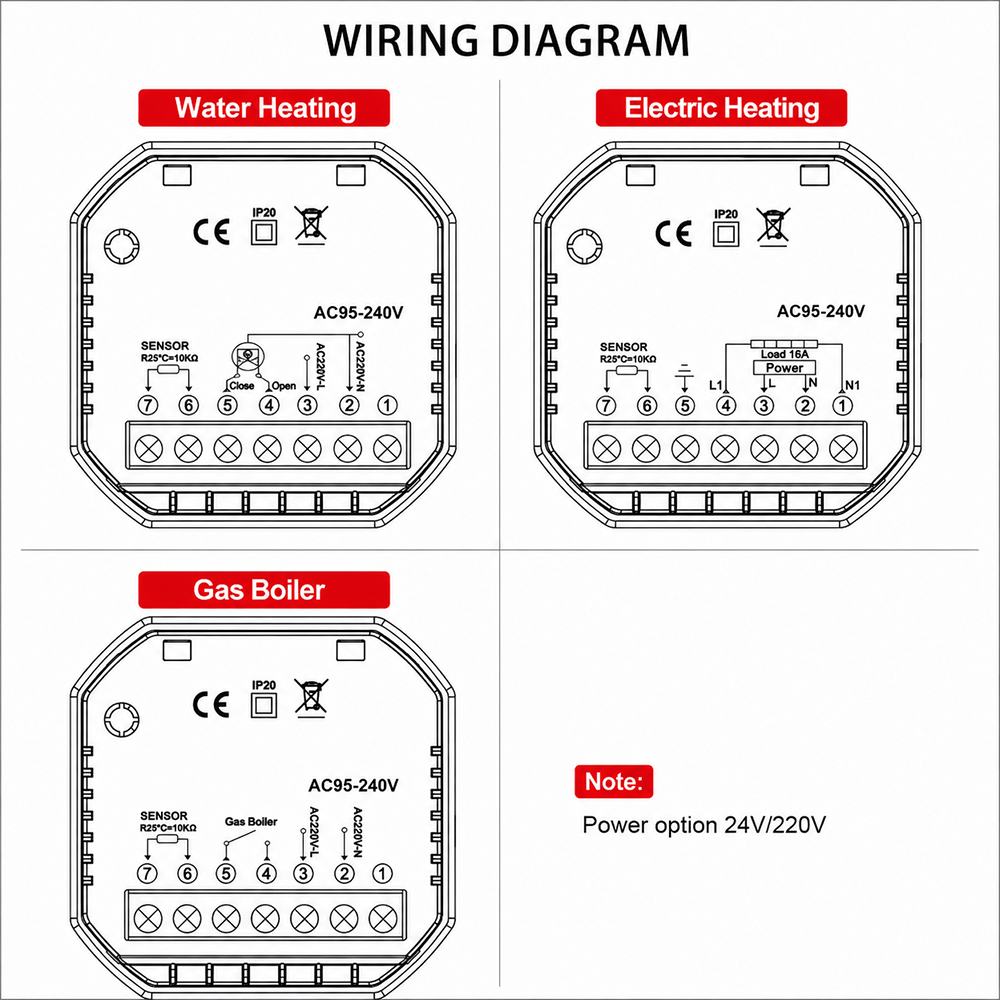

1.Can I use the same thermostat for electric and water-based heating
Yes.Our thermostat provide three different applications.No matter you need for electric heating,water heaing or gas boiler heating.
You can choose same shape but different application for your system.
2.Can you ODM functions for us?
Yes.MOQ500PCS
3.Can you OEM for us?
Yes.We can.MOQ500PCS
4.How long about sample order and bulk order?
Samples will be within 3 working days.Bulk order time 15-35days
5.What is the maximum power my thermostat can handle?
For electric heating, a 16A-rated thermostat can handle up to approximately 3,500W at 220V (or 3,680W at 230V). For water heating and
gas boilers, the 5A relay handles up to approximately 1,100W
