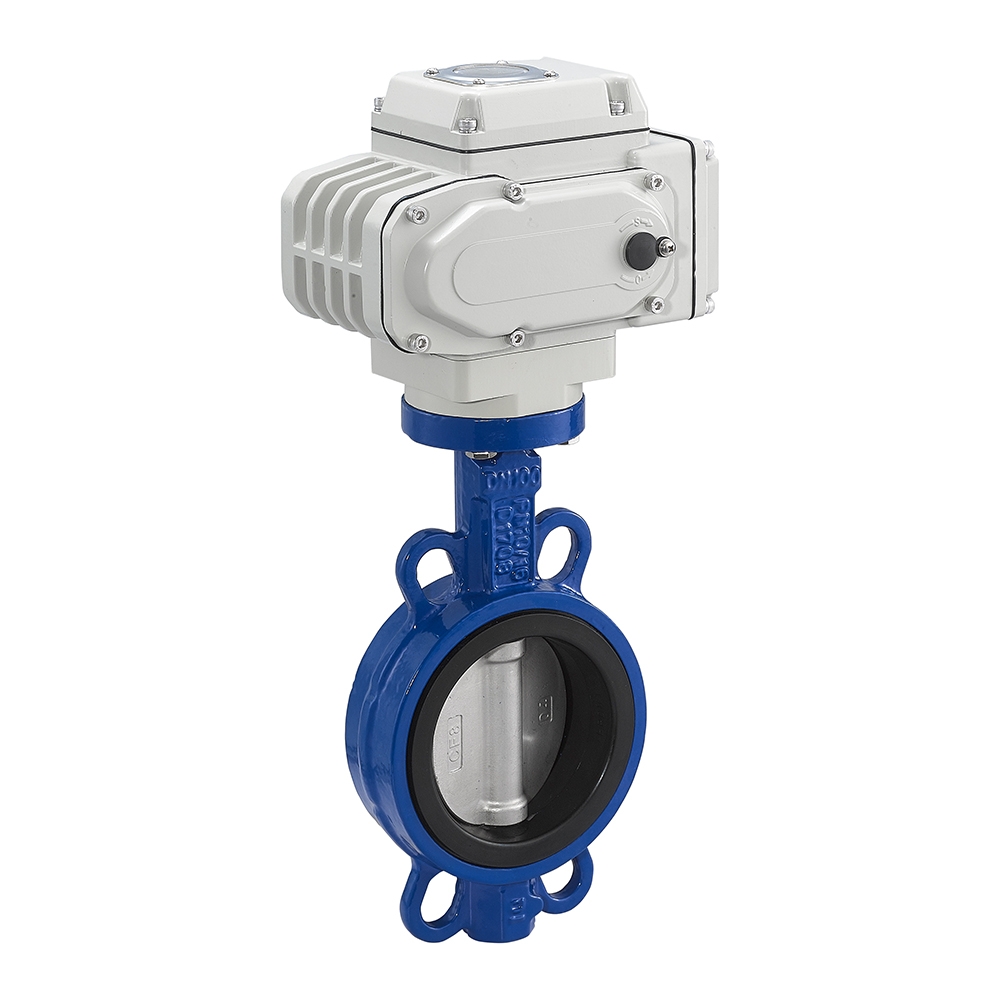

Electric Butterfly Valve Actuator ON OFF Type for HVAC Water Flow Control System

The electric butterfly valve actuator is designed for automatic control of butterfly valves in HVAC systems, water treatment, industrial pipelines, and automation applications.

With a torque range from 50Nm to 6000Nm, this actuator provides reliable 90° rotary operation for different sizes of butterfly valves. It supports multiple power supplies including AC24V, AC110V, AC220V, and AC380V, making it suitable for various industrial and commercial projects.

The actuator features IP67 waterproof protection, manual override, valve position indicator, anti-condensation heater, and internal thermal protection, ensuring

stable operation even in outdoor and harsh environments.

 Main Features

◆Torque range: 50Nm-6000Nm

◆0-90° rotary operation

◆IP67 protection (optional IP68)

◆AC24V / AC110V / AC220V / AC380V power options

◆Manual override function

◆Valve position indicator

◆Overheat protection

◆Anti-condensation heater

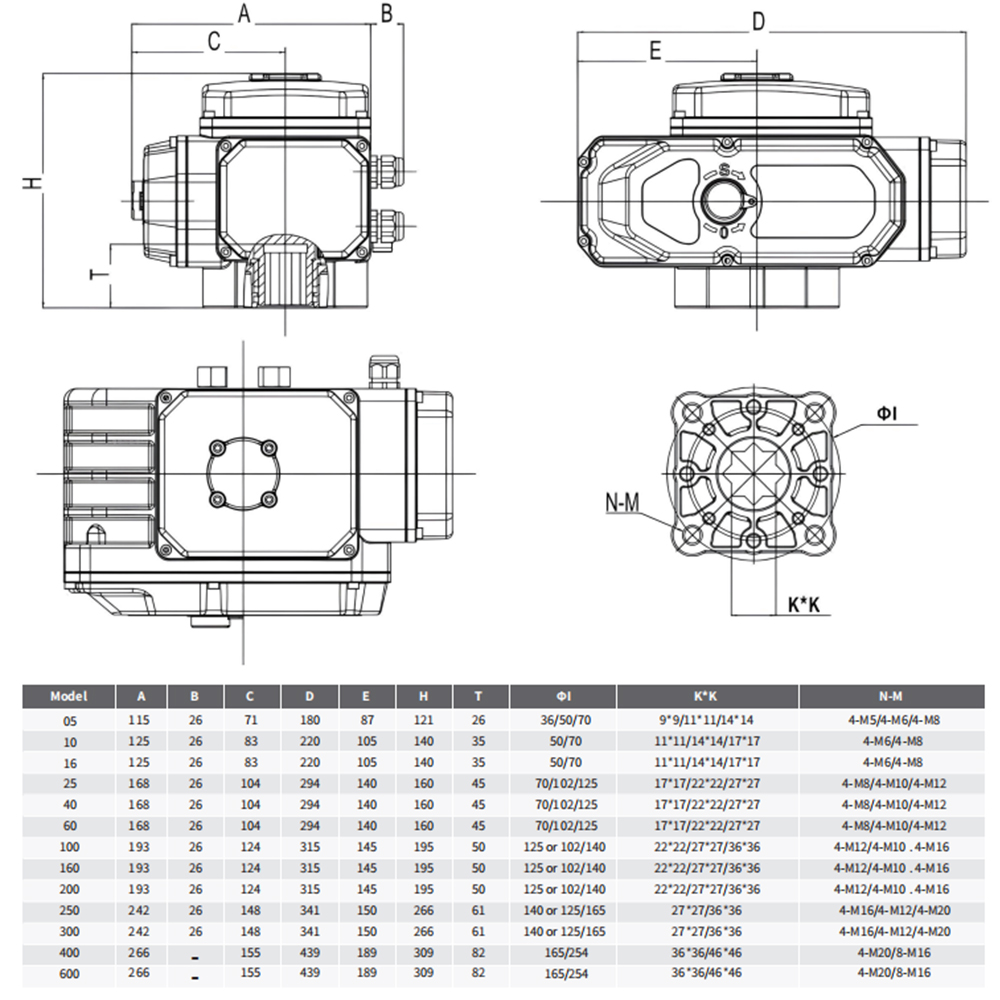

 Product dimensions

FAQ

1.What applications can this actuator be used for?

This actuator is suitable for HVAC systems, water treatment systems, industrial pipelines, and automation projects requiring electric valve control.

2.What torque range does this actuator provide?

The actuator covers a wide torque range from 50Nm to 6000Nm, suitable for different butterfly valve sizes and industrial applications.

3.What power supply options are available?

The actuator supports AC24V/AC110V/AC220V/AC380V

4.What is the rotation angle of the actuator?

The actuator provides a standard 0-90° rotary angle, suitable for butterfly valves and other quarter-turn valves.

5.What protection level does the actuator have?

The standard protection rating is IP67, with optional IP68 protection (15m water depth for 72 hours), making it suitable for outdoor and demanding environments.
