TP909 tUYA zigbee 3.0 smart home touch Screen Heating room Thermostat

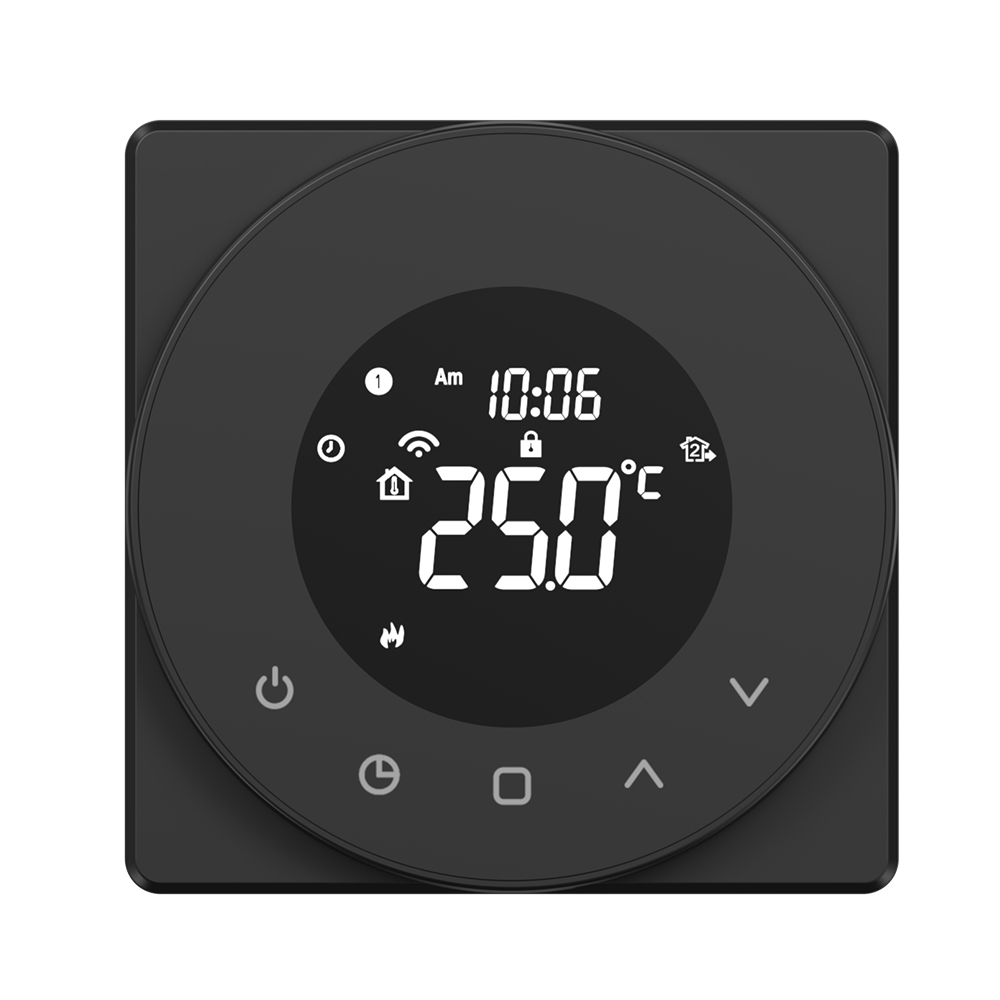

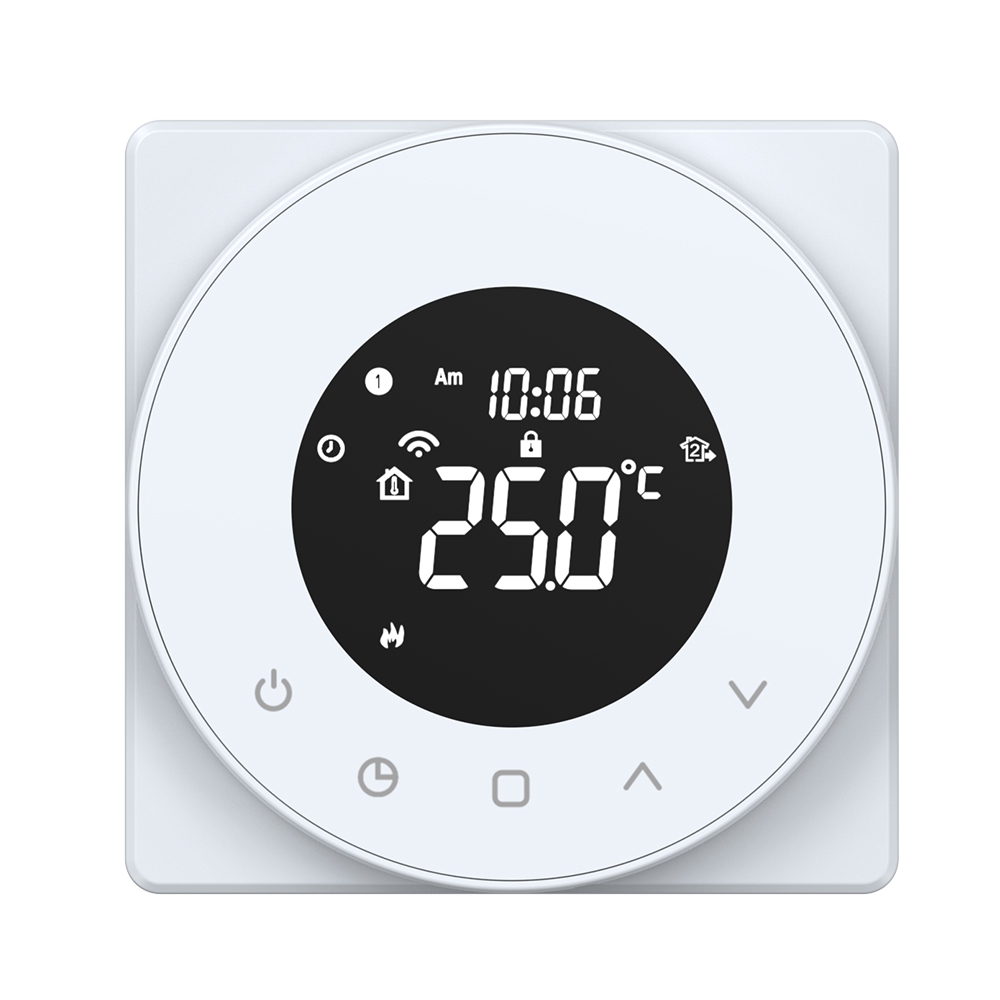

TP909series round type VA LCD colorful display programmable thermostat is a thermostat which is designed to adjust the temperature according to a series of settings that meet room comfort
It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting,
and switching it off once this set temperature has been reached. It allows users to select different temperatures in your home at different times of the day
to meet particular user’s needs and preferences. With APP control.You could control your room temperature anywhere.Voice control via :google.alexa yandex alice etc
It could used in Electrical or Water Underfloor Heating System. TP908 series thermostats are used to control 16A Electrical Heating Elements, such as heating cables, heating mats, heating films, etc. TP908series thermostats are used to control 3A Water Heating Devices, such as actuators, etc.

Technical Data
Features | Parameters |
---|

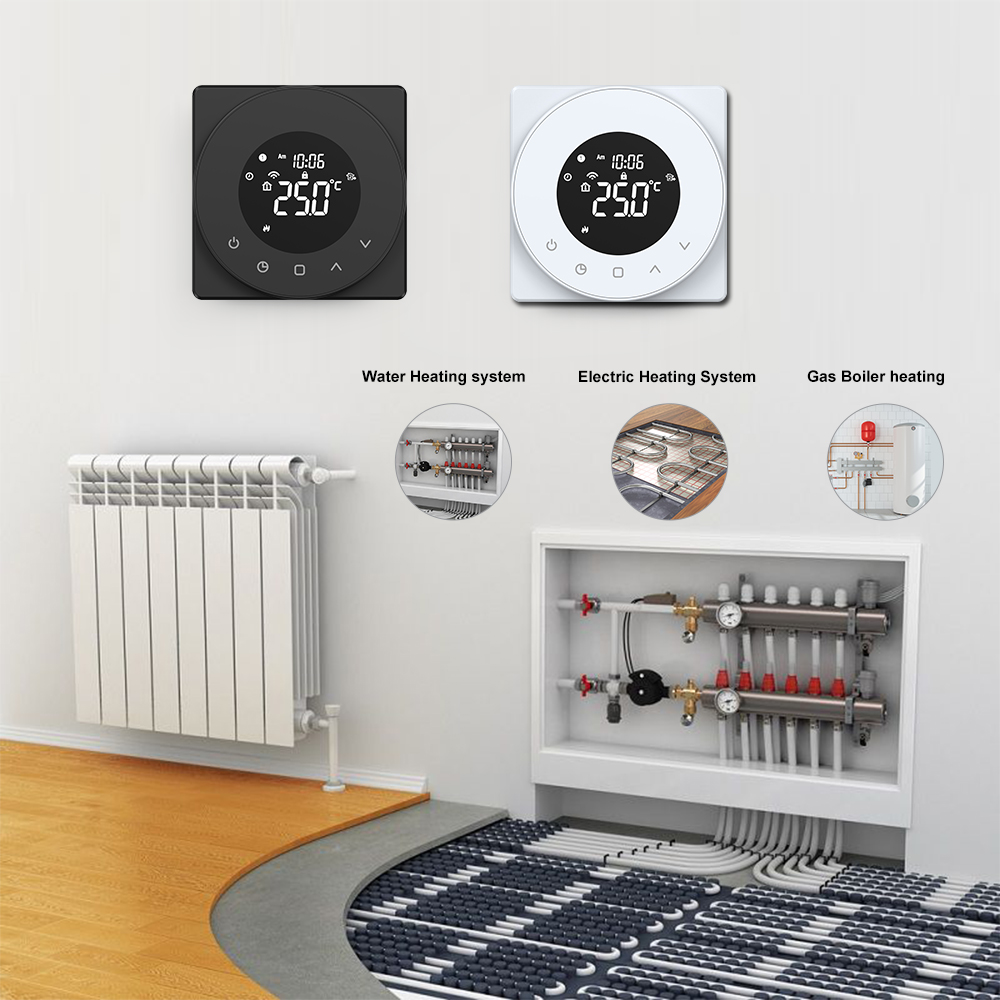

Application | Underfloor Heating System/Water Heating System/Gas Boiler Heating System |
Power | AC95- 240V/24V option, 50/ 60Hz |
Controlled Load | water heater 5A/electric heater 16A |
Mode | Programmable/Manaul Mode optional |
Temperature Accuracy | +/-0.5℃ |
Temperature Range | 5~60℃ |
Programmable function | 5+1+1 Weekly Program |
Button Lock Function | YES |
Antifreeze Function | YES |
Memory Function | YES |
Temperature Sensor | Two Sensors(UHP model)/One senor(WHP model,GCmodel) |
External Floor Sensor Length | 2.5meters |
Sensor | NTC 10k 3977 |
Phone Application | Tuya/Smart Life |

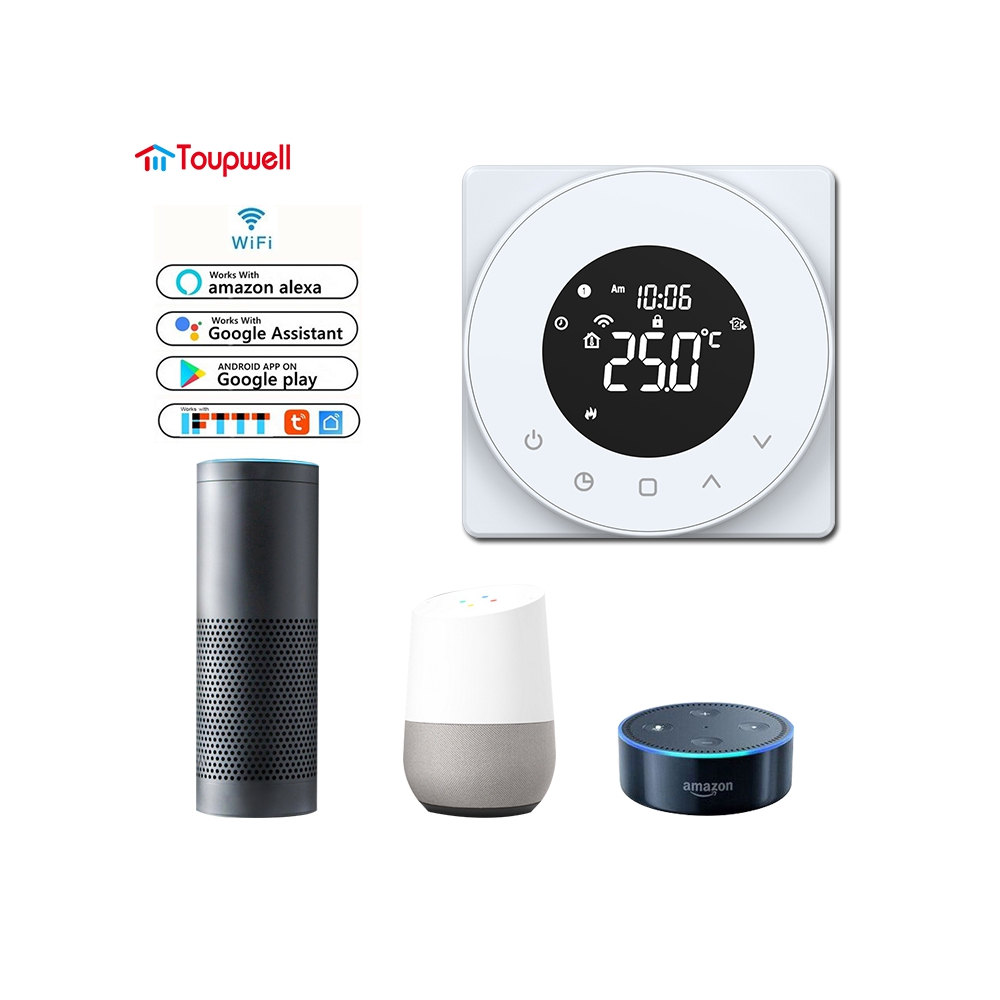

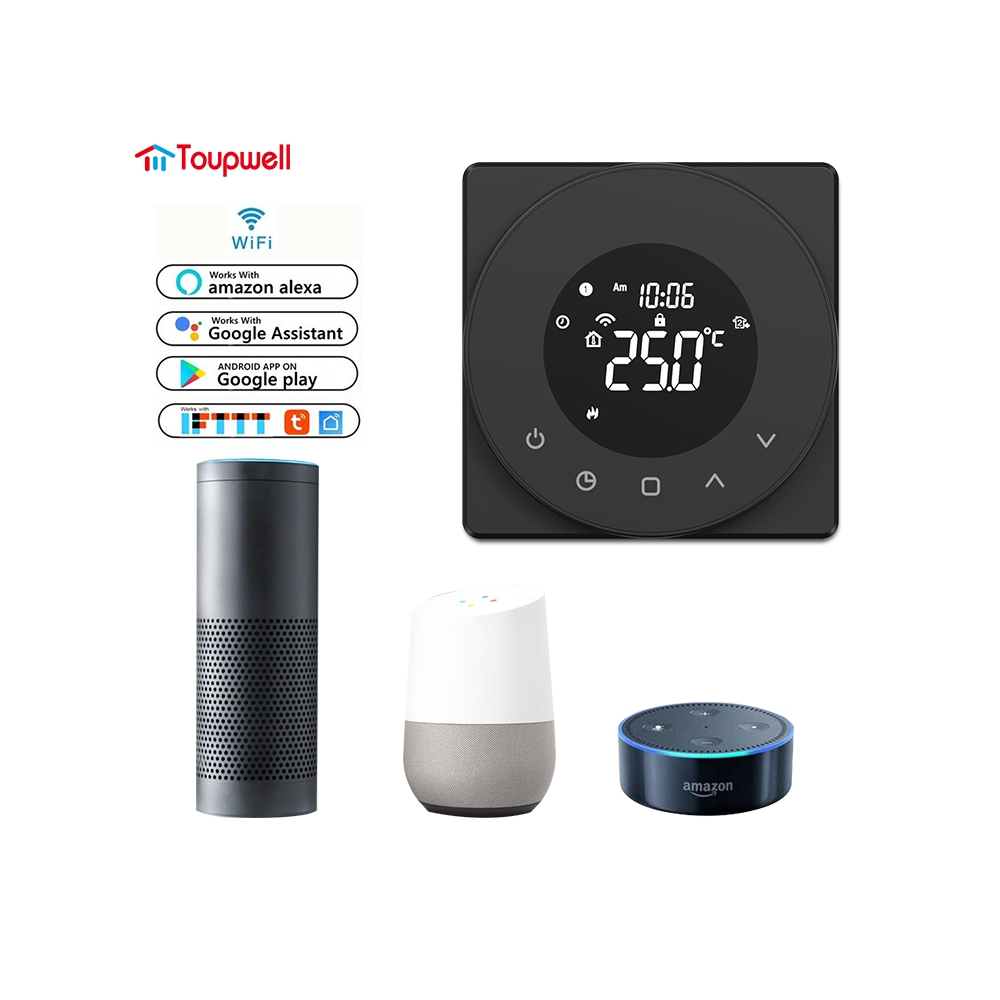

Voice Assistant | Google Home/Amazon Alexa (only Wi-Fi models support) |

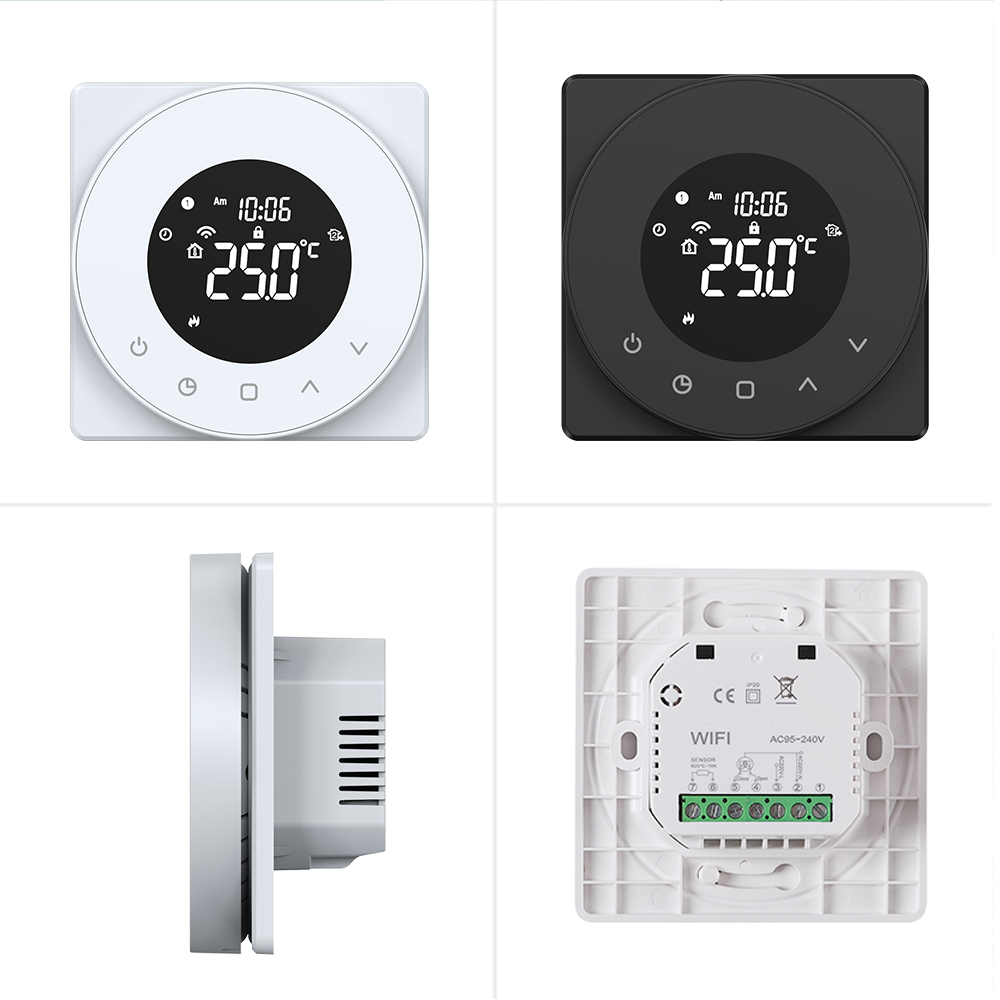

Installation Hole distance | 86box/60mmEurope standard round box |
Dimension | 86x86x40mm |
