Application: Water Underfloor Heating System/Hydronic Underfloor Heating System

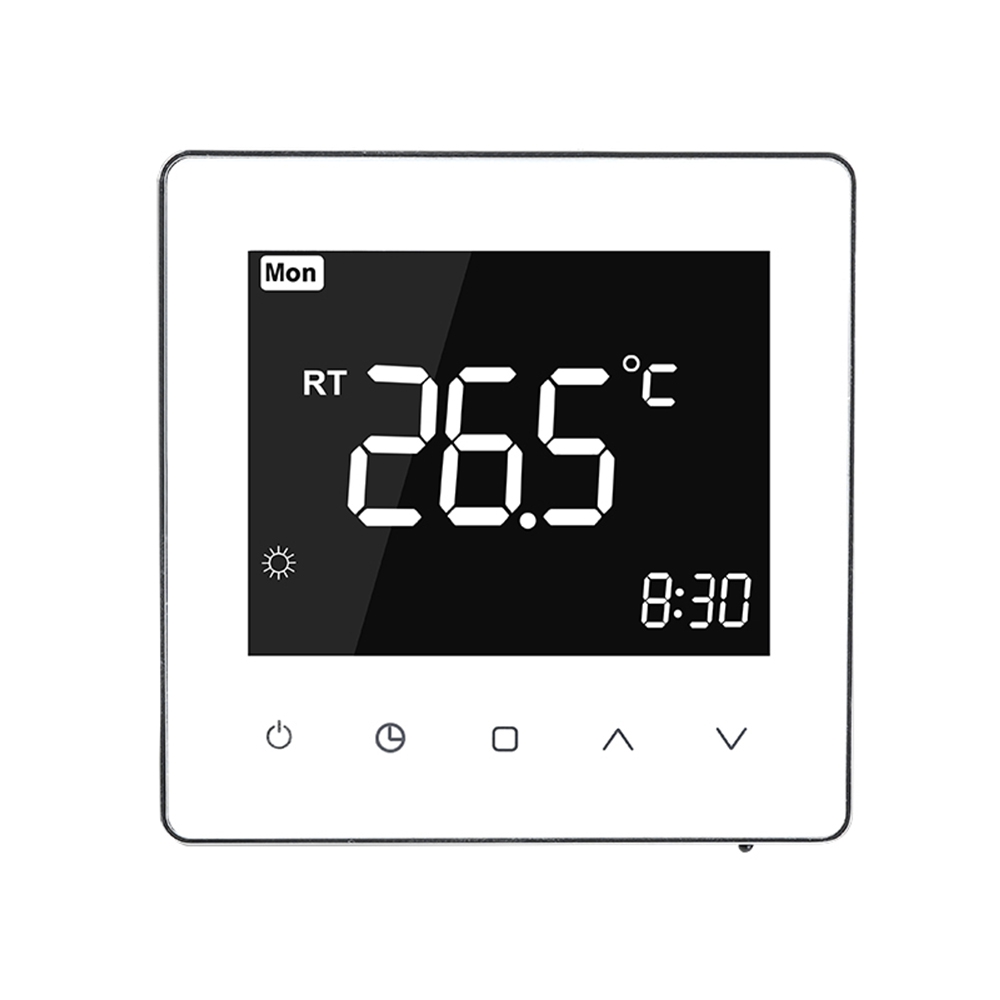

Model: TP528WHPN /TP528WHPN-24V

*UL 94V0 PC anti fire housing to make sure saftely

*Large VA ink LCD is comfort to see even during dark night

*Weekly program each day 6periods energy saving for you

*China TOP1 relay to make sure thermostat 100,000 lifetime

*Data memory even power off

*Control accurancy 0.5°C,Measure Temperature accurancy:0.1°C

*WIFI/ZIGBEE/MODBUS flexiable communication way for you select

*Tuya/Smart life app to control your thermostat anywhere

*White/Black/ODM color

*CE/ROHS/UKCA/FCC/REACH approved

This 7 days programmable thermostat is a thermostat which is suitable electric underfloor heating system.Appilcation system including

Heating mat,Heating cable,infared heating panel,heater etc.It has two sensors to energy saving.Normally it has weely program function

each day 6periods to setting your desire room temp.Child clock to protect thermostat do not change easily.Tuya Zigbee 3.0 communication

It is also app control.you could change your temp anywhere.Voice control via google alexa,Amazon echo.Yandex alice etc.

Technical Data

Features	Parameters
Application	Underfloor Heating System/Water Heating System/Gas Boiler Heating System
Power	AC95- 240V/24V option, 50/ 60Hz
Controlled Load	water heater 5A/electric heater 16A
Mode	Programmable/Manaul Mode optional
Temperature Accuracy	+/-0.5℃
Temperature Range	5~60℃
Programmable function	5+1+1 Weekly Program
Button Lock Function	YES
Antifreeze Function	YES
Memory Function	YES
Temperature Sensor	Two Sensors(UHP model)/One senor(WHP model,GCmodel)
External Floor Sensor Length	2.5meters
Sensor	NTC 10k 3977
Phone Application	Tuya/Smart Life
Voice Assistant	Google Home/Amazon Alexa (only Wi-Fi models support)
Installation Hole distance	86box/60mmEurope standard round box
Dimension Communication:	86x86x40mm Zigbee3.0
