Wired Programmable Gas Boiler Heating Thermostat
*Application:Gas Boiler Heating
*Item No.: TP608
*Programmability: 5+1+1/7 days different/1(7days different)days programmable option
*Mode: Manual/Prgoram/ECO/Holiday mode option
*Backlight: White
*Material: PC(Antifie-94V0）
*Packing : Netural White Box, OEM acceptable
*Logo:Toupwell/Netura/OEM optional
*Other function: Child lock,, Frost protection, Temp. calibration

*Cetificate: CE, ROHS, UKCA, REACH, RED

TP608series wiring boiler thermostat has been developed to auto control gas or oil-fired boiler system.

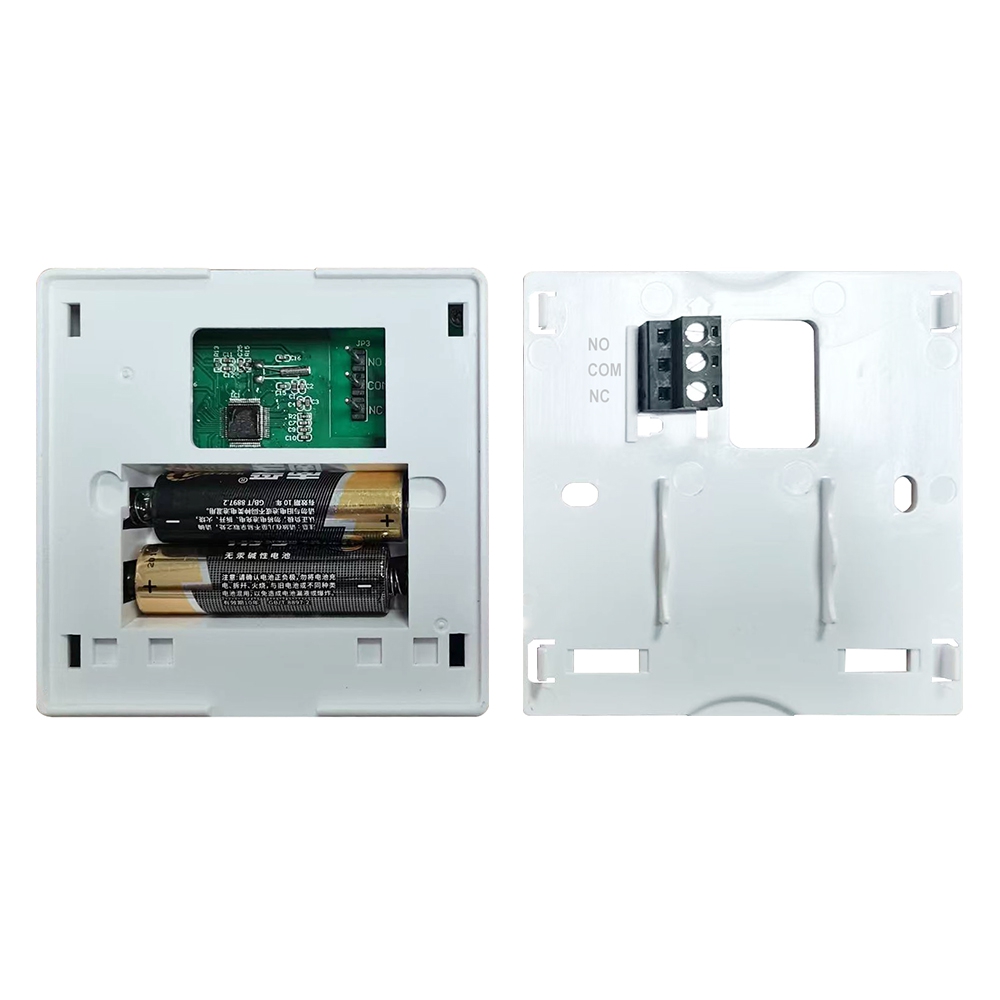

This battery power thermostat only provide voltage-free output, so it is 2 wire connect to boiler only.

When this digital heating thermostat detects the room temperature below the desired setpoint, it will switch on boiler for heating;

LCD display can be clearly read with backlight. There are two colors avaiable. White and Black

This programmable wall hung boiler thermostat enables you to set 6 periods of each day programmable

The display shows the set temperature as well as the measured temperature, time.Temperature display in degrees Celsius.

Technical Data

Products Name	Weekly Programmable Thermostat for Boiler Heat
Products Model	TP608
Products Material	PC(Anti-fire UL94V0)

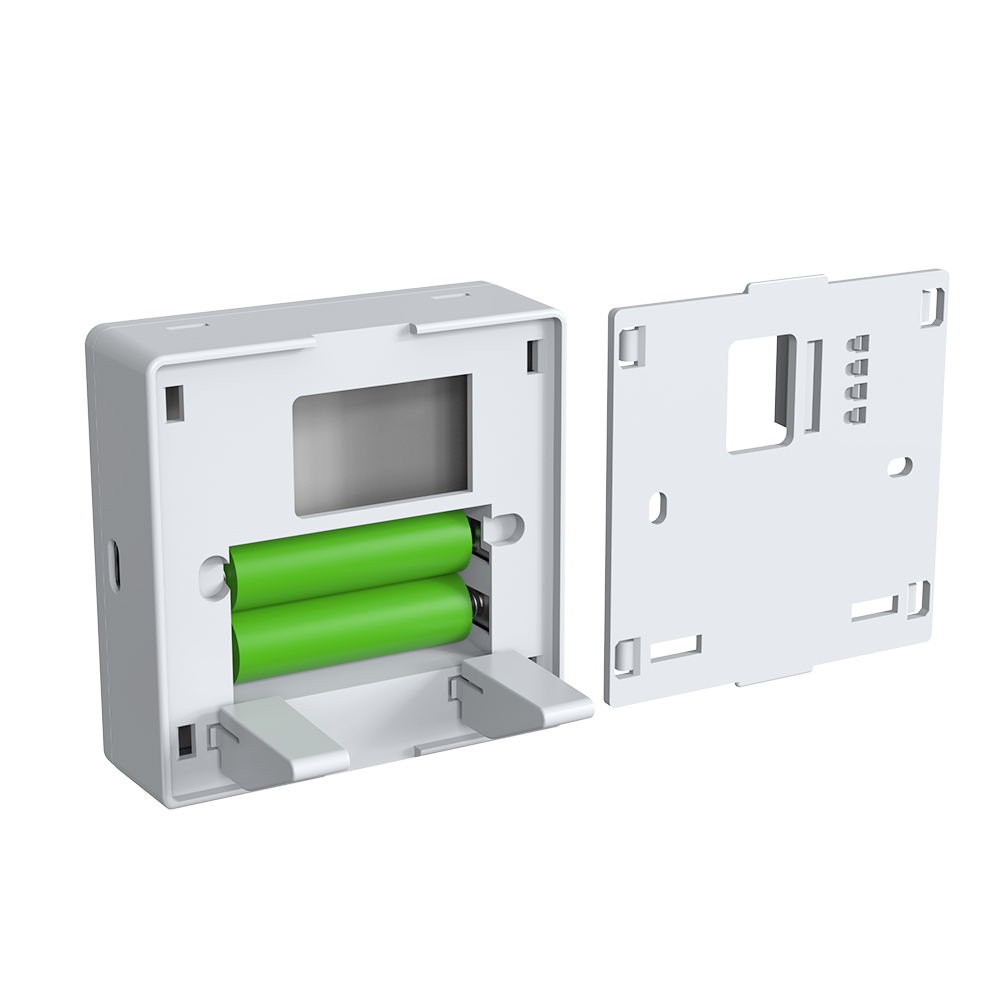

Power Supply	2AA battery
Current Load	3A
Setting Temp. Range	5~35℃
Storage Temp. Range	-10~60℃
Control Accurancy	0.5℃
Temperature Sensor	NTC 10K 3977
