TP808W WIFI low Voltage Room Thermostat

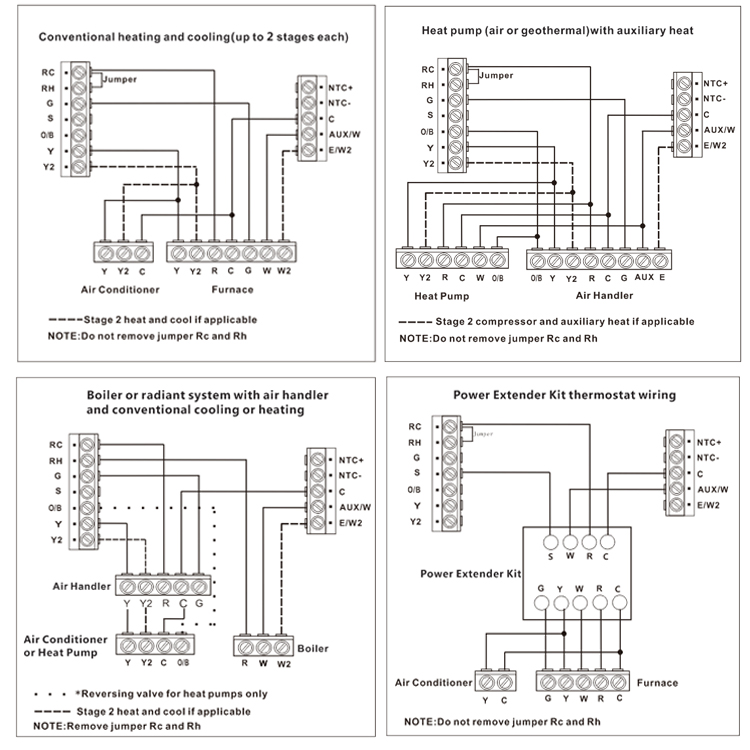

This thermostat is used to control up to 3 stage.heating and 2 stages cooling system with 8 types control system, EM heat activation, adjustable

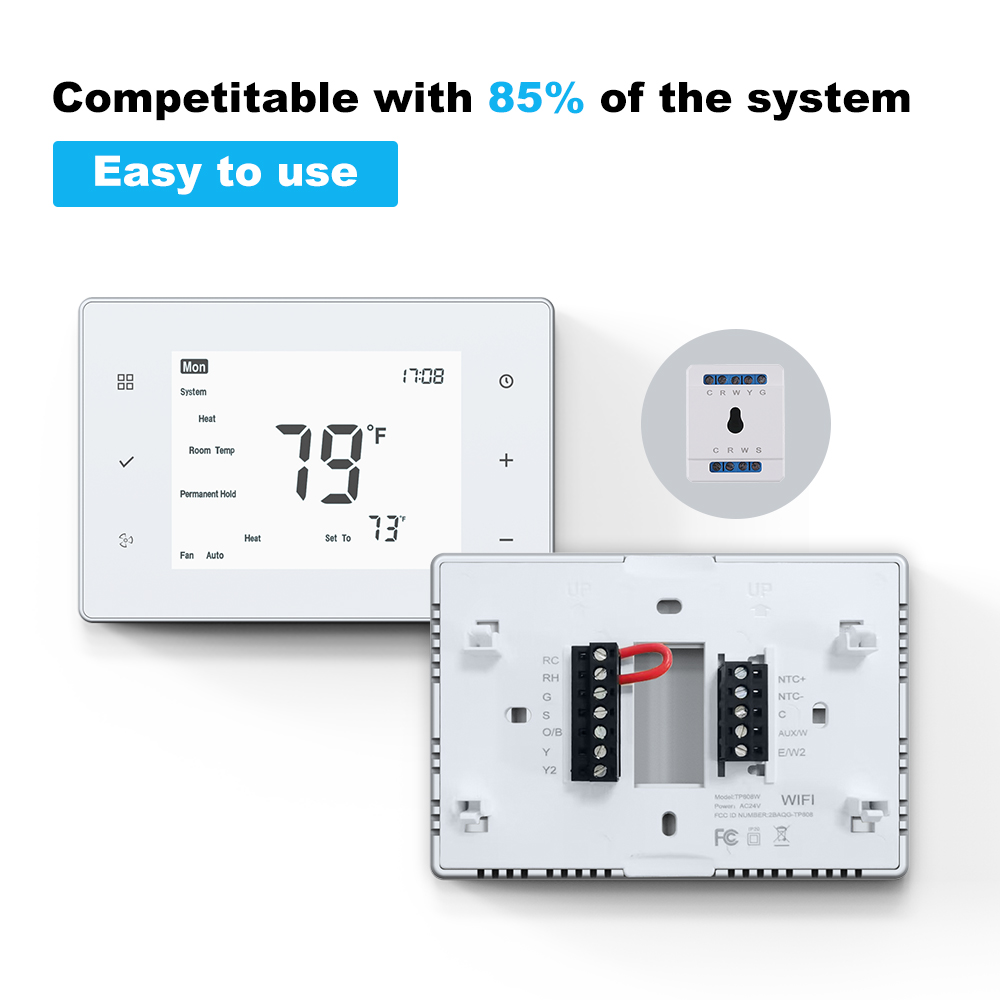

compressor delay time and O/B changeover. It is with tempered touch sensitive button, quick connecting terminals to save installer’s time. 7

days programmable and four modes everyday.make users’ life convenient and comfortable.Thermostat passed FCC standard.

Technical Data

Sensor：NTC3977 10K  Accuracy：±1°F

Temp. Range：41°F -95°F Power Consumption：<1.5W

Timing error：<1％

Power Supply：AC24V, 50 ~60Hz

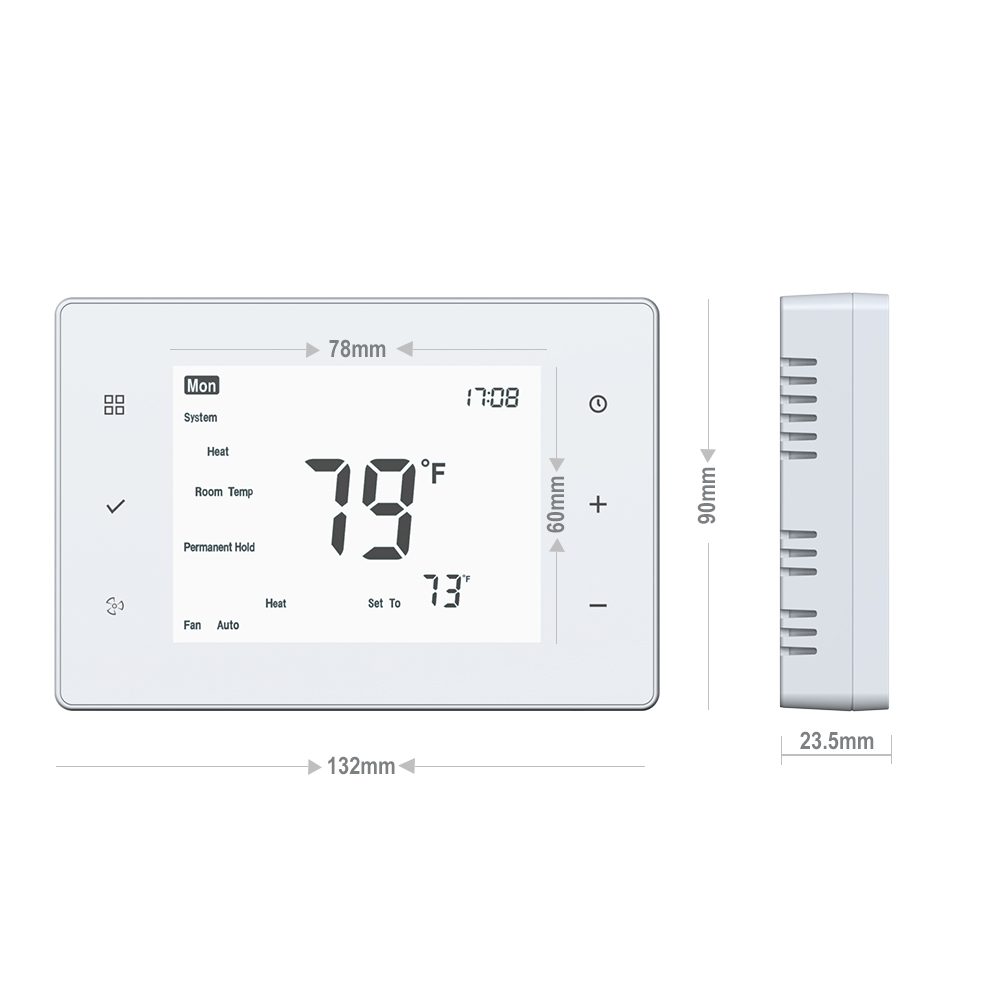

Dimension：132x90x23.5mm

Installation box：US Standard box

Ambient Temp.：0 °F~ 113°F

Ambient Humidity:5 ~ 95％RH(Non condensing)

Storage Temp：-41°F~ 140°F
