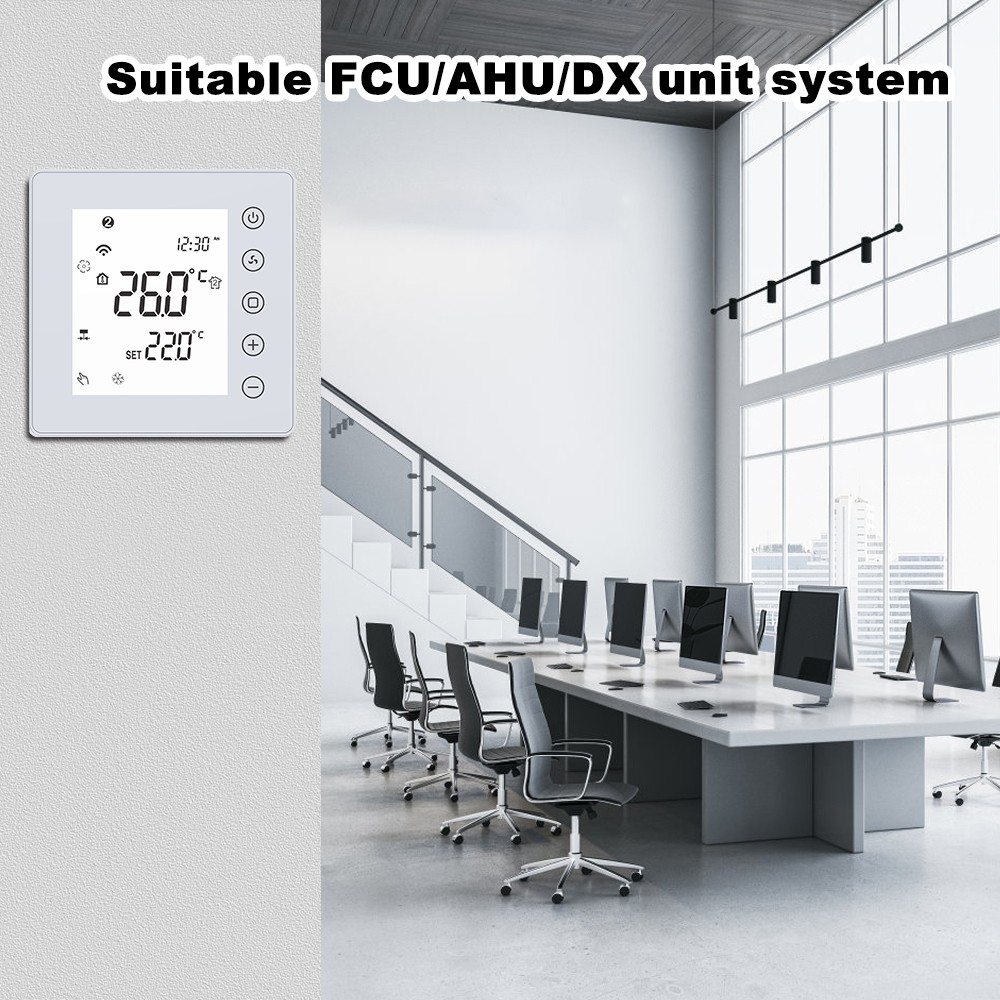

This digital programmable heating and cooling FCUthermostat is designed to control the fans, valves, dampers or electric heater in fan coil units
and heating applications in industrial, commercial or residential environment.
*For 2- or 4-pipe fan coil units
*Valve control 0-10 V output
*Supports 3-speed fans or fans with EC motor
*7 days 4 perioods programmable
*Support Modbus/RTU management control
*Non-Volatile memory to keep program settings and setpoints during a power outage
*Child Lock (Optional)
*External Sensor (Optional)
*Occupancy sensor (Optional)
*Zigbee Communication (Optional)
*BACnet Communication (Optional)
*Modbus RS485 option (Optional)
*WIFI Remote Control

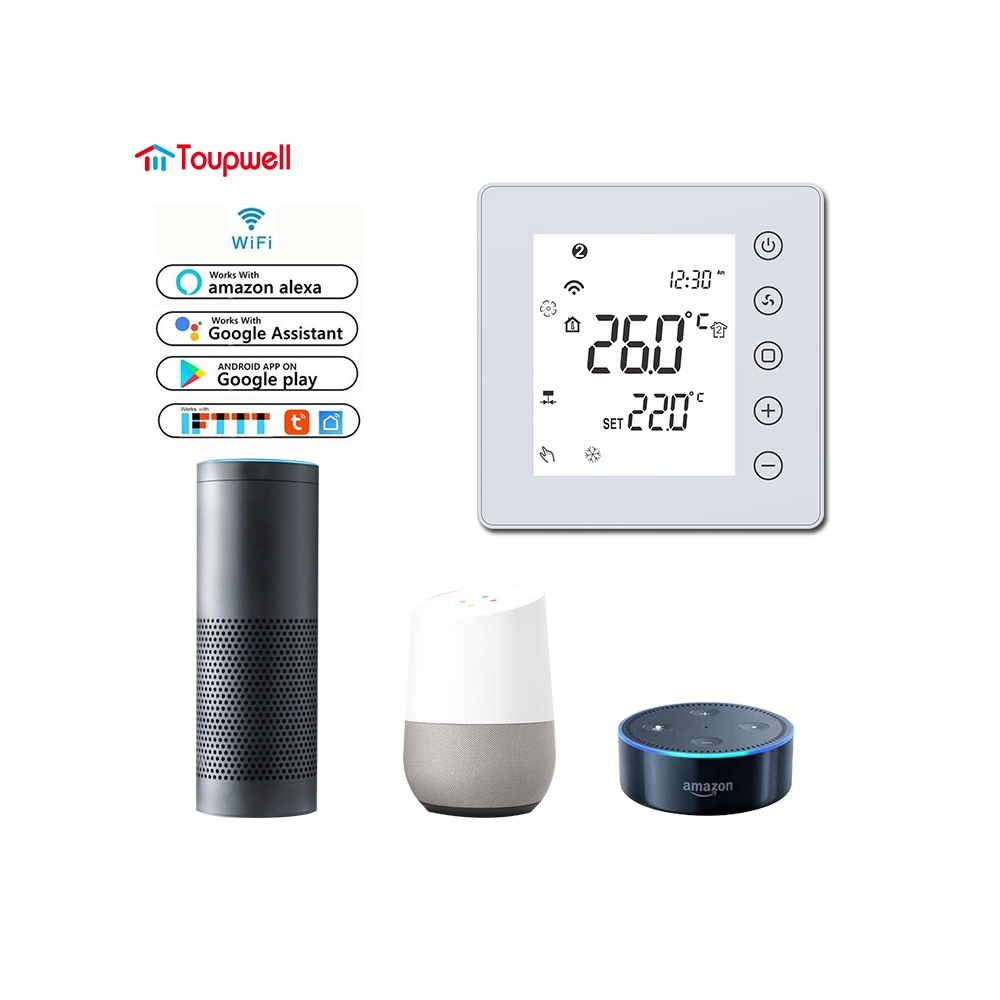

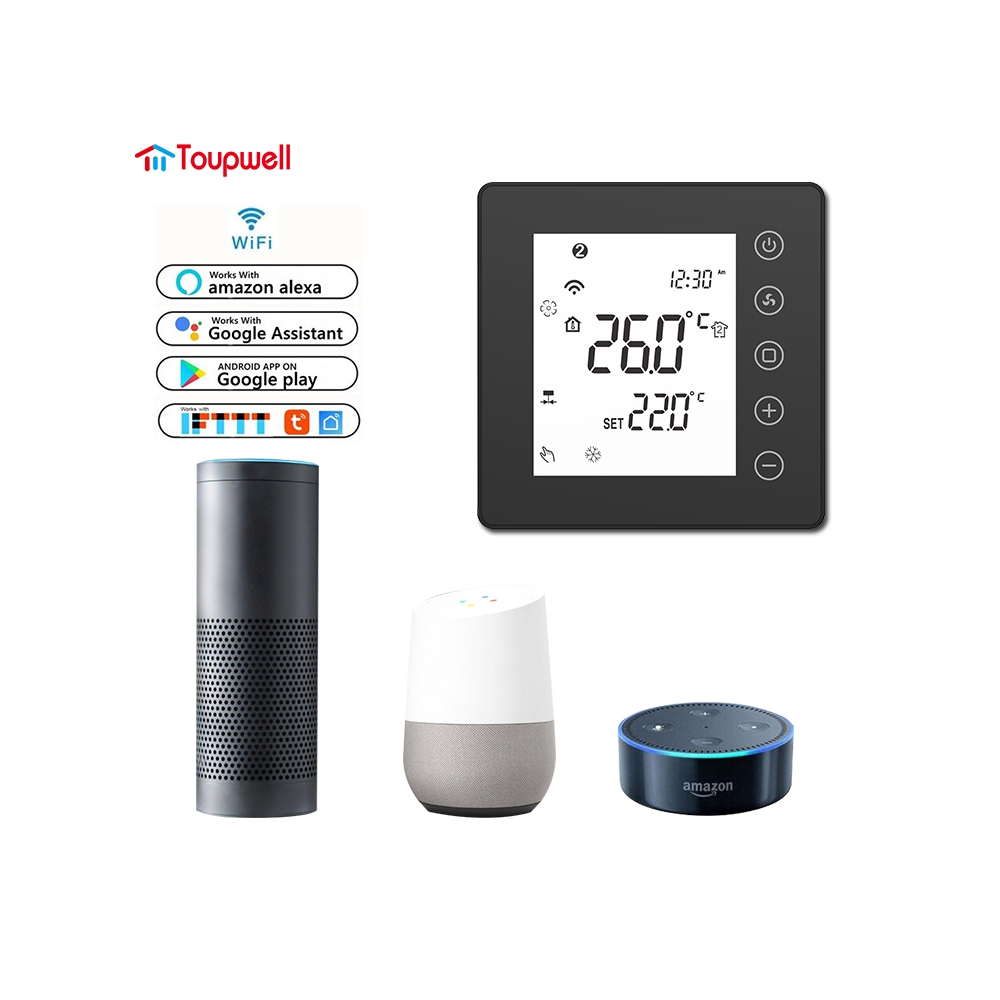

TUYA WIFI SMART HOME AC ROOM THERMOSTAT TP201SERIES

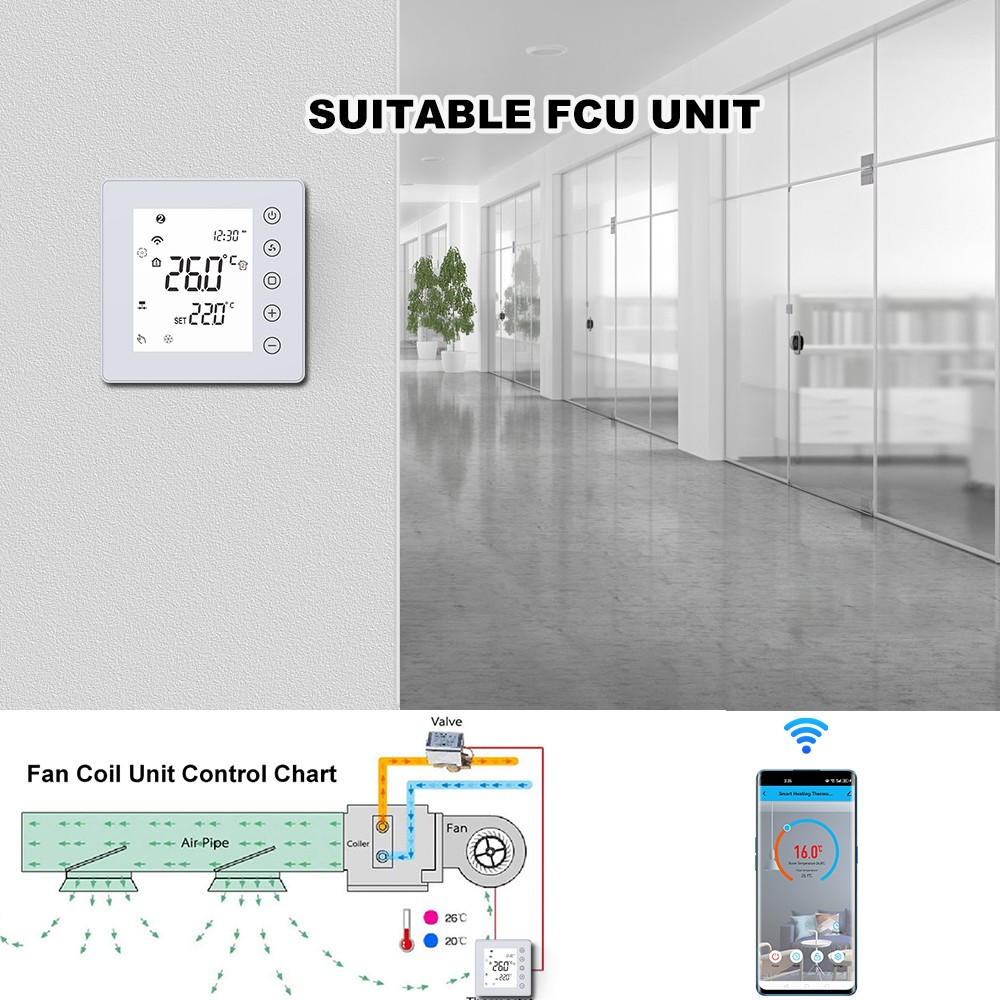

This digital programmable heating and cooling FCU thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications.
It detects the room temperature with its integrated temperature sensor and compares it with the setpoint temperature. In the event of a deviation, the heating valve is opened
With WIFI APP Communication.It is easy to control your room temp
in heating mode, and the cooling valve is opened for cooling mode. At the same time, the connected fan is activated depending on the control deviation and the set configuration.
A connectable remote sensor can be used either for detecting the room temperature or as a changeover sensor in 2-pipe systems or 4pipe system
Technical Data
| Display | LCD display |
| Protocol | WIFI, (Zigbee, Modbus RS485, Bacnet option) |
| Power Supply | AC24V or AC95-240V |
| Pipe | 2 Pipe/ 4 Pipe |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | Heat/Cool/Ventilation Fan Mode |
| Fan Speed | 3 Speed Fan & Auto Fan |
| 0-10V Modulating Control | 0-10V for on off Valve Control/ Fan Speed Control/EC Fan option |
| Programmability | 7 days 4 periods ( Customizable) |
| Optional Function | Clock, Keycard, External Sensor etc. |
| Protection Class | IP20 |
| Thermostat Dimension | 86X86X14mm |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
