This digital programmable heating and cooling FCU thermostat is designed to control the fans, valves, dampers or electric heater in fan coil units
and heating applications in industrial, commercial or residential environment.

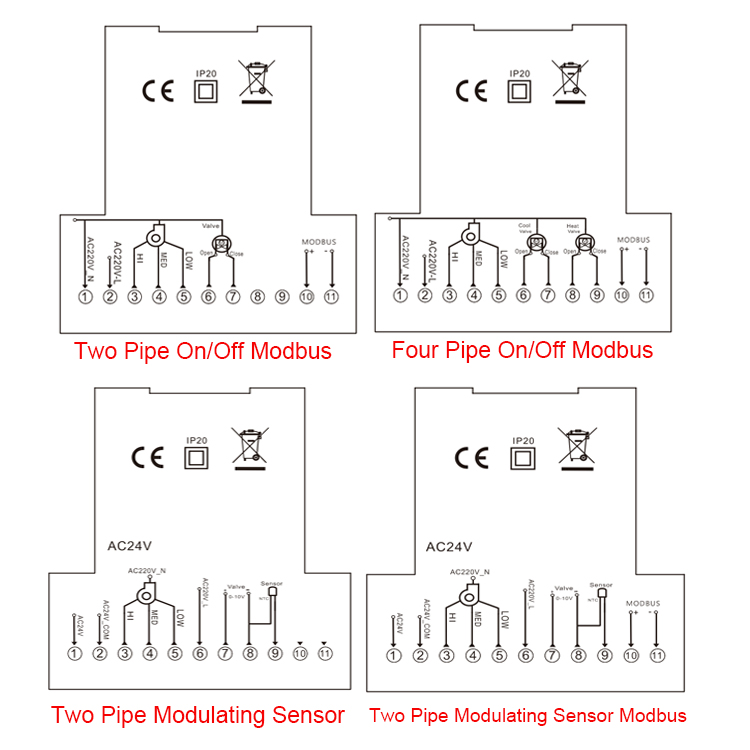

*For 2- or 4-pipe fan coil units
*Valve control 0-10 V output
*Supports 3-speed fans or fans with EC motor

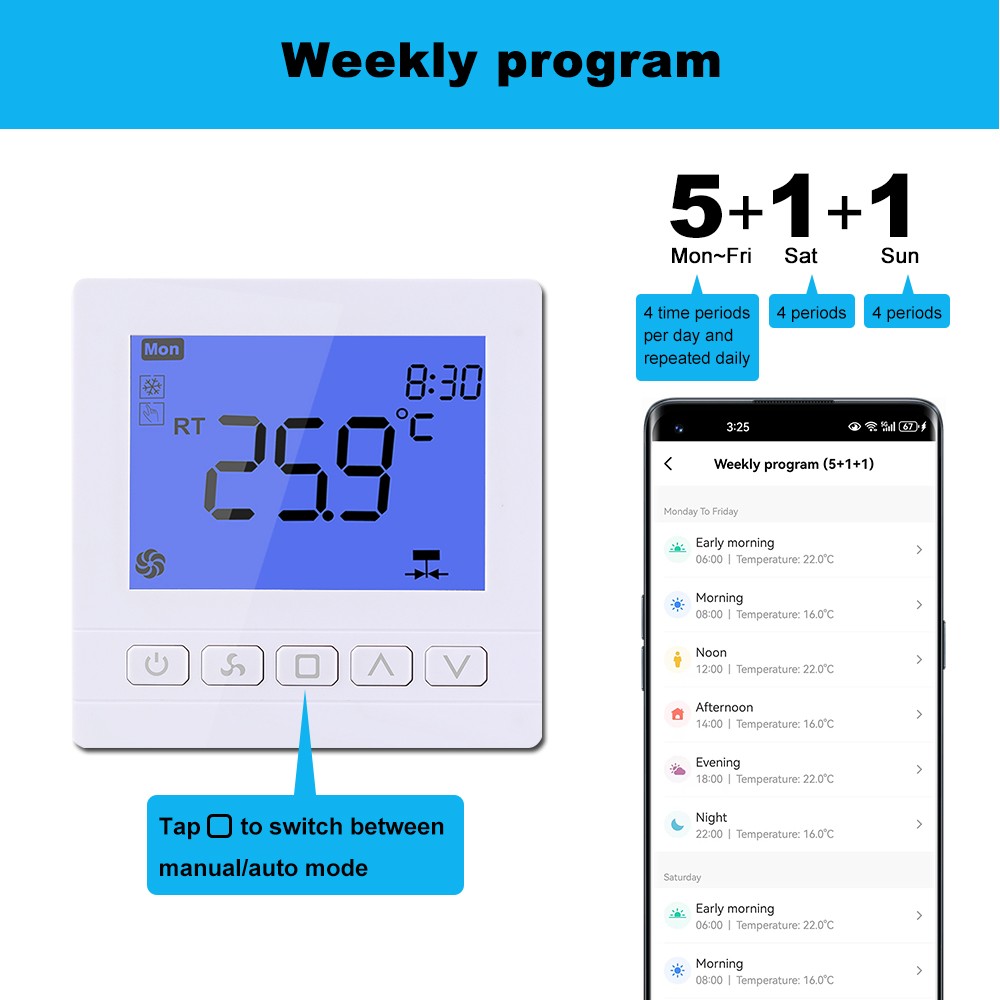

*7 days 4 perioods programmable
*Support Modbus/RTU management control
*Non-Volatile memory to keep program settings and setpoints during a power outage
*Child Lock (Optional)
*External Sensor (Optional)
*Occupancy sensor (Optional)
*WIFI Remote Control
2Pipe/4Pipe WIFI Digital Display Fan Coil Room Thermostat TP301series

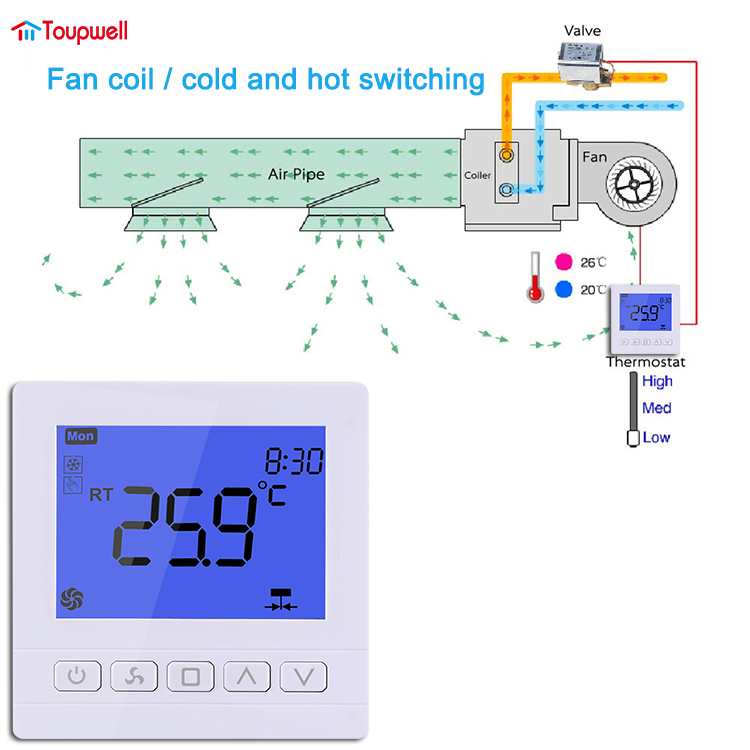

This digital programmable heating and cooling WIFI FCU thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications.
It detects the room temperature with its integrated temperature sensor and compares it with the setpoint temperature. In the event of a deviation, the heating valve is opened
in heating mode, and the cooling valve is opened for cooling mode. At the same time, the connected fan is activated depending on the control deviation and the set configuration.
A connectable remote sensor can be used either for detecting the room temperature or as a changeover sensor in 2-pipe systems
Technical Data
| Display | LCD display |
| Protocol | WIFI&Modbus RS485 option |
| Power Supply | AC24V or AC95-240V |
| Pipe | 2 Pipe/ 4 Pipe |
| Set Temp. Range | 5~35 ℃ |
| Ambient Temp. | 0~50 ℃ |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Modes | Heat/Cool/Ventilation |
| Fan Speed | 3 Speed Fan & Auto Fan |
| 0-10V Modulating Control | 0-10V for on off Valve Control/ Fan Speed Control/EC Fan option |
| Programmability | 7 days 4 periods ( Customizable) |
| Optional Function | Clock, Keycard, External Sensor etc. |
| Protection Class | IP20 |
| Thermostat Dimension | 86X86X14mm |
| Material | ABS+PC (Rohs certificated) |
| Certificate | CE(RED/EMC/LVD), Rohs |
| OEM & ODM | 1. Customized logo and package |
| 2. Customzied software ( change to customer’s user interface and control logic) | |
| 3. Customized hardware ( change the PCB and schematic based on the request) |
