TP538 WIFI Colorful VA LCD heating room thermostat

Application: Electric Floor Heating System
Model: WIFI version model

TP538UHPW-B（Black / TP538UHPW-W（White)

TP538UHPW-B-24V（Black)/ TP538UHPW-W-24V（White)

*UL 94V0 PC anti fire housing to make sure saftely

*Large VA ink LCD is comfort to see even during dark night

*Weekly program each day 6periods energy saving for you

*China TOP1 relay to make sure thermostat 100,000 lifetime

*Data memory even power off

*Control accurancy 0.5°C,Measure Temperature accurancy:0.1°C

*WIFI/ZIGBEE/MODBUS flexiable communication way for you select

*Tuya/Smart life app to control your thermostat anywhere

*White/Black/ODM color

*CE/ROHS/UKCA/FCC/REACH approved

Description

TP538 WIFI Large VA LCD Display Touch Screen Heating roomThermostat

TP538series large colorful programmable thermostat is a thermostat which is designed to adjust the temperature according to a series of settings that meet room comfort

It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting,

and switching it off once this set temperature has been reached. It allows users to select different temperatures in your home at different times of the day

to meet particular user’s needs and preferences.

It could used in Electrical or Water Underfloor Heating System. TP538 series thermostats are used to control 16A Electrical Heating Elements, such as heating cables, heating mats, heating films, etc. TP538series thermostats are used to control 3A Water Heating Devices, such as actuators, etc.

Technical Data

Features	Parameters
Application	Underfloor Heating System/Water Heating System/Gas Boiler Heating System
Power	AC95- 240V/24V option, 50/ 60Hz
Controlled Load	water heater 5A/electric heater 16A
Mode	Programmable/Manaul Mode optional
Temperature Accuracy	+/-0.5℃
Temperature Range	5~60℃
Programmable function	5+1+1 Weekly Program
Button Lock Function	YES
Antifreeze Function	YES
Memory Function	YES
Temperature Sensor	Two Sensors(UHP model)/One senor(WHP model,GCmodel)
External Floor Sensor Length	2.5meters
Sensor	NTC 10k 3977
Phone Application	Tuya/Smart Life
Voice Assistant	Google Home/Amazon Alexa (only Wi-Fi models support)
Installation Hole distance	86box/60mmEurope standard round box

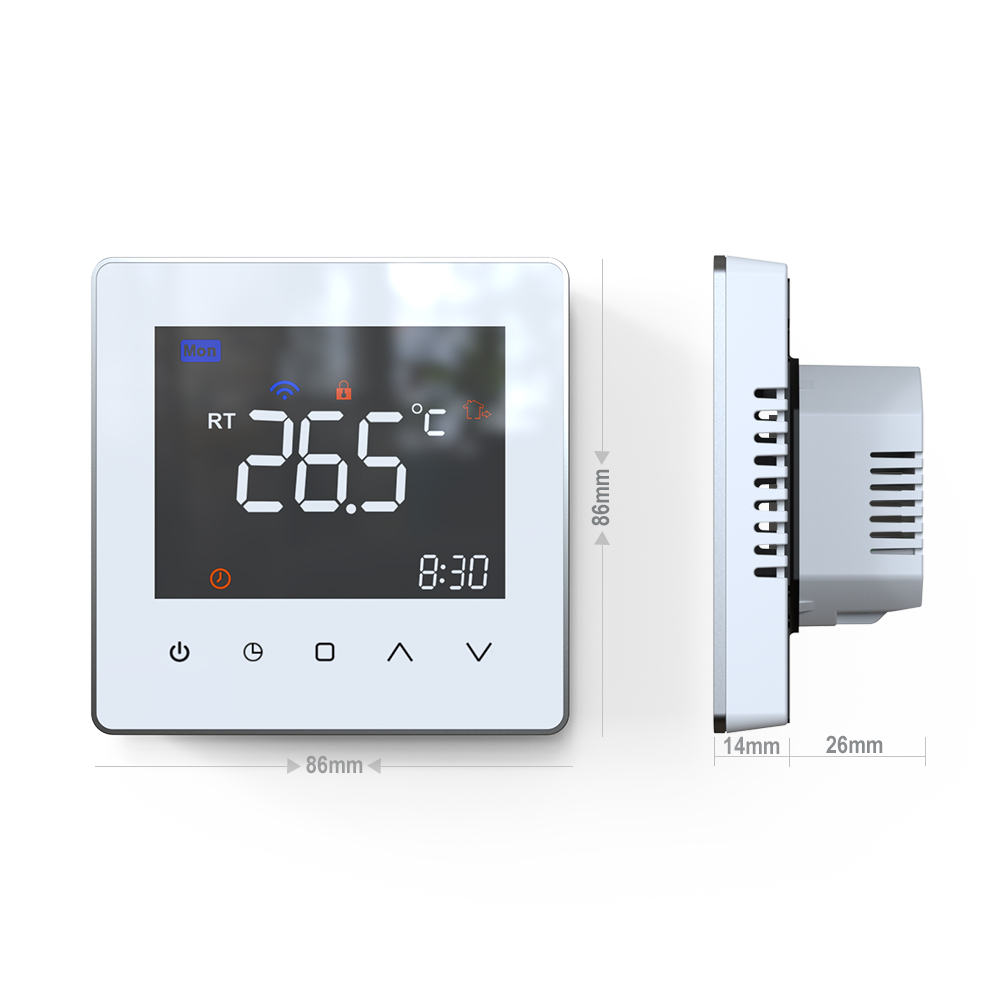

Dimension	86x86x40mm
