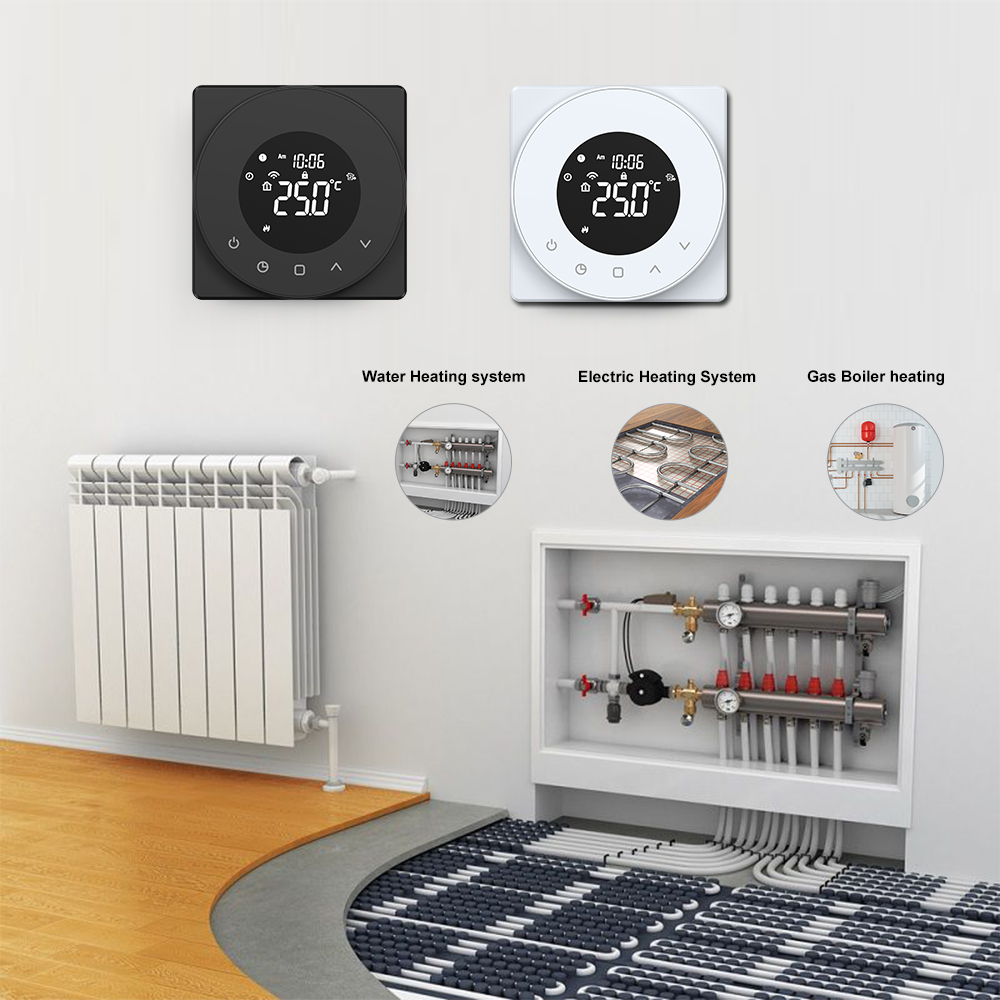

Application: Underfloor Heating System/Water Heating Underfloor Heating System /Gas Boiler Heating
Model: WIFI version model
TP909UHPW-B Black /( TP909UHPW-W（White)
TP909WHPW-B Black /( TP909WHPW-W（White)
TP909GCW-B Black /( TP909GCW-W（White)
NO WIFI version model
TP909UHP-B Black /( TP909UHP-W（White)
TP909WHP-B Black /( TP909WHP-W（White)
TP909GC-B Black /( TP909GC-W（White)
*UL 94V0 PC anti fire housing to make sure saftely
*VA LCD more friendly to your eyes
*Weekly program each day 6periods energy saving for you
*China TOP1 relay to make sure thermostat 100,000 lifetime
*Data memory even power off
*Control accurancy 0.5°C
*WIFI/ZIGBEE/MODBUS flexiable communication way for you select
*Tuya/Smart life app to control your thermostat anywhere
*Voice control via:Google assistant and Amazon Alexa
*White/Black/ODM color
*CE/ROHS/UKCA/FCC/REACH approved

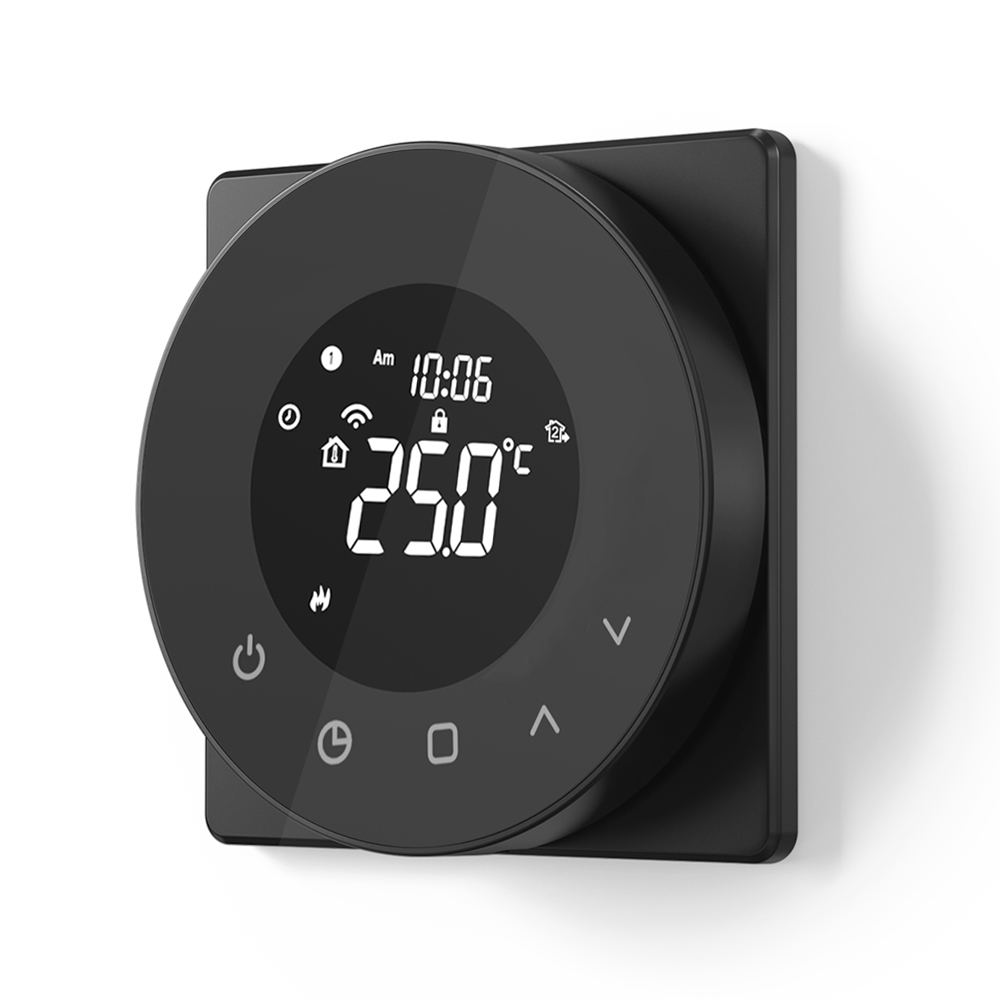

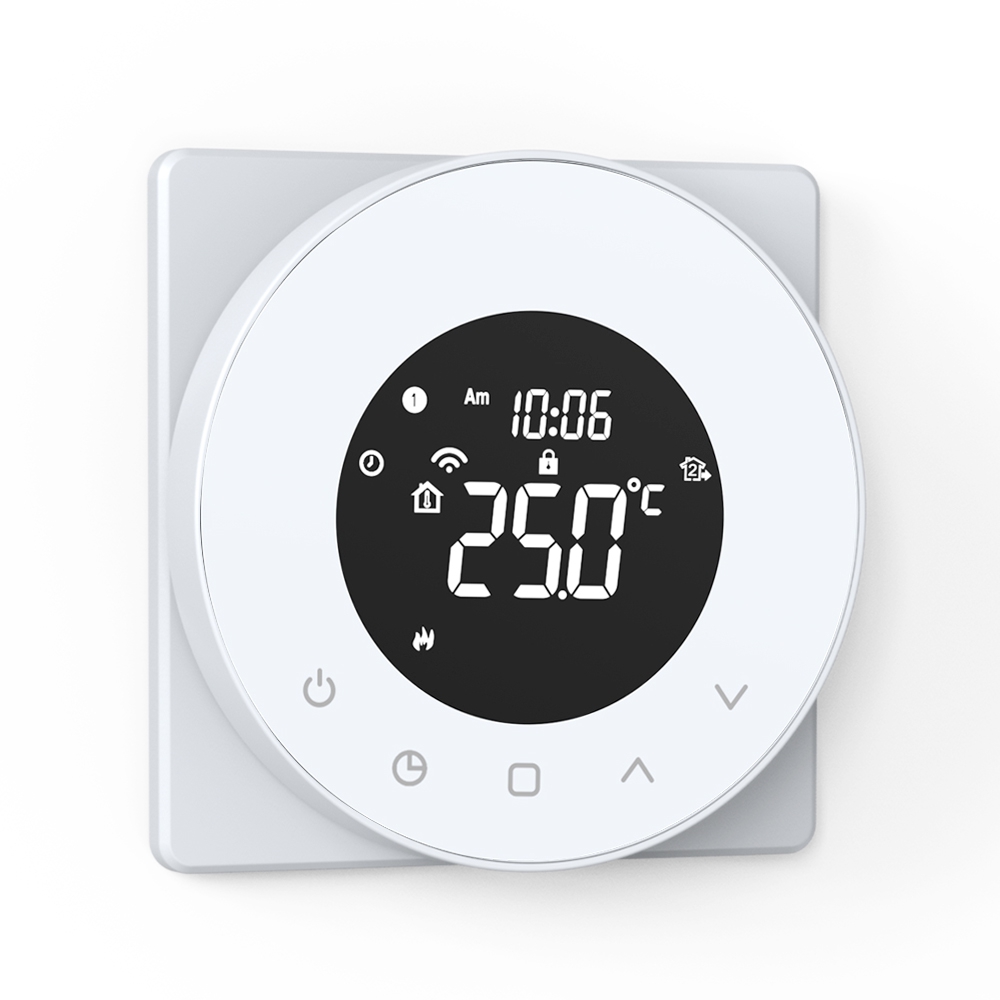

TP909series round type VA ink LCD display programmable thermostat is a thermostat which is designed to adjust the temperature according to a series of settings that meet room comfort
It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting,
and switching it off once this set temperature has been reached. It allows users to select different temperatures in your home at different times of the day
to meet particular user’s needs and preferences.
It could used in Electrical or Water Underfloor Heating System. TP909 series thermostats are used to control 16A Electrical Heating Elements, such as heating cables, heating mats, heating films, etc. TP908series thermostats are used to control 3A Water Heating Devices, such as actuators, etc.
Technical Data
| Features | Parameters |
|---|---|
| Application | Underfloor Heating System/Water Heating System/Gas Boiler Heating System |
| Power | AC95- 240V/24V option, 50/ 60Hz |
| Controlled Load | water heater 5A/electric heater 16A |
| Mode | Programmable/Manaul Mode optional |
| Temperature Accuracy | +/-0.5℃ |
| Temperature Range | 5~60℃ |
| Programmable function | 5+1+1 Weekly Program |
| Button Lock Function | YES |
| Antifreeze Function | YES |
| Memory Function | YES |
| Temperature Sensor | Two Sensors(UHP model)/One senor(WHP model,GCmodel) |
| External Floor Sensor Length | 2.5meters |
| Sensor | NTC 10k 3977 |
| Phone Application | Tuya/Smart Life |
| Voice Assistant | Google Home/Amazon Alexa (only Wi-Fi models support) |
| Installation Hole distance | 86box/60mmEurope standard round box |
| Dimension | 86x86x40mm |
