CHARACTERISTIC

l Bi-directional AC motor

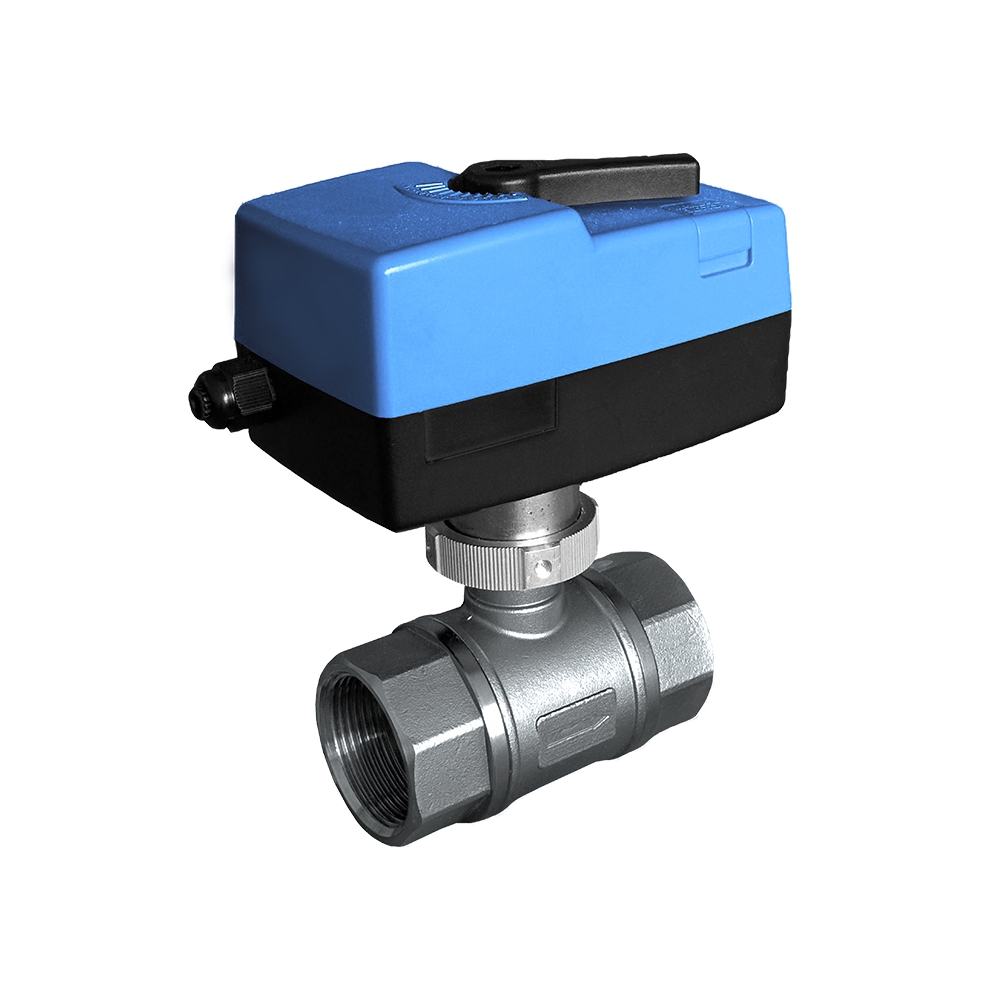

l Apply to valves of DN32 to DN50 (can be also apply to valves of DN15-25 as per request)

l Fire-retardant ABS engineering plastic, measure up UL94V-0 standard

l With manual switch and position indicator

l Floating type or modulating type (with internal PCB)

l Detachable design, easy to install and maintain

l Fluid temperature and ambient temperature are hard to reach inside of actuator.

l High reliable and safety requirement level

l Actuator manual handle can be disassembled to install on the valve stem for opening or close the valve.

l 0(2)~10V dc or 0(4)~20mA dc control input signal, proportional control.

l 0~10V feedback signal.

l With LED open degree display for option
