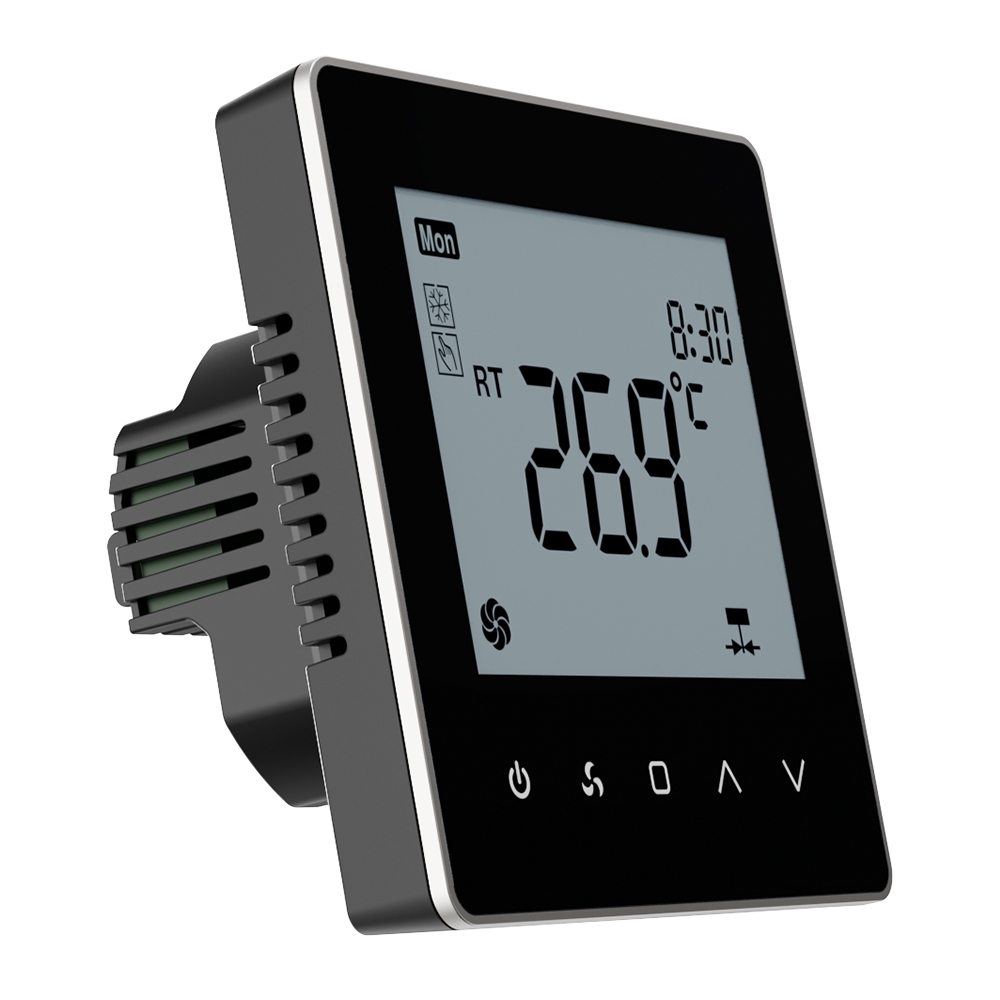

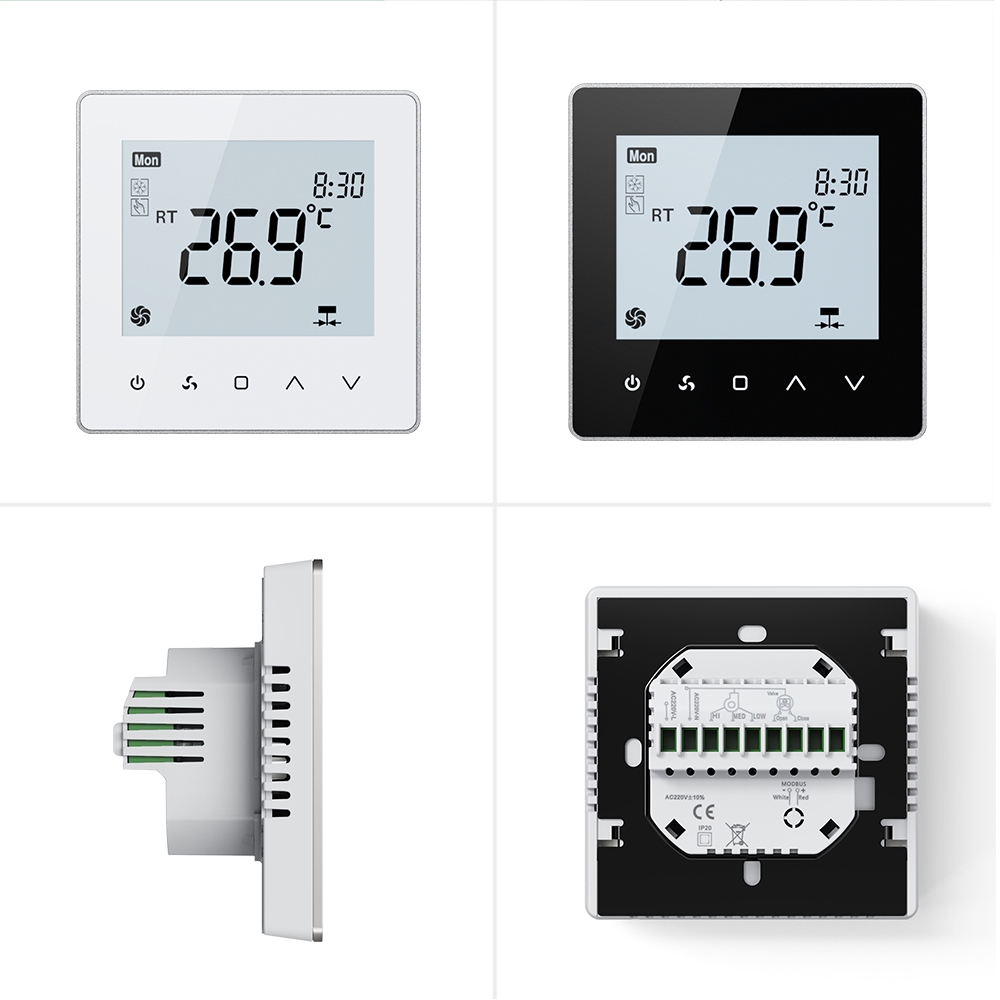

Tuya WIFI Smart Fan Coil Room Thermostat TP518series

This digital programmable heating and cooling FCU thermostat is designed to controls the fans, valves, dampers or electric heater in fan coil units and heating applications.

 It detects the room temperature with its integrated temperature sensor and compares it with the setpoint temperature. In the event of a deviation, the heating valve is opened

in heating mode, and the cooling valve is opened for cooling mode. At the same time, the connected fan is activated depending on the control deviation and the set configuration.

 A connectable remote sensor can be used either for detecting the room temperature or as a changeover  sensor in 2-pipe systems

  Technical Data

Model Select:

2: Two pipe; Control Fan Coil Unit and Two wired Motorized valve.(when room temperature reaches the setpoint, both will turn off)

2F: Two pipe; Control Fan Coil Unit and Two wired Motorized valve.(when room temperature reaches the setpoint, valve will turn off but fan will turn to low speed)

M: Two pipe; Control 0-10V Motorized Valve

4: Four pipe; Control Fan Coil Unit and Two wired Heat and Cool Motorized valve.

P: Weekly Programmable

N: RS485/MODBUS RTU communication

K: Keycard E: External sensor

W:WIFI

Z:Zigbee

W2:Window function

BA:BACnet Communication
