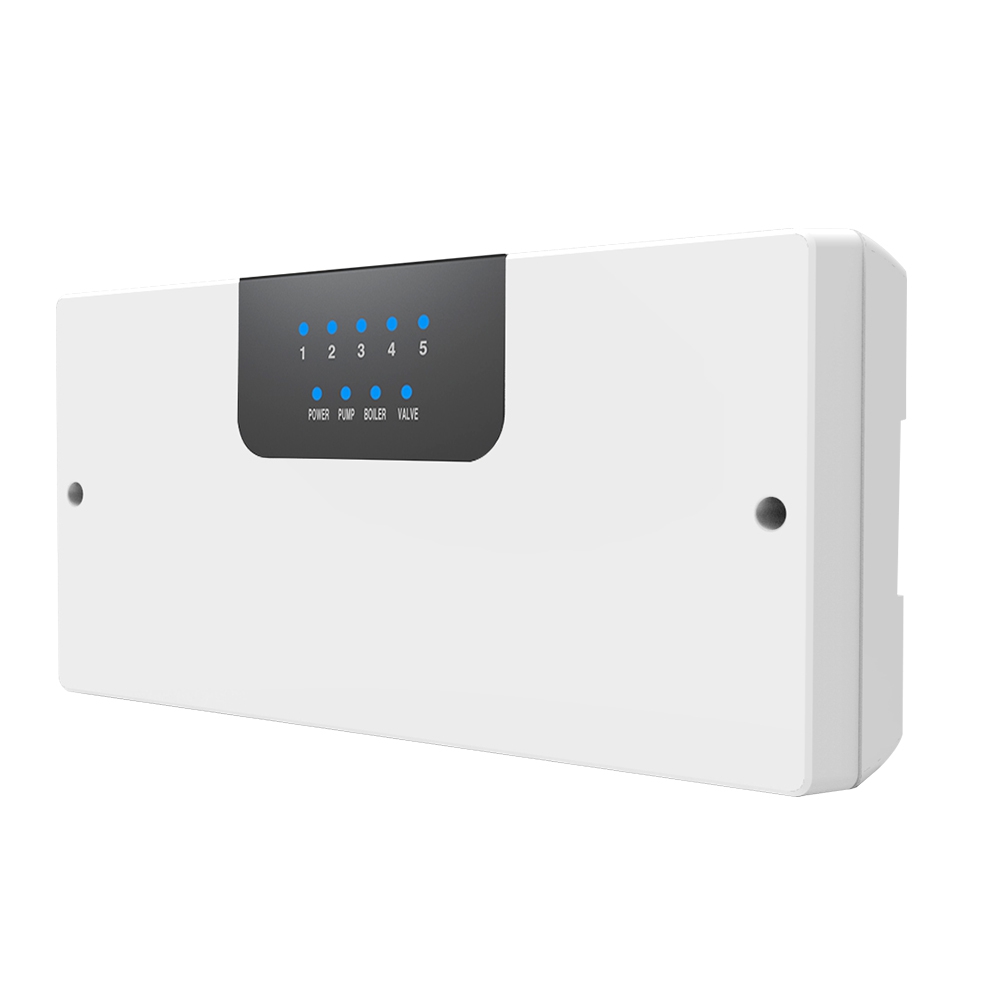

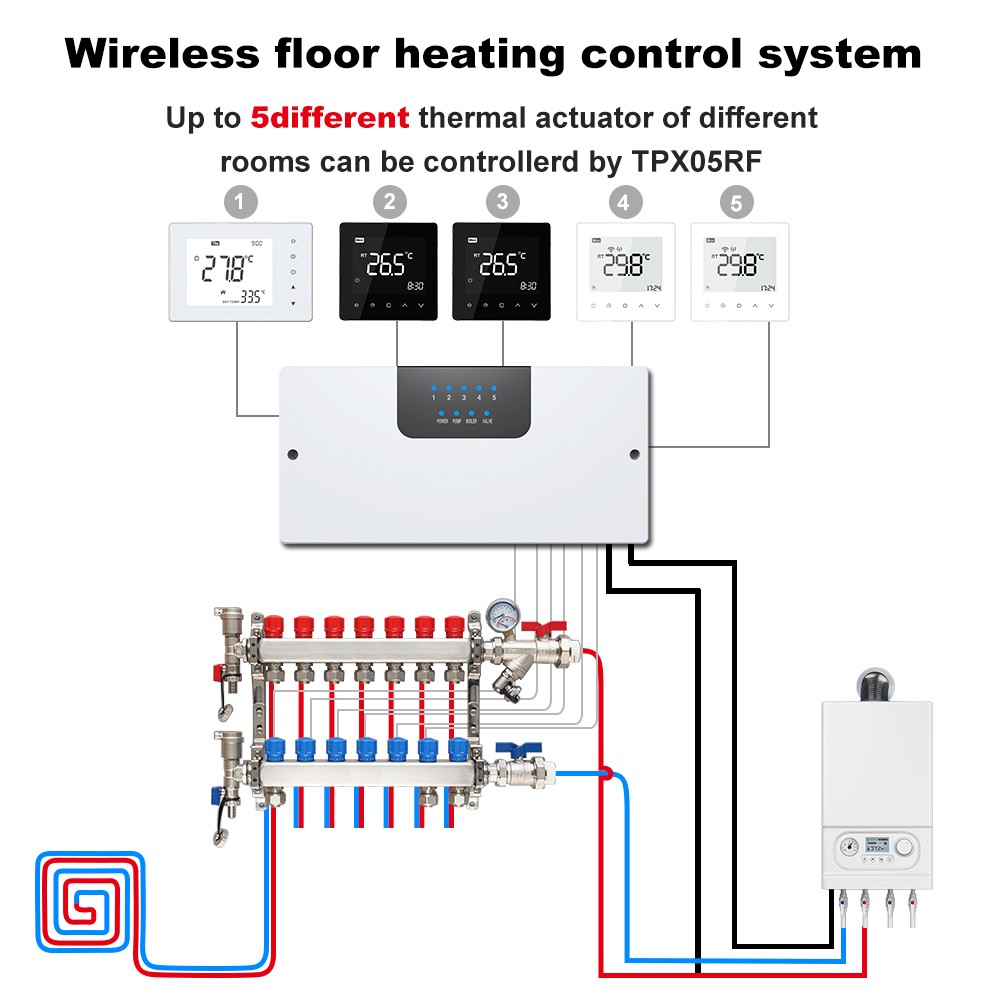

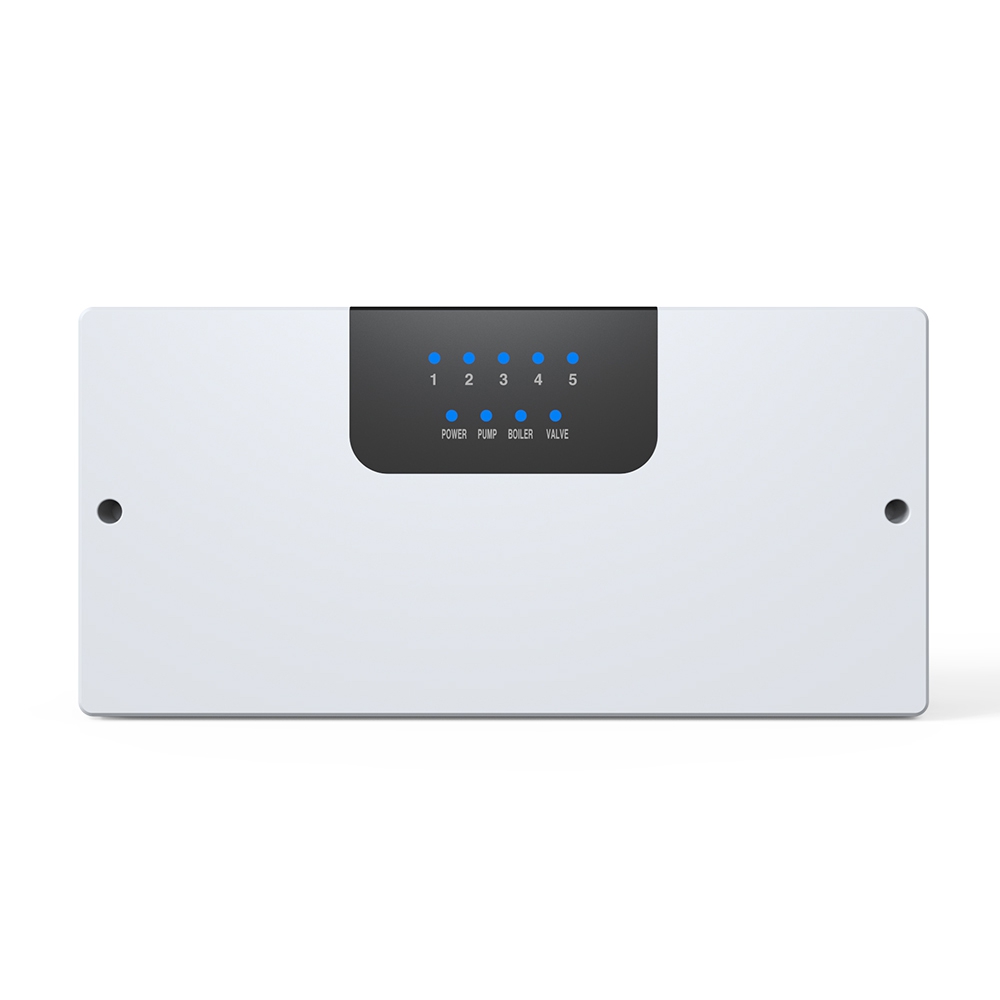

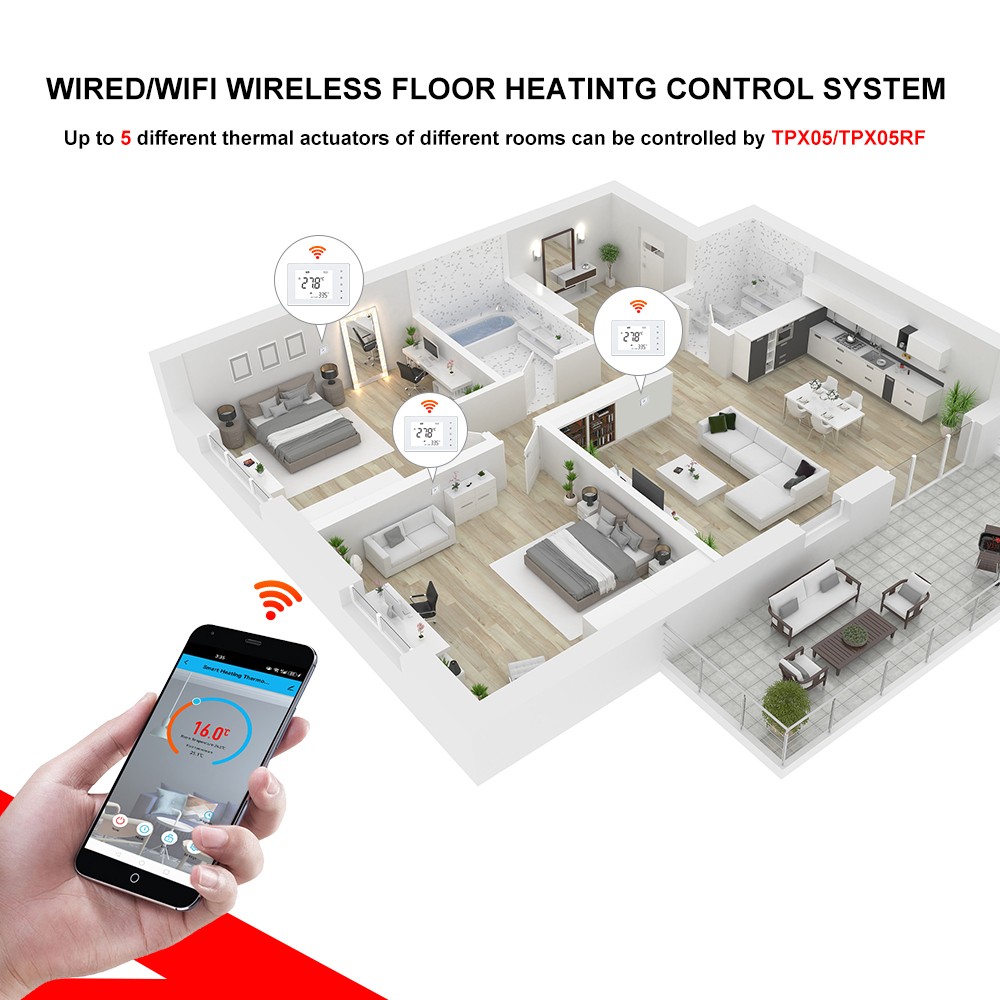

TPX05RF wiring centre is designed to be used in conjunction with our wireless thermostats. 5 zones or 10 zones can be controlled as well as providing an output for circulation pump and boiler.

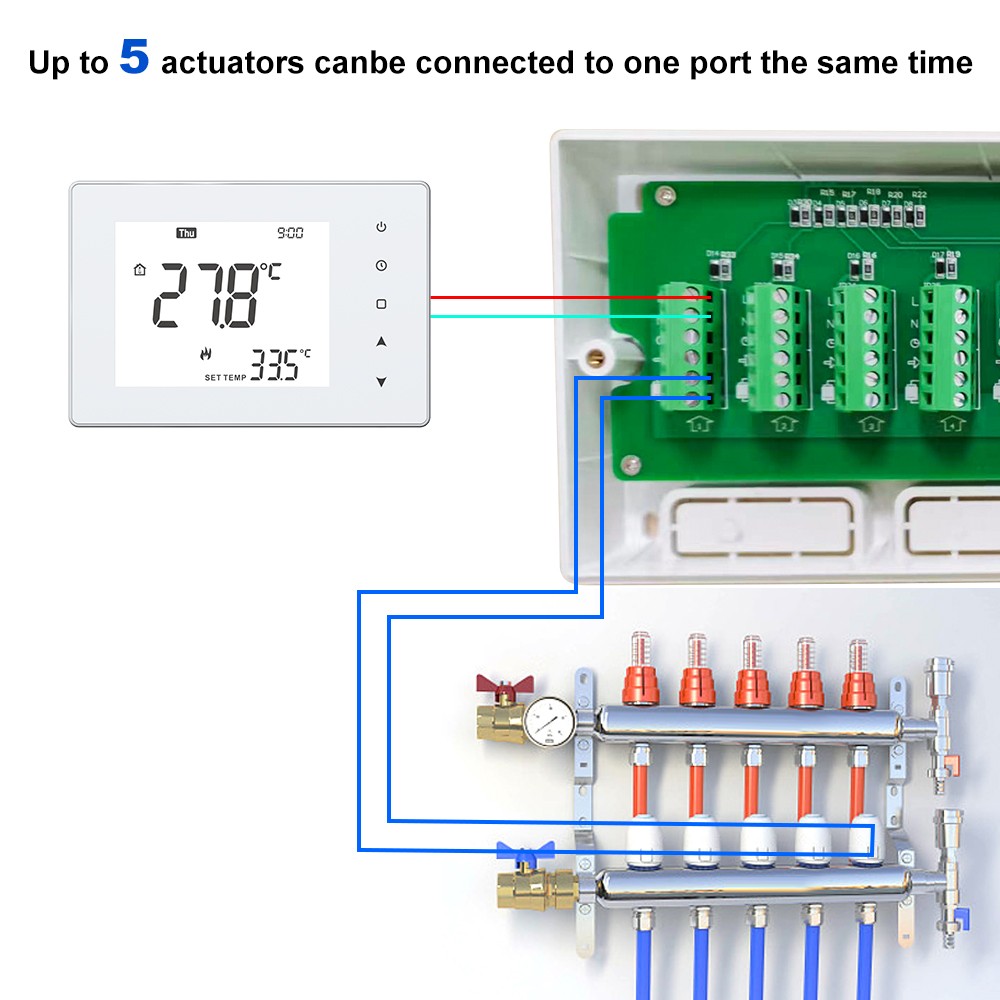

Up to 5 thermal actuators can be connected to each zone.
Item No.: TPX05RF
Can work up to 10 room thermostats
Max. 16 thermal actuator connectors.
Boiler and Pump delay time settable
Convenient wiring and installation
WIFI Connection ( Optional)/Zigbee Connection( Optional)

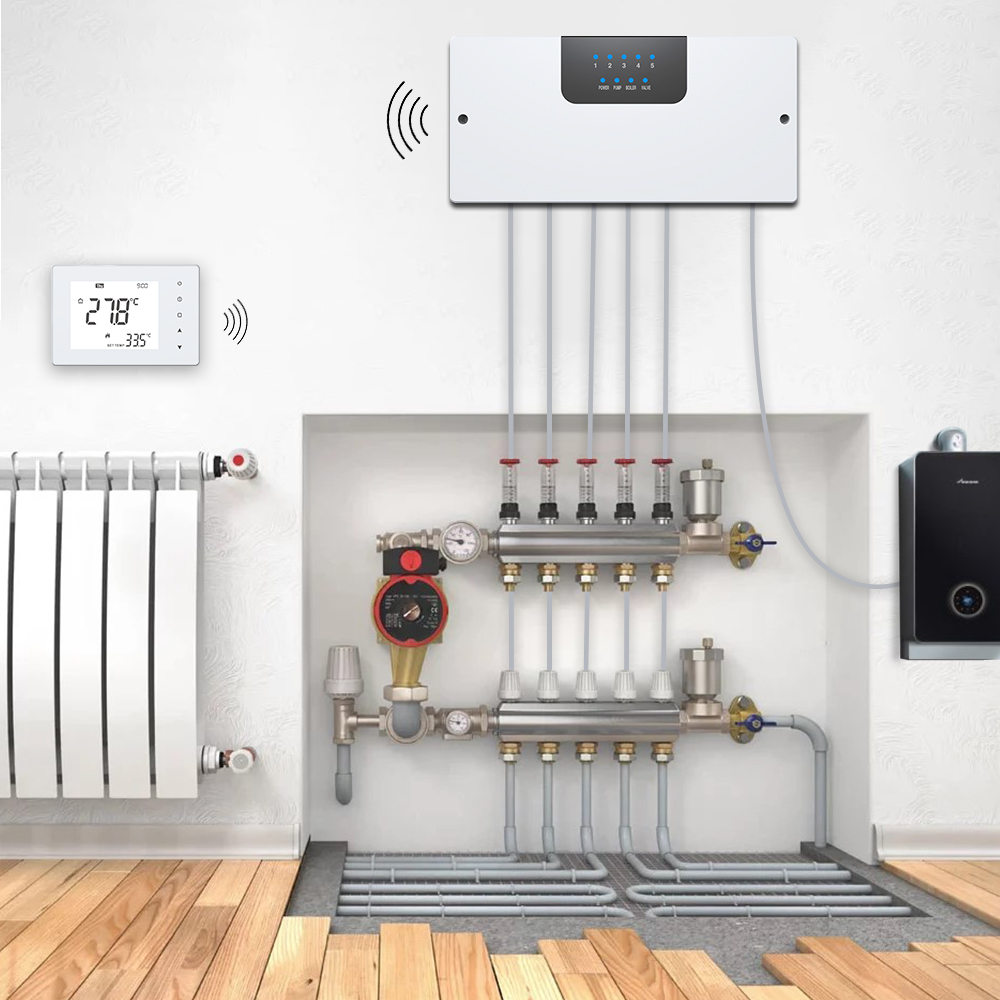

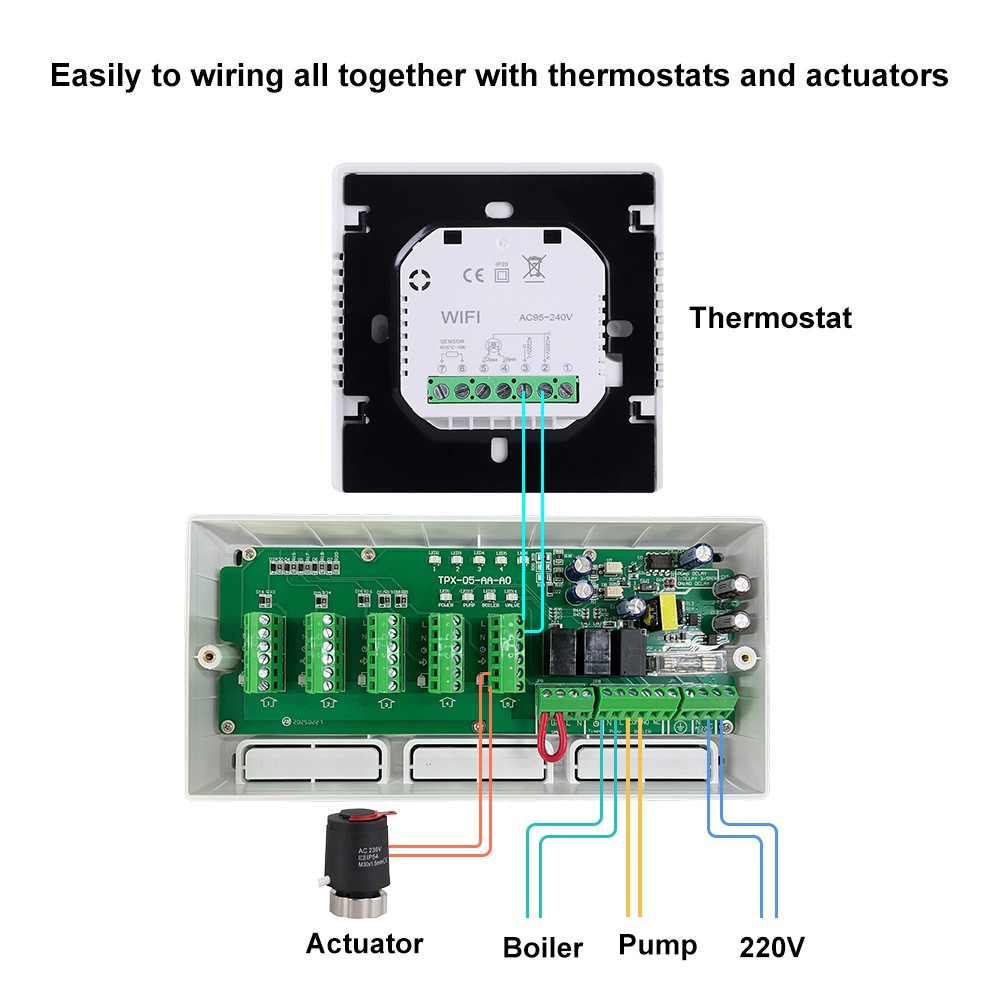

Our underfloor heating wiring centres have been designed to simplify the wiring process. Using our wiring centres in your application means that the actuator,

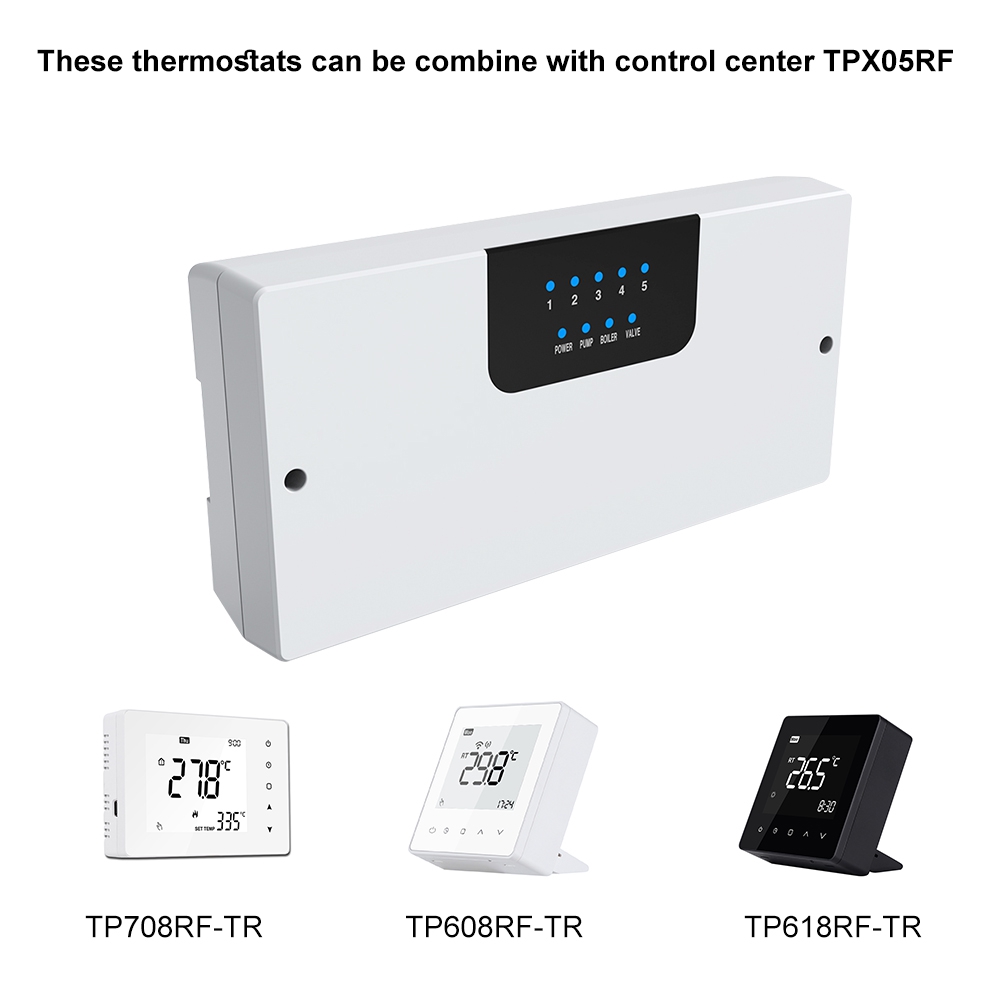

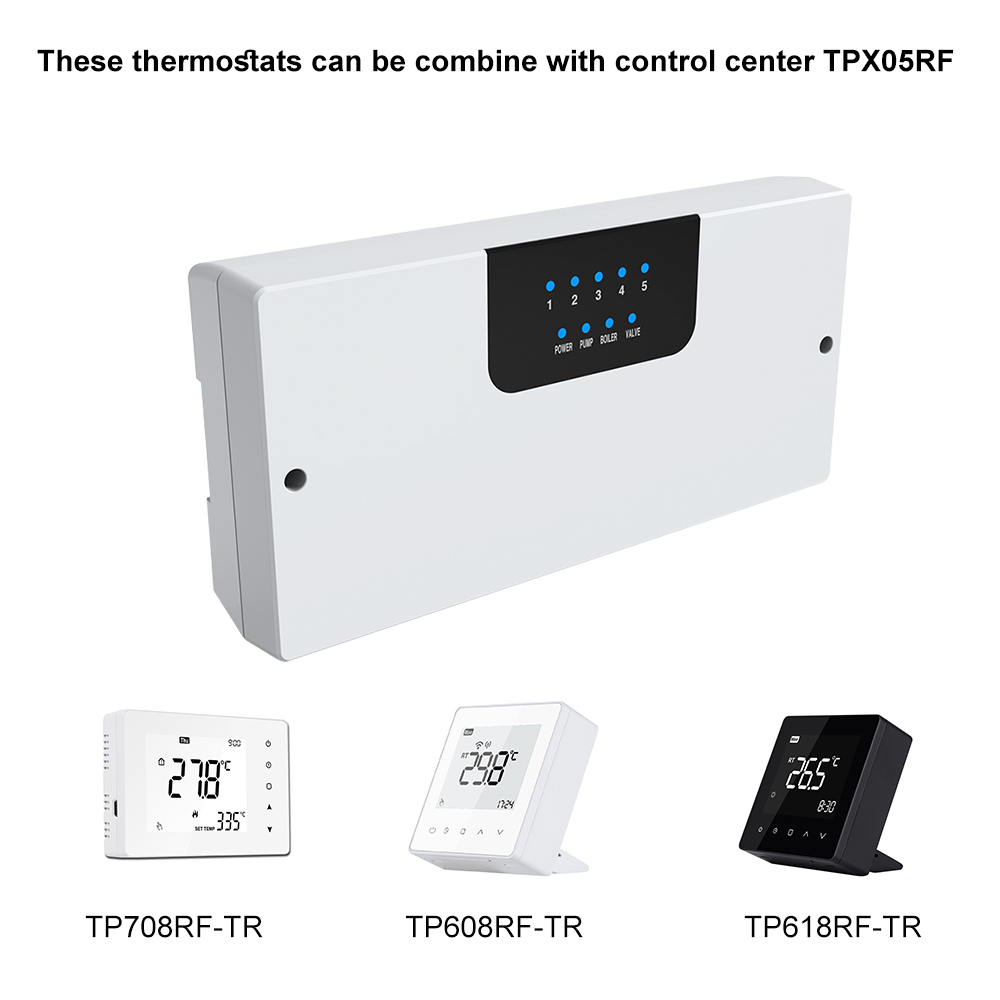

boiler and pump connections are wired from a single point. TP608RF-TR/TP618RF-TR/TP708RF-TR is used in conjunction with our wireless thermostats. 5 zones or 10 zones can be controlled
as well as providing an output for circulation pump and boiler. Up to 5 thermal actuators can be connected to each zone.
Technical Data
| Name | Multi-zone Wireless Wiring Centre for Underfloor Heating |
| Power Supply | 230Vac |
| Boiler Output | Voltage-free |
| Pump Output | 230Vac |
| Max. Current | 5(2) A for each |
| Frequency | 868mhz work with RF thermostats |
| Relative Humidity | 85% |
| Accurancy | ±0.5 ℃ |
| Protection Class | IP20 |

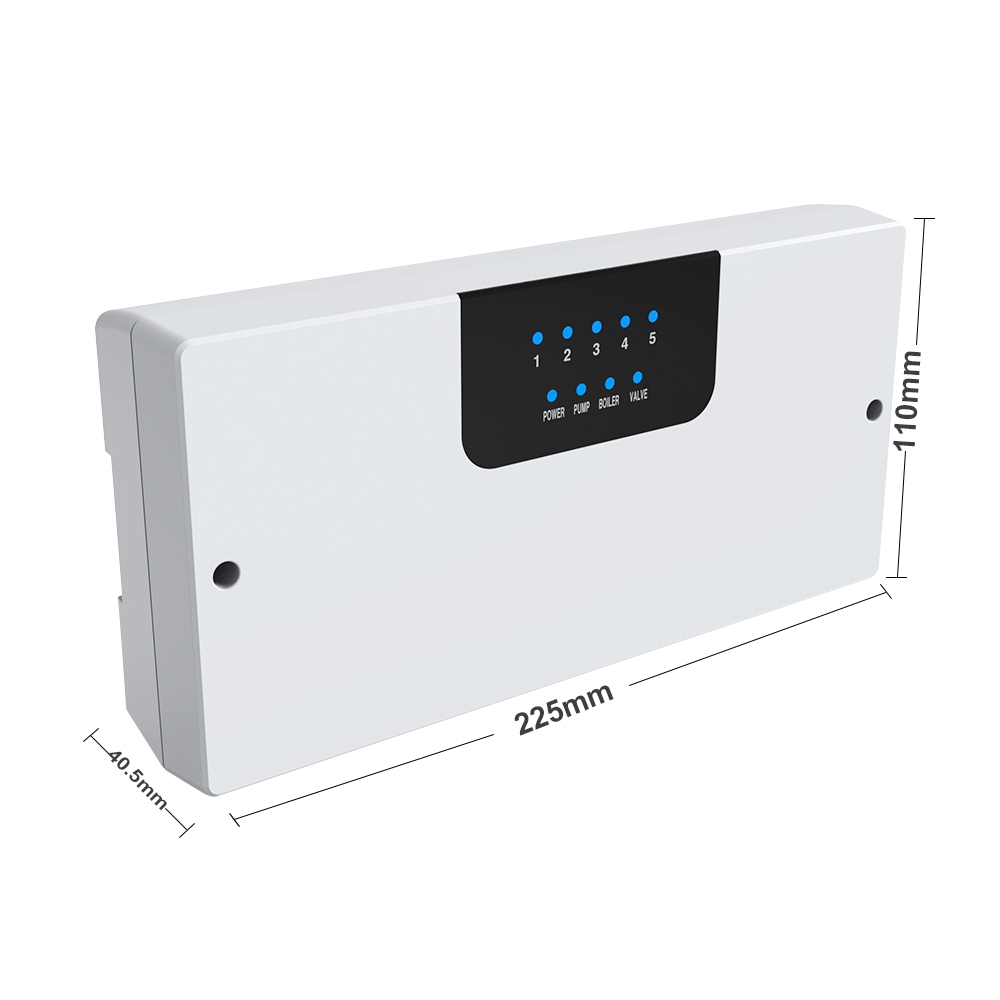

| Thermostat Dimension | 225mm x 110mm x 40.5mm. |
| Materils | ABS+PC |
| Certificate | CE(RED/EMC/LVD), Rohs |
