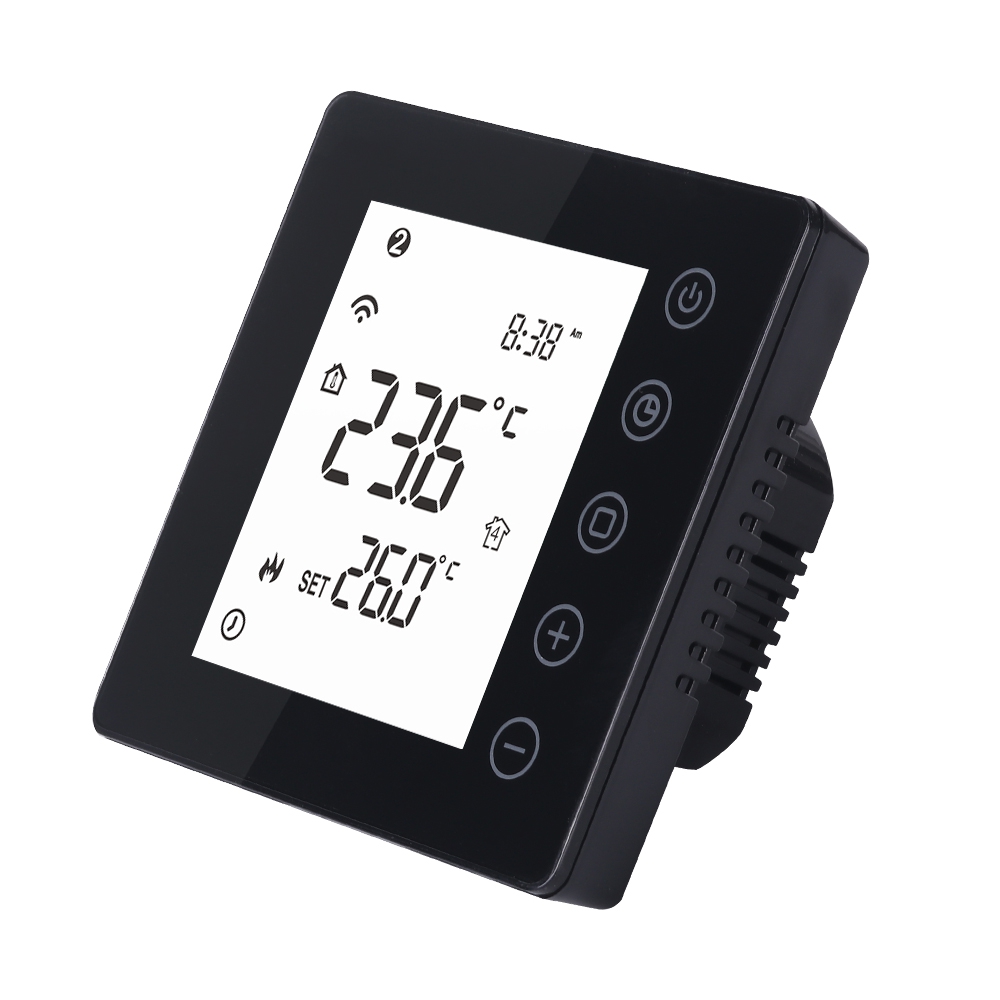

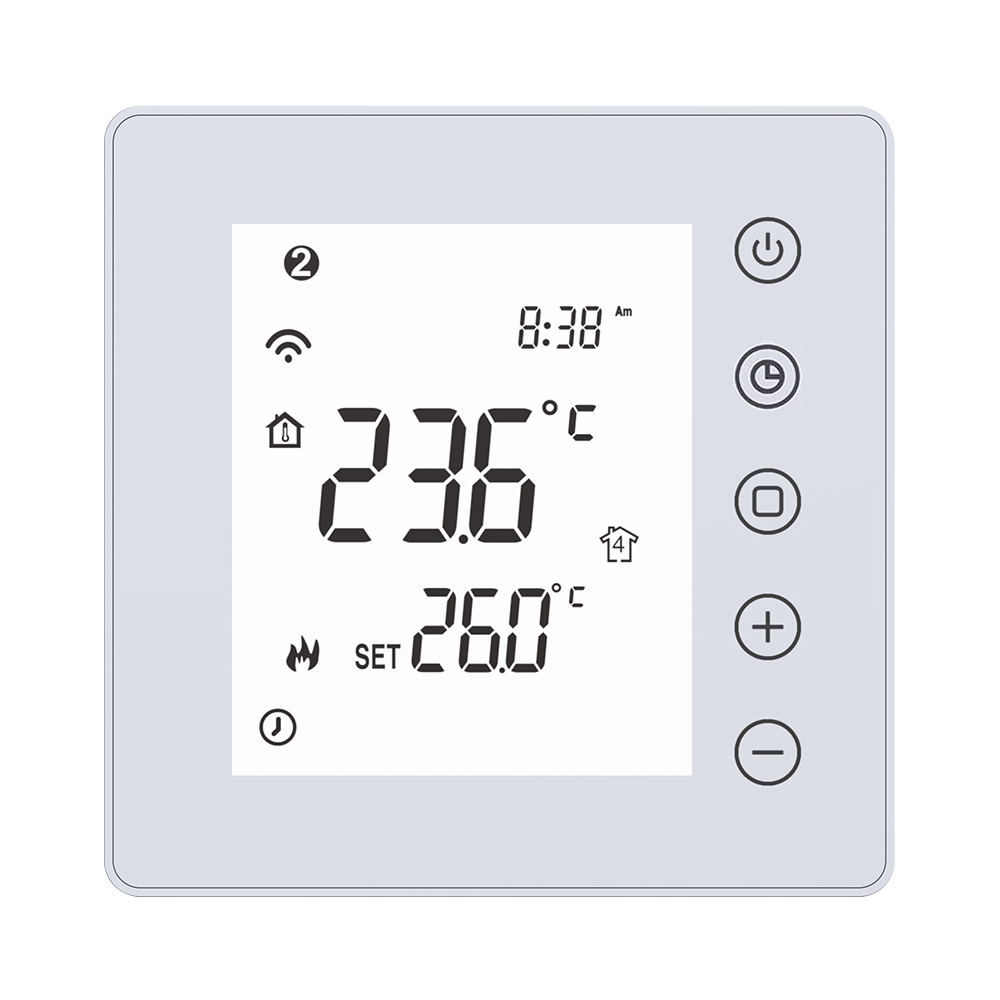

TP201series Touch Programmable Thermostat for Underfloor Heating System
This touch type Underfloor Heating Thermostat. It has large LCD screen ensuring an excellent user experience of temperature control.
Model: Electric Heating System Model:
TP201UHPN-B（Black)/ TP201UHPN-W（White)
TP201UHPN-B-24V（Black) / TP201UHPN-W-24V（White)
Water Heating Model:
TP201WHPN-B（Black)/ TP201WHPN-W（White)
TP201WHPN-B-24V（Black) / TP201WHPN-W-24V（White)
*PC Anti-fire UL 94V0 housing
*Large LCD Display
*Multiple modes control(Manual,Eco and PRG. Mode)
*Water heating system (5A)

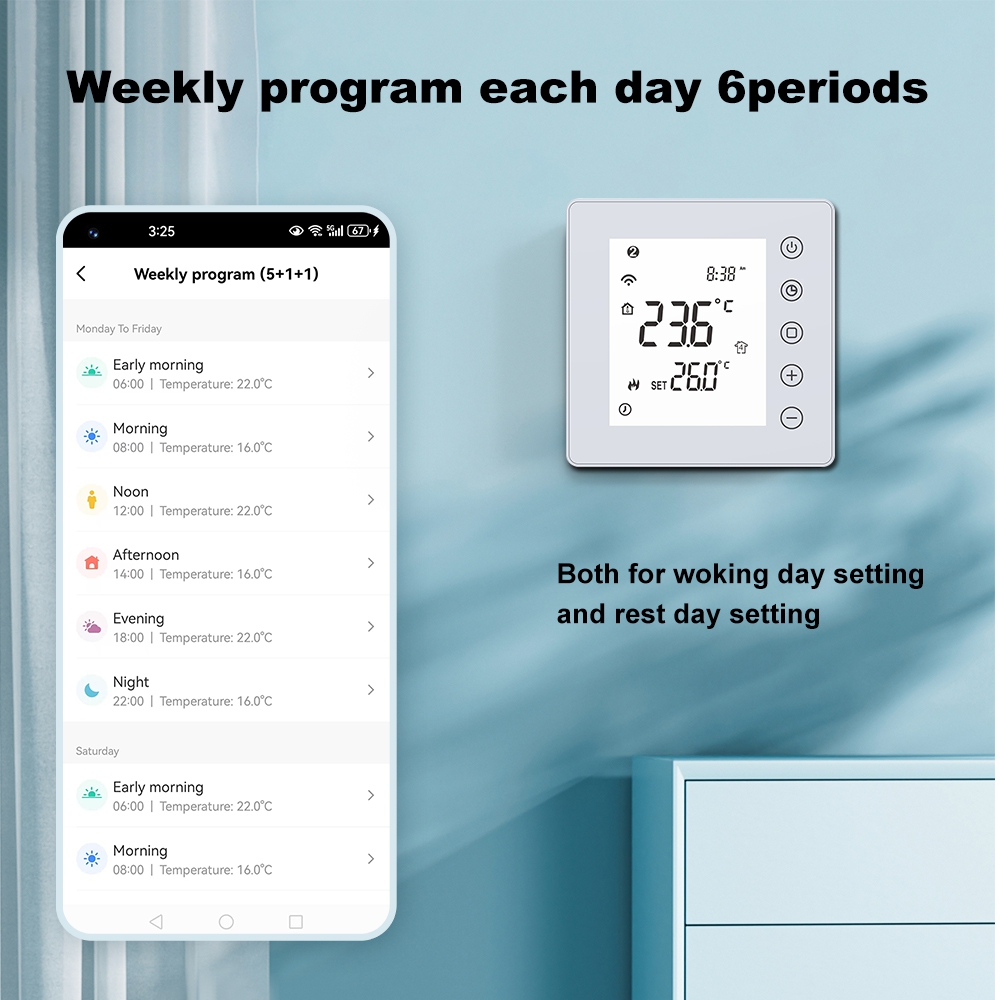

*5+1+1/7 days Programmable (6periods/day)
*Child Clock display
* 86*86*13mm dimension
*Frost function
*Certificates:CE, ROHS,UKCA approved
TP201 series programmable thermostat is a thermostat which is designed to adjust the temperature according to a series of settings that meet room comfort
It works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting,
and switching it off once this set temperature has been reached. It allows users to select different temperatures in your home at different times of the day
to meet particular user’s needs and preferences.
Programmable thermostats are also known as setback thermostats or clock thermostats. It is designed for gas boiler or water valve control at
water underfloor heating system.
Technical Data
| Features | Parameters |
|---|---|

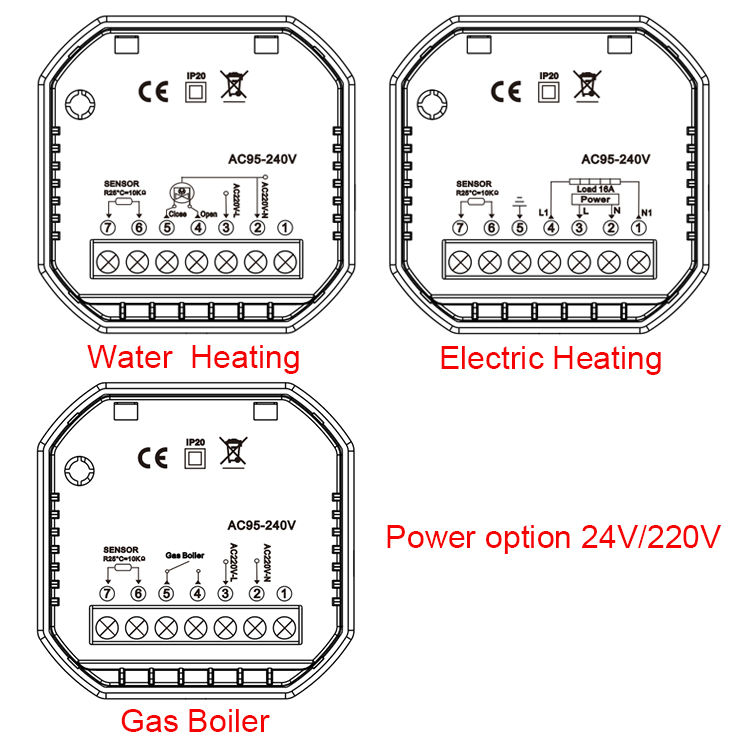

| Application | Underfloor Heating System/Water Heating System/Gas Boiler Heating System |
| Power | AC95- 240V/24V option, 50/ 60Hz |
| Controlled Load | water heater 5A/electric heater 16A |
| Mode | Programmable/Manaul Mode optional |
| Temperature Accuracy | +/-0.5℃ |
| Temperature Range | 5~60℃ |
| Programmable function | 5+1+1 Weekly Program |
| Button Lock Function | YES |
| Antifreeze Function | YES |
| Memory Function | YES |
| Temperature Sensor | Two Sensors(UHP model)/One senor(WHP model,GCmodel) |
| External Floor Sensor Length | 2.5meters |
| Sensor | NTC 10k 3977 |
| Communication Way | Modbus RS485 |
| Installation Hole distance | 86box/60mmEurope standard round box |
| Dimension | 86x86x40mm |
