Application: Electric Underfloor Heating System/Hydronic Underfloor Heating System /Gas Boiler Heating System

*UL 94V0 PC anti fire housing to make sure saftely

*Large VA ink LCD is comfort to see even during dark night

*Weekly program each day 6periods energy saving for you

*China TOP1 relay to make sure thermostat 100,000 lifetime

*Data memory even power off

*Control accurancy 0.5°C,Measure Temperature accurancy:0.1°C

*WIFI/ZIGBEE/MODBUS flexiable communication way for you select

*Tuya/Smart life app to control your thermostat anywhere

*White/Black/ODM color

*CE/ROHS/UKCA/FCC/REACH approved

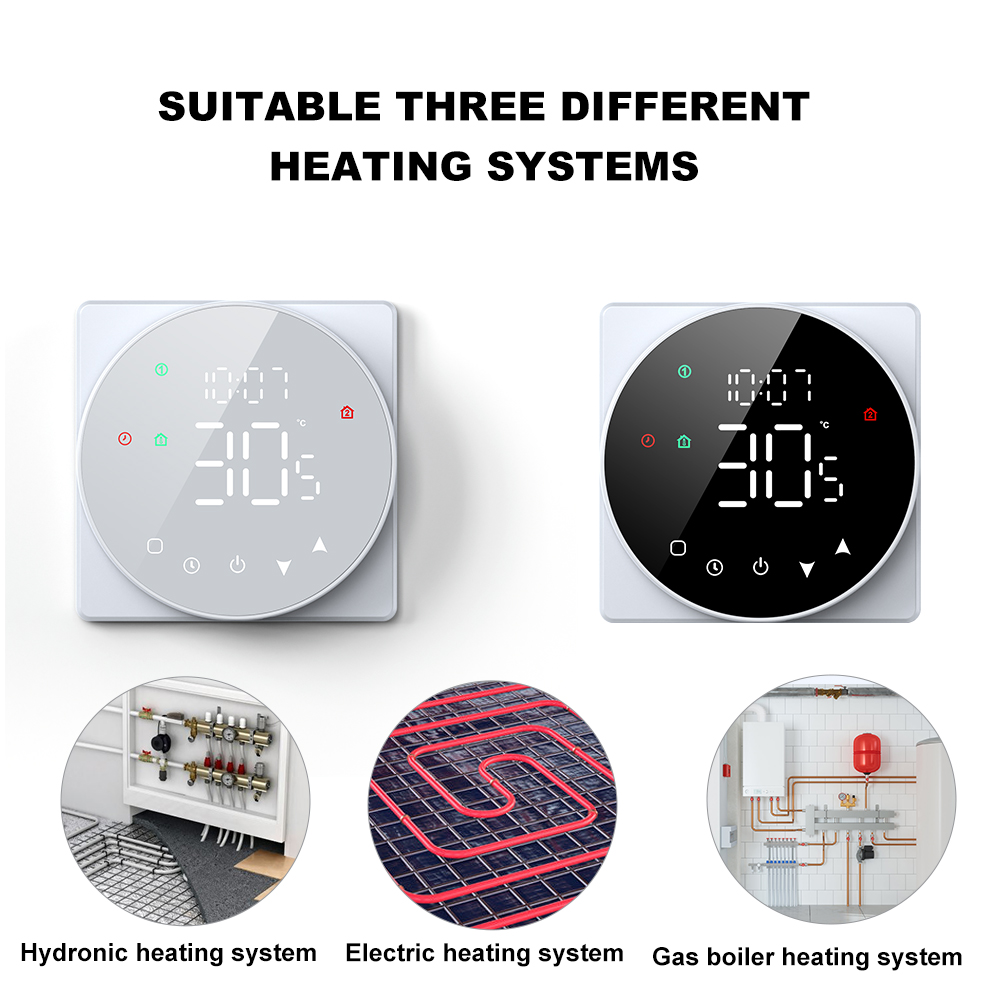

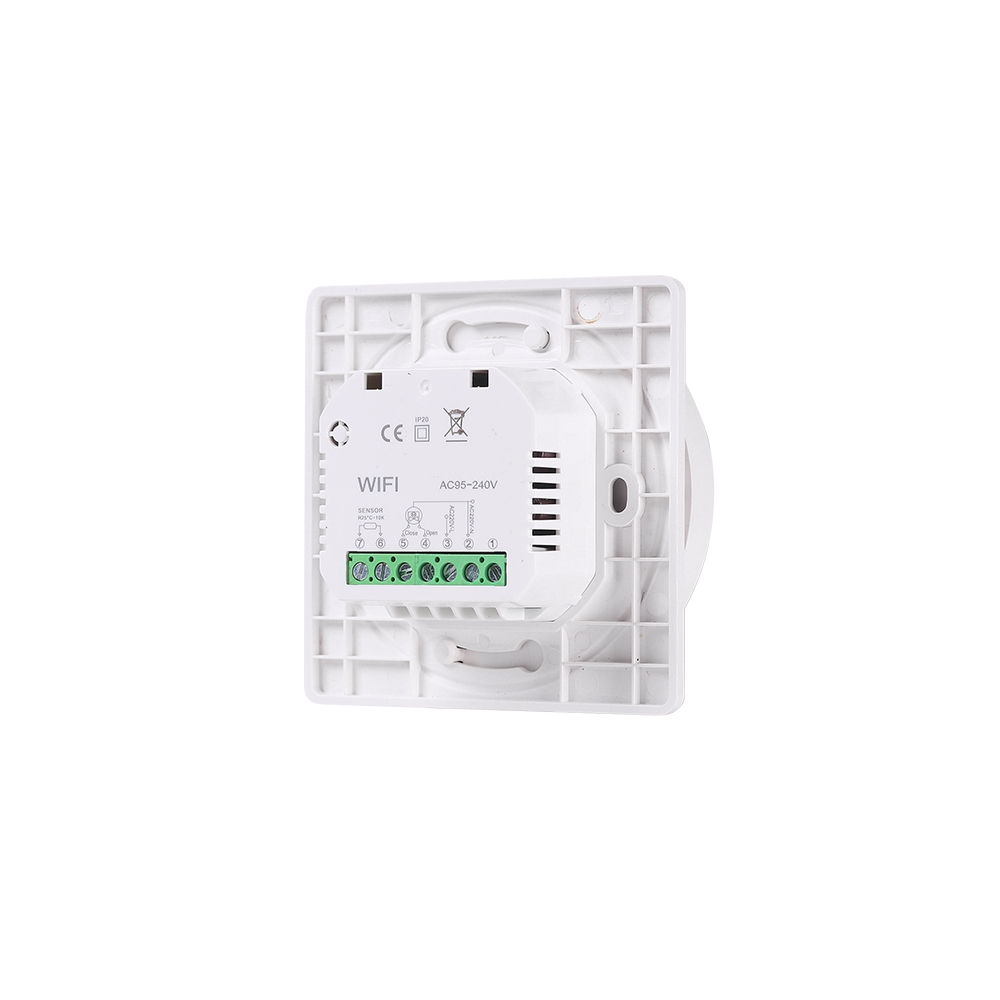

This 7 days programmable thermostat is a thermostat which is suitable electric underfloor heating system/water heating/Gas Boiler heating system

With RS485 Modbus communication.It is convenient for you to center control the equipments.

Normally inner sensor to detect room temperature.Compare with setting temperature to control equipment on off.Weekly programmble energy saving.

each day 6periods to setting your desire room temp.Child clock to protect thermostat do not change easily.

Technical Data

Features	Parameters
Application	Underfloor Heating System/Water Heating System/Gas Boiler Heating System
Power	AC95- 240V/24V option, 50/ 60Hz
Controlled Load	water heater 5A/electric heater 16A
Mode	Programmable/Manaul Mode optional
Temperature Accuracy	+/-0.5℃
Temperature Range	5~60℃
Programmable function	5+1+1 Weekly Program
Button Lock Function	YES
Antifreeze Function	YES
Memory Function	YES
Temperature Sensor	Inner sensor or external sensor
Sensor	NTC 10k 3977
Communication	Modbus RS485
Installation Hole distance	60MM

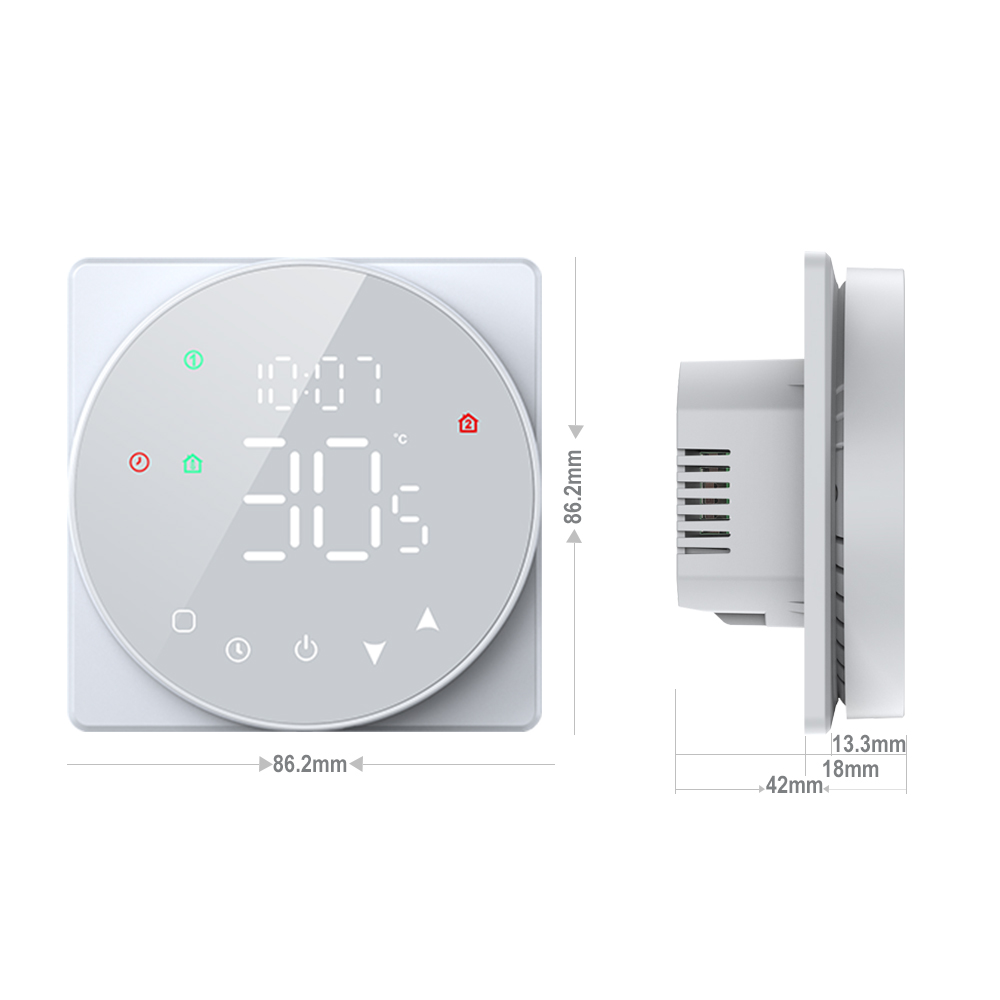

Dimension	86x86x40mm
