 Forging brass valve body

 Stainless steel base, aluminum shell

 Totally enclosed uni-directional hysteresis synchronous motor drive, stainless steel spring return

 Electric valve is divided into normal close 2-way valve and bypass the 3-way valve

 Motor voltage and valve body to take over the form can be custom made according to customer requirements

 220V/24V Option

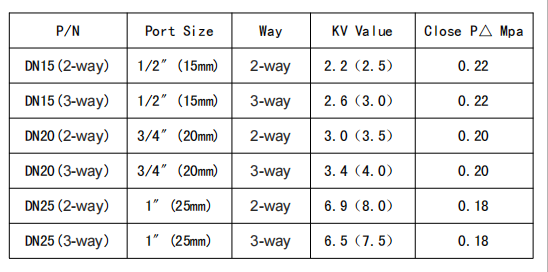

Model Select:TP20215(2way 1/2''),TP20220(2way 3/4"),TP20225(2way,1")

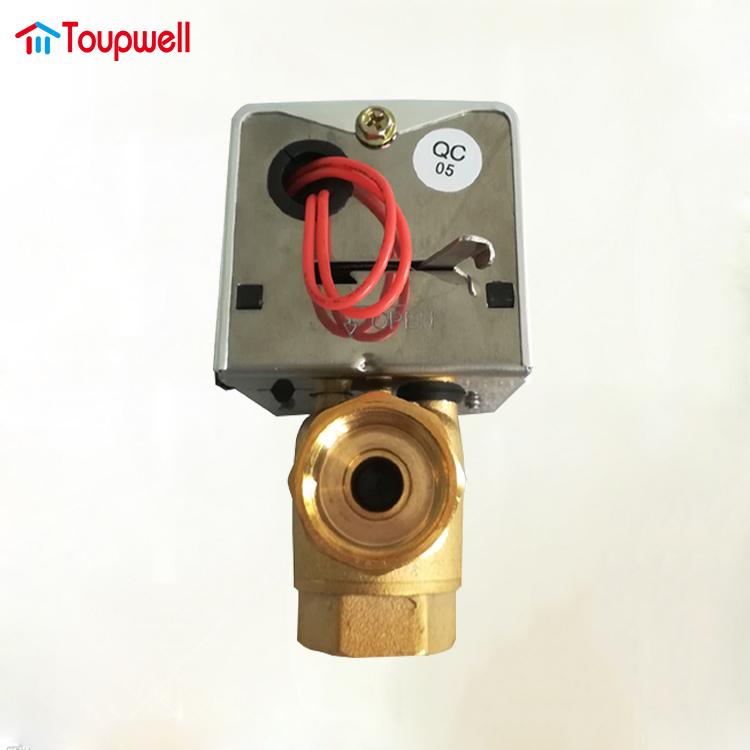

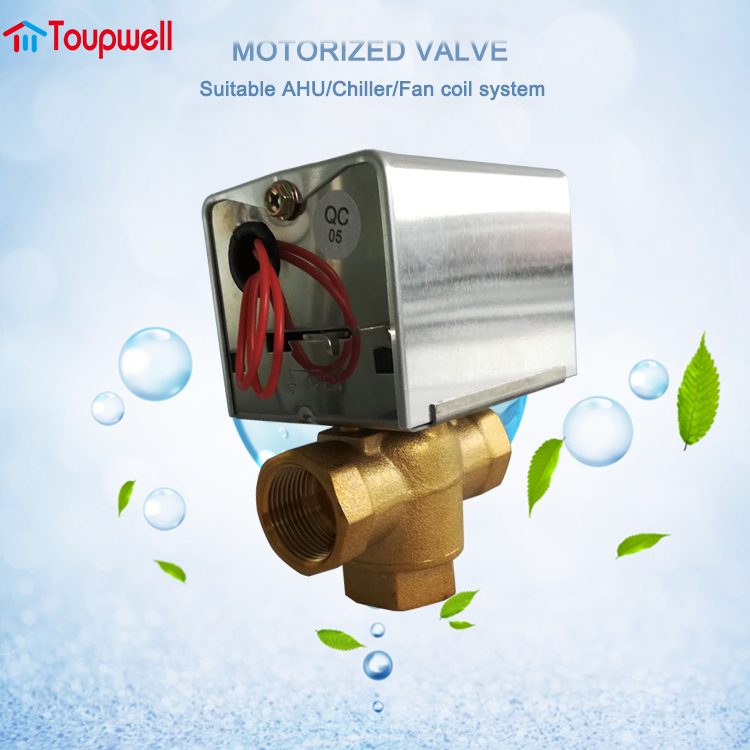

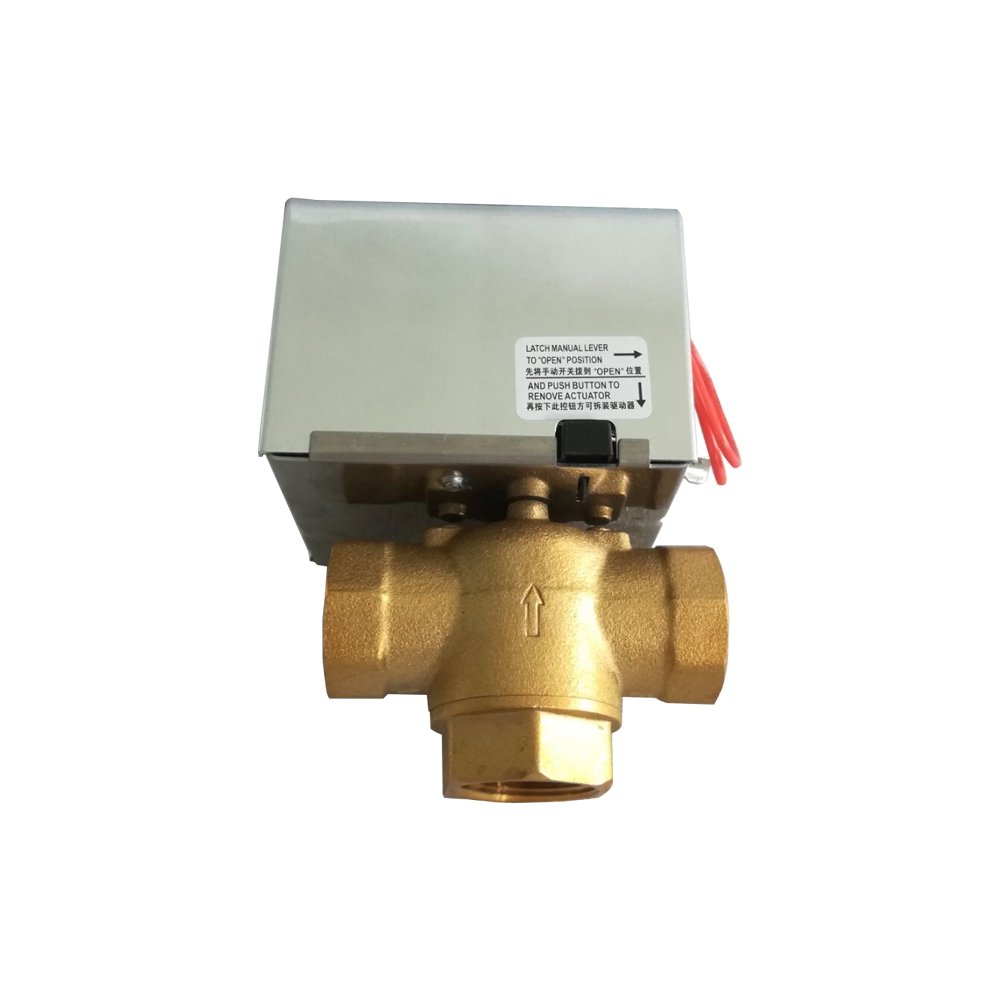

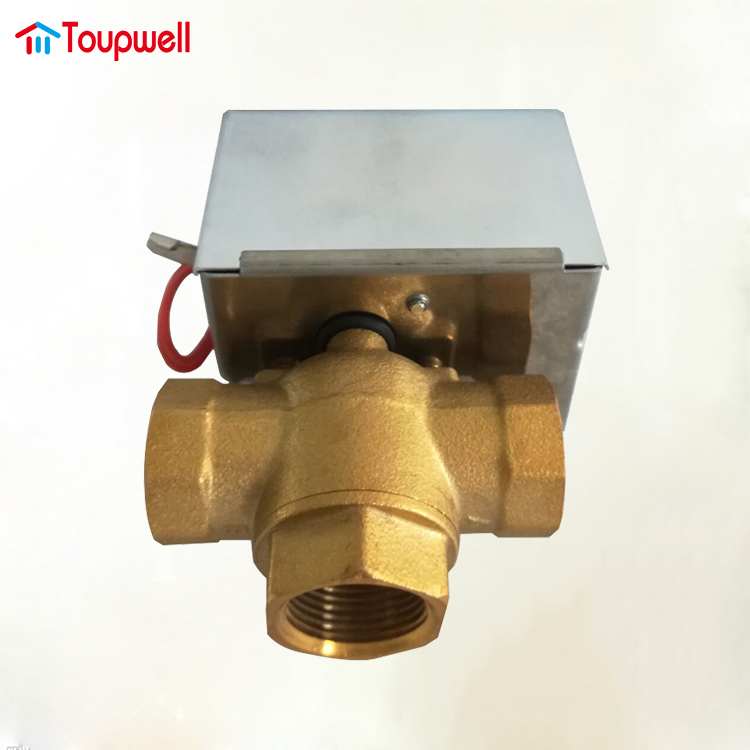

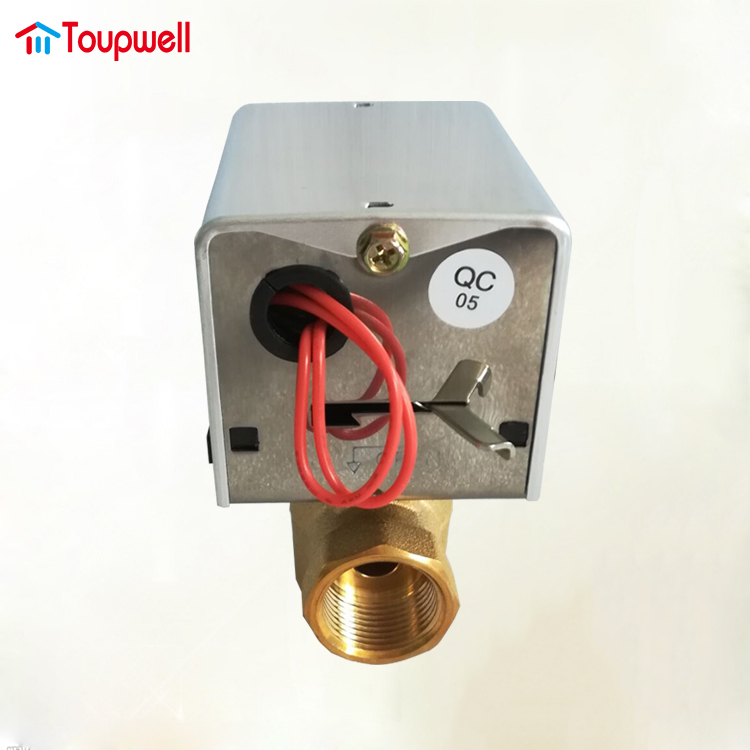

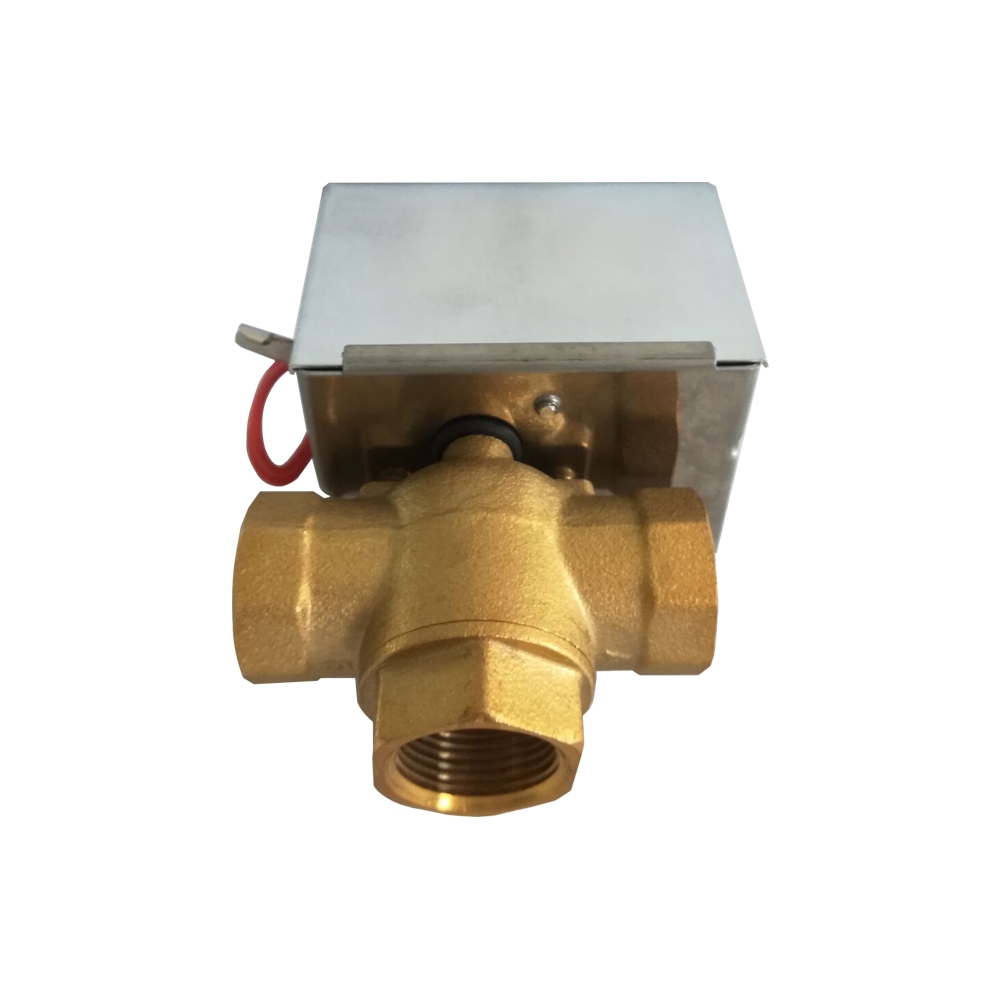

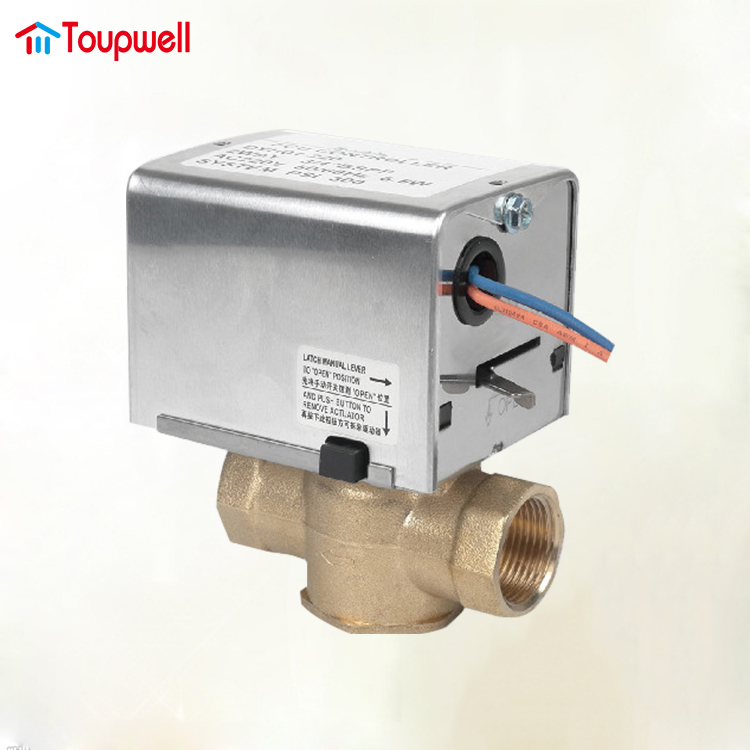

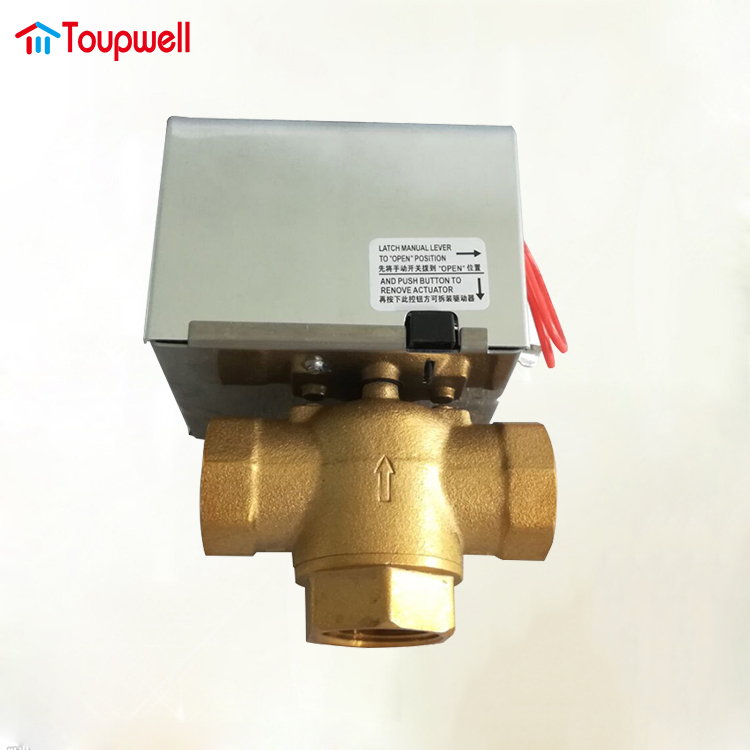

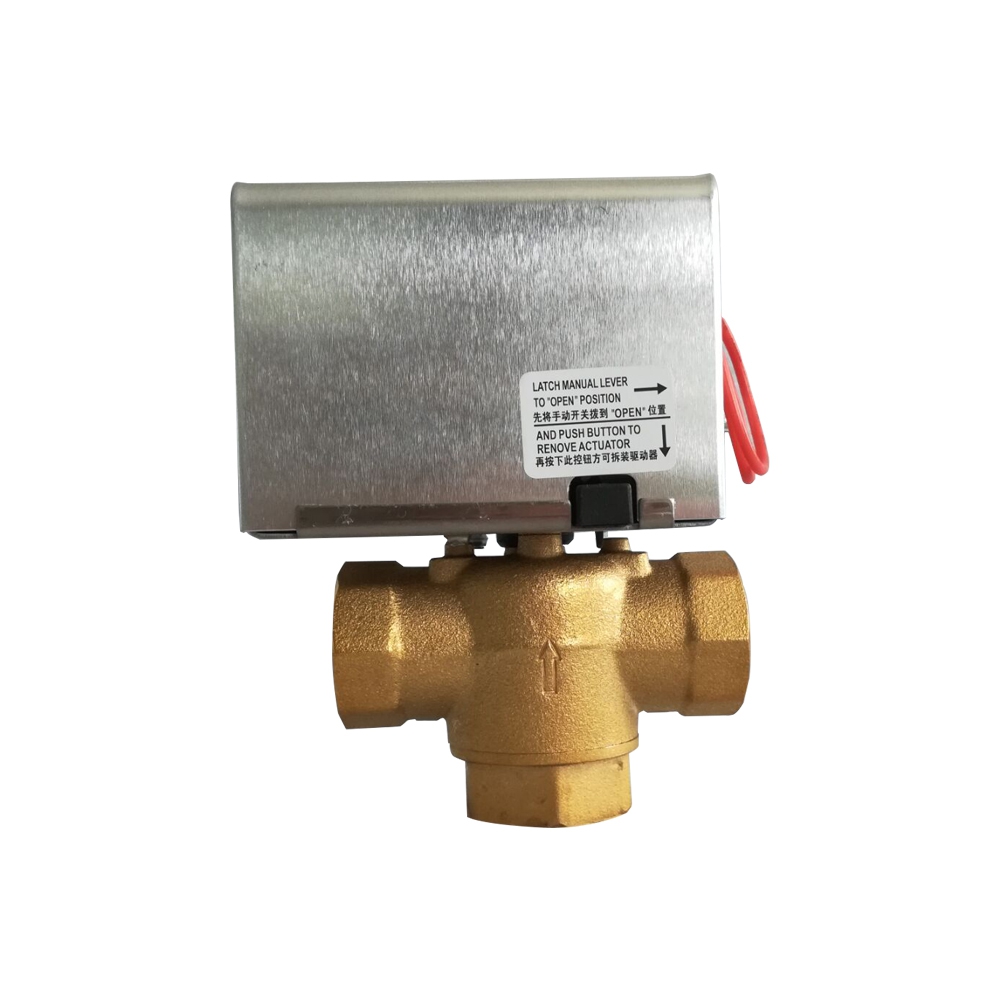

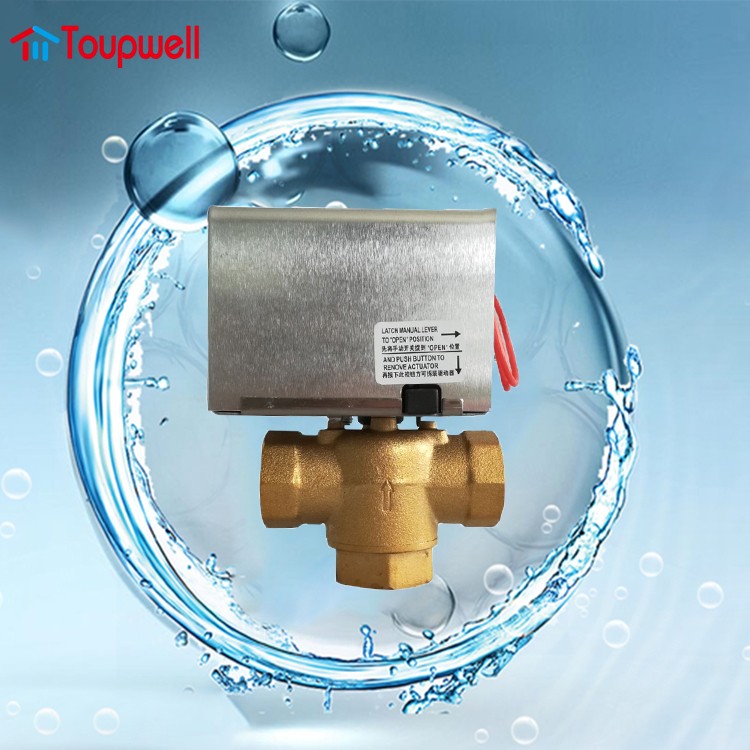

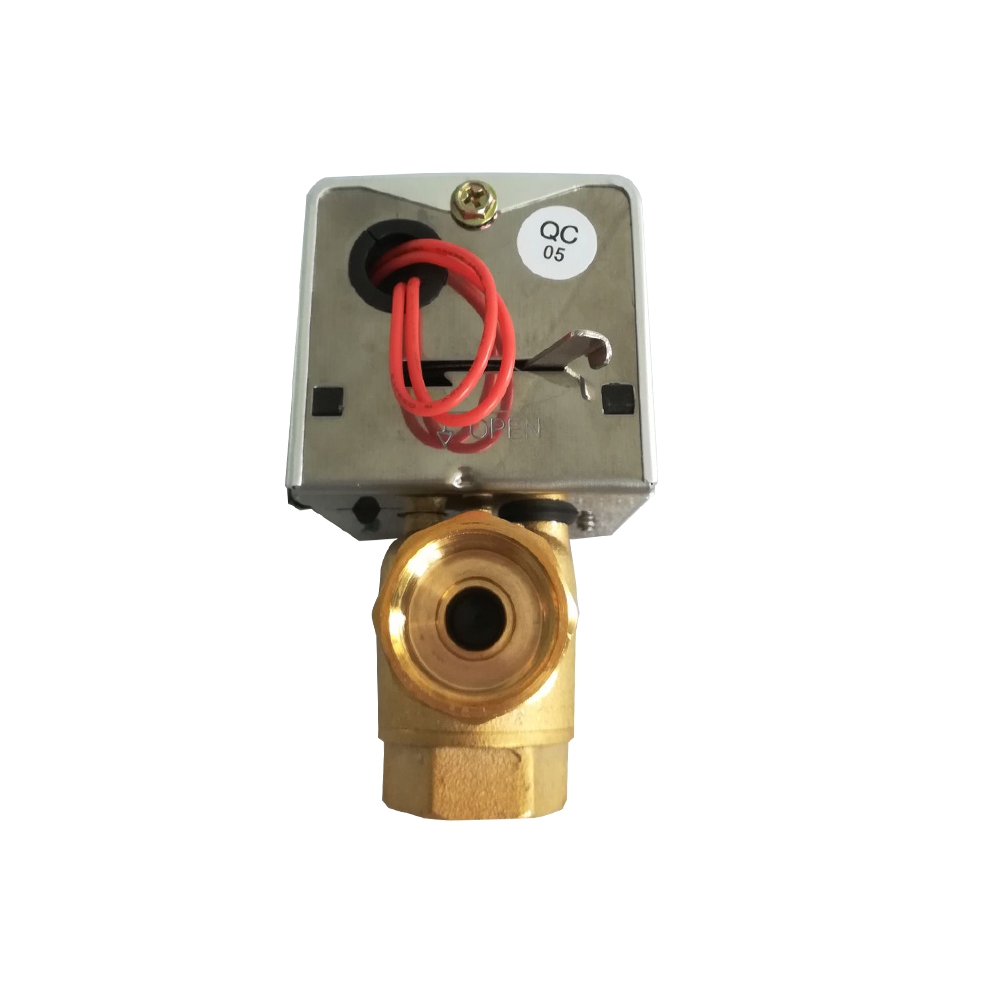

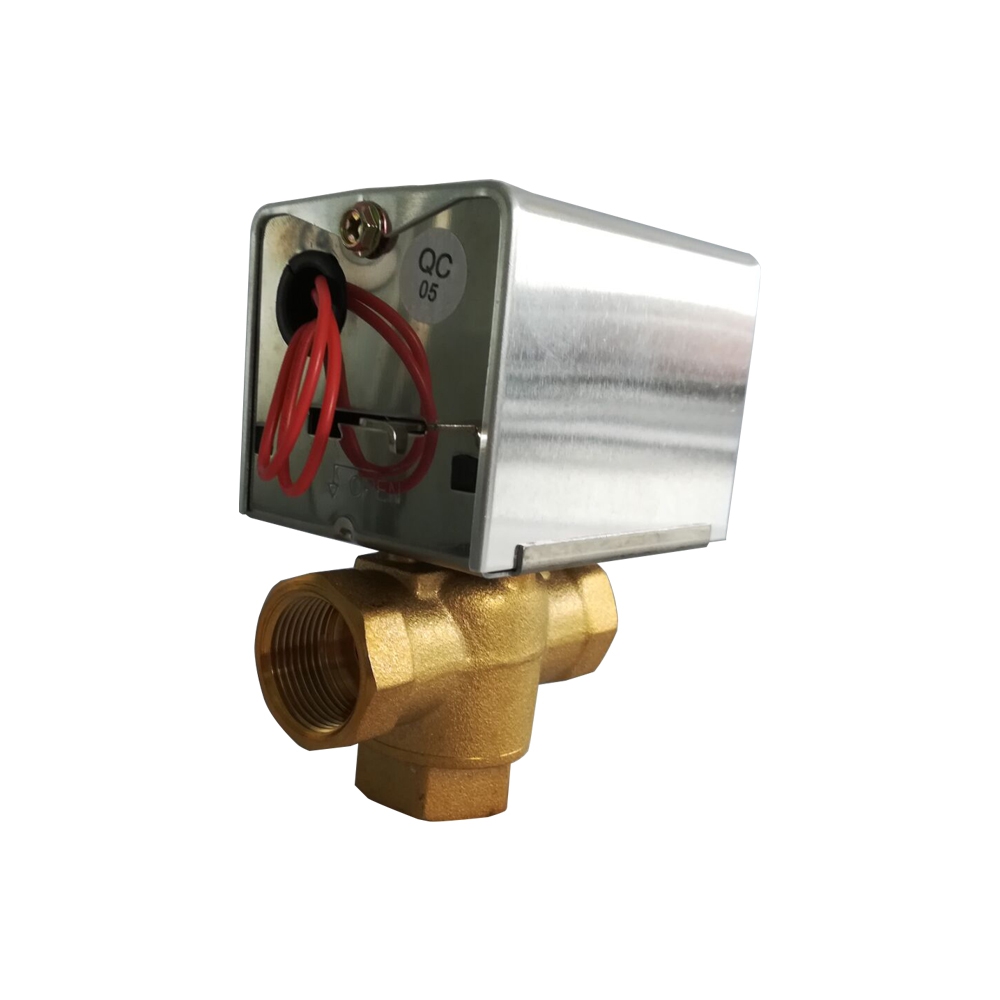

TP20series Spring Return function On off Motorized Valve

Brief Instruction

This series of Motor Valve is used for the control of the ends of center A/C. Thermostat control the motor of the Valve,

and make on/off through speed-down machine and reset spring to carry out the break/on of the hot/cold water in the pipe

Main Specification

1. Power supply: 220V +/- 10%

50Hz～60Hz

2. Power: <6.5W

3. Pressure: 1.6MPA

4. Valve Action time: Fission valve: open time 14～18s closing time 5～7s Form-fitting valve: open time 8～12s closing time 3～5s

5. Working Circumstance: Air temperature: 5～40℃ Pipe water fluxion temperature: 5～90℃
