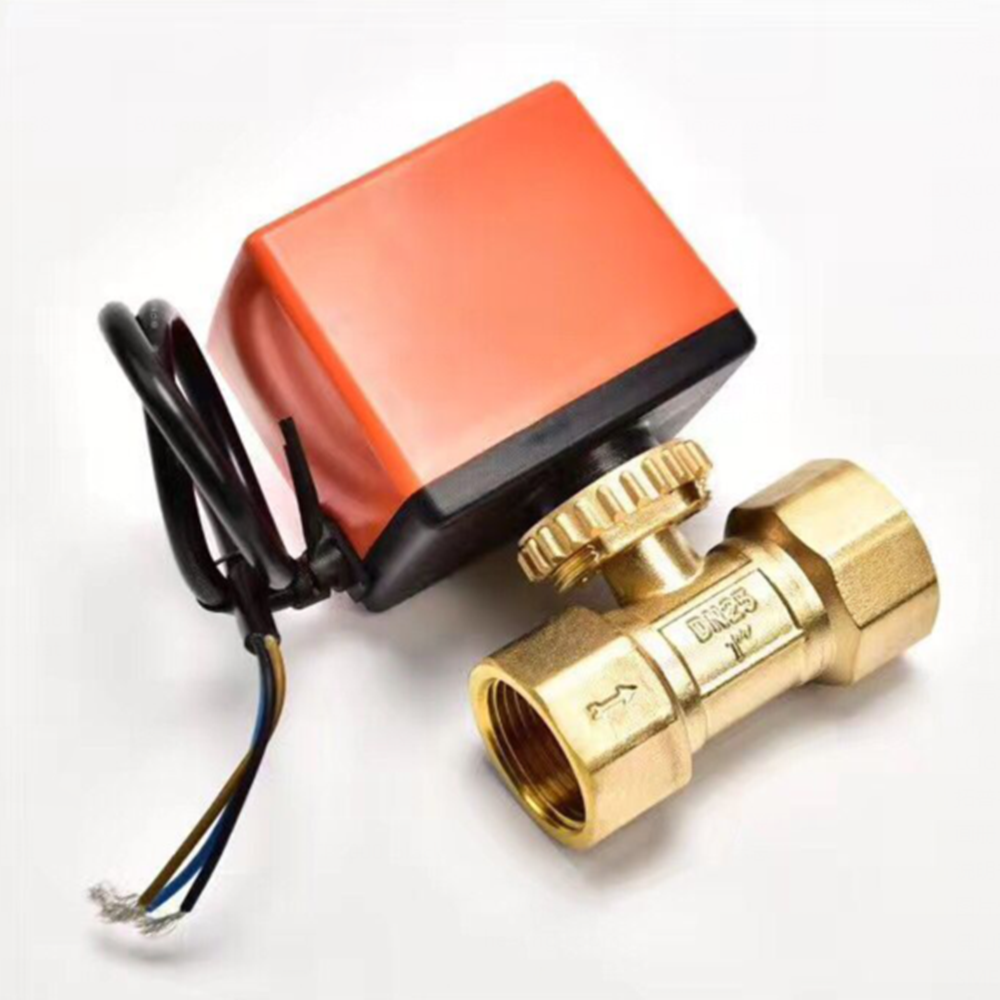

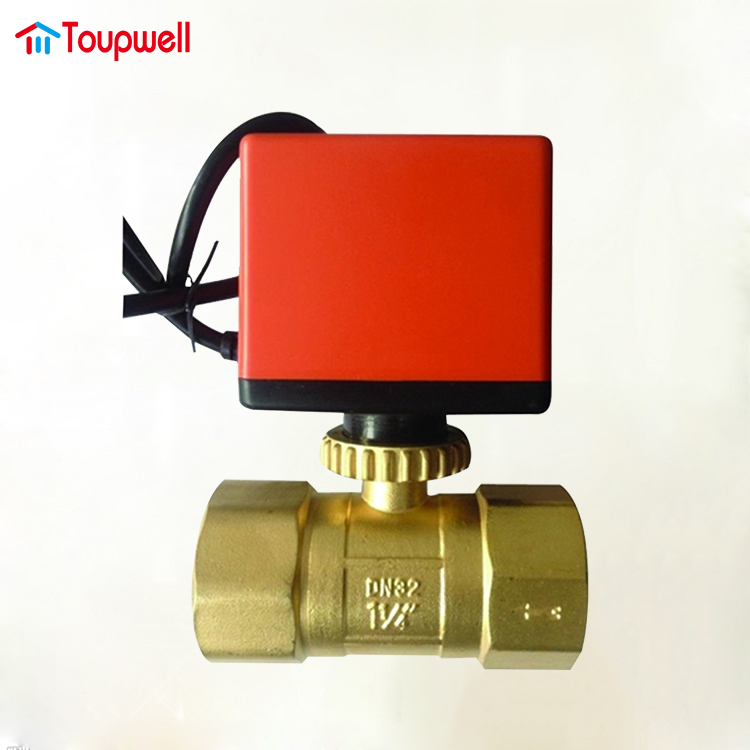

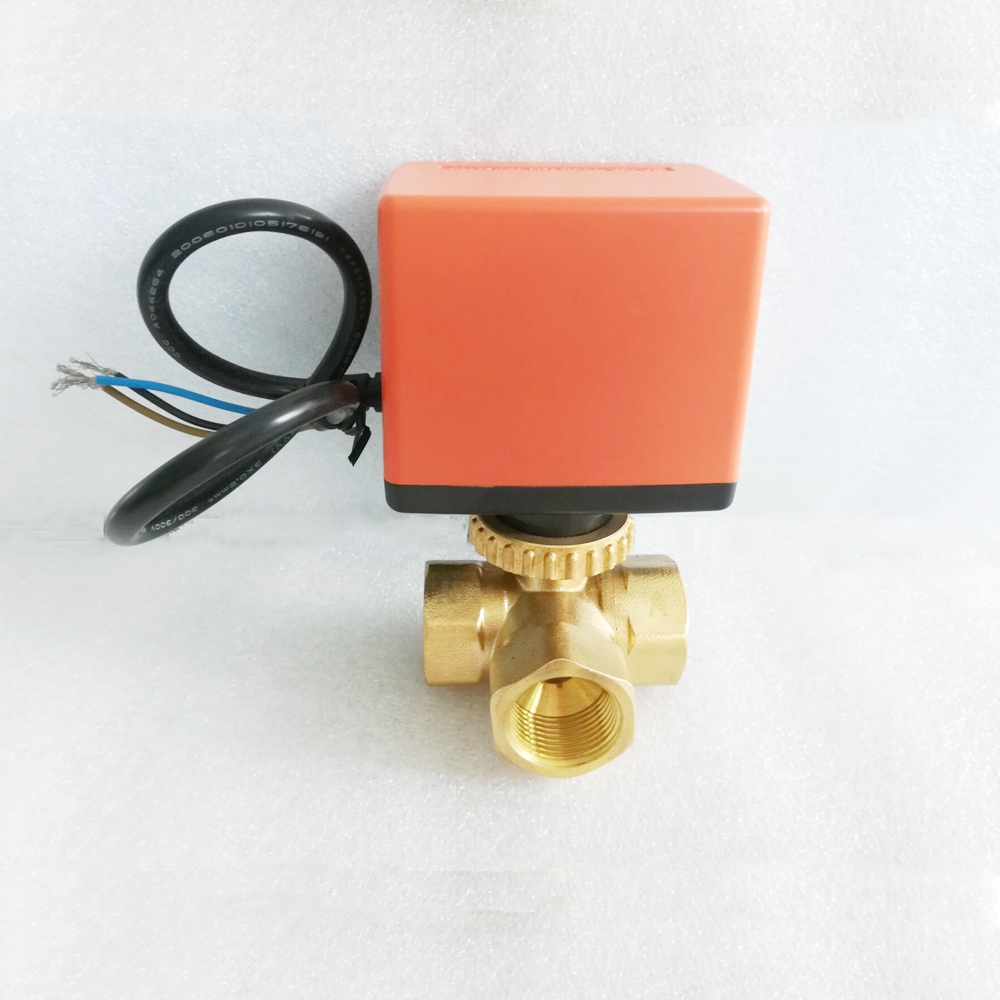

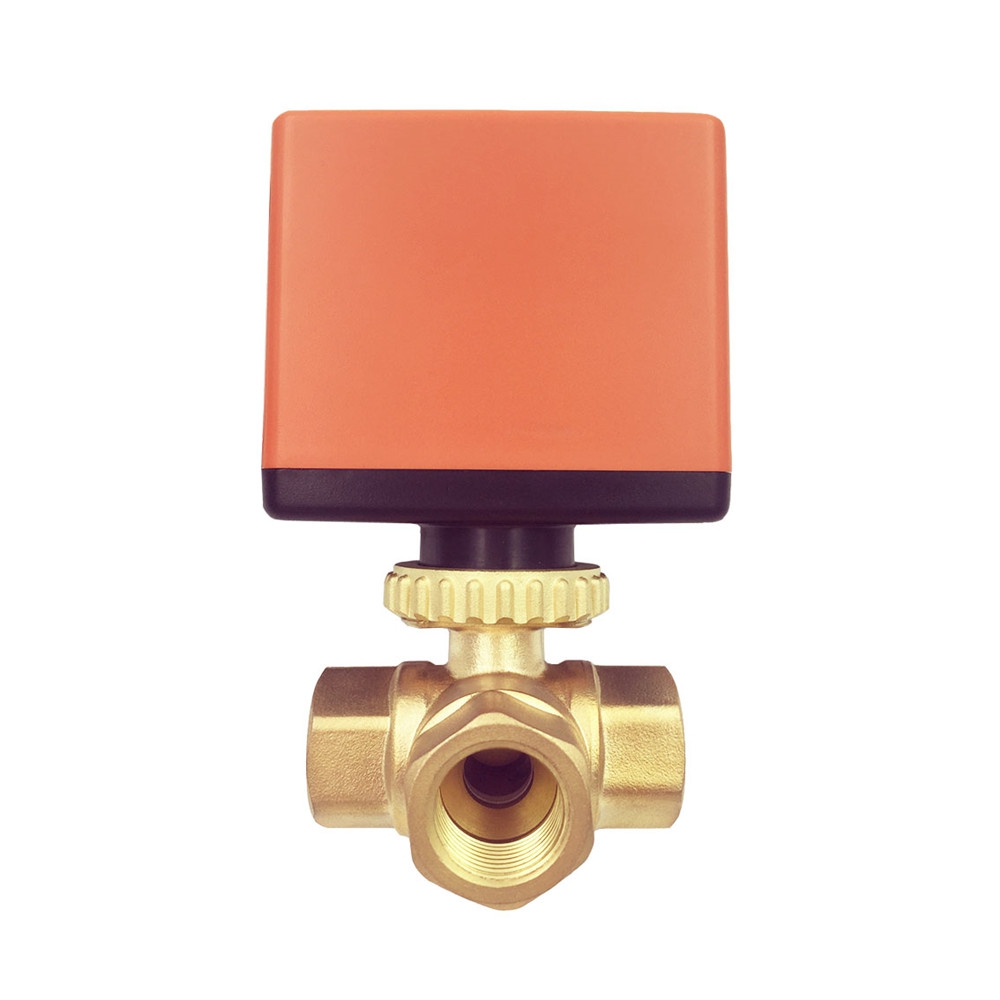

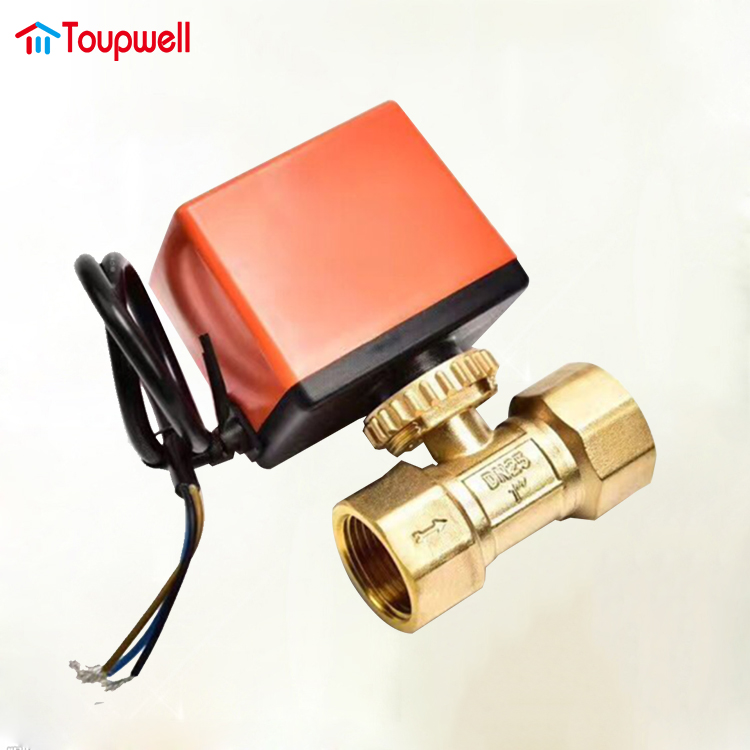

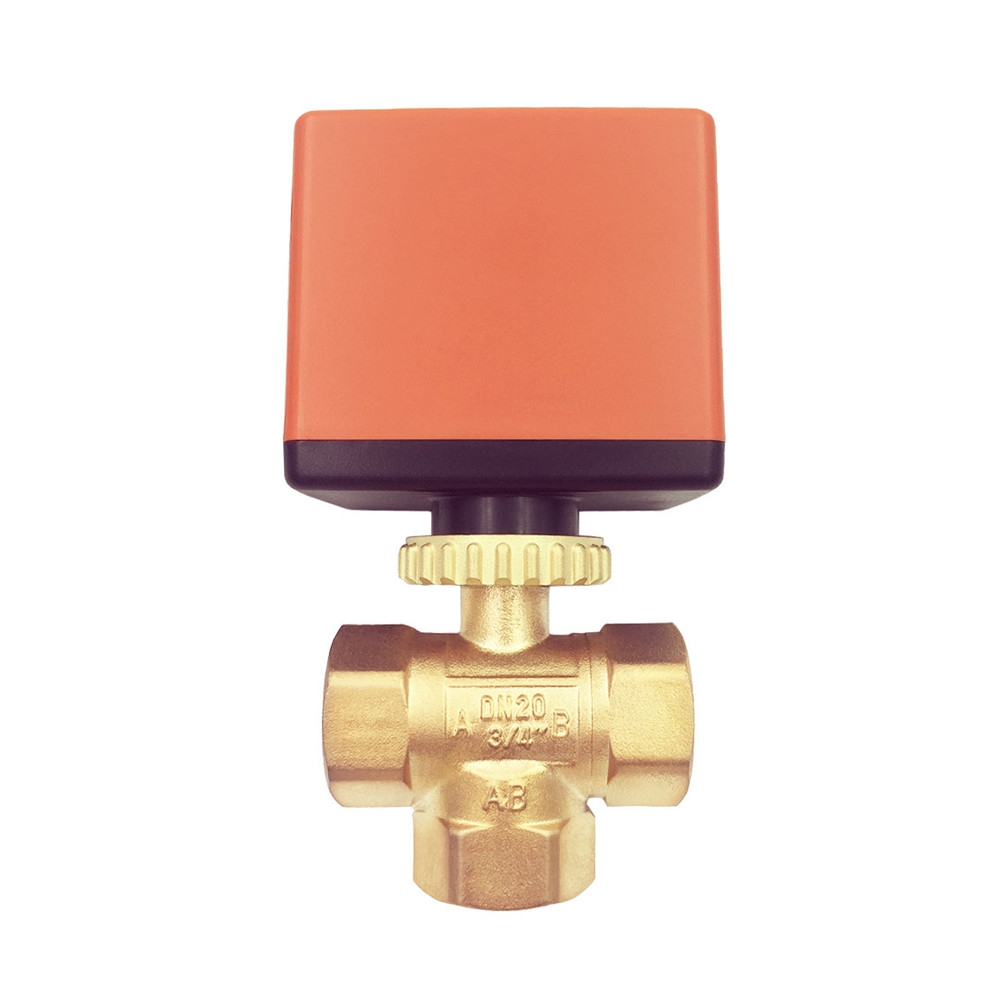

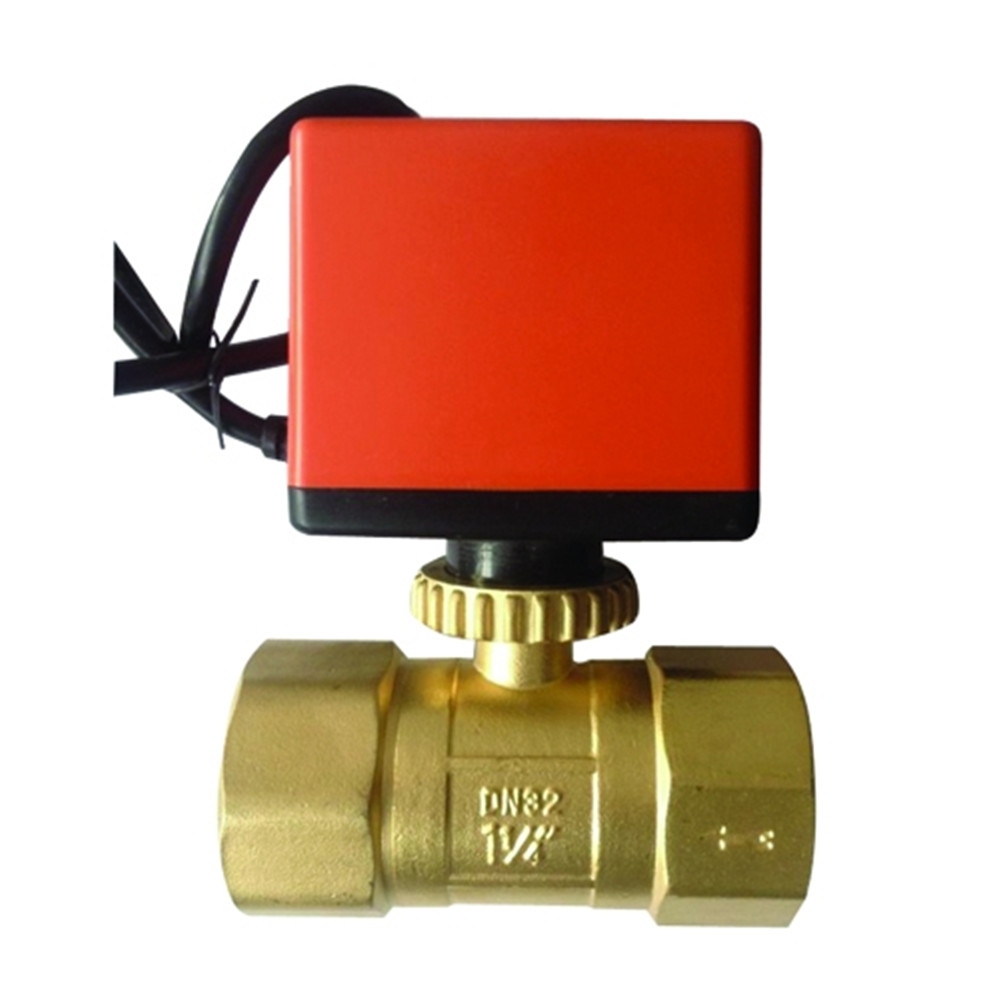

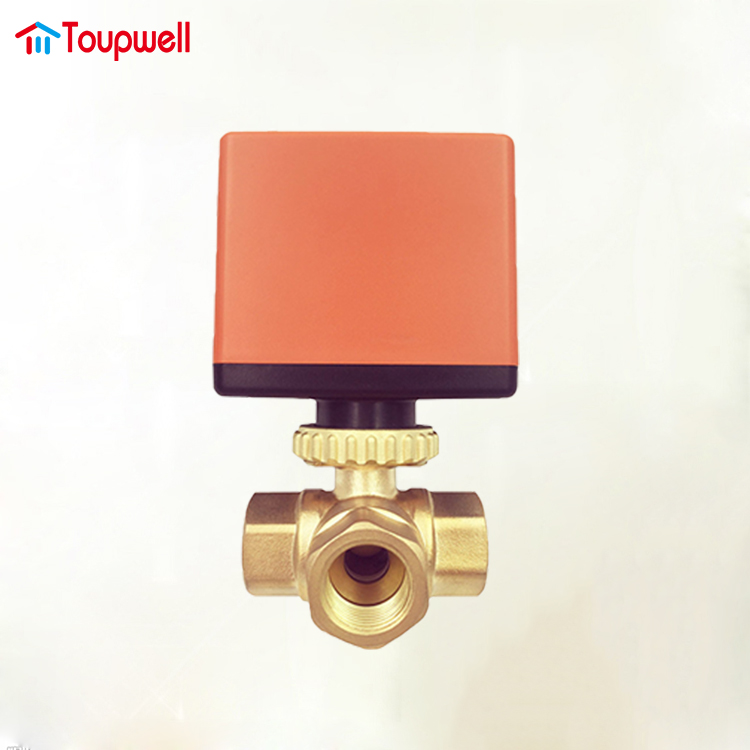

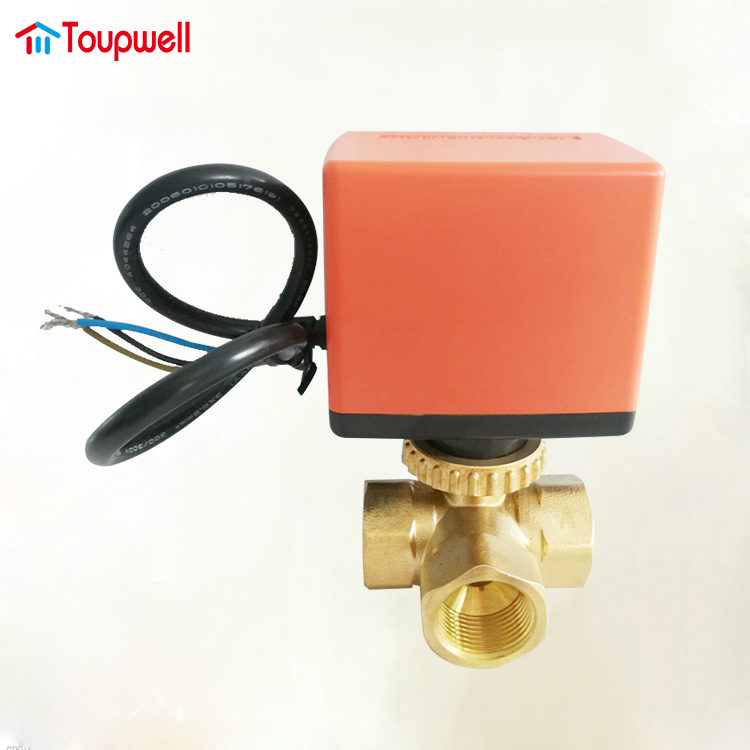

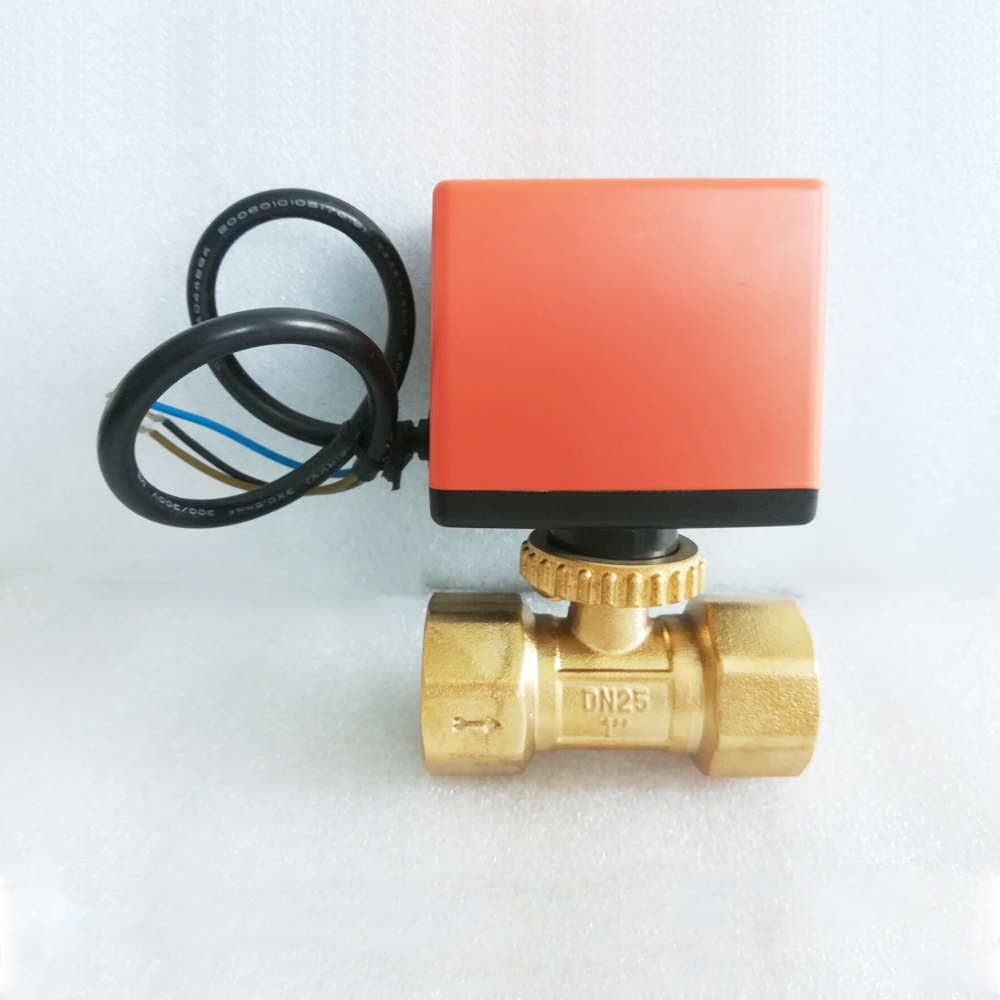

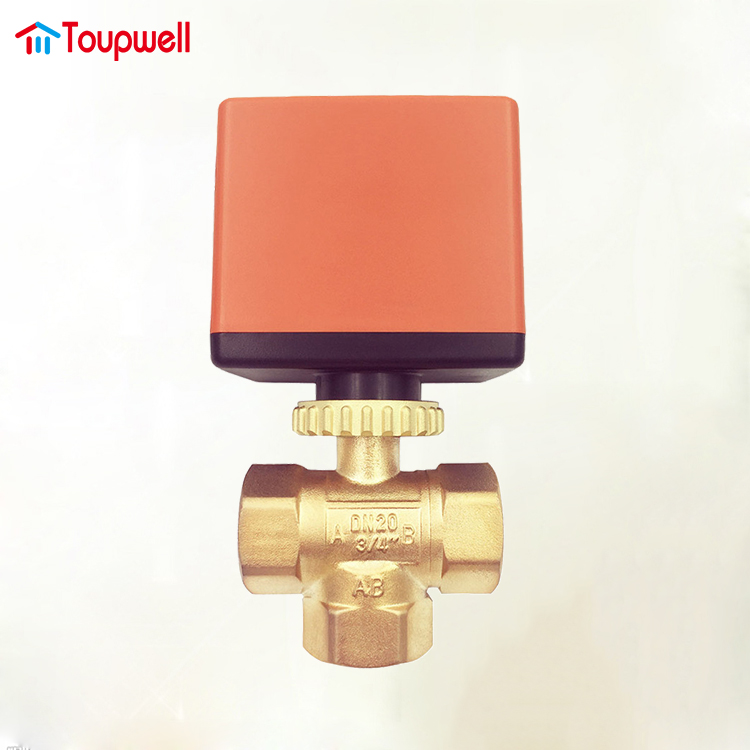

2way 3way Max DN32  Motorized on off Valve TP60series

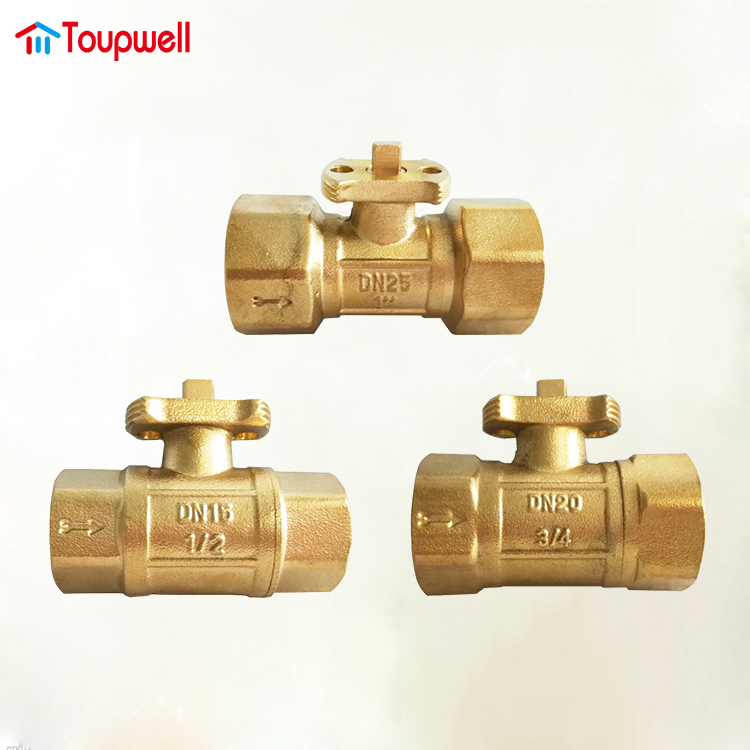

This series motorized valve is applicable to on-off control of air conditioner water system, is composed of driver and valve body. The valve body is forged by high-quanlity brass,the driver a dopts inflame resistant plastic, installed limit contact switch internally, the B-type driver internal relay can realize one line control and multi-valve parallel connection. The driver also provided with manual valve-opening machine for convenient debugging and pressure testing of system. This series motorized valve can match all kinds of thermostatic switch to realize the energy-saving function of the air conditioner system.

Features:

¨ Well waterproof and dustproof features (IP65)

¨ Actuator is insulated well to valve body and the ambient

¨ Quick and easy replacement of moving actuator

¨ Actuator can be installed after plumbing work completed, which makes for more efficient on-site installation

¨ Valve may approach the wall to mount

¨ Valve can be operated by general tools when actuator has been removed

¨ Actuator installation allows for 2 different wiring orientations thus providing ease of wiring and service

¨ Differential pressure up to 150psi,is suitable for HVAC systems with sudden high head pressure with sudden high head pressure

¨ There has no sediment at the valve bottom due to direct flow passage of valve

¨ Soft shut-off and open, to eliminate water hammer in most applications

¨ Motor doesn’t bear any forces when valve is not in motion extending service life

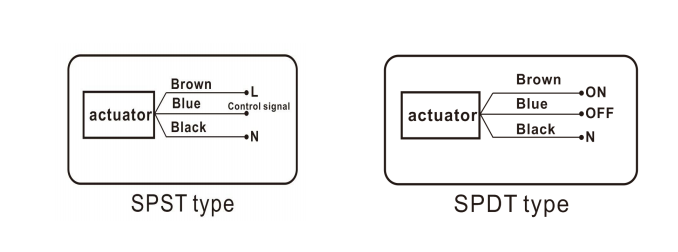

Actuator Wiring Diagram
