This digital programmable heating and cooling DX thermostat is designed to controls the fans,  dampers  of DX unit system

 It detects the room temperature with its integrated temperature sensor and compares it with the setpoint temperature. In the event of a deviation, the compressor is opened

With WIFI/MODBUS Communication.It is easy to control your room temp

Single stage.Multi stage.1speed or 3peed.24V or 220V.external sensor.5A or 10A option

Feature:

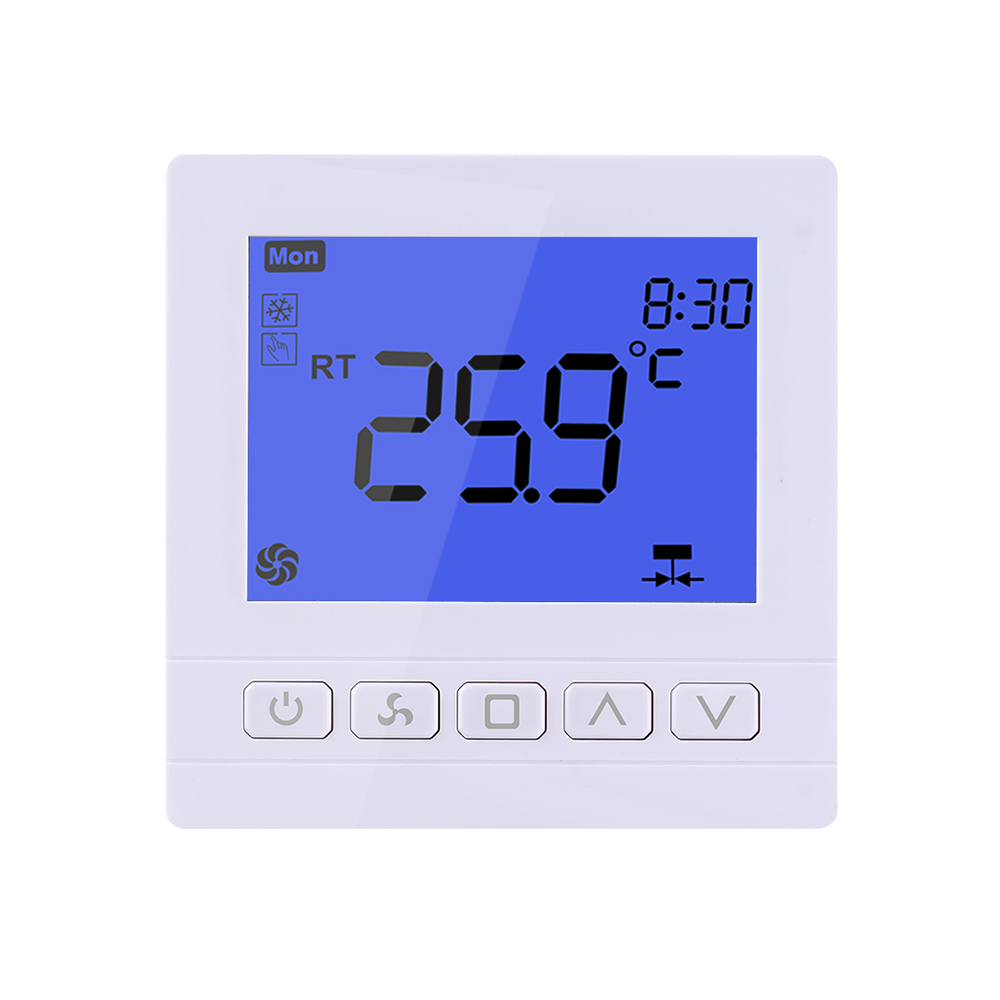

Large LCD display with backlight (green or blue)

Set point and room temperature are displayed simultaneously.

Adjustable 3-speed fan with fan stop option.

Manual change over.

Display temperature recalibrates.

Never lose user setting in the event of power-off, no battery is required.

Room Card and Window Card option.

Inner Sensor or External sensor option.

Modbus communication

SPECIFICATION:

Power Supply: 100-240VAC 50/60Hz

Fan Relay Amps inductive: 8(5)A

Heat/Cool Relay Amps inductive: 1(0.5)A

Color: White

Set point Temperature Range: 5°C to 35°C

Dimensions：86mm×86mm ×40mm

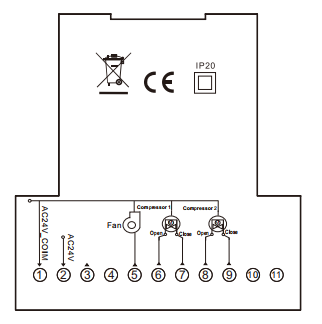

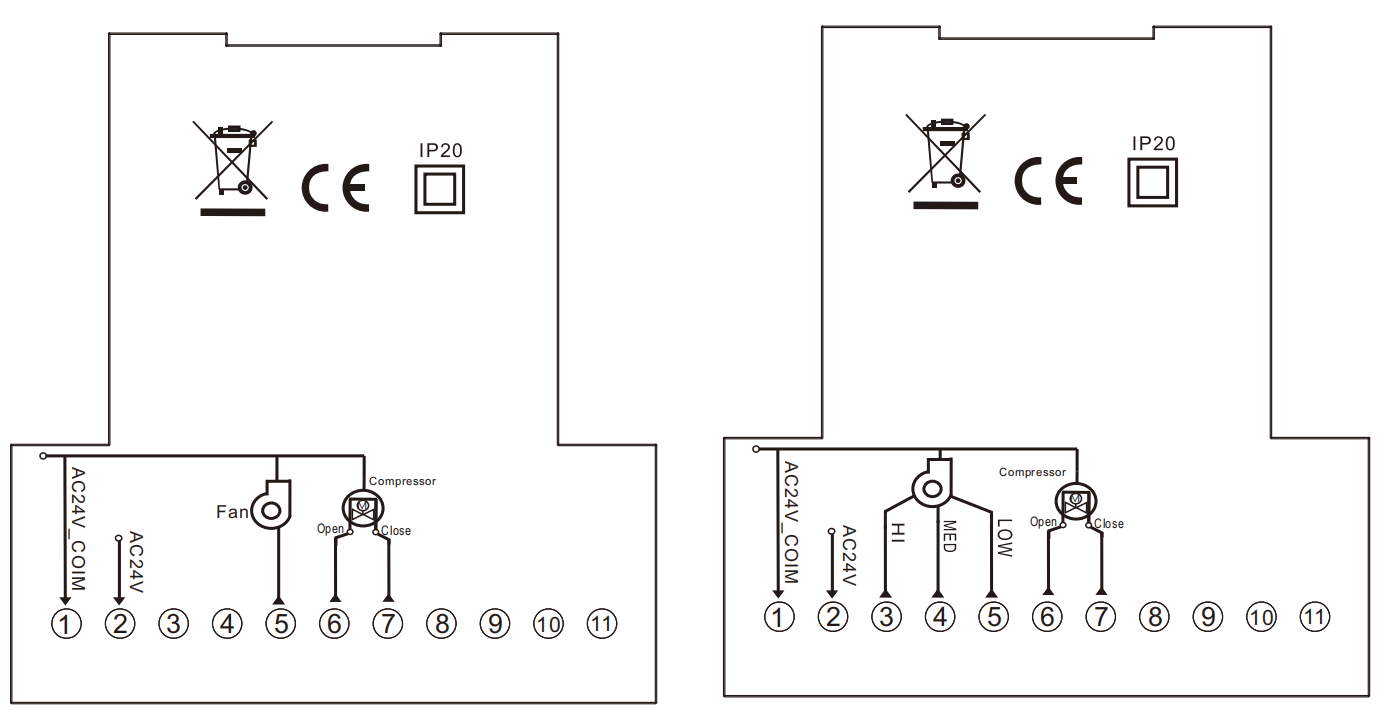

Wiring Diagram
